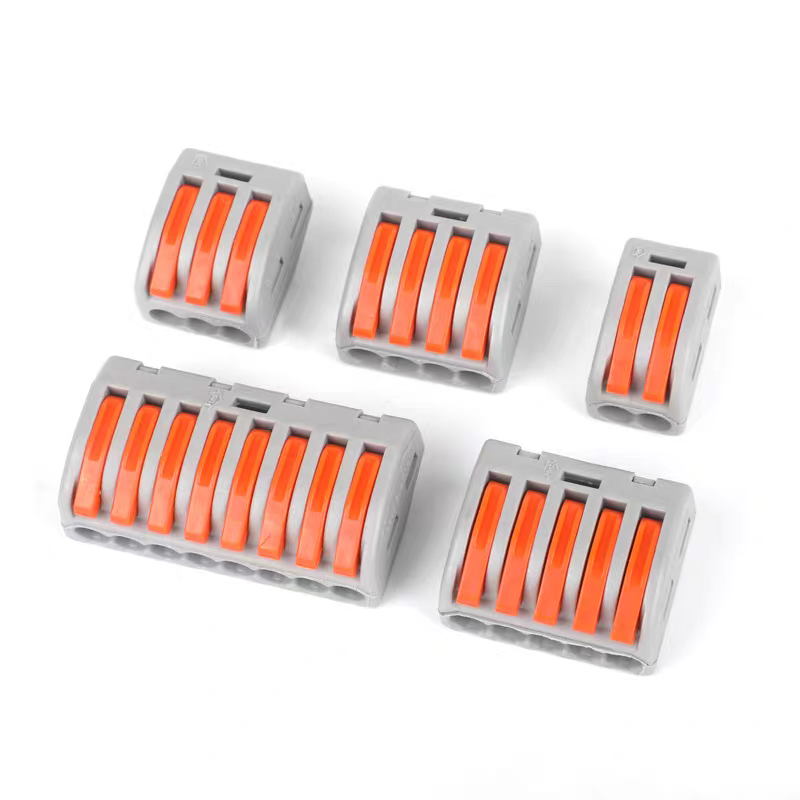

The 222 Series 4mm² Lever Quick Wiring Connector is a universal tool-free splicing connector

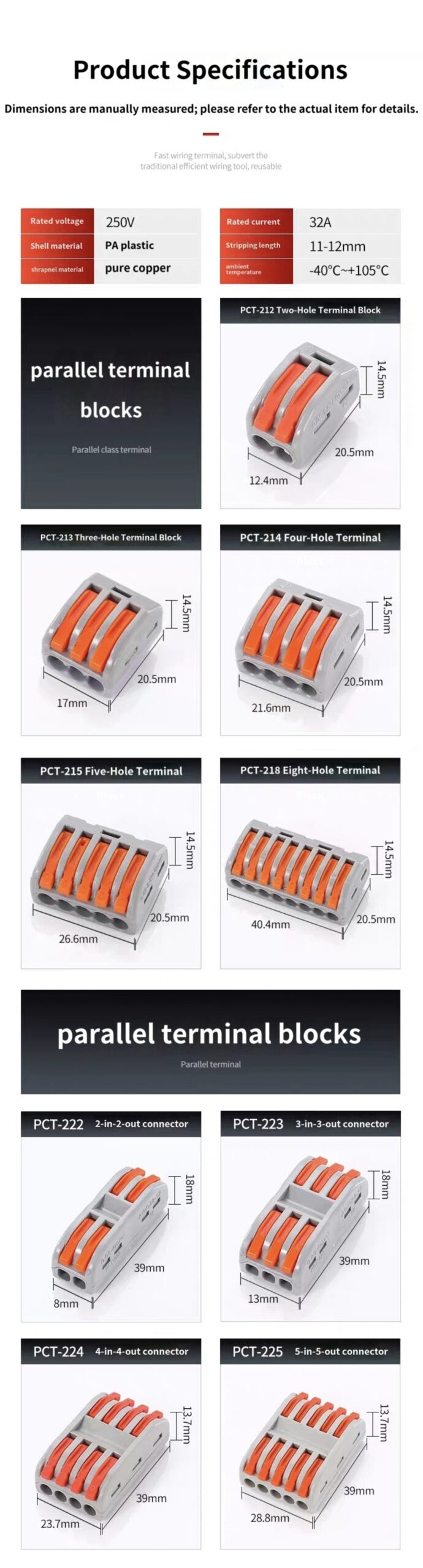

| Item | Specification |
|---|---|
| Model | 222-412，222-413，222-414，222-415，222-418 |
| Connection Type | Lever press quick connection |
| Applicable Wire | 0.08mm² – 4mm² |
| Rated Voltage | 250V |
| Rated Current | 32A |
| Working Temperature | -40℃ ~ 105℃ |
| Structure Feature | Movable operating lever, reusable splicing |
| Material | Elastic metal clip + flame retardant plastic housing |
| Fire Grade | UL94 V-0 |
| Certification | CE, RoHS, CQC |
| Features | Easy lever operation, firm clamping, reusable, safe insulation |
| Application | Household wiring, lighting circuit, equipment wire branching connection |
Product Description
222 series lever wire connector is designed for fast cable splicing and branching. Equipped with flexible operating lever, wiring and disassembly can be finished effortlessly.

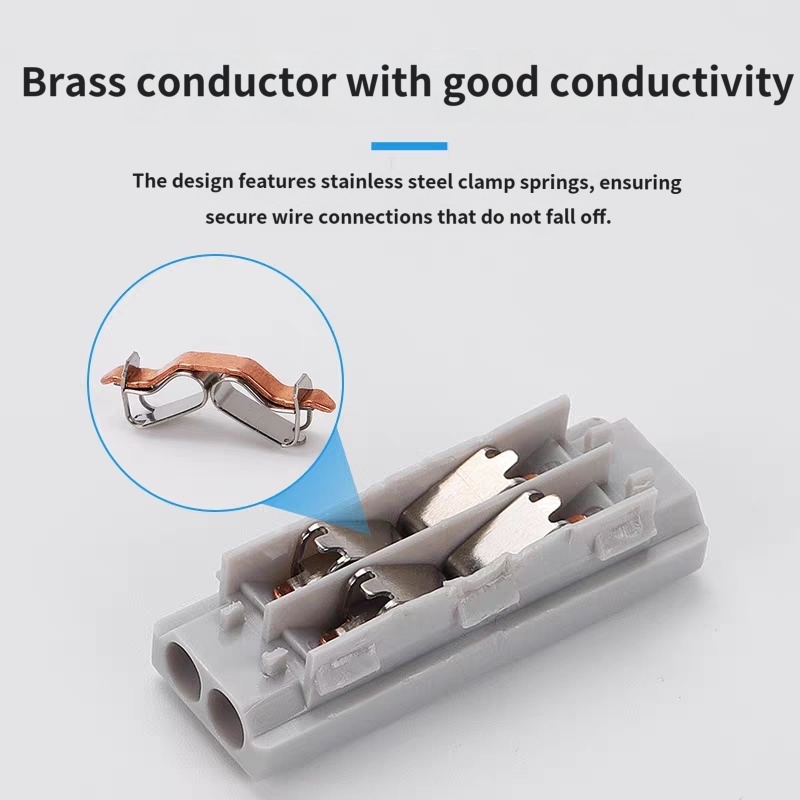

Elastic metal clamping piece locks wire cores tightly, delivering stable conductivity and anti-loose performance.

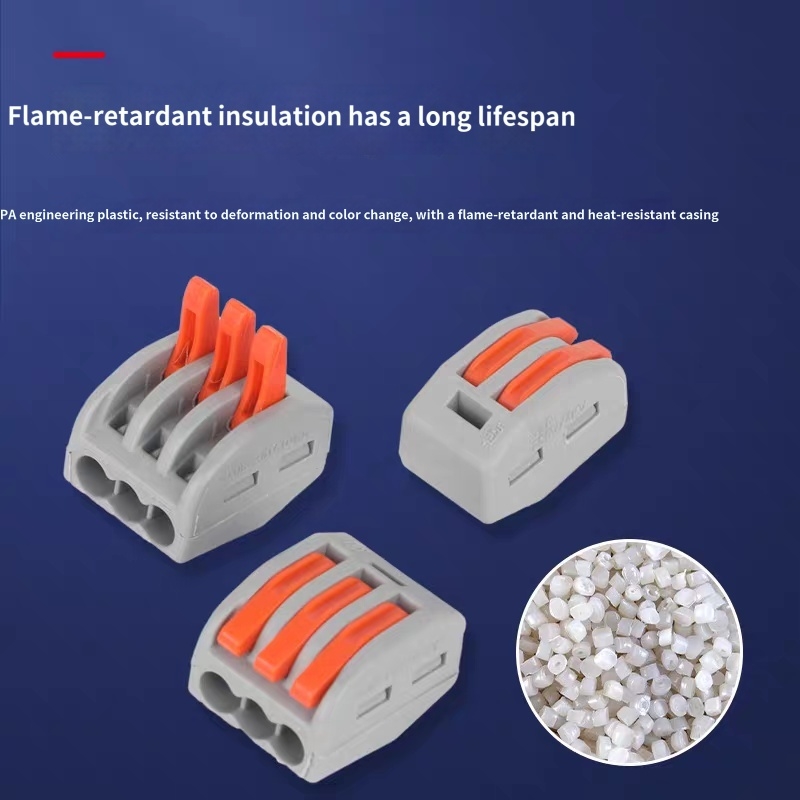

Flame retardant insulated shell effectively prevents electric leakage and short circuit. Reusable structure facilitates circuit adjustment and maintenance, compact size suits narrow installation spaces.
222 Series Connector Applications
– Low voltage control panels & distribution boxes
– Household wiring, lighting circuits & power outlets
– Industrial equipment, automation systems & HVAC
– Building wiring, junction boxes & cabinet wiring
– Repair & renovation of electrical systems
– Low voltage control panels & distribution boxes
– Household wiring, lighting circuits & power outlets
– Industrial equipment, automation systems & HVAC
– Building wiring, junction boxes & cabinet wiring
– Repair & renovation of electrical systems
Product Features

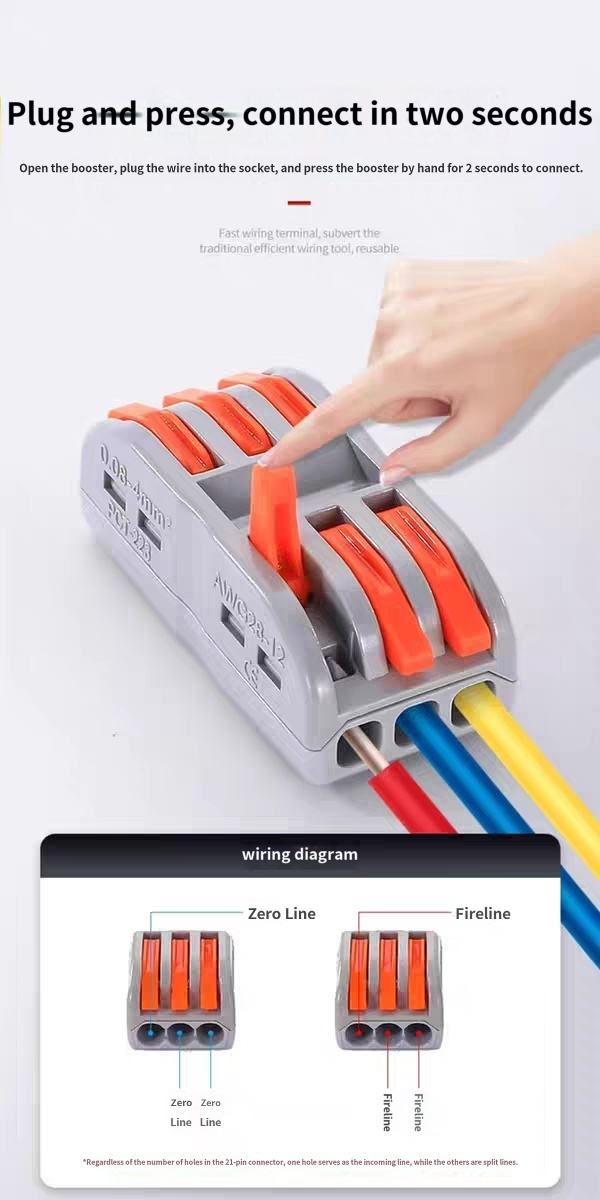

- Lever Control Operation
Simple flip and press to lock or release wires - 4mm² Large Wiring Capacity
Satisfy medium current cable connection requirements - Dual Wire Adaptation
Fit solid hard wire and flexible stranded wire - Stable Anti-vibration Clamping
No loose contact after long-term operation - Reusable Detachable Design
Convenient for wiring modification and reuse - High Grade Flame Retardant Material
Heat resistant and safe insulation protection - Compact Portable Structure
Save space for dense wiring layout - Authorized Safety Certification
Comply with CE, RoHS, CQC quality standards
Application Scope
- Indoor household power line branching and splicing
- LED lamps and various lighting circuit connection
- Junction box internal wire continuation and distribution
- Electrical equipment internal circuit assembly
- Low voltage engineering wiring and renovation work

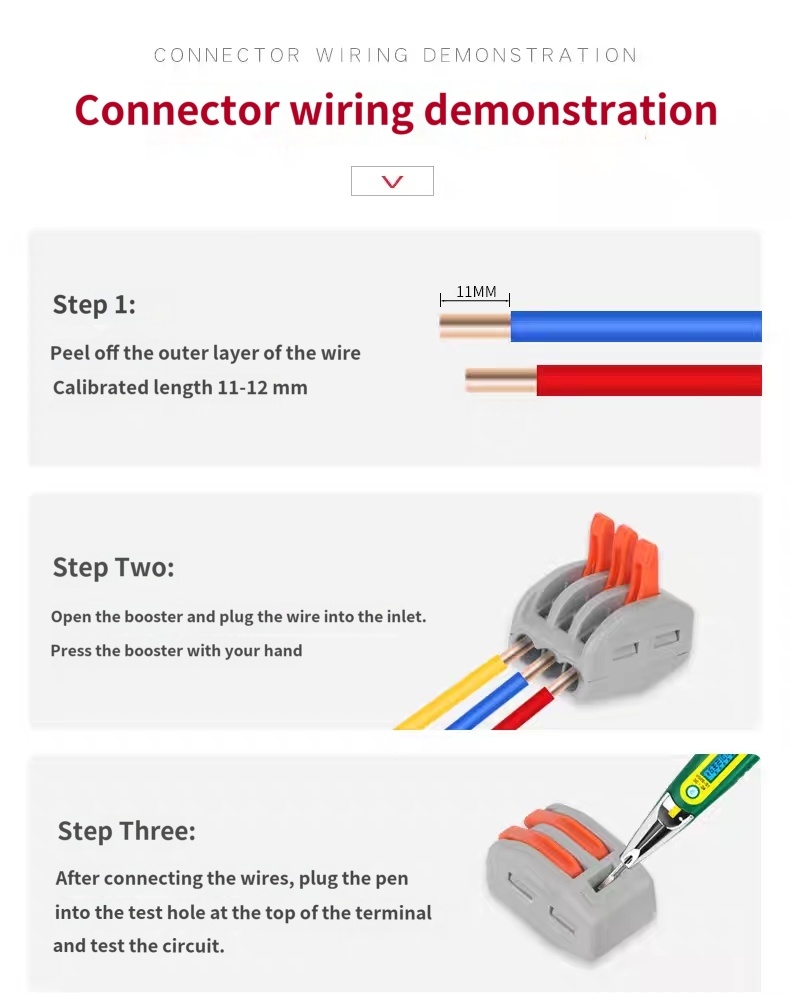

Installation Steps
- Strip proper insulation layer from wire ends
- Lift up the lever to open the wiring port
- Insert wire fully into corresponding slot
- Press lever down to complete firm connection
Precautions
- Use cables within 0.08-4mm² specification range
- Ensure full wire insertion to avoid poor conduction
- Do not exceed rated voltage and current load
- Avoid using in humid and corrosive environment
This connector meets international safety standards like IEC 60947-7-1.
