260-301 | FJ5-1.5 Mini Cage Clamp Spring Terminal Fast Plug & Splice Wiring Connector
Product Basic Information

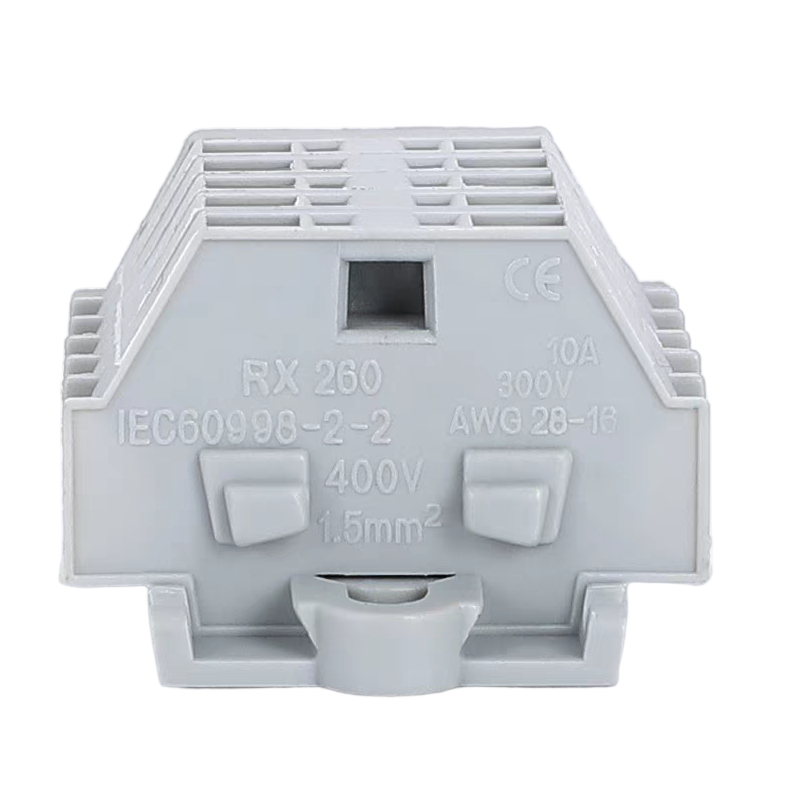

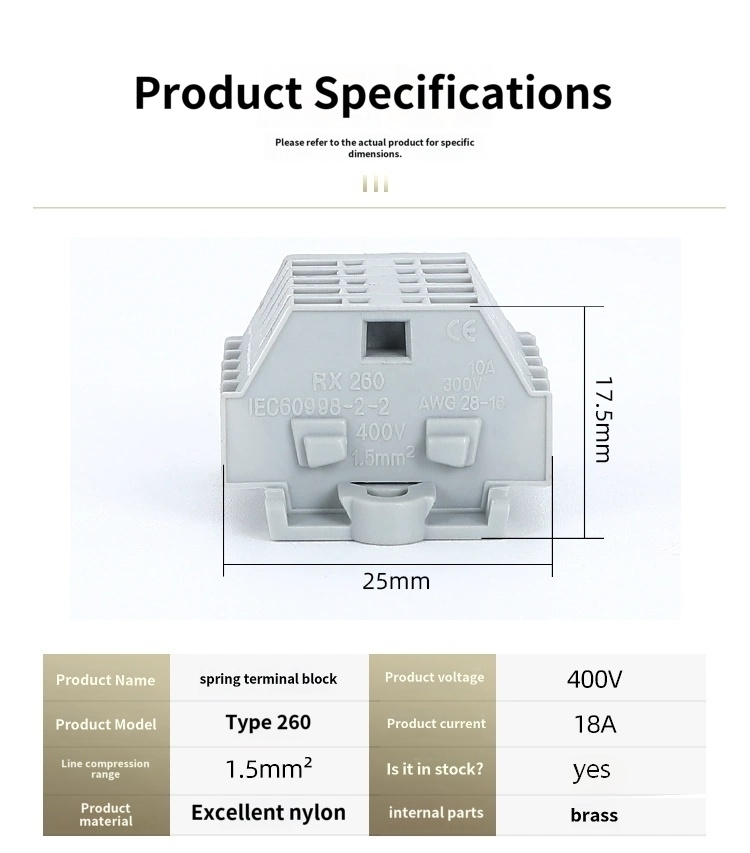

| Item | Specification |
|---|---|
| Model | 260-301, FJ5-1.5 |
| Connection Mode | Cage clamp spring type, quick plug splice connection |
| Wire Cross Section | 0.15mm² – 1.5mm² |
| Rated Voltage | 300V, 400V |
| Rated Current | 18A |
| Working Temperature | -40℃ ~ 105℃ |
| Installation | 35mm standard DIN rail |
| Material | Flame retardant PA66 shell, stainless steel spring, tin-plated copper conductor |
| Fire Resistance Grade | UL94 V-0 |
| Features | Quick plug splice, modular assembly, vibration proof, compact structure |
| Application | Control cabinet, instrument, electric appliance, automatic equipment wiring |
Product Description

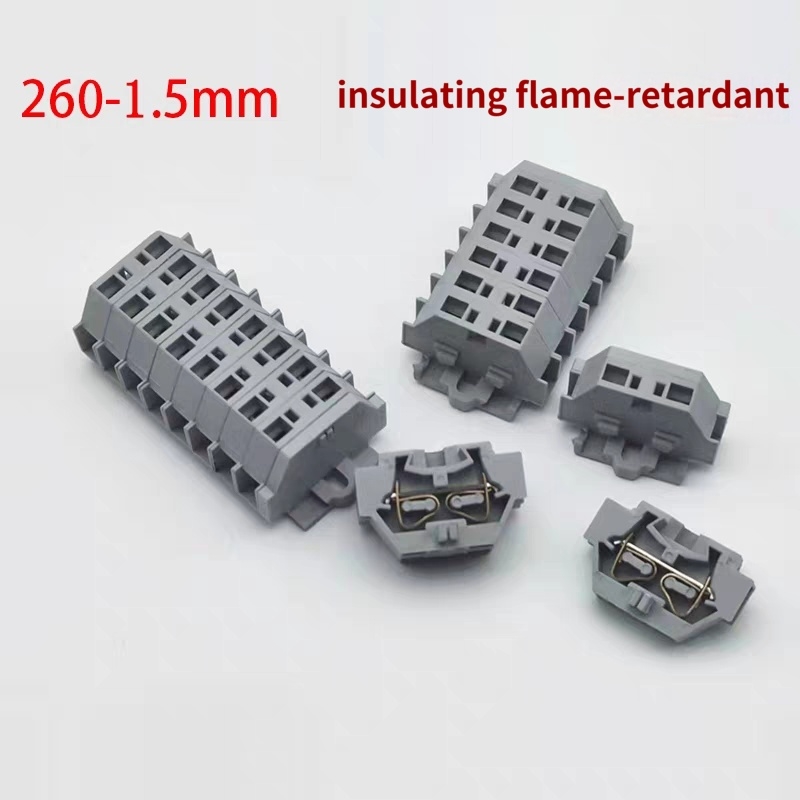

260-301 | FJ5-1.5 cage clamp terminal block adopts advanced spring clamping structure, supporting quick plug and splice wiring without screw fastening. It realizes convenient circuit splicing and extension, greatly boosting wiring efficiency.

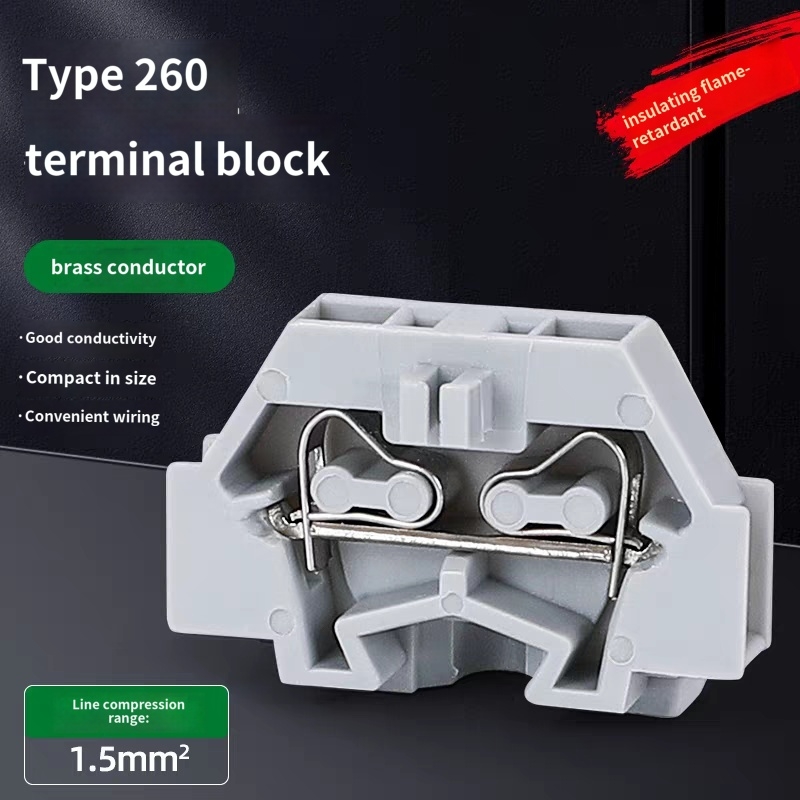

Elastic stainless steel spring offers steady clamping force, preventing loose contact under vibration. Tin-plated copper part features outstanding conductivity and oxidation resistance, ensuring stable power transmission.

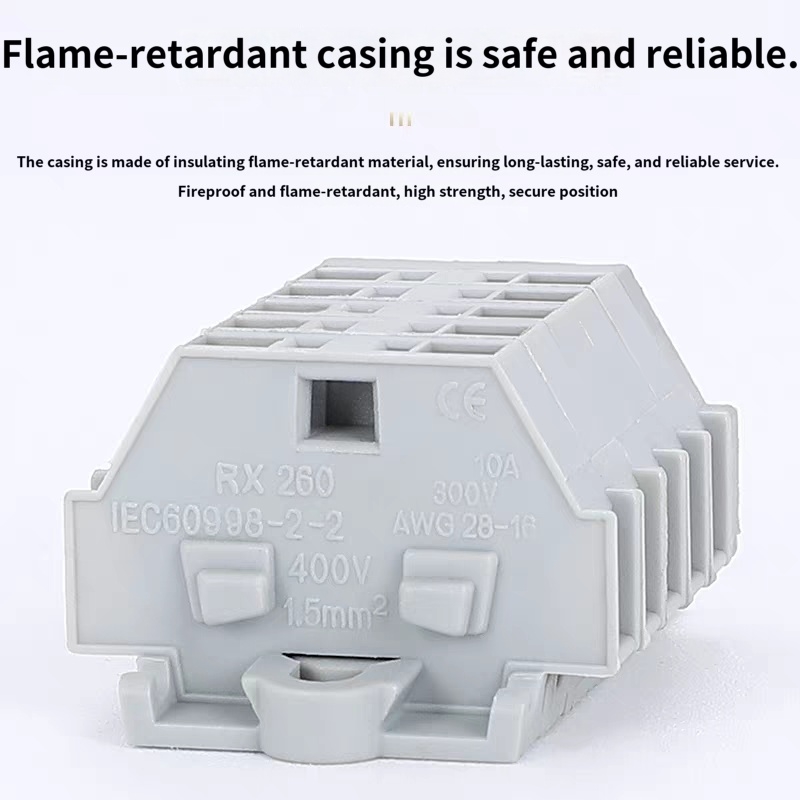

High flame retardant insulating shell provides reliable electric isolation to eliminate leakage risks. Modular design allows free combination and splicing, slim size saves installation space. Easy to mount and detach on standard DIN rail, widely applicable for various low voltage circuit connection.
Product Features
- Quick Plug & Splice Design
Easy wire insertion and combination, convenient circuit extension - Cage Clamp Stable Holding
Persistent clamping force, anti-loose and shock resistant performance - Premium Conductive Material
Corrosion resistant copper core, low resistance and stable conduction - High Safety Flame Retardant Housing
Heat resistant and fireproof, meet strict insulation safety standard - Modular Splicing Structure

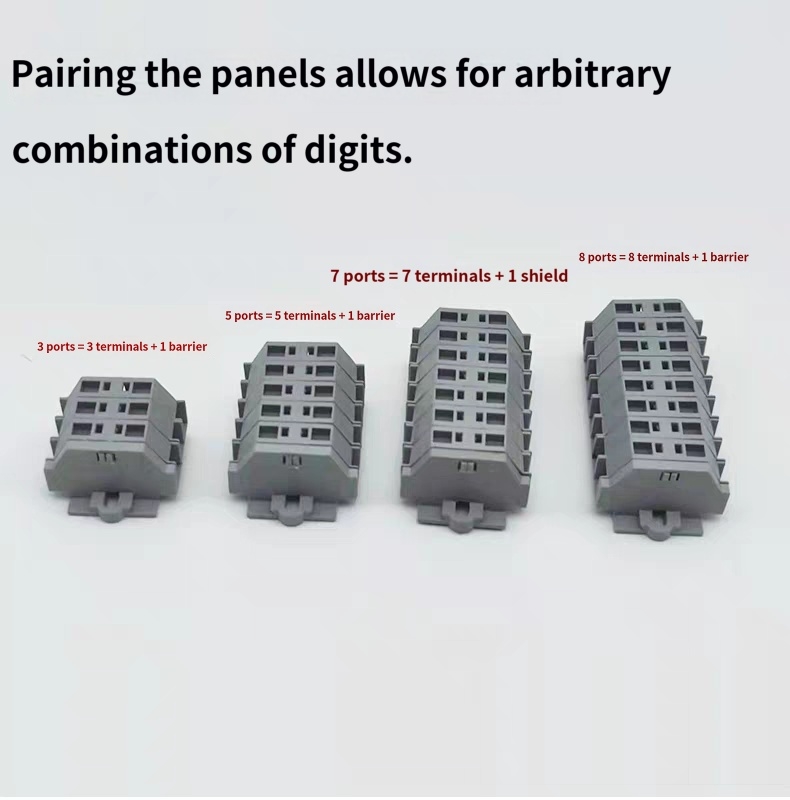

Flexible pole combination to fit diverse wiring demands - Space-saving Mini Size
Compact outline suitable for dense wiring layout - Standard DIN Rail Installation
Snap-on mounting, easy assembly and maintenance - Authorized Global Certifications
Compliant with international standards for worldwide sales
Application Scope
- Industrial automation control cabinet internal wiring
- Instrument and meter signal circuit connection
- Household electrical equipment internal wiring assembly
- Low voltage power distribution line arrangement
- Mechanical and automatic equipment terminal connection
- Building light control and weak current wiring

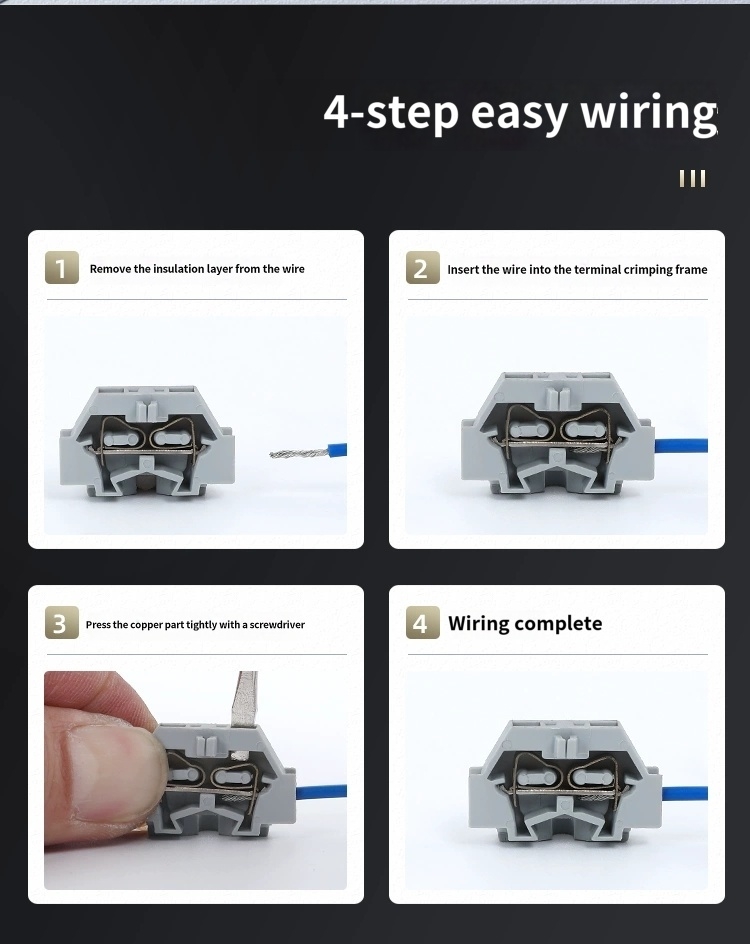

Installation Steps
- Strip proper insulation from wire end
- Press spring release position with screwdriver
- Insert wire firmly into terminal port and release

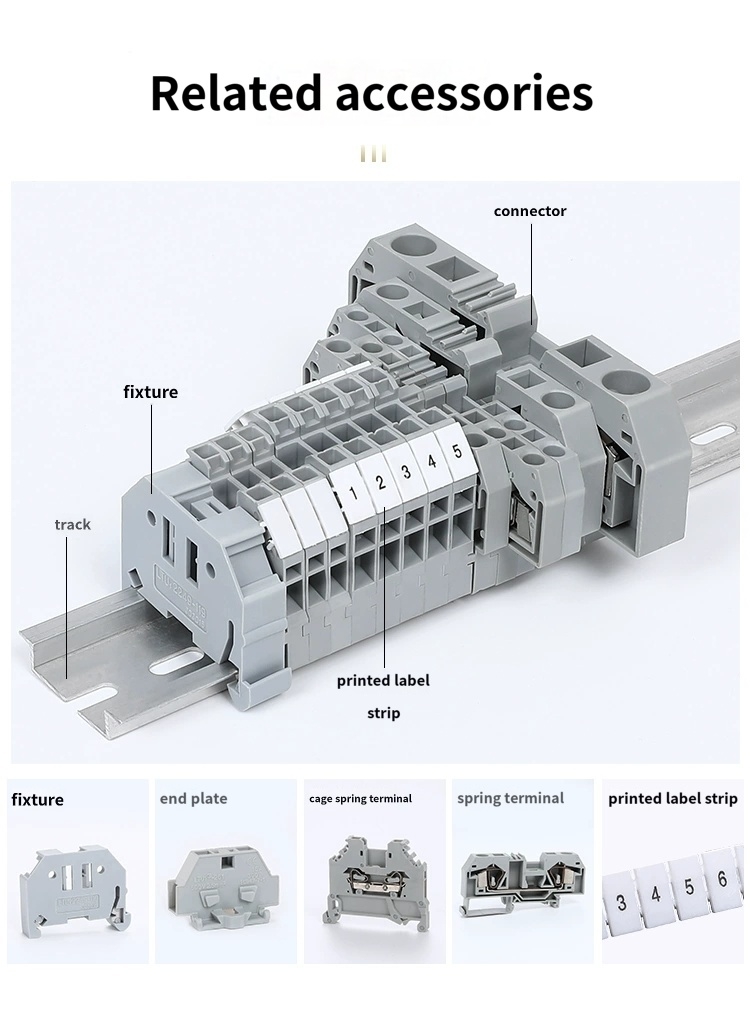

- Splice multiple terminals or clip onto DIN rail for fixation
Precautions
- Match wire size with terminal specification before use
- Ensure complete wire insertion to avoid poor contact
- Do not exceed rated voltage and current load
- Apply in dry indoor working environment
