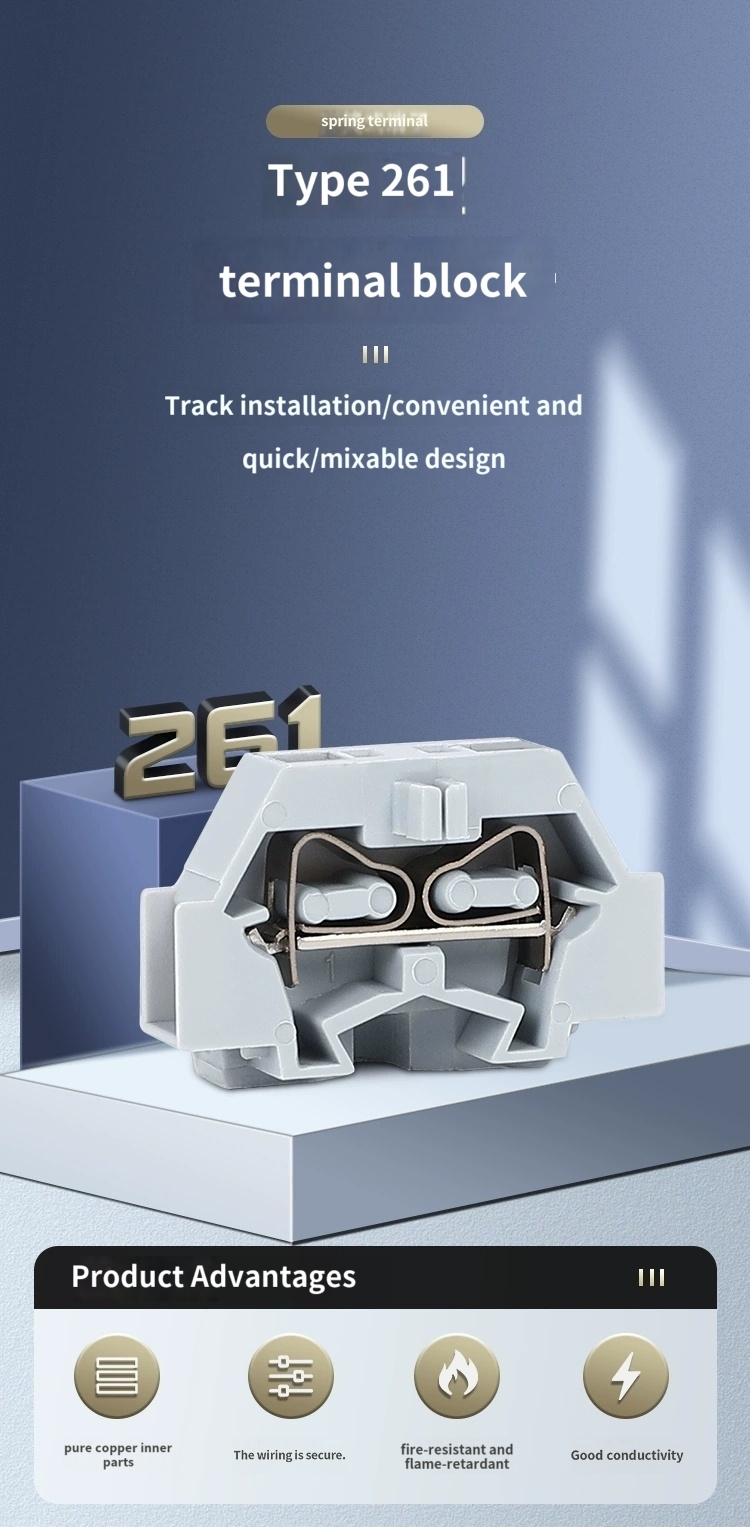

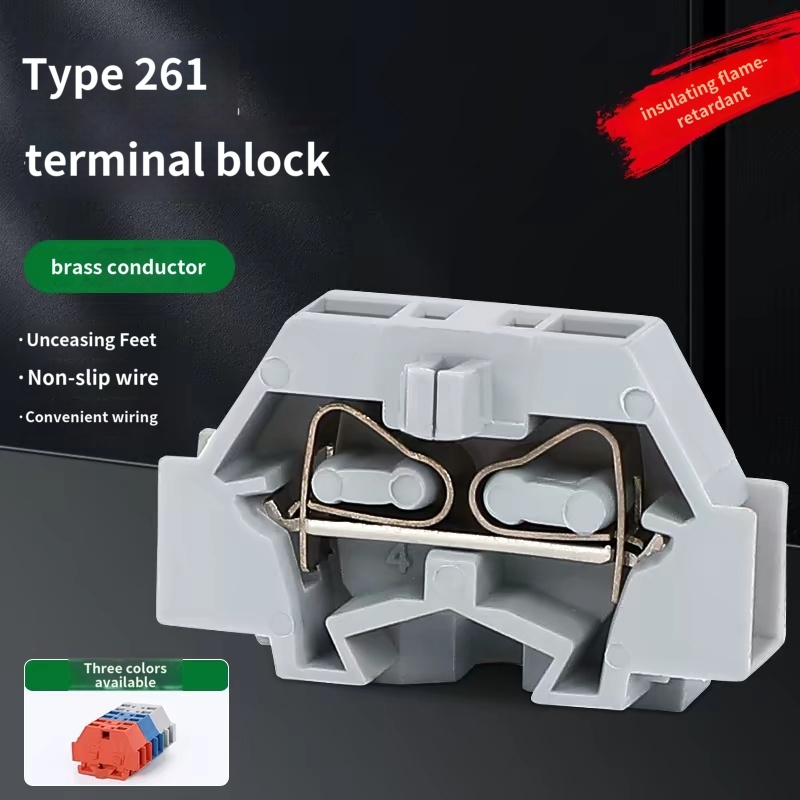

261-301 FJ5-2.5 Micro Cage Clamp Spring Terminal Block Screwless Fast Wiring DIN Rail Terminal

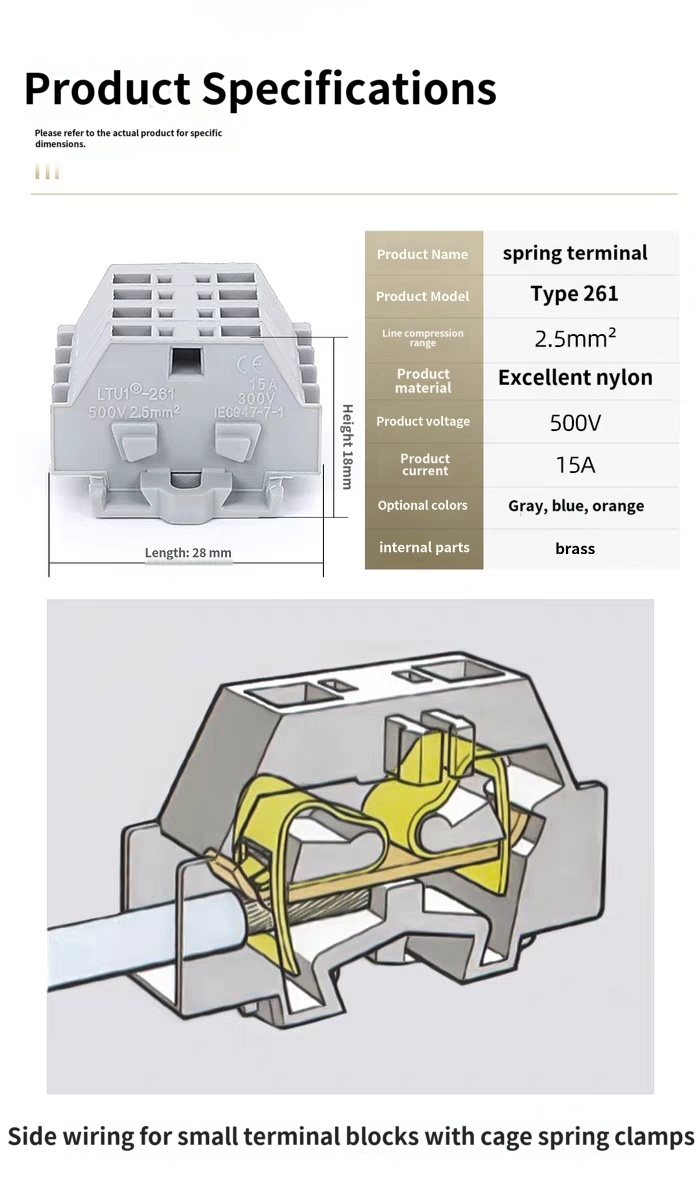

Product Basic Information
| Item | Specification |
|---|---|
| Model | 261-301, FJ5-2.5 |
| Connection Type | Cage clamp spring connection, screwless fast wiring |
| Conductor Range | 0.2mm² – 2.5mm² |
| Rated Voltage | 300V, 500V |
| Rated Current | 15A |
| Working Temperature | -40℃ ~ 105℃ |

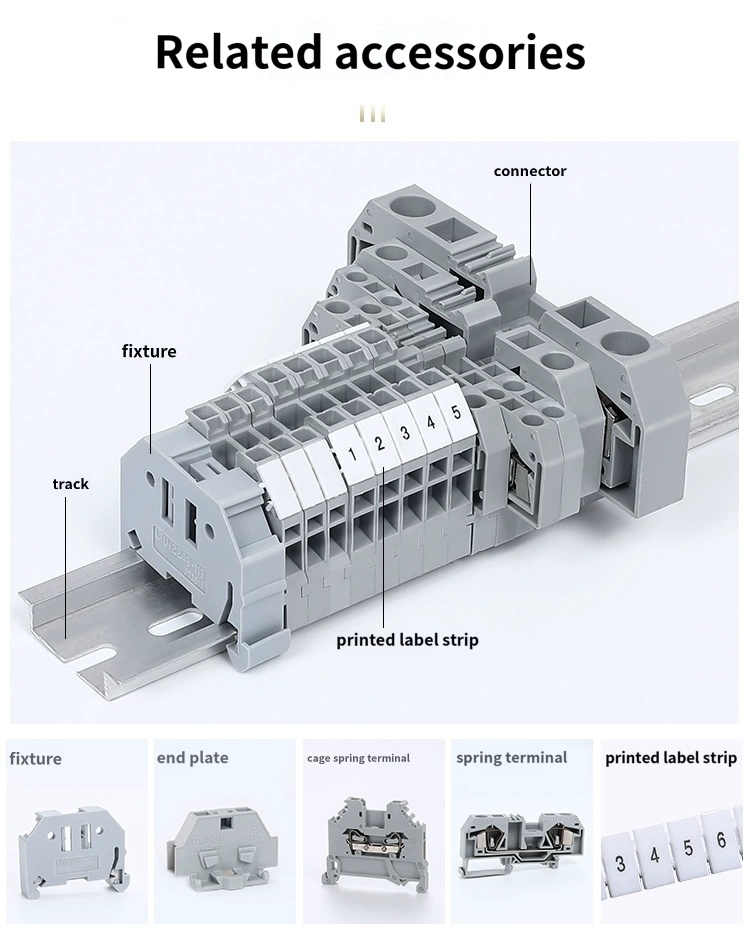

| Mounting Type | 35mm standard DIN rail installation |
| Material | Flame retardant PA66 housing, stainless steel spring, tin-plated copper conductive part |
| Fire Rating | UL94 V-0 |

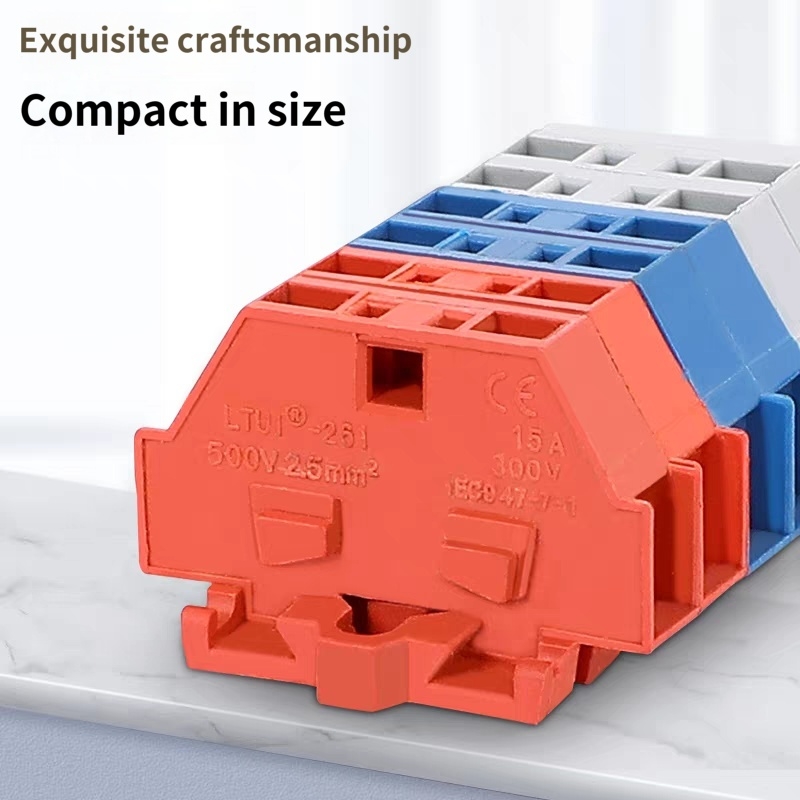

| Features | Compact miniature size, anti-vibration, easy assembly, space saving |
| Application | Automation control cabinet, instrument, power distribution, household electrical wiring |
Product Description

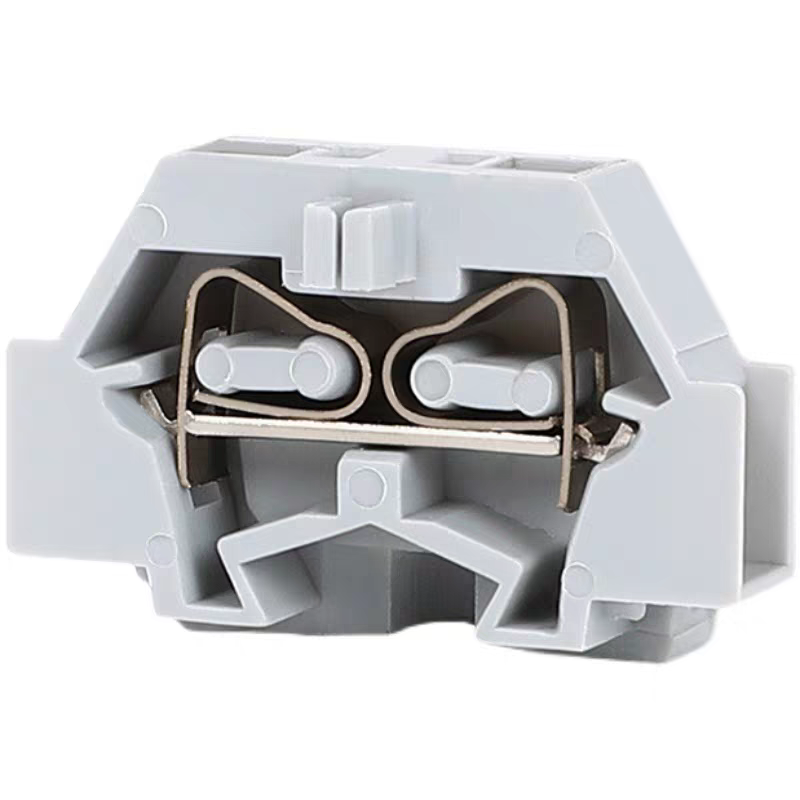

261-301 and FJ5-2.5 are miniature cage clamp spring terminal blocks designed for efficient wiring work. Adopting screwless spring clamping structure, wires can be connected quickly without tightening screws, greatly improving working efficiency.
High elastic stainless steel spring provides stable clamping force, effectively prevents loose connection caused by vibration. Tin-plated copper conductive piece delivers excellent conductivity, low contact resistance and anti-oxidation performance.
Flame retardant insulated shell ensures safe isolation and avoids electric leakage risks. Slim body saves cabinet inner space, multiple terminals can be combined freely. Standard DIN rail mounting brings convenient installation and disassembly, ideal for various low voltage industrial and civil wiring projects.
Product Features
- Screwless Fast Connection
No screw operation required, simple wire insertion for firm connection - Cage Clamp Anti-loose Structure
Stable clamping force, shock resistant, reliable long-term contact - High Quality Conductive Material
Tin plated copper core, stable current transmission, corrosion resistant - Flame Retardant Safety Housing
UL94 V-0 grade, high temperature resistant, secure insulation protection - Mini Compact Design
Narrow size, perfect for dense wiring and limited installation space - Standard DIN Rail Mount

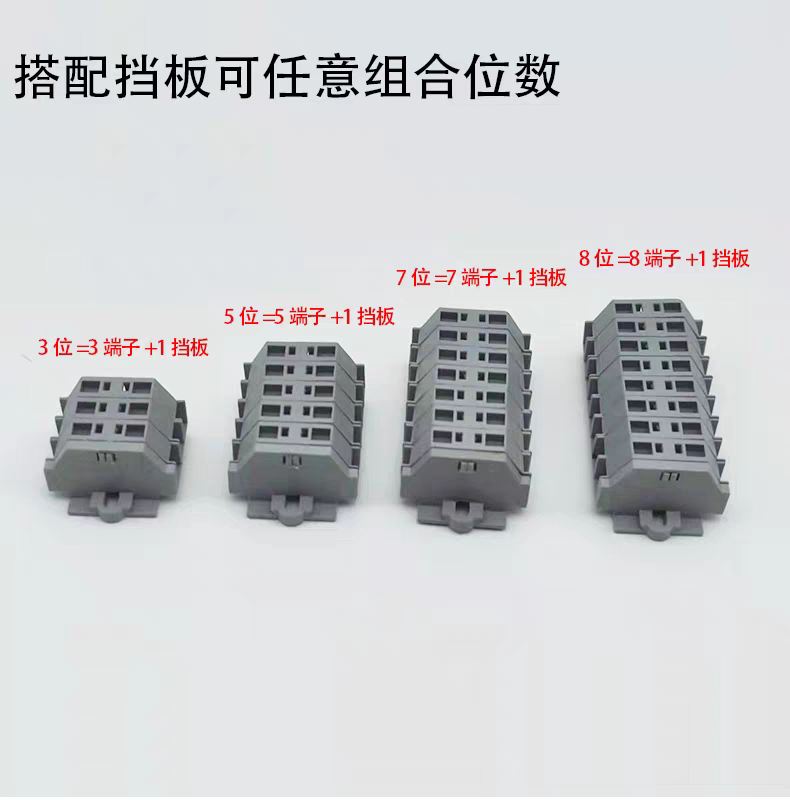

Easy snap on installation, flexible combination with multiple poles - Wide Wire Compatibility
Suitable for solid and stranded wires within 2.5 square millimeter - Complete Global Certifications
Meet international safety standards for global market sales
Application Scope
- Industrial automation control cabinet internal wiring
- PLC system and measuring instrument circuit connection
- Low voltage power distribution box line arrangement
- Household appliances and electrical equipment wiring assembly
- Mechanical equipment internal circuit terminal connection
- Building electrical and light control wiring projects
Installation Steps
- Strip proper insulation layer off wire end
- Press the release button with screwdriver
- Insert wire fully into wiring port and release tool
- Clip terminal block onto DIN rail to finish fixing
Precautions
- Select matched terminal according to wire cross section
- Ensure wire core fully inserted for stable conduction
- Avoid overloading current beyond rated parameter
- Keep dry environment during daily operation
