BNY/BNYF Long Type Nylon Insulated Butt Connector Cold Crimp Wire Joint Terminal
Product Description

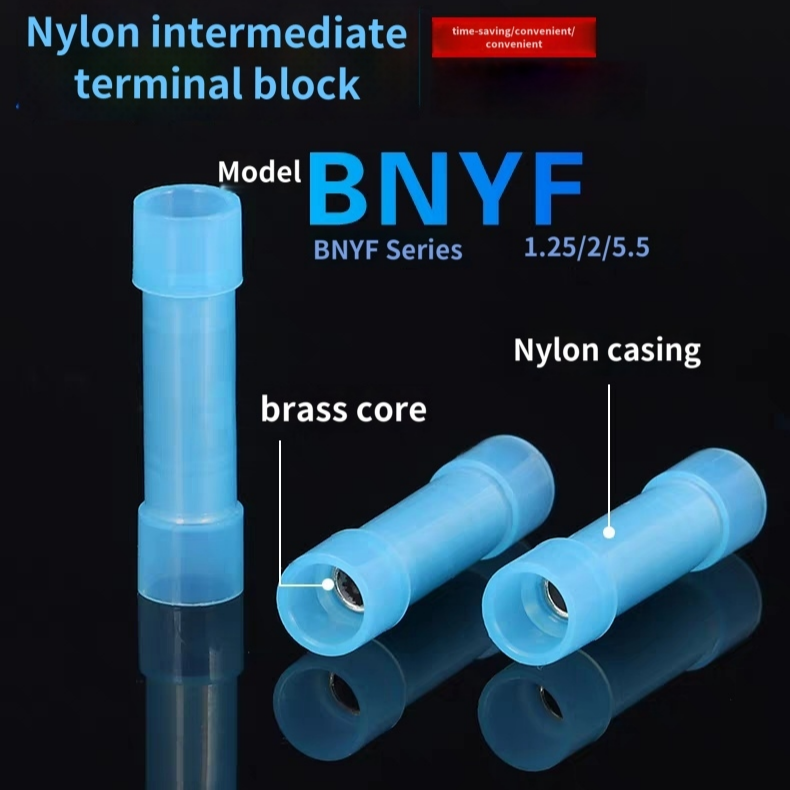

BNYF long nylon fully insulated middle joint is a straight inline wire splice terminal designed for permanent wire connection. It adopts thick tinned copper tube and high-quality flame-retardant nylon shell. The extended nylon insulating cover provides full insulation protection, completely wrapping the crimping area to avoid electric leakage and short circuit.
Product Features
-

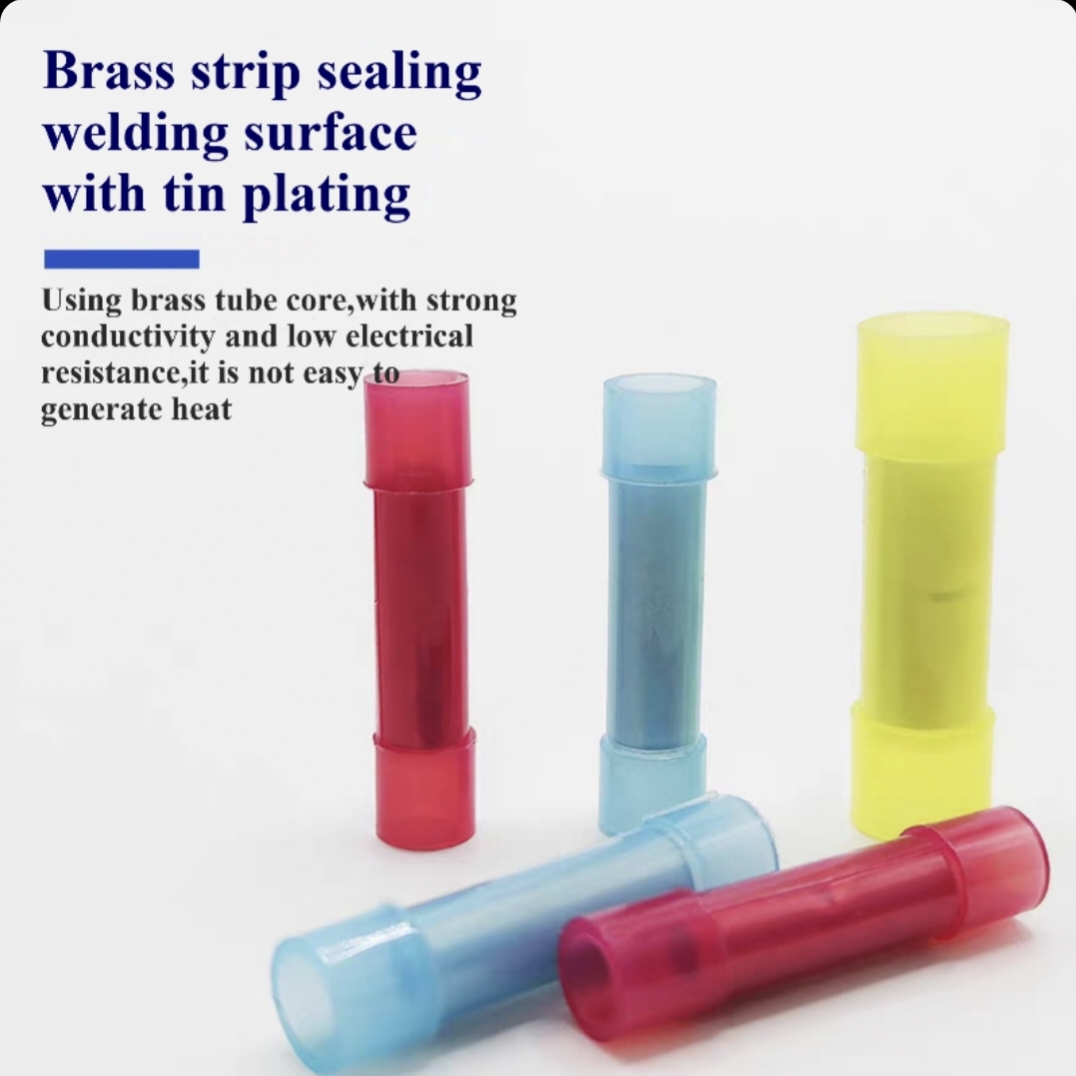

Seamless Tinned Copper Tube: Thickened copper pipe ensures low resistance and stable current transmission.
-
Flame Retardant & High Temperature Resistant: Work safely from -40°C to 105°C, anti-aging and durable.
-
Easy Crimping: Simple operation with standard crimping pliers, no welding required.
Application Scope
-
Electrical control cabinet and distribution box wiring
-
Electronic equipment internal circuit connection
-
Low-voltage indoor fixed wire connection
Installation Diagram & Step Instruction
| Item | Specification |
|---|---|
| Product Series | BNYF Long Nylon Fully Insulated Butt Connector |
| Material | High-purity tin-plated red copper tube + High toughness nylon insulation shell |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Long tubular nylon fully enclosed wire inline splice terminal |
| Wire Range | 0.5mm² – 10mm² |
| Features | Extended tube body, thickened nylon shell, wear-resistant, flame-retardant, firm crimp, double-end wire butt joint |
| Application | Wire extension splicing, harness connection, home appliances, electrical cabinet, automotive internal wiring |
