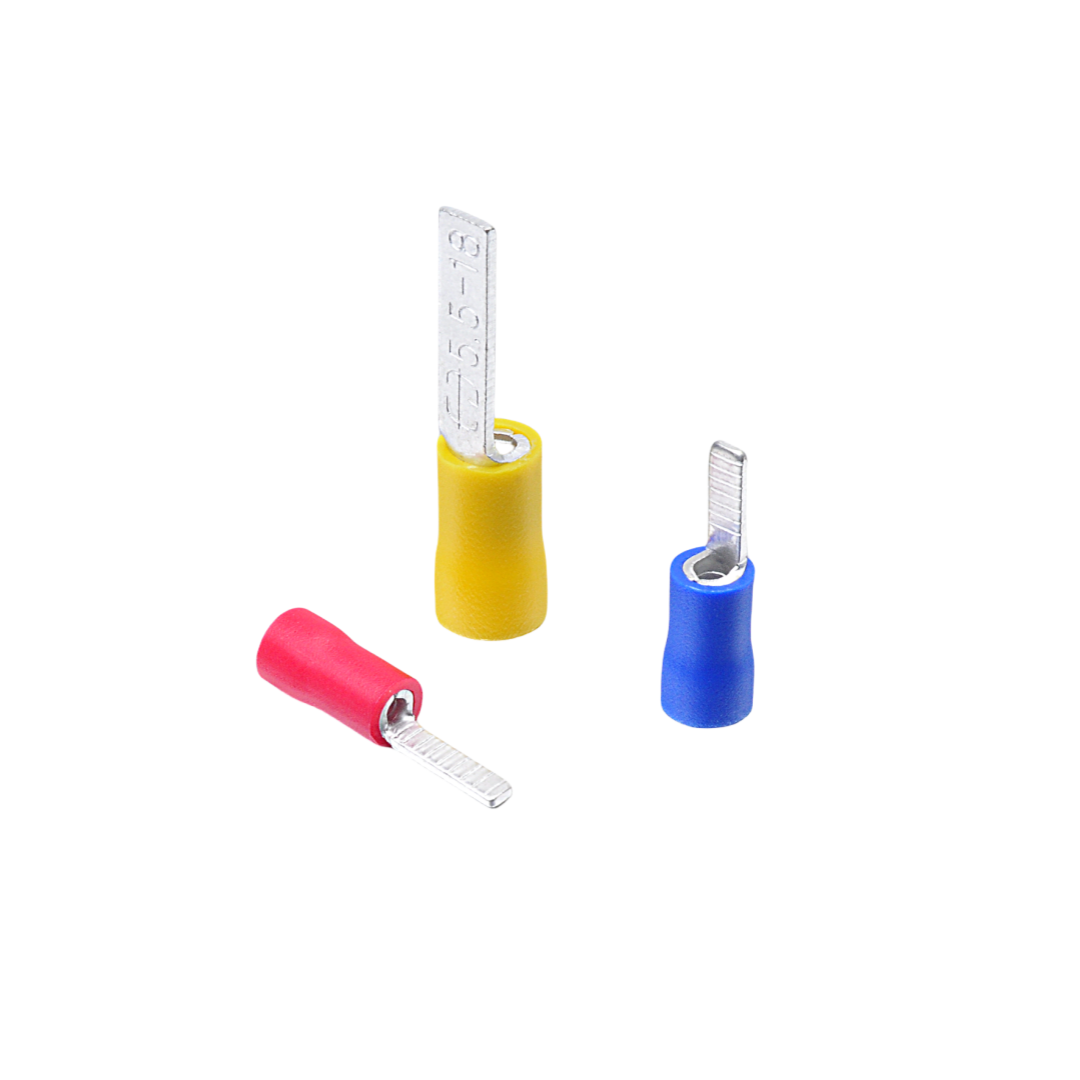

DBVE Series Easy Entry Pre-insulated Blade Terminal Red Copper Flat Cold Crimp Lug
| Item | Specification |
|---|---|
| Product Series | DBVE Series Easy Entry Insulated Blade Terminal |
| Material | High purity red copper tin-plated + Flared flame retardant nylon |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Easy entry flat blade pre-insulated cold crimp terminal |

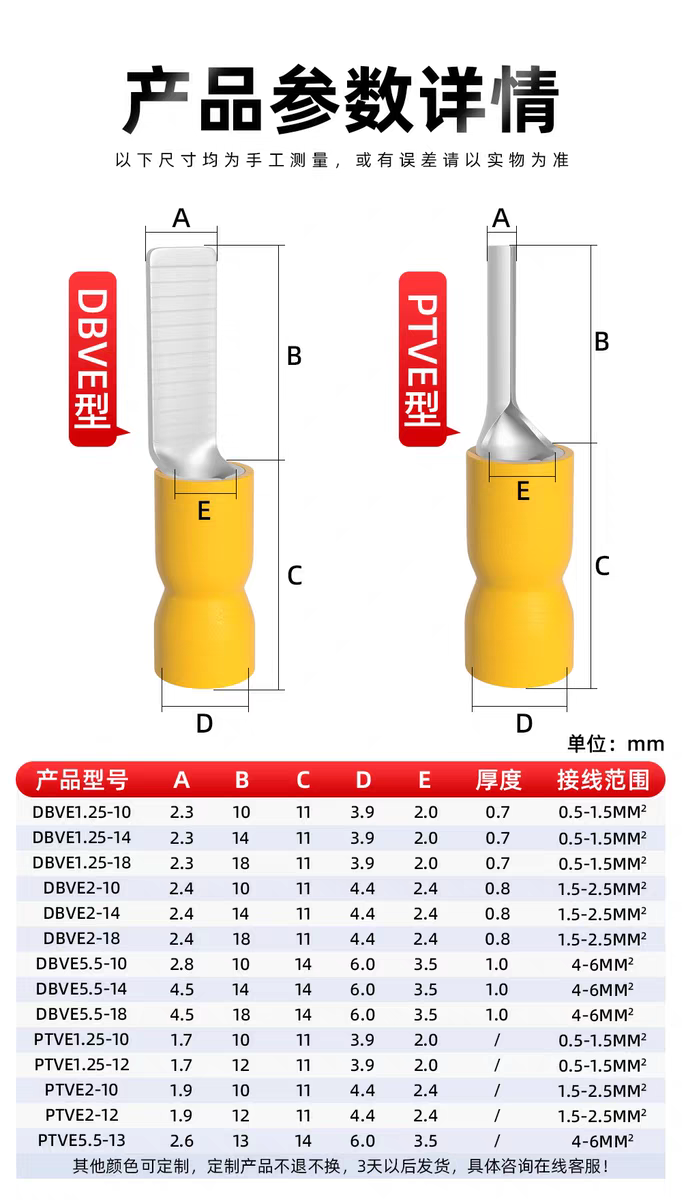

| Wire Range | 0.5mm² – 10mm² |
| Feature | Trumpet flared inlet, effortless wire insertion, elastic flat blade, firm locking |
| Application | Connectors, switches, home appliances, auto harness, electrical cabinet wiring |
Product Description
DBVE series easy entry insulated blade terminal is upgraded version based on traditional DBV terminals. It adopts trumpet-shaped flared wire inlet design, which allows scattered stranded wires to be inserted directly without tidying wire strands, greatly boosting wiring efficiency.
Made of high-quality seamless red copper with tin plating, it delivers superior conductivity, low contact resistance and strong anti-oxidation capacity. Matched with high toughness flame retardant nylon insulation sleeve, it provides full insulation protection against electric leakage and short circuit. Elastic flat blade structure fits tightly with various sockets and connectors, stable plug-in connection, anti-vibration and long service life. Fully certified to meet global export standards.
Product Features

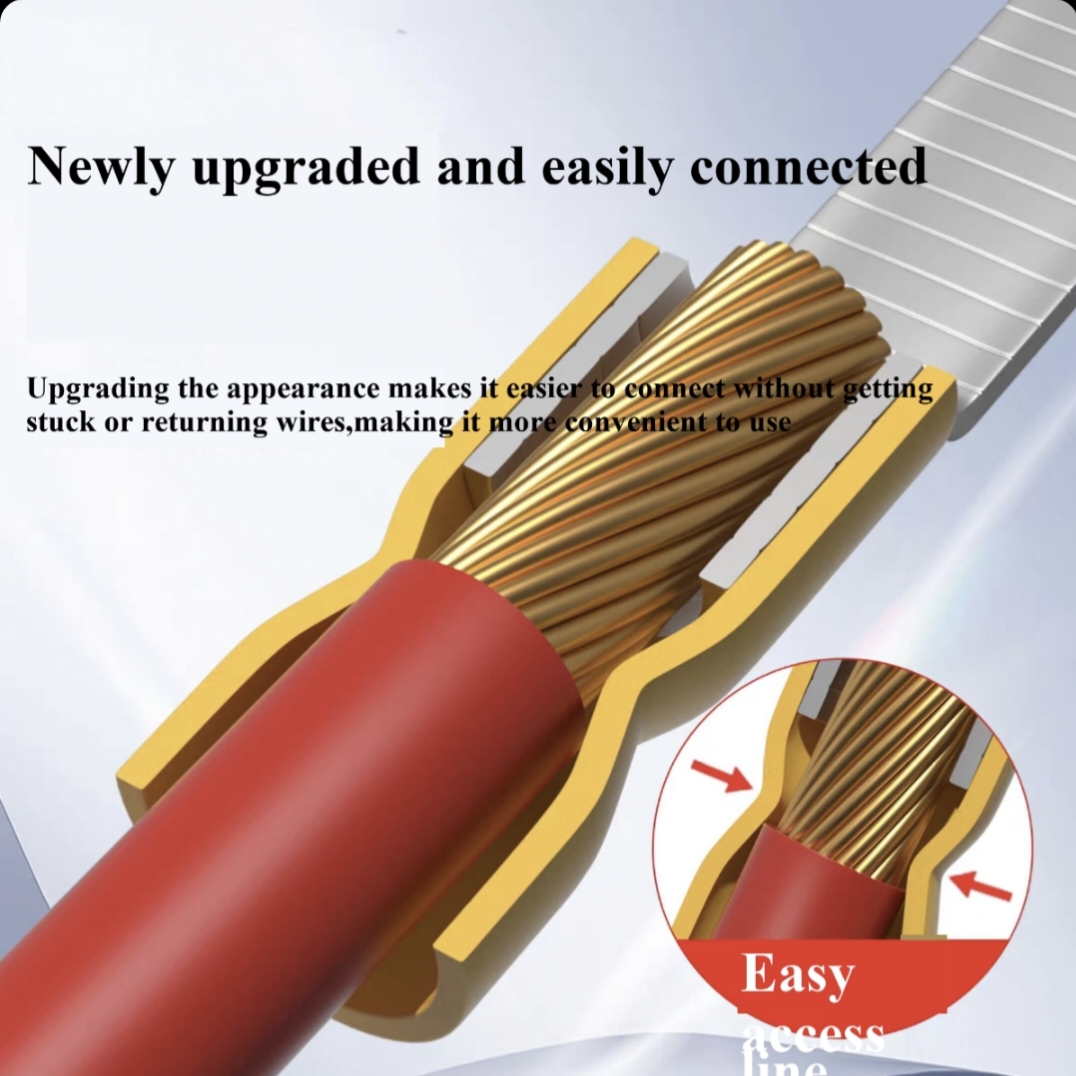

Easy Entry Flared Design
Large horn-shaped opening, wire inserts smoothly, save assembly time.

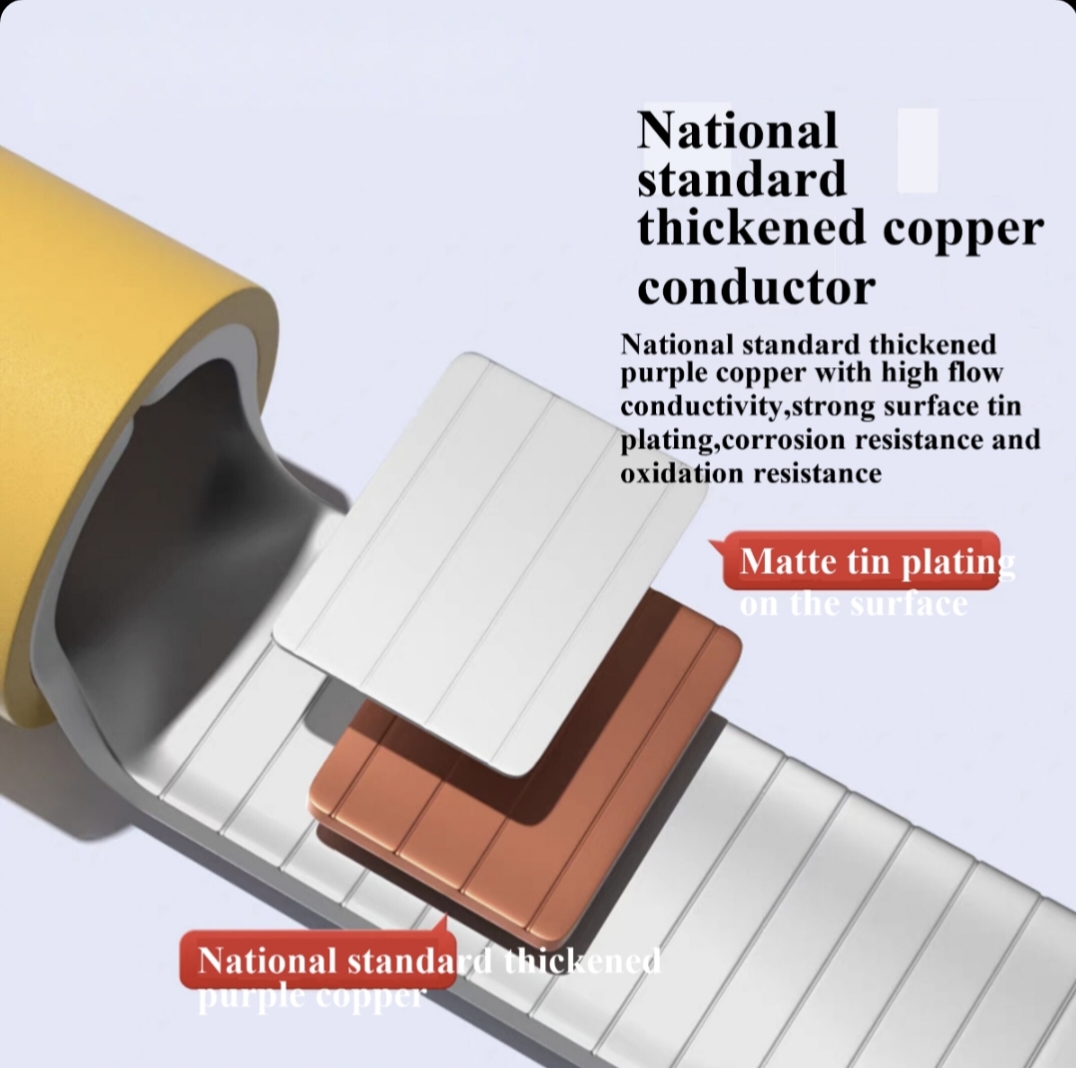

Tin-plated Pure Red Copper
High conductivity, corrosion resistant, stable current transmission.

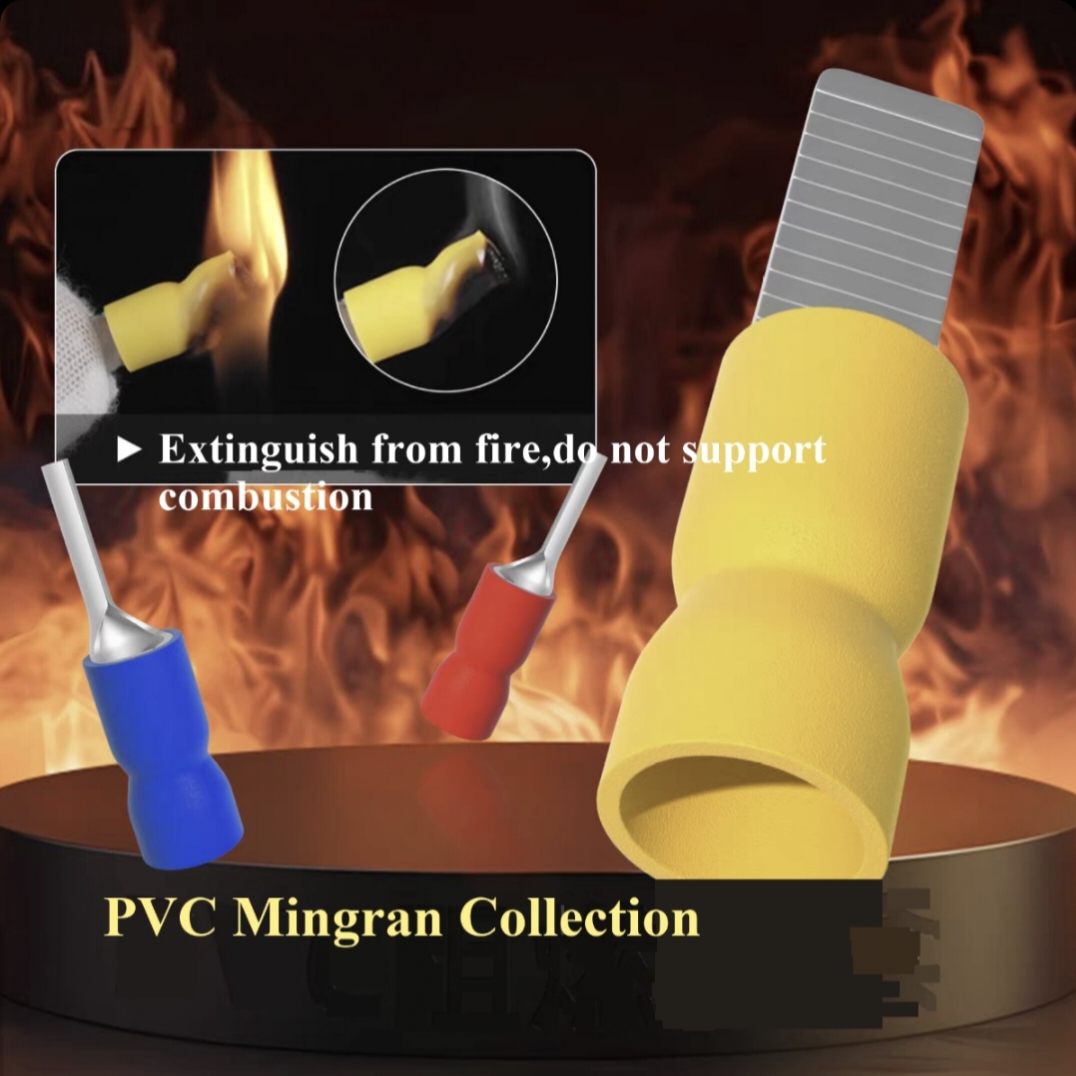

Flame Retardant Nylon Insulation
Heat-resistant, aging-resistant, safe insulation for daily use.
Elastic Flat Blade Shape
Good clamping elasticity, tight fit, not easy to loose after insertion.
Burr-free Integral Stamping
Smooth inner wall, protect wire core without damage during crimping.
Color Coding Identification

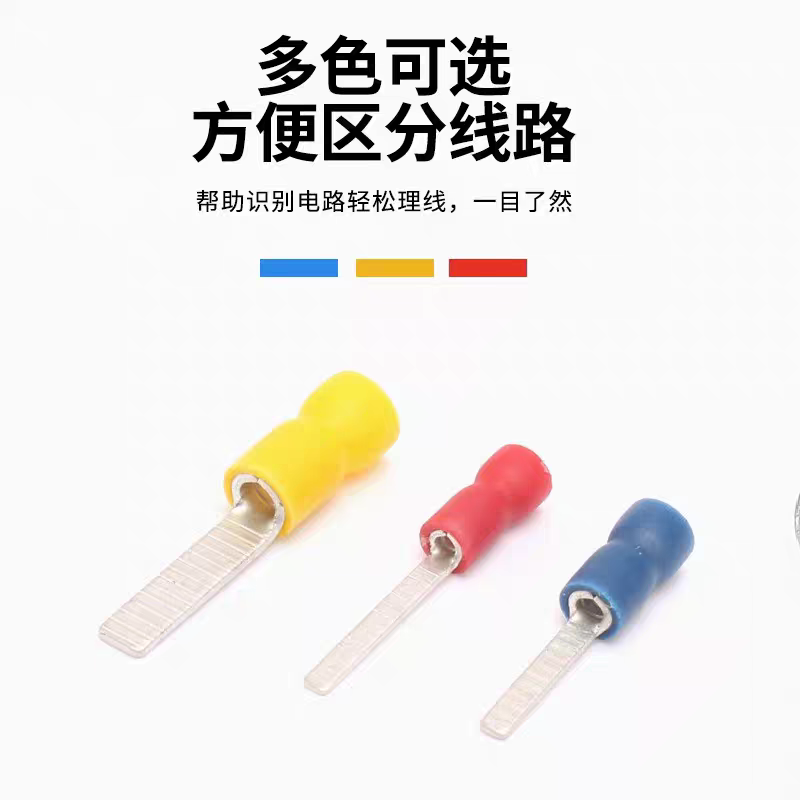

Red, blue, yellow for different wire gauges, quick selection.
Full International Certifications
CE, RoHS, TUV, UL, REACH approved for worldwide sales and projects.
Application Scope

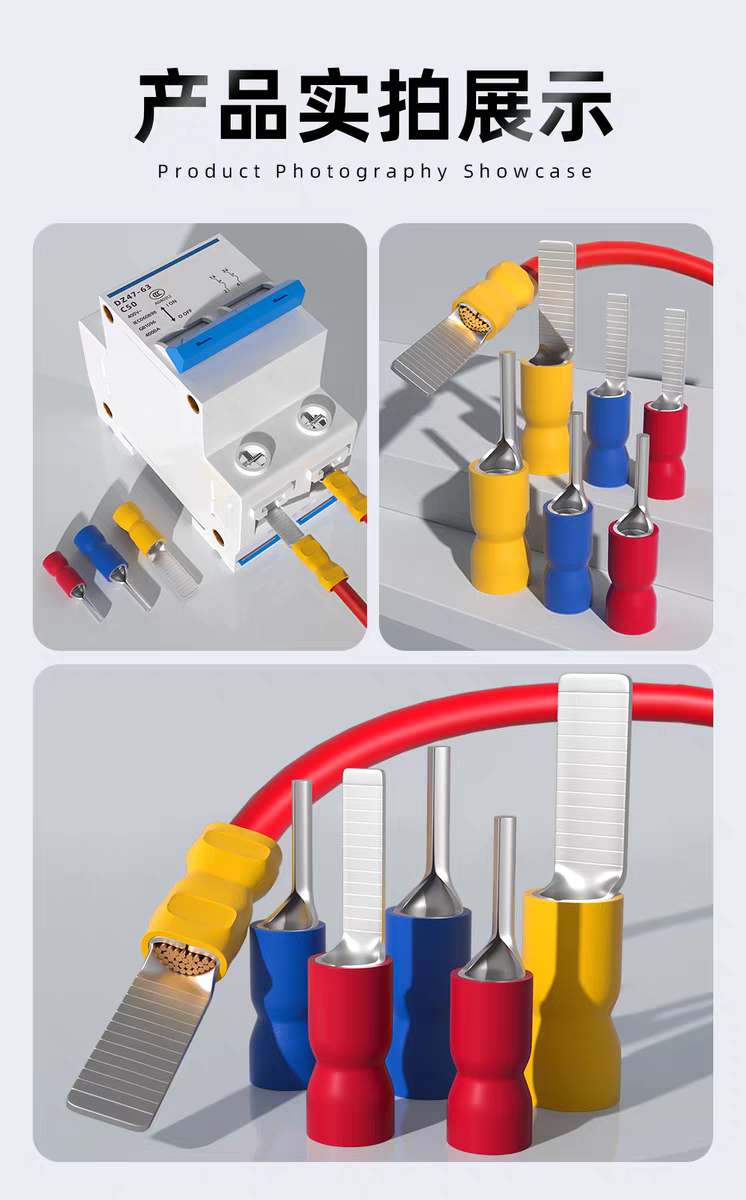

Male female connector internal wiring assembly
Power switch, control socket wiring connection
Household electrical equipment internal circuit arrangement
Automotive and electric vehicle wiring harness plug connection
Electrical cabinet secondary circuit wiring
Electronic instruments and small electrical fittings matching
Installation Diagram & Step Instruction
Step-by-Step Installation Diagram

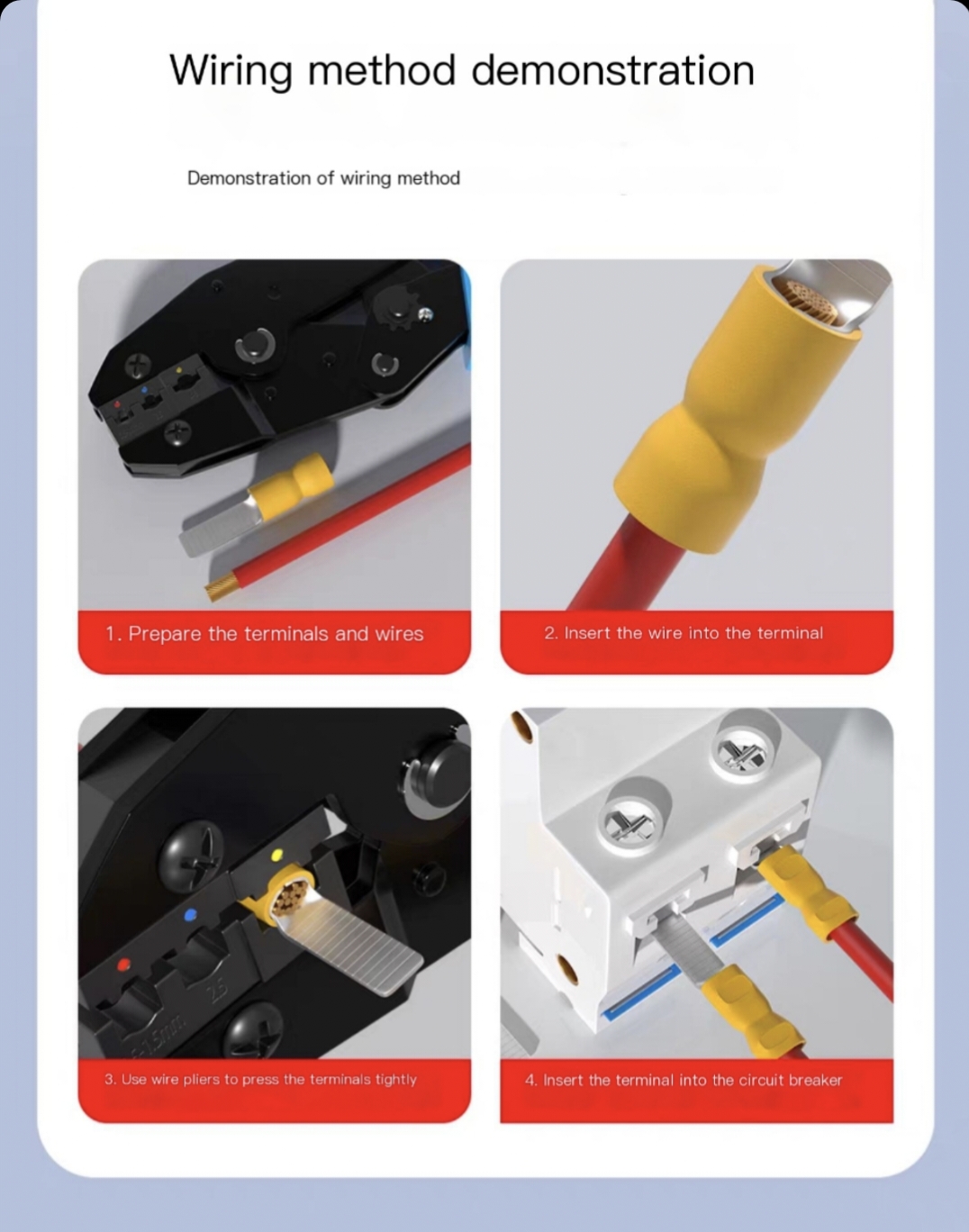

Standard operating steps for DBVE easy entry insulated blade terminal
Strip wire insulation to proper length.
Put wire straight into flared easy entry end directly.
Crimp firmly with dedicated cold crimp pliers.
Insert flat blade head into matched connector to finish connection.
Precautions
Choose correct DBVE specification according to wire cross section.
Avoid excessive crimping to prevent copper sheet deformation and insulation crack.
Ensure copper wire is fully inserted inside terminal tube.
Forbid application beyond rated voltage and temperature range.
