DRG Series 35mm DIN Rail Mounting Clip Tool-Free Insulated PCB Bracket Housing Support Foot
Product Basic Information
|
Item
|
Specification
|
|---|---|
|
Product Series
|
PCB DIN Rail Mounting Bracket:

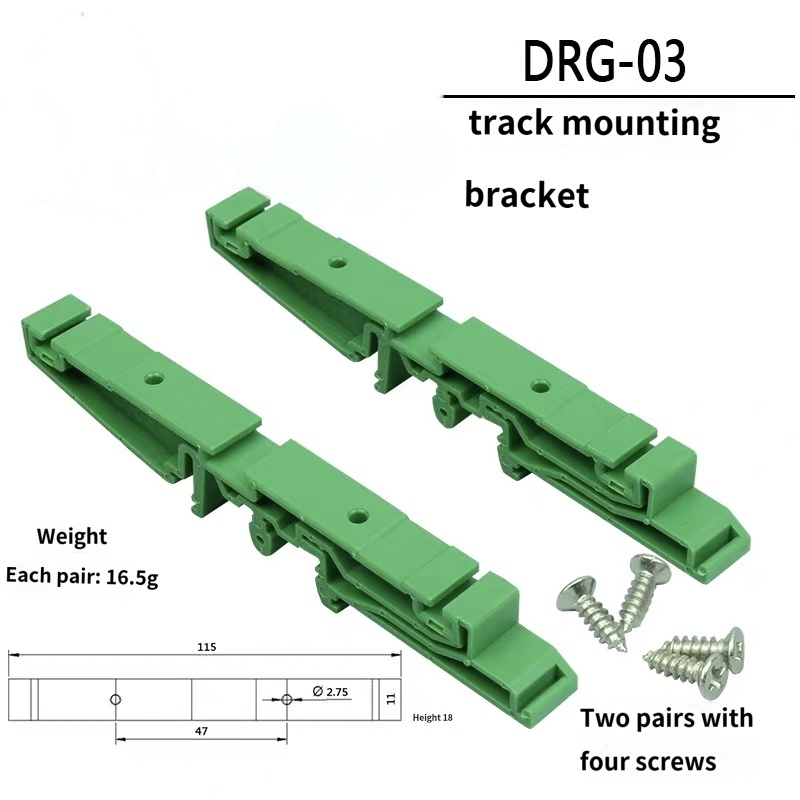

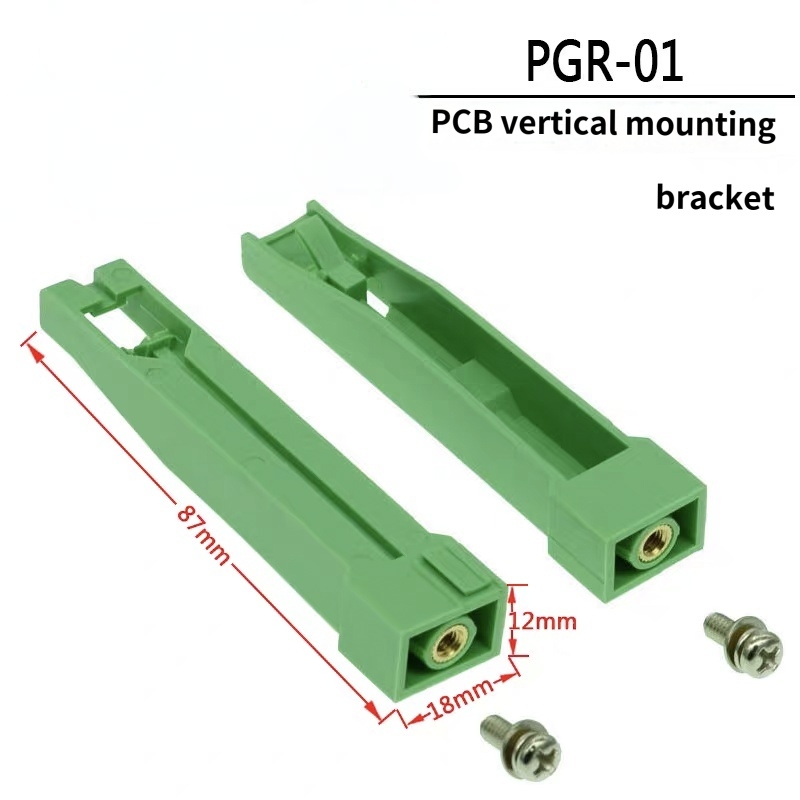

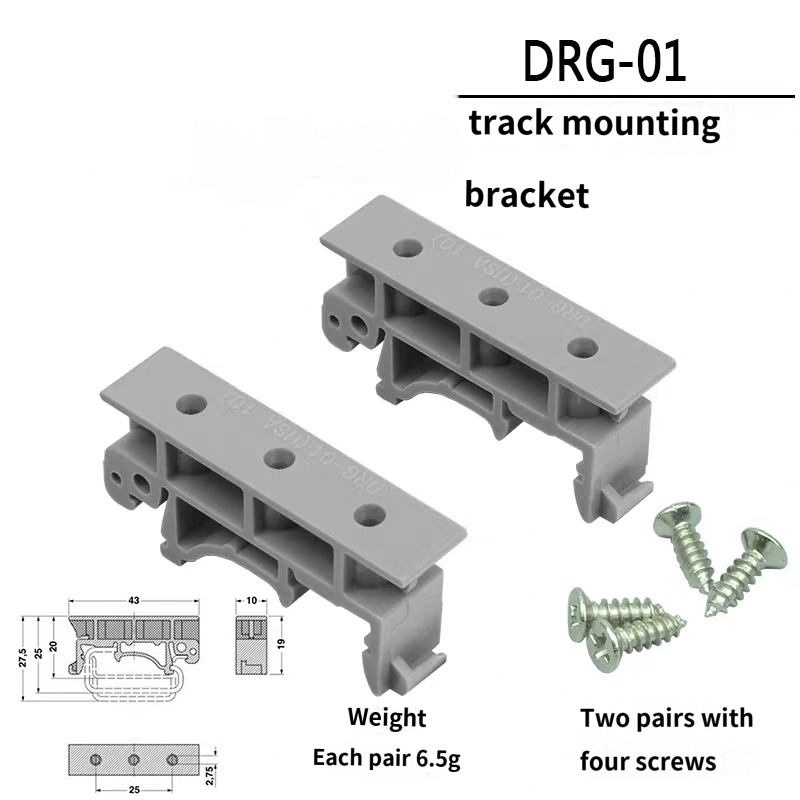

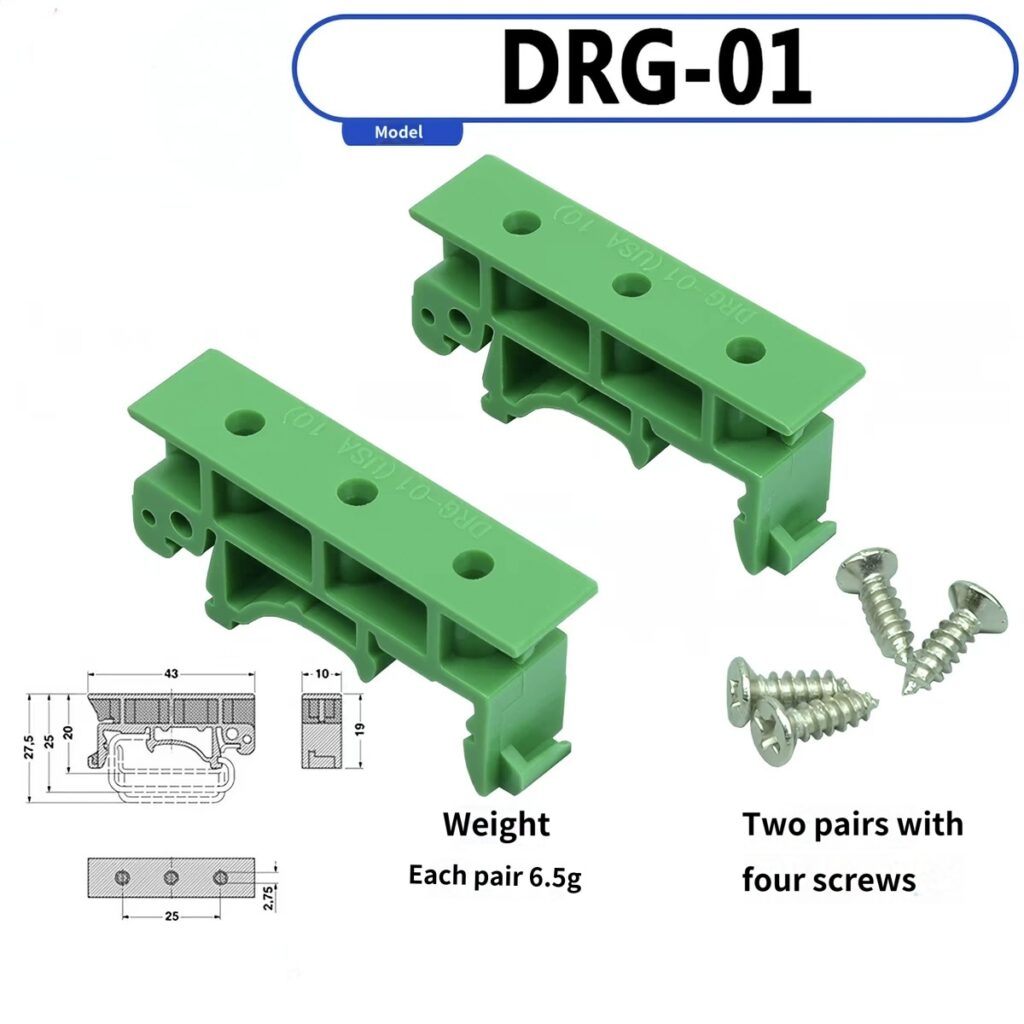

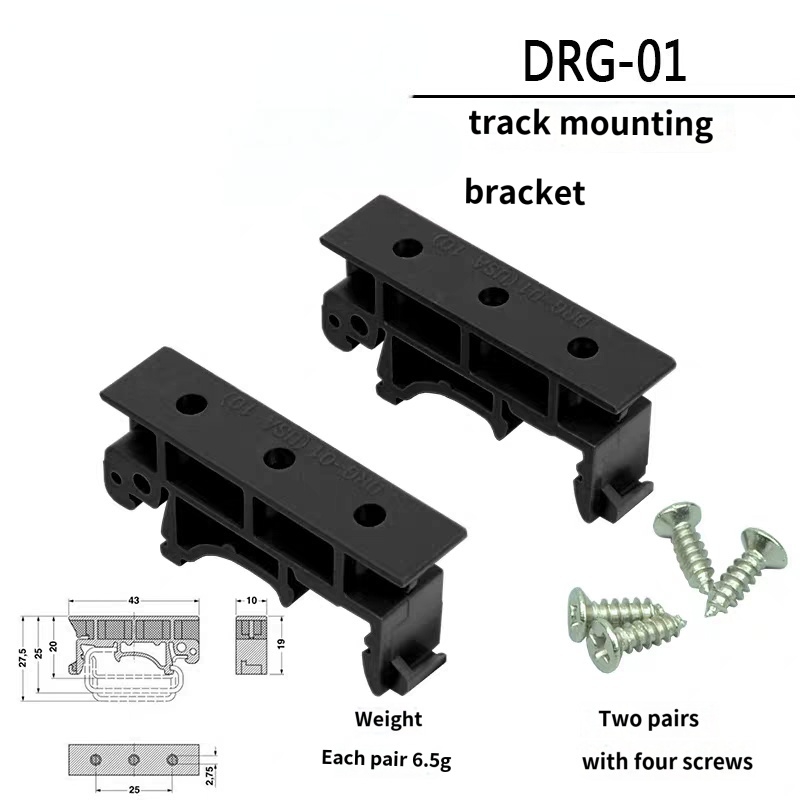

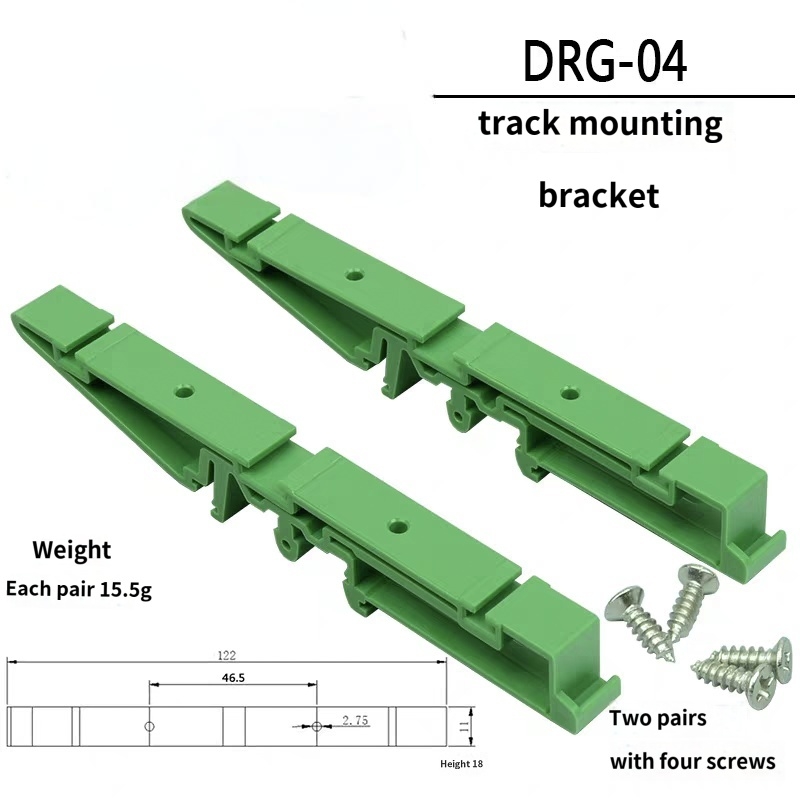

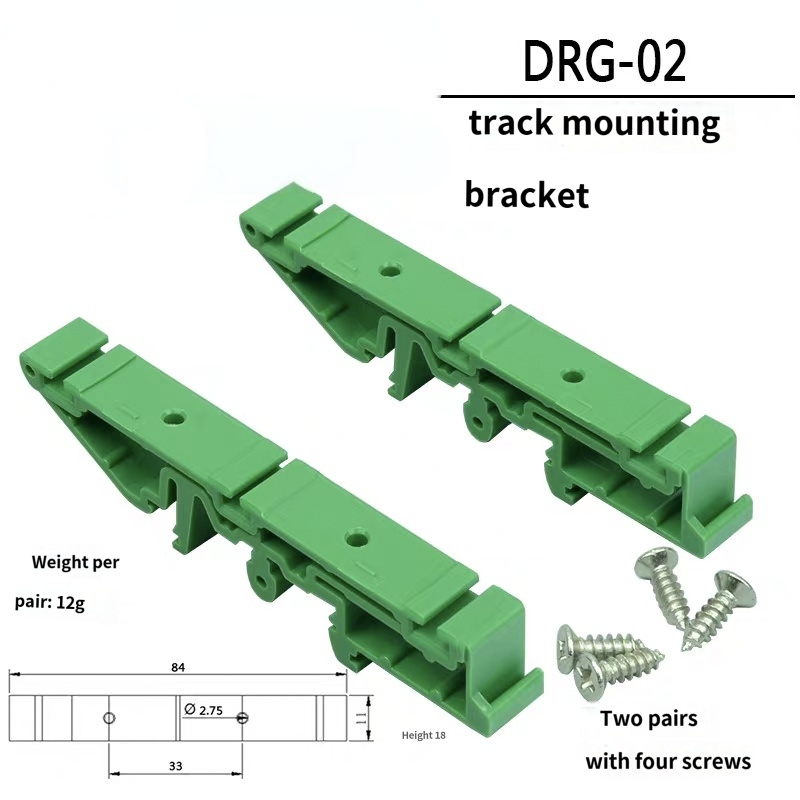

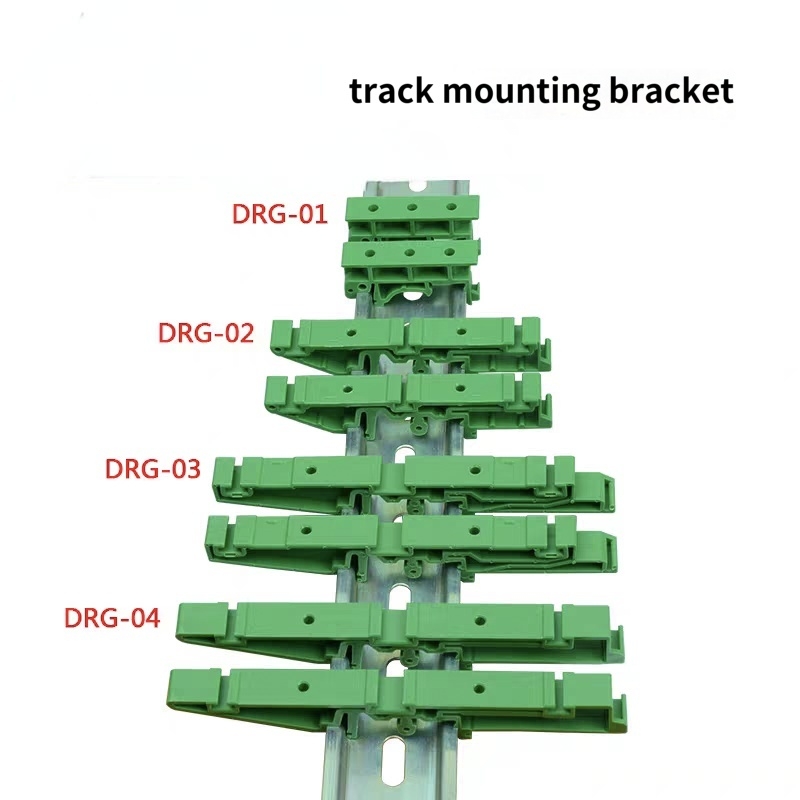

DRG-01, DRG-02, DRG-03, DRG-04, PGR-01
|
|
Material
|
High toughness flame retardant PA66 Nylon
|
|
Certification
|
CE, RoHS
|
|
Applicable Rail Standard
|
35mm Standard DIN Rail (EN 60715)
|
|
Working Temperature
|
-40℃ ~ 105℃
|
|
Type
|
DIN rail snap clip, PCB mounting bracket, equipment housing support foot
|
|
Color
|
Black / Green / Grey (Optional)
|
|
Features
|
Tool-free installation, anti-vibration locking, full insulation, easy mounting & disassembly, durable support
|
|
Application
|
Industrial control cabinets, PCB fixed mounting, instrumentation housing, PLC modules, electrical equipment assembly
|
Product Description
DRG series DIN rail mounting brackets are professional insulated fixing accessories specially designed for 35mm standard DIN rails. Made of high-strength flame retardant PA66 nylon with one-piece integrated molding, they feature excellent insulation, high temperature resistance and anti-aging performance for long-term industrial use.
Adopting flexible snap-on locking structure, the brackets support tool-free quick installation. They can be firmly clipped on standard 35mm DIN rails with tight anti-loose and anti-vibration performance, effectively preventing falling off in vibrating working environments. Reserved standard mounting holes perfectly match PCB circuit boards and equipment housings, realizing stable fixed support for electronic modules and control boards.
Lightweight and compact structure saves internal cabinet space, while the fully insulated nylon material avoids short circuit and electric leakage risks. Easy to install and disassemble for equipment inspection and maintenance. All specifications comply with international environmental and safety standards, ideal for mass industrial wiring and equipment assembly.
Product Features
-
Tool-Free Snap-On Installation：Simple pressing assembly without extra tools, greatly improving installation efficiency
-
Anti-Vibration Locking Design：Elastic buckle structure provides tight clamping force, no loose or falling off during long-term vibration operation
-
Flame Retardant & Insulated Nylon：High-quality PA66 material, high temperature resistant, flame retardant, anti-aging and safe insulation
-
Dual-Purpose Function：Works perfectly as PCB fixing bracket and equipment housing support foot for diverse installation needs
-
Standard DIN Rail Compatibility：Fully fits 35mm standard industrial DIN rails, wide compatibility for mainstream control equipment
-
Easy Maintenance & Disassembly：Press the reserved buckle to detach quickly, convenient for circuit inspection and equipment replacement
-
Stable Bearing Capacity：Integrated molding process ensures high structural toughness, not easy to deform under long-term load
-
Global Standard Certification：Compliant with CE, RoHS and REACH standards for global industrial market sales
Application Scope
-
Internal PCB circuit board fixed mounting of industrial control cabinets
-
DIN rail installation for PLC modules, relay modules and electronic control units
-
Support and fixing for instrumentation and electrical equipment housing
-
Internal wiring and module assembly of automation mechanical equipment
-
Auxiliary fixing of low-voltage electrical accessories and control components
-
Compact installation and space-saving layout of indoor electrical boxes
Installation Steps
-
Align the buckle side of the DRG bracket with the 35mm standard DIN rail;
-
Press down lightly with one hand until a click sound is heard for complete locking;
-
Align the PCB board or equipment housing with the reserved mounting holes, fix with standard screws;
-
For disassembly, press the elastic buckle and lift up gently to remove the bracket.
Precautions
-
Only applicable for standard 35mm DIN rails, do not use on non-standard rails;
-
Avoid violent extrusion and excessive pulling to prevent buckle structural damage;
-
Install in dry and ventilated environment, avoid long-term exposure to humid and corrosive atmosphere;
-
Select suitable DRG model according to PCB size and bearing requirements.
