DRG Series Reinforced Plastic DIN Rail Clip High Toughness Anti-Vibration Insulated PCB Bracket Support Foot
Product Basic Information
|
Item
|

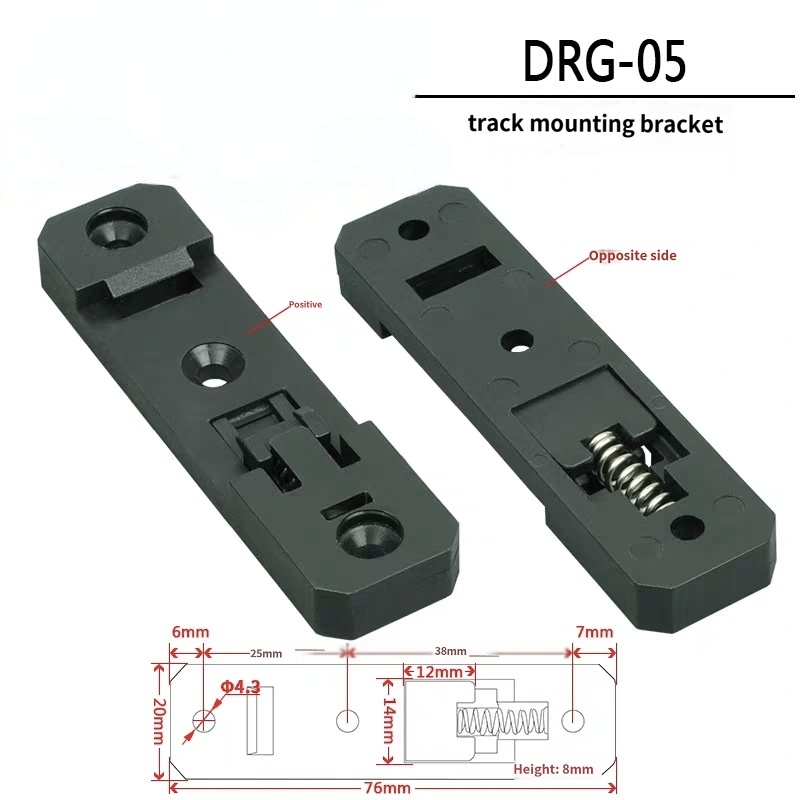

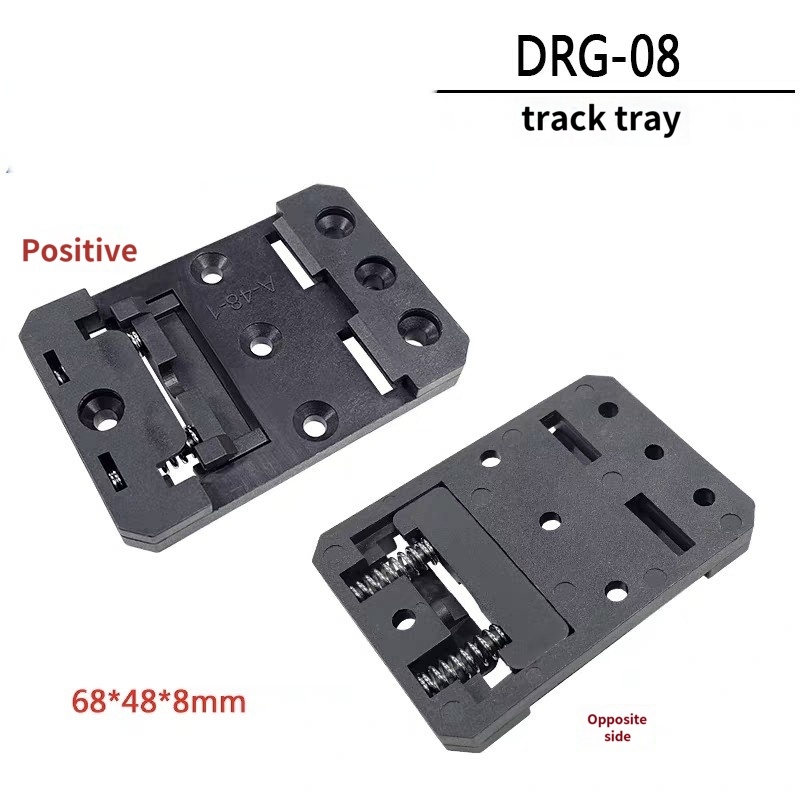

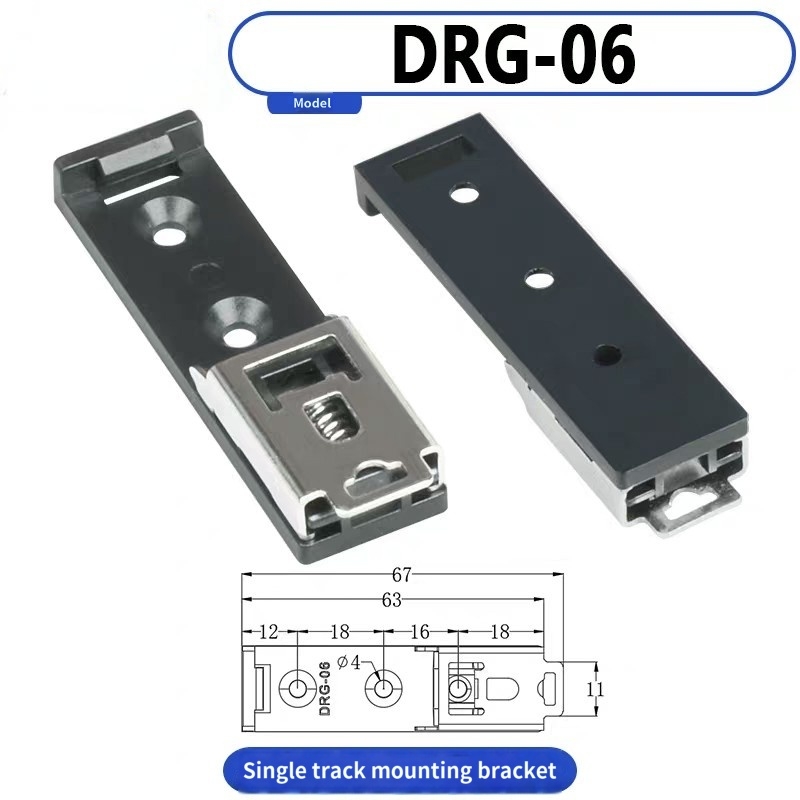

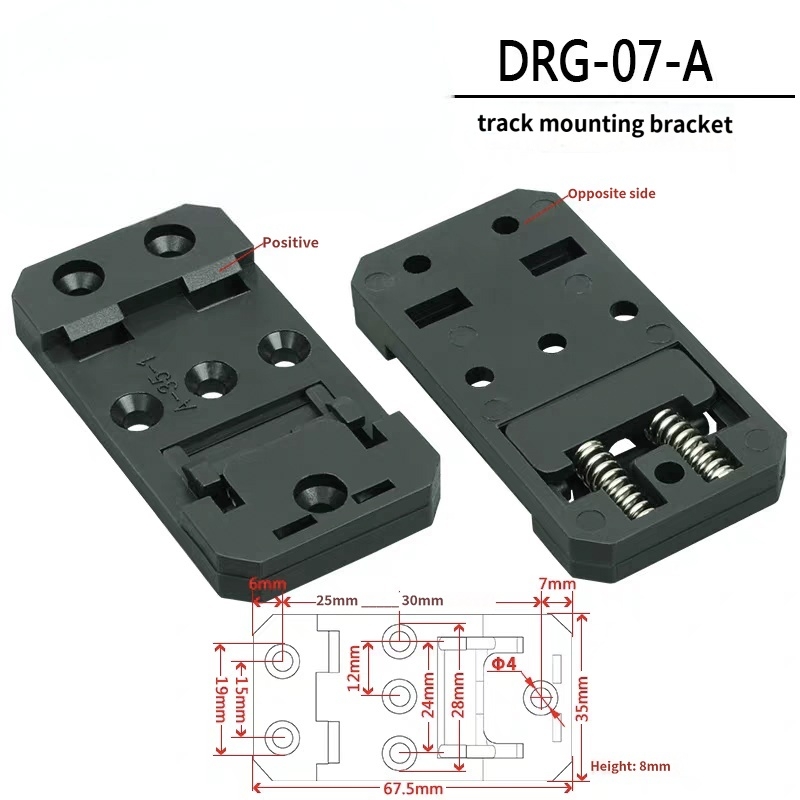

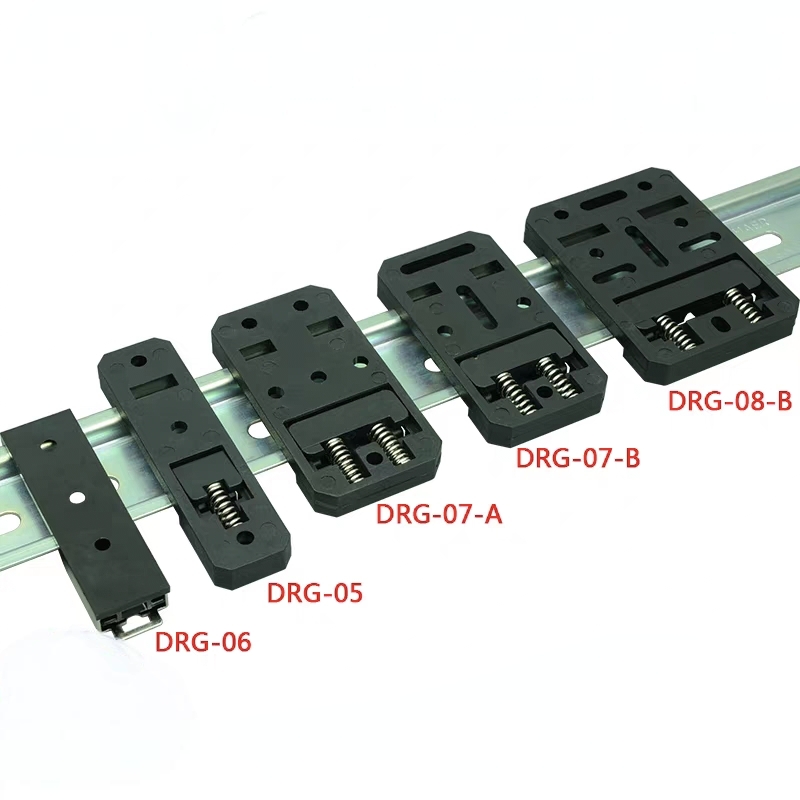

DRG-05, DRG-06, DRG-07-A, DRG-07-B, DRG-08
|
|
Product Series
|
DRG Reinforced Plastic DIN Rail Mounting Bracket
|
|
Material
|
Reinforced Flame Retardant PA66 Plastic, Fiber Reinforced
|
|
Certification
|
CE, RoHS, REACH
|
|
Applicable Rail Standard
|
35mm Standard DIN Rail (EN 60715)
|
|
Working Temperature
|
-40℃ ~ 105℃
|
|
Type
|
Reinforced plastic DIN rail snap clip, insulated PCB mounting bracket, housing support foot
|
|
Color
|
Black / Green / Grey (Optional)
|
|
Features
|
Fiber reinforced structure, enhanced toughness & bearing capacity, anti-breakage, anti-vibration, full insulation, tool-free quick installation
|
|
Application
|
Industrial control cabinets, PCB fixed mounting, instrumentation housing, PLC modules, electrical equipment conventional assembly
|
Product Description
DRG series reinforced plastic DIN rail mounting brackets are upgraded insulated fixing accessories optimized for conventional industrial wiring scenarios. Adopting fiber-reinforced flame retardant PA66 material, this enhanced version effectively solves the problems of easy breakage and poor toughness of ordinary plastic brackets, delivering higher structural strength and stronger bearing performance.
Equipped with reinforced elastic snap buckle structure, the bracket features improved clamping toughness and anti-fatigue performance. It can be firmly locked on 35mm standard DIN rails without loosening or falling off under daily vibration working conditions. Precision one-piece molding ensures smooth surface and accurate mounting hole position, perfectly matching various PCB circuit boards and equipment housings for stable and neat installation.
The high-toughness reinforced plastic material retains excellent insulation, high temperature resistance and aging resistance. It is lightweight, cost-effective and not easy to deform, fully meeting the safety and durability requirements of indoor electrical control equipment. Easy to install and disassemble for daily maintenance, compliant with international environmental and safety standards for wide industrial application.
Product Features
-
Fiber Reinforced Enhanced Structure：Upgraded reinforced PA66 material, greatly improved toughness and tensile strength, anti-break and anti-deformation
-
Optimized Elastic Buckle Design：Reinforced snap structure provides stable clamping force, effectively anti-loose under normal equipment vibration
-
Flame Retardant & Full Insulation：High-grade flame retardant plastic, reliable insulation protection, prevent short circuit and electric leakage risks
-
Improved Load-Bearing Performance：Stronger support capacity than ordinary plastic brackets, suitable for most standard PCB and module installation
-
Tool-Free Snap-On Installation：Press-to-lock design, fast assembly and disassembly, improve working efficiency
-
High & Low Temperature Resistance：Stable performance at -40℃ to 105℃, anti-aging for long-term indoor use
-
Dual-Purpose Practical Design：Serves as both PCB fixing bracket and equipment housing support foot for versatile installation
-
Global Standard Certification：Compliant with CE, RoHS, REACH for global industrial market sales
Application Scope
-
PCB circuit board fixed installation in indoor industrial control cabinets
-
DIN rail mounting for common PLC modules, relay modules and control units
-
Support and fixing for instrumentation and electrical equipment housing
-
Conventional assembly of low-voltage electrical accessories and electronic components
-
Indoor automation equipment and mechanical control box internal fixing
-
Cost-effective wiring layout for standard electrical cabinet projects
Installation Steps
-
Align the reinforced plastic buckle of the DRG bracket with the 35mm standard DIN rail;
-
Press down gently until a click sound is heard to complete firm locking;
-
Align the PCB board or equipment housing with reserved mounting holes and fix with standard screws;
-
For disassembly, press the elastic buckle and lift up gently to remove the bracket.
Precautions
-
Designed for standard 35mm DIN rails only; do not use on deformed or non-standard rails;
-
Avoid excessive squeezing and strong impact to prevent buckle damage;
-
Suitable for indoor conventional vibration environments, not recommended for heavy-load and high-frequency vibration scenarios;
-
Select appropriate DRG model according to actual installation size and load demand.
