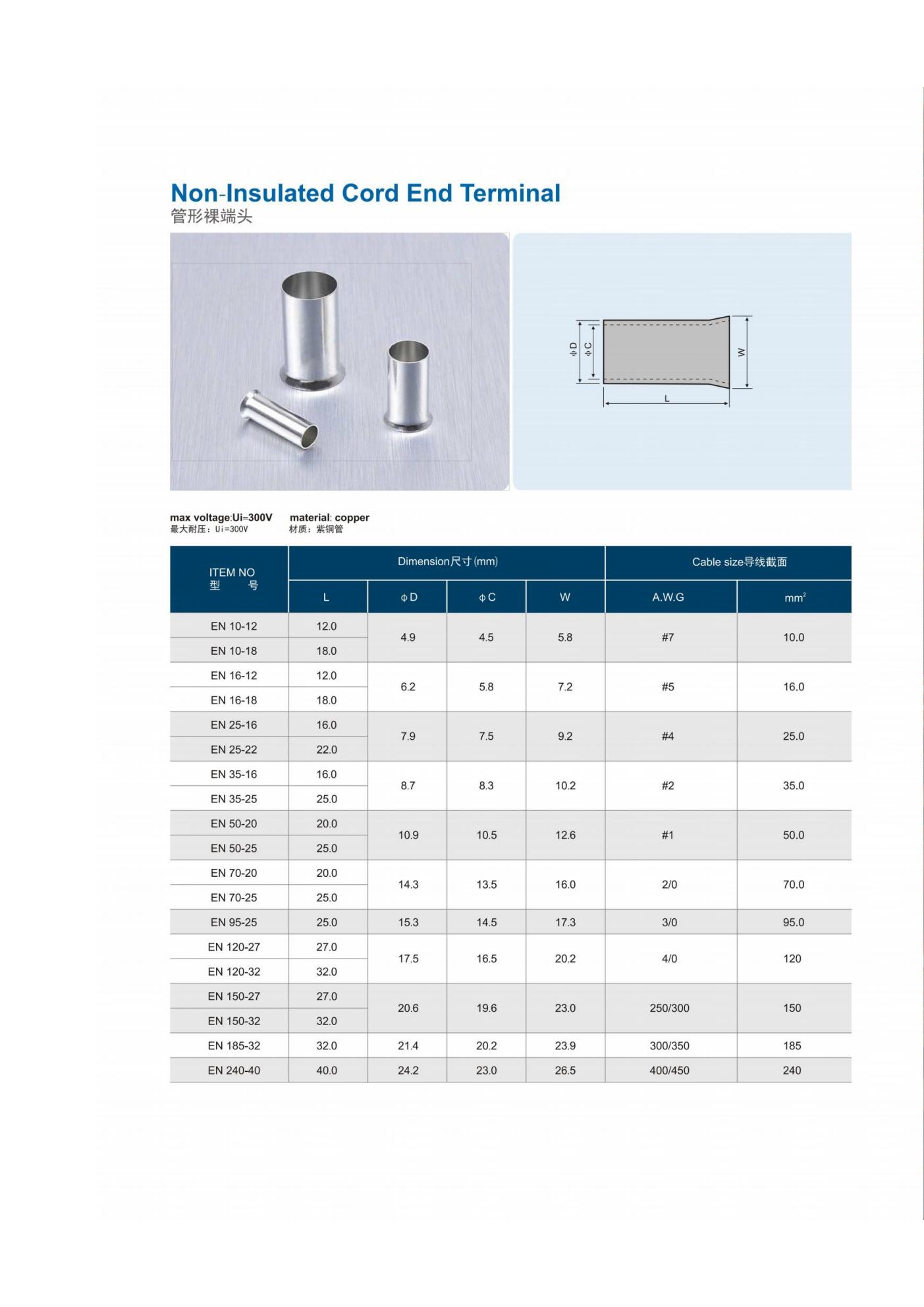

| Item | Specification |
|---|---|
| Product Series | EN Series No-Insulated Cord End Terminal |
| Material | High purity red copper, tin plated |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 125°C |

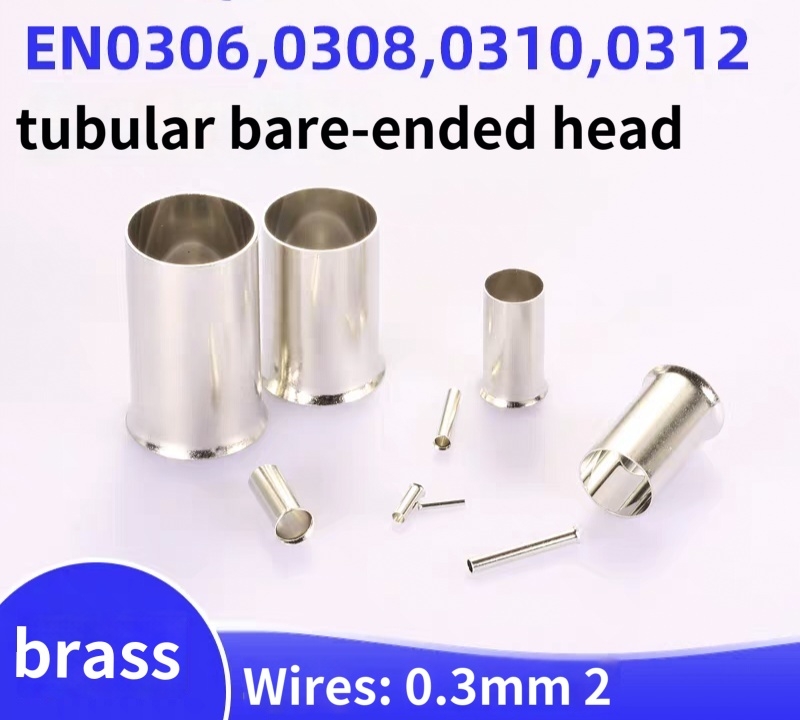

| Type | Tubular bare cord end terminal, non-insulated ferrule |
| Wire Range | 0.5mm² – 16mm² |
| Feature | Seamless tubular, burr-free, high conductivity, high temperature resistant |
| Application | Electrical cabinet, PLC, terminal block, inverter, industrial control wiring |
Product Description

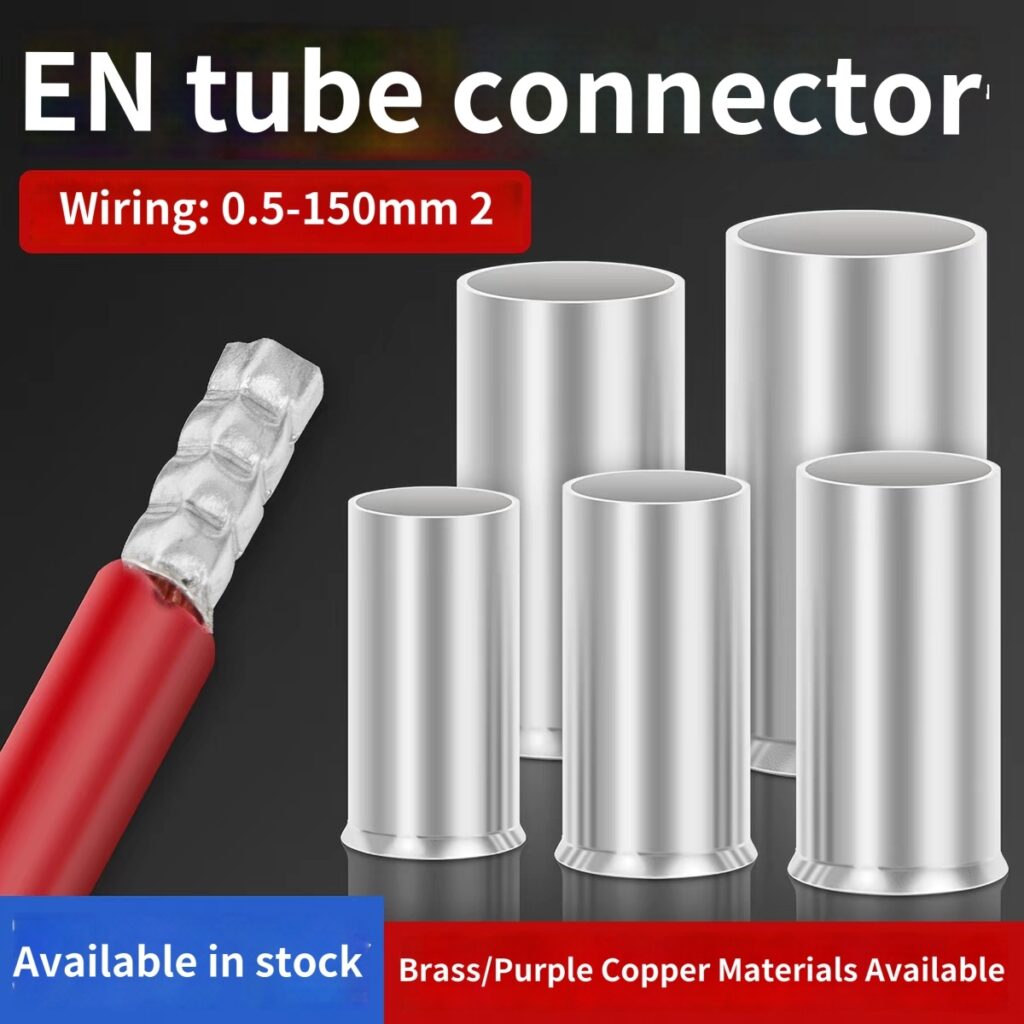

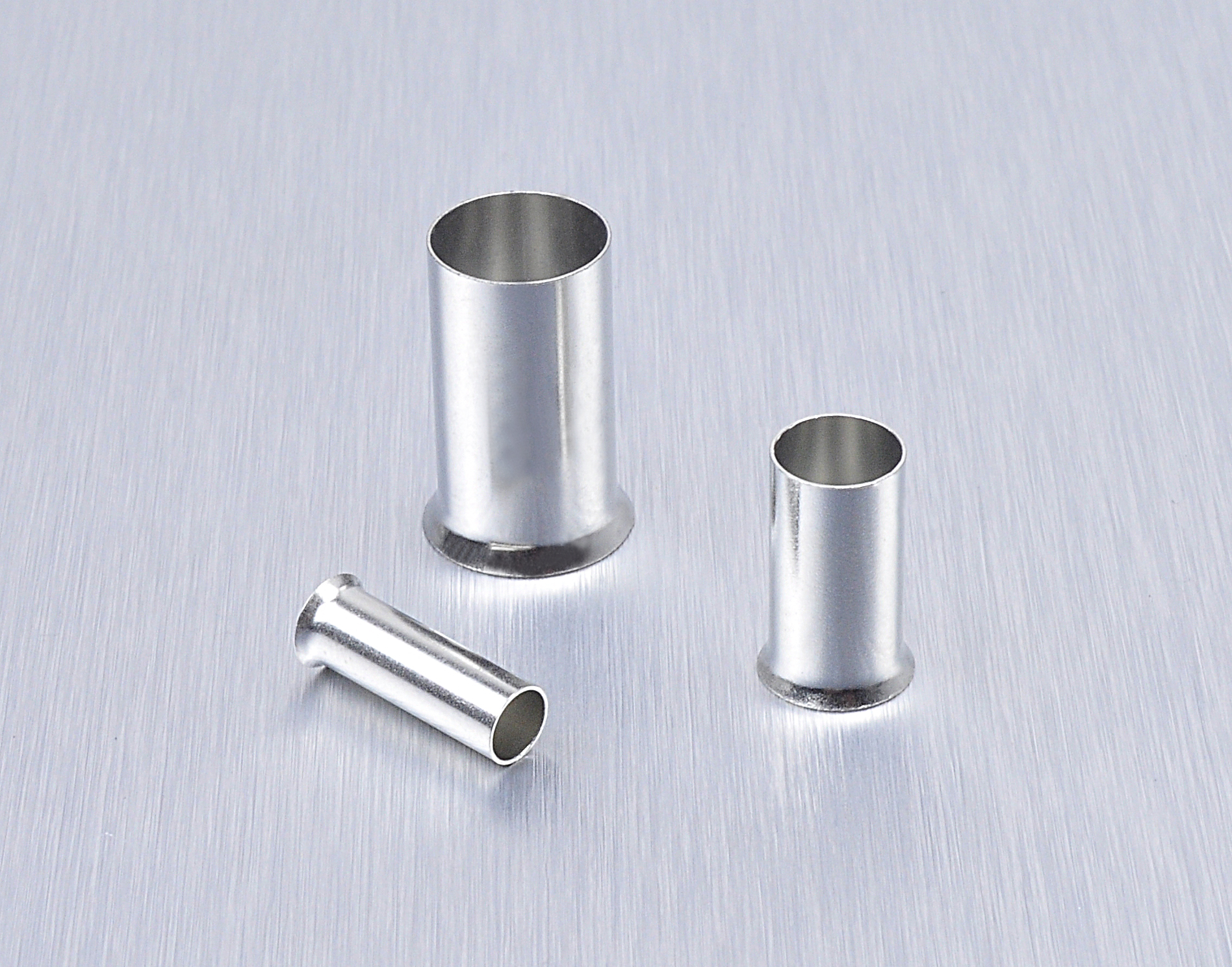

EN series no-insulated cord end terminal is a bare tubular wire end ferrule made of high-purity red copper with tin-plated surface. Adopts seamless integral forming process, smooth inner and outer wall without burrs.
Without nylon insulation cover, it features small size and compact structure, ideal for dense wiring in control cabinets and terminal blocks. It effectively prevents scattered wire strands, reduces contact resistance, improves crimping stability and anti-oxidation performance. Suitable for standard European crimping tools, widely used in industrial automation, power distribution and low-voltage electrical wiring. Full international certifications support global export and project matching.
Product Features

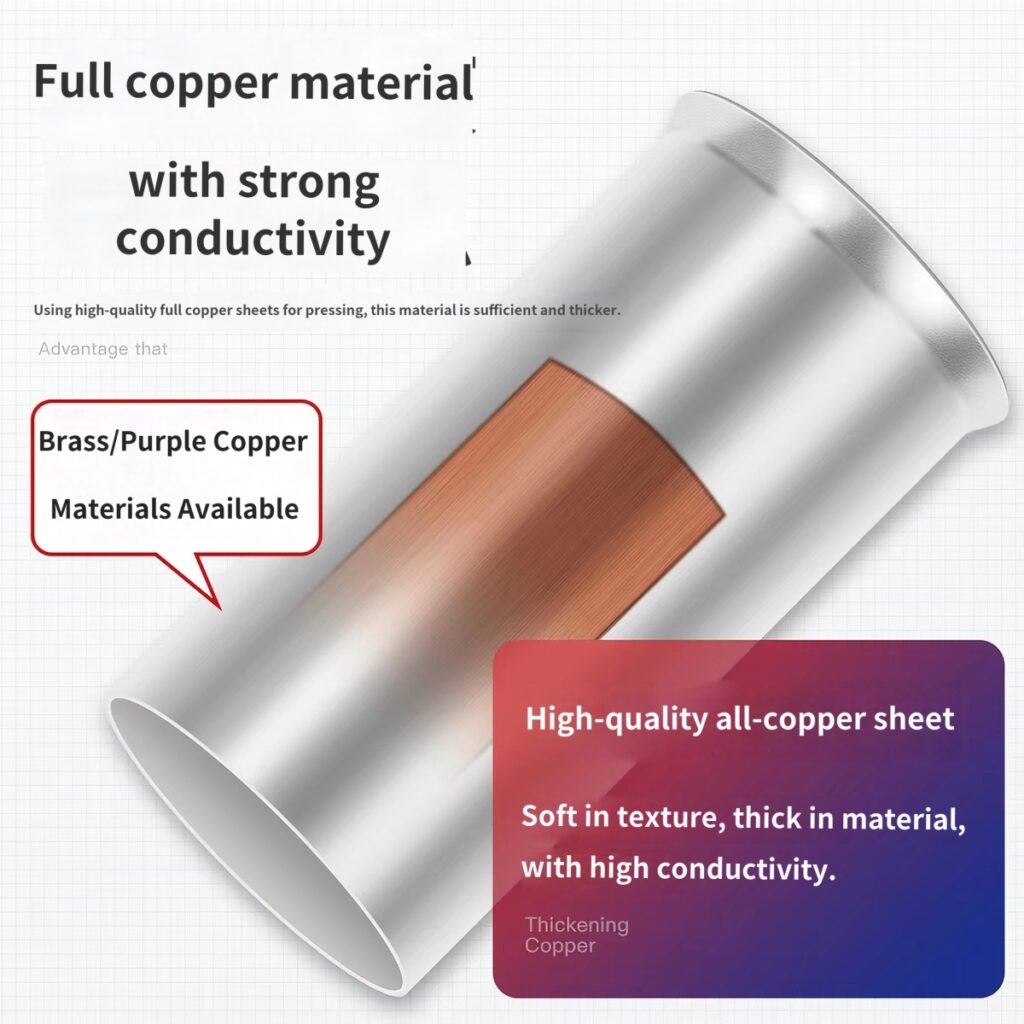

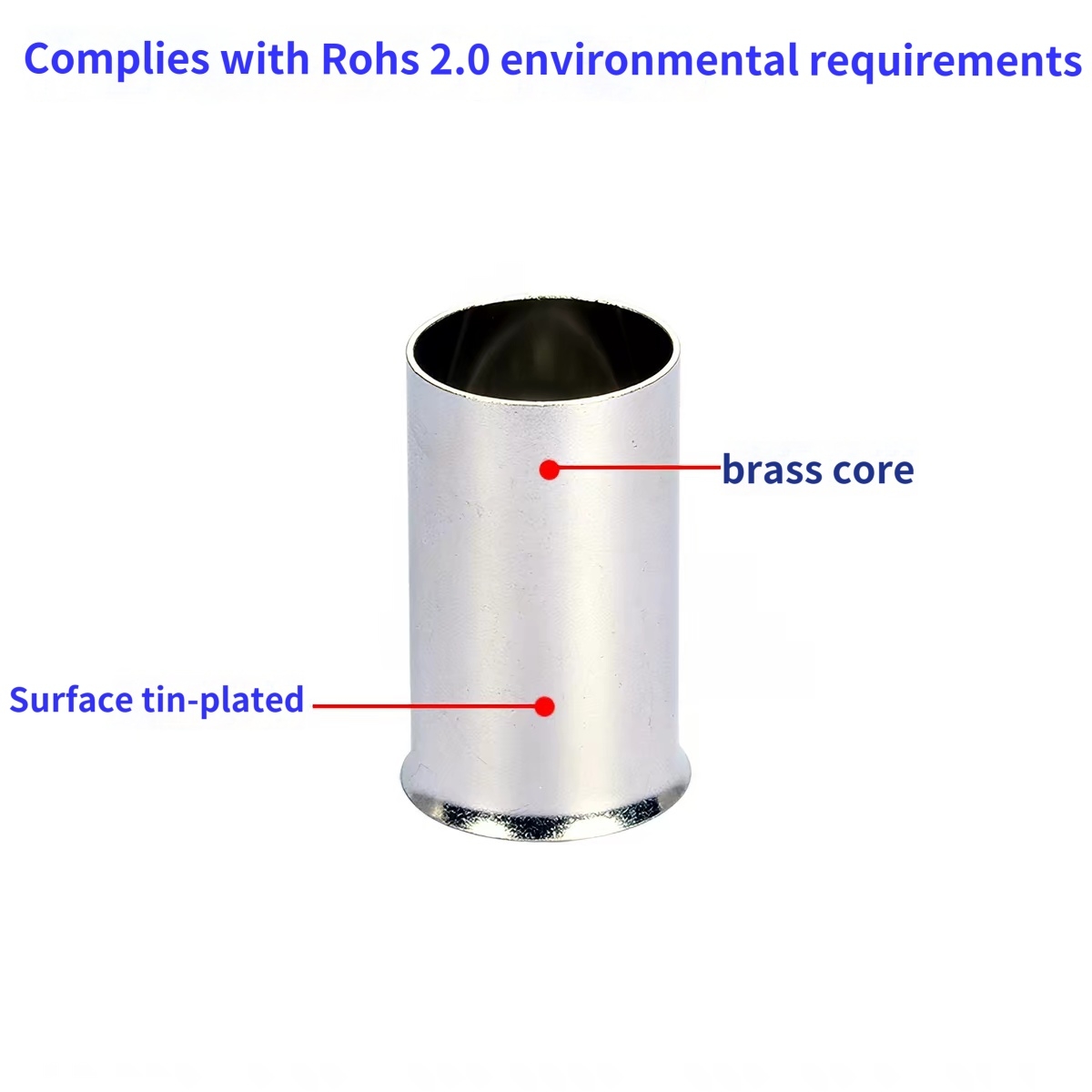

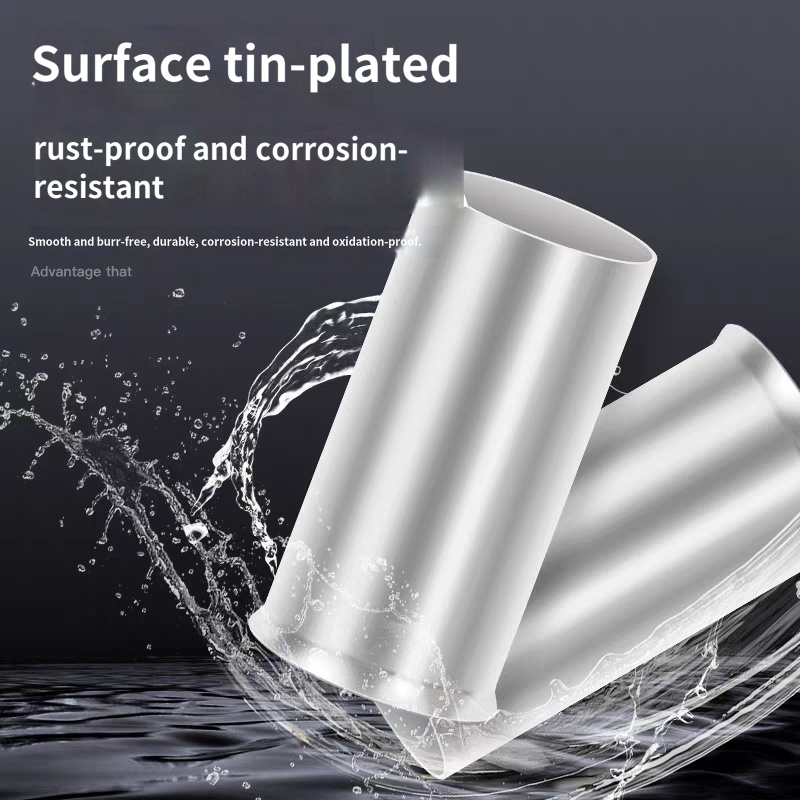

Pure Red Copper Tin Plated
High conductivity, low resistance, anti-oxidation and corrosion resistance for stable current transmission.
No-Insulated Compact Design
Bare tubular structure, save space for dense wiring arrangement.
Seamless Tubular Forming
Smooth burr-free inner hole, protect wire strands, no damage during crimping.
European Standard Size
Perfect match for terminal blocks, PLC, inverters and all standard crimp tools.
High Temperature Resistant
Withstand harsh working temperature, anti-aging and long service life.
Full Global Certification
CE, RoHS, TUV, UL, REACH certified, meet international safety and environmental standards.
Application Scope
Electrical control cabinet and distribution box internal wiring
PLC, inverter and circuit breaker terminal connection
Industrial automation and mechanical equipment wiring
Low-voltage complete electrical assembly
Instrumentation and electronic equipment internal circuit
Building electrical and power distribution engineering
Installation Diagram & Step Instruction

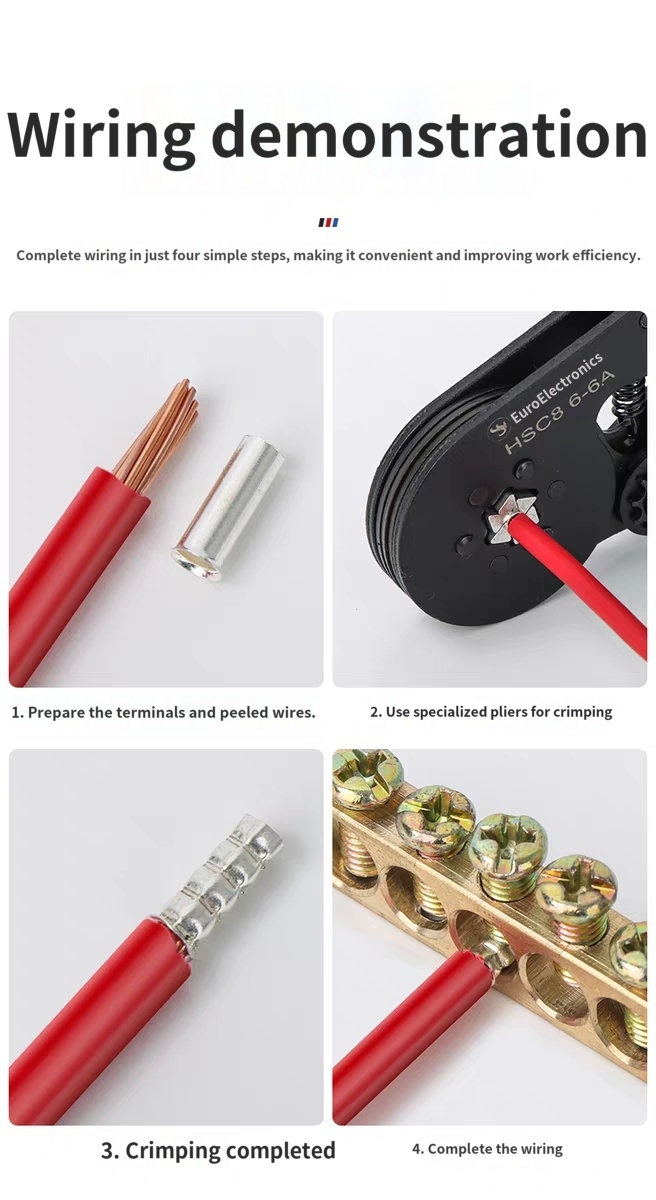

Step-by-Step Installation Diagram
Standard crimping operation steps for EN series non-insulated cord end terminal. Correct crimping ensures reliable contact and safe wiring.
Strip proper length of wire insulation.
Insert stranded wire fully into the EN bare tubular terminal.
Crimp tightly with professional European cold crimp pliers.

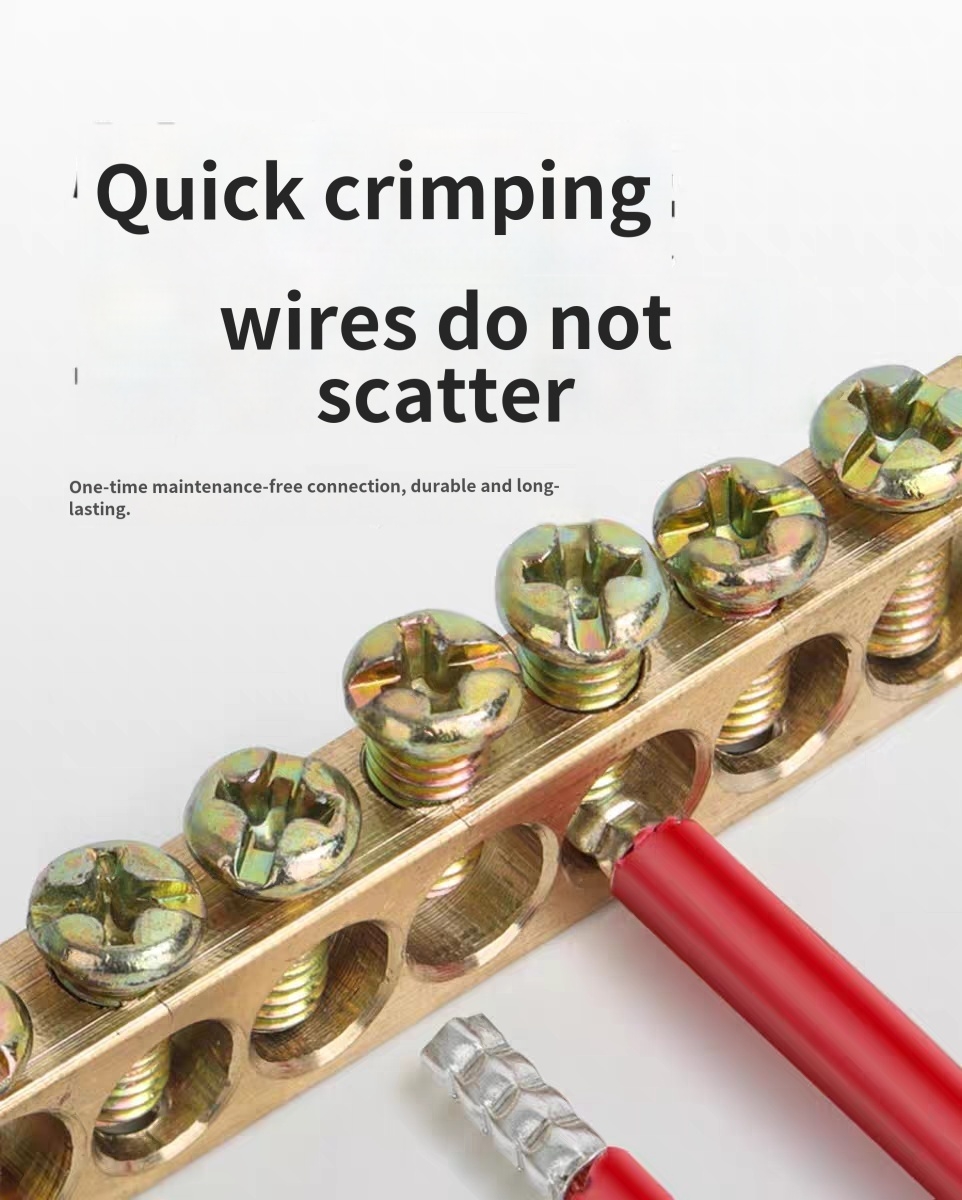

Insert the crimped ferrule into terminal block for firm connection.
Precautions
Select correct EN model according to wire cross-sectional area.
Use dedicated cold crimping tool to ensure crimping effect.
Avoid over-crimping to prevent tubular deformation and cracking.
Suitable for indoor closed wiring, keep away from exposed live parts.
