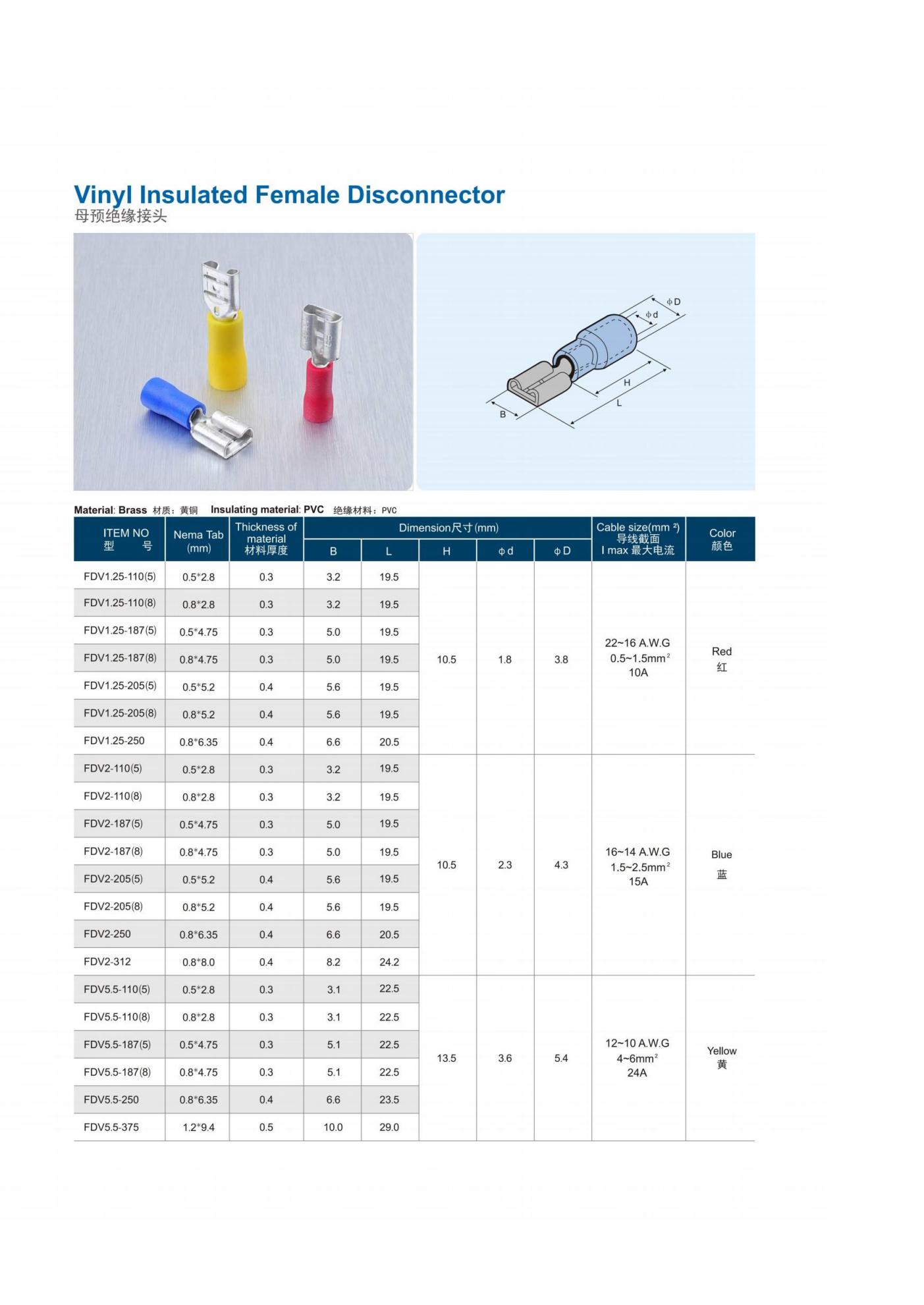

FDV Series Pre-insulated Female Terminal Red Copper Insulated Female Wire Disconnector
| Item | Specification |
|---|---|
| Product Series | FDV Pre-insulated Female Connector Terminal |
| Material | High purity red copper tin-plated + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Pre-insulated female socket cold crimp terminal |
| Wire Range | 0.5mm² – 6mm² |
| Feature | Elastic socket design, tight matching, full insulation, easy plug & disconnect |
| Application | Wiring harness plug docking, household appliances, automotive, control circuit quick connection |
Product Description
FDV series pre-insulated female terminal is matched socket-type cold crimp connector, perfectly paired with MDV male terminals. Adopts high-quality tin-plated red copper material, with excellent electrical conductivity, low contact resistance and strong oxidation resistance.
Built-in elastic reed structure ensures firm clamping after plugging in, not easy to loose under vibration. Integrated flame-retardant nylon insulating sleeve provides full safety insulation, effectively prevent electric leakage and short circuit. Easy to assemble and disassemble, convenient for circuit inspection and later maintenance. Stable crimping performance, durable and reliable, fully meets international export quality standards.
Product Features
- Tin-plated Pure Red CopperHigh conductivity, anti-rust and anti-corrosion, stable current transmission.
- Elastic Internal ReedGood clamping force, close fit with male terminal, stable connection.

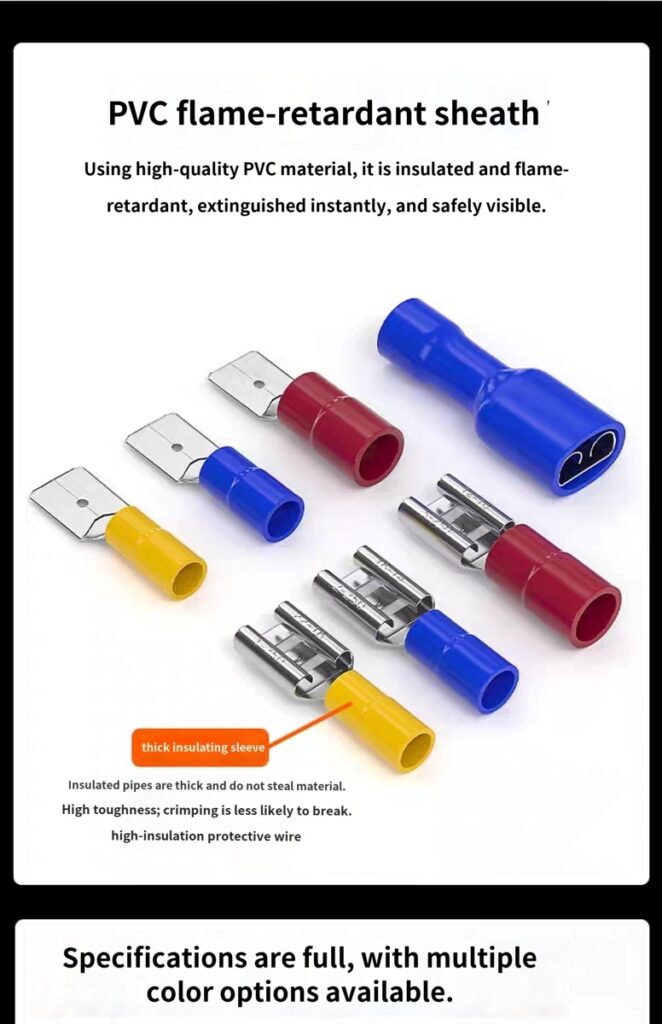

- Flame Retardant Insulation HousingHigh temperature resistant, safe insulation, avoid electric shock risk.

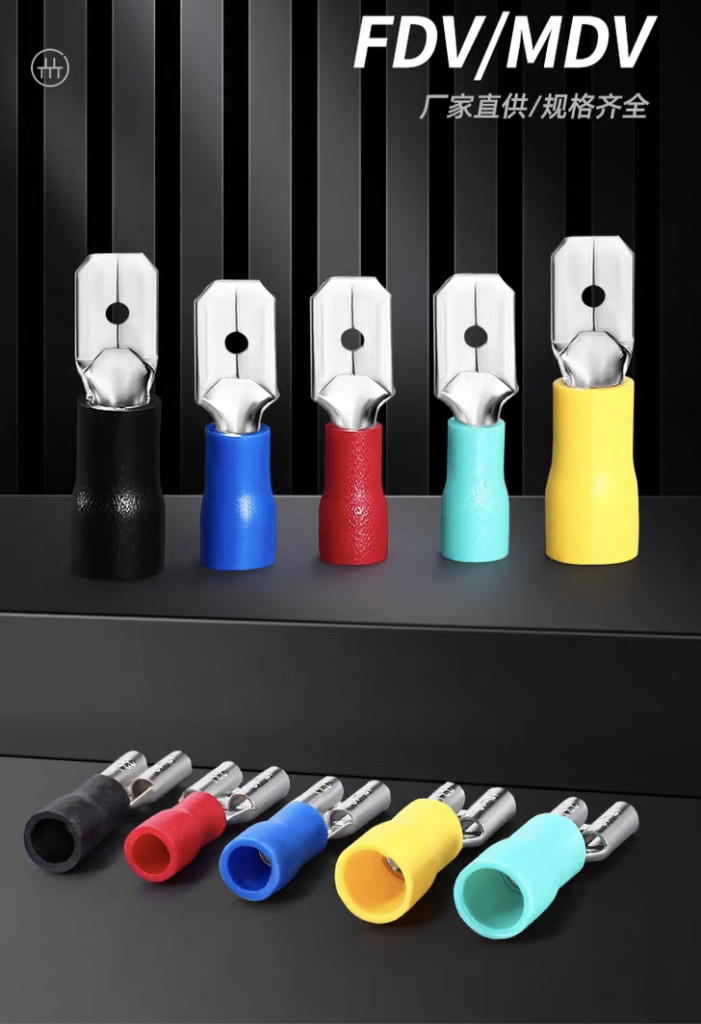

- Standard Matching SizeUniversal specification, perfectly compatible with MDV male terminals.
- Integral Stamping FormingSmooth without burrs, protect wire core during crimping.
- Color Coding ClassificationDistinct colors for different wire gauges, fast selection.
- Full International Certifications
CE, RoHS, TUV, UL, REACH approved for global market sales.
Application Scope
- Automobile, electric vehicle wiring harness plug connection
- Household electrical appliances detachable internal wiring
- Electrical control cabinet signal circuit butt joint
- Electronic equipment quick assembly line connection
- Mechanical equipment movable circuit docking
- Low voltage instrumentation quick plug wiring
Installation Steps
- Strip wire insulation to proper length.
- Insert copper wire completely into the insulated terminal tube.
- Crimp firmly with dedicated cold crimp pliers.

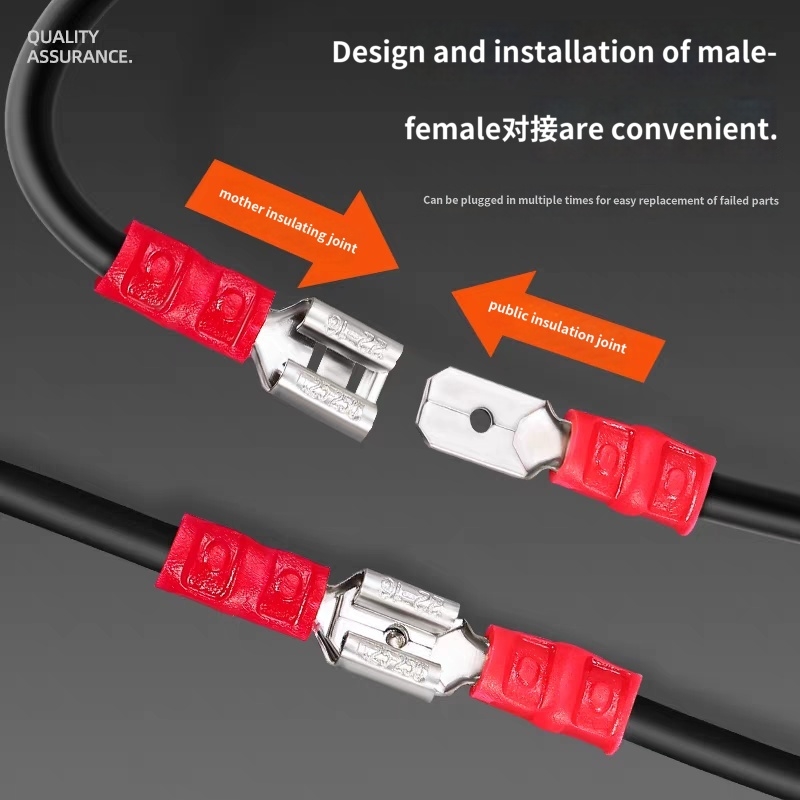

- Connect with matched male terminal to finish plug-in connection.
Precautions
- Choose suitable FDV model according to wire cross section.
- Do not over-crimp to avoid terminal deformation and insulation damage.
- Ensure wire fully inserted without exposed copper strands.
- Avoid excessive force plugging and pulling to prolong service life.
