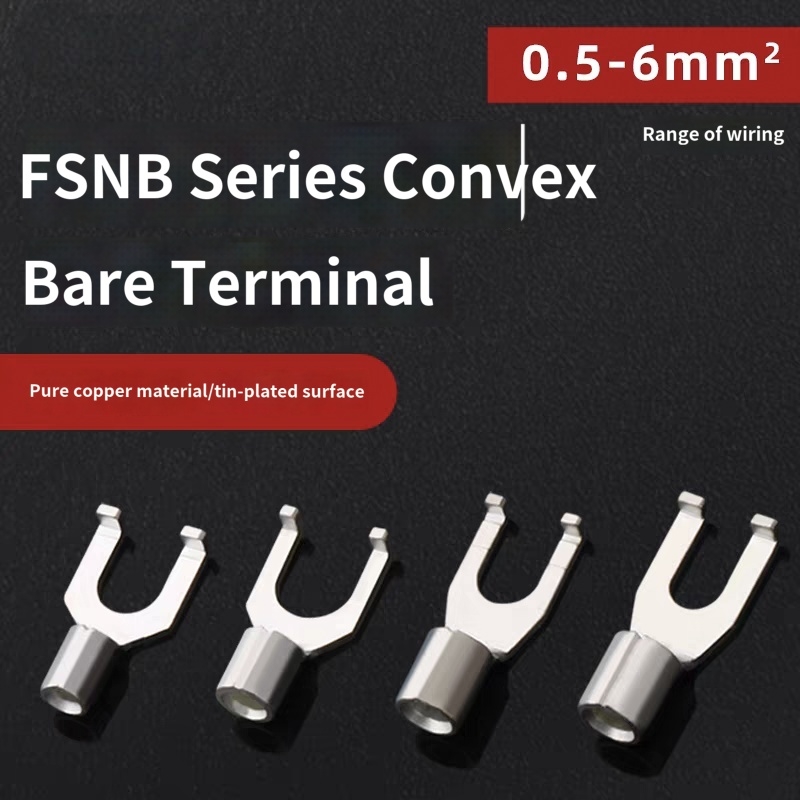

FSNB Raised Flange Fork Bare Terminal Thick Red Copper Non-insulated Wire Lug
Product Description
FSNB flange fork non-insulated terminal is bare raised spade cold crimp connector without insulating sleeve. It adopts unique convex flange structure, which can play accurate positioning and anti-slip role when installed on bolts, effectively prevent terminal shifting and poor contact under long-term vibration.

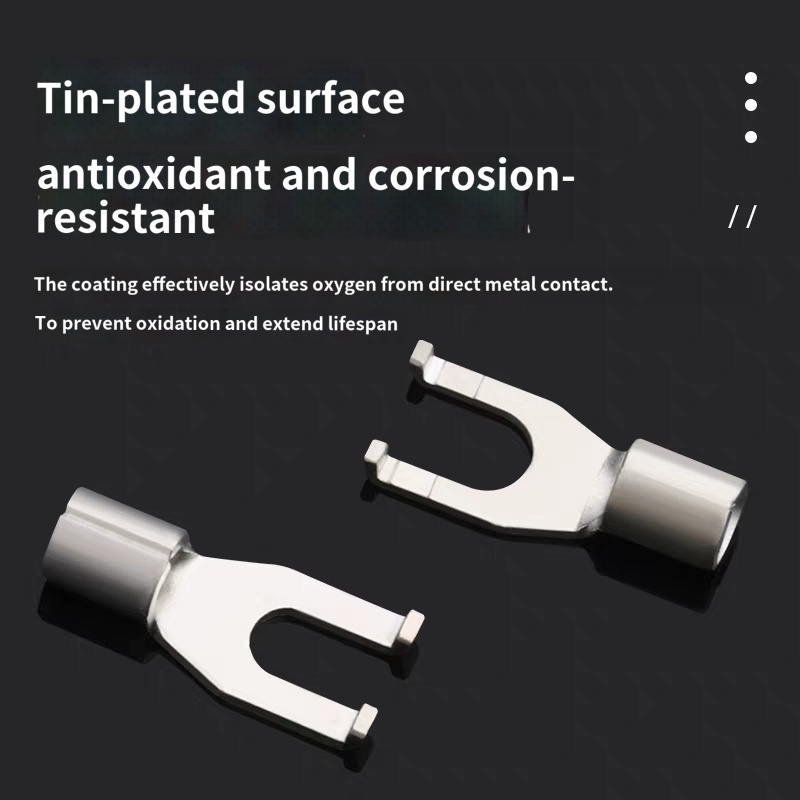

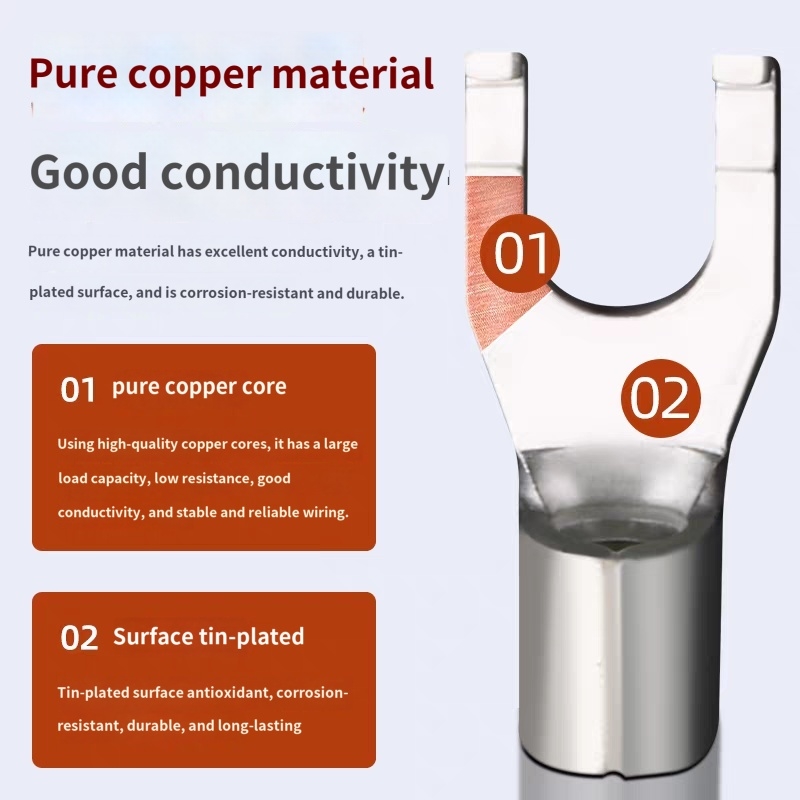

Made of solid thickened red copper with tin-plated surface, it features high structural strength, excellent electrical conductivity, low contact resistance and superior high temperature & oxidation resistance. Compact bare body saves installation space, ideal for installation inside closed electrical boxes and dense wiring areas.
Easy to hang on screws for quick fixation, firm crimping, strong pulling resistance and stable power transmission. Complete specifications meet various engineering wiring needs, fully conform to international export standards.
| Item | Specification |
|---|---|
| Series | FSNB Flange Fork Non Insulated Terminal |
| Material | High purity thick red copper, tin plated |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 125°C |
| Type | Raised flange fork-shaped bare cold crimp terminal |
| Wire Range | 0.5mm² – 16mm² |
| Features | Convex flange positioning, anti-slip anti-offset, no insulation, high hardness, high current bearing |
| Application | Power distribution cabinet, machinery equipment, auto harness, high-current bolt fixed wiring |
Product Features
- Convex Flange Positioning Design
Raised edge anti-slip limit, avoid loosening and displacement - Thickened Tin-plated Red Copper
High hardness, not easy to deform, strong load capacity for high current - Non-insulated Bare Structure
Small volume, space-saving, suitable for built-in hidden wiring - Standard Fork Hanging Structure
Easy bolt installation, convenient assembly and later maintenance - Seamless Integral Stamping
Smooth burr-free surface, protect wire core during crimping - High Temperature & Vibration Resistant
Adapt to harsh industrial working environment, long service life - Full Global Certifications
CE, RoHS, TUV, UL, REACH certified for global sales
Application Scope
- Low voltage distribution box main circuit connection
- Industrial mechanical equipment power wiring fixing
- Automobile & engineering vehicle wiring harness connection
- Electrical cabinet internal high-current wiring assembly
- Power equipment terminal bolt fastening connection
- Closed electrical appliance internal fixed line connection

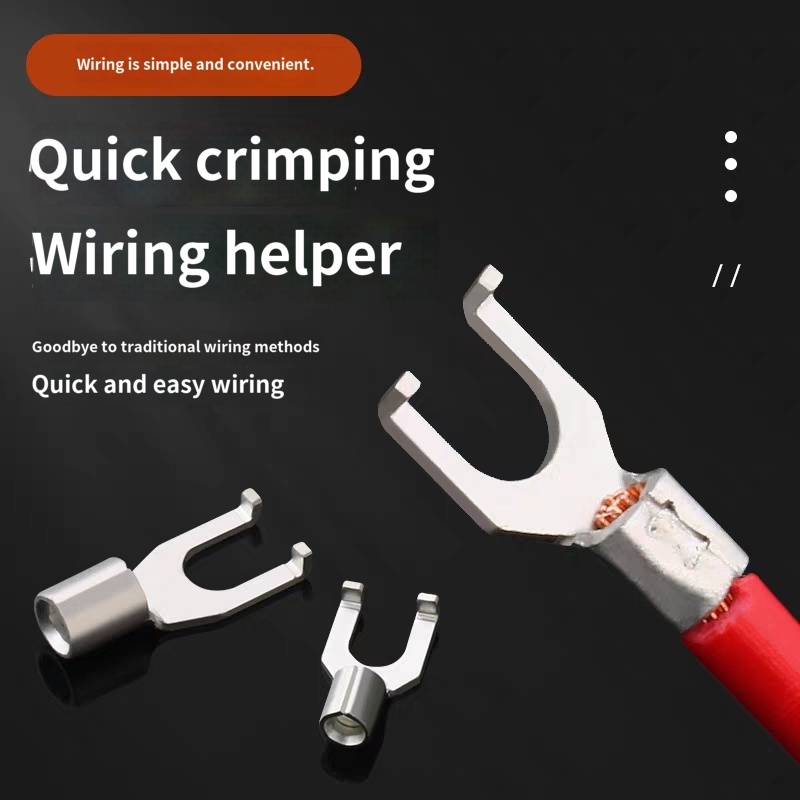

Installation Steps
- Strip proper length wire insulation to expose copper core
- Insert wire fully into terminal crimp tube
- Crimp tightly with professional cold crimp pliers
- Hang flange fork head on bolt and tighten firmly
Precautions
- Choose correct FSNB model according to wire gauge and bolt size
- Must use in closed insulated environment to avoid short circuit risk
- Do not over-crimp to prevent copper body deformation
- Not suitable for frequent disassembly wiring occasions
