FSV Pre-insulated Flange Fork Terminal Red Copper Raised Spade Wire Connector
Product Description
FSV insulated flange spade terminal is upgraded convex raised fork type cold crimp connector. Different from ordinary fork terminals, it adopts unique raised flange structure, which plays good positioning and anti-slip effect after being mounted on bolts, effectively preventing displacement and loose contact caused by vibration.

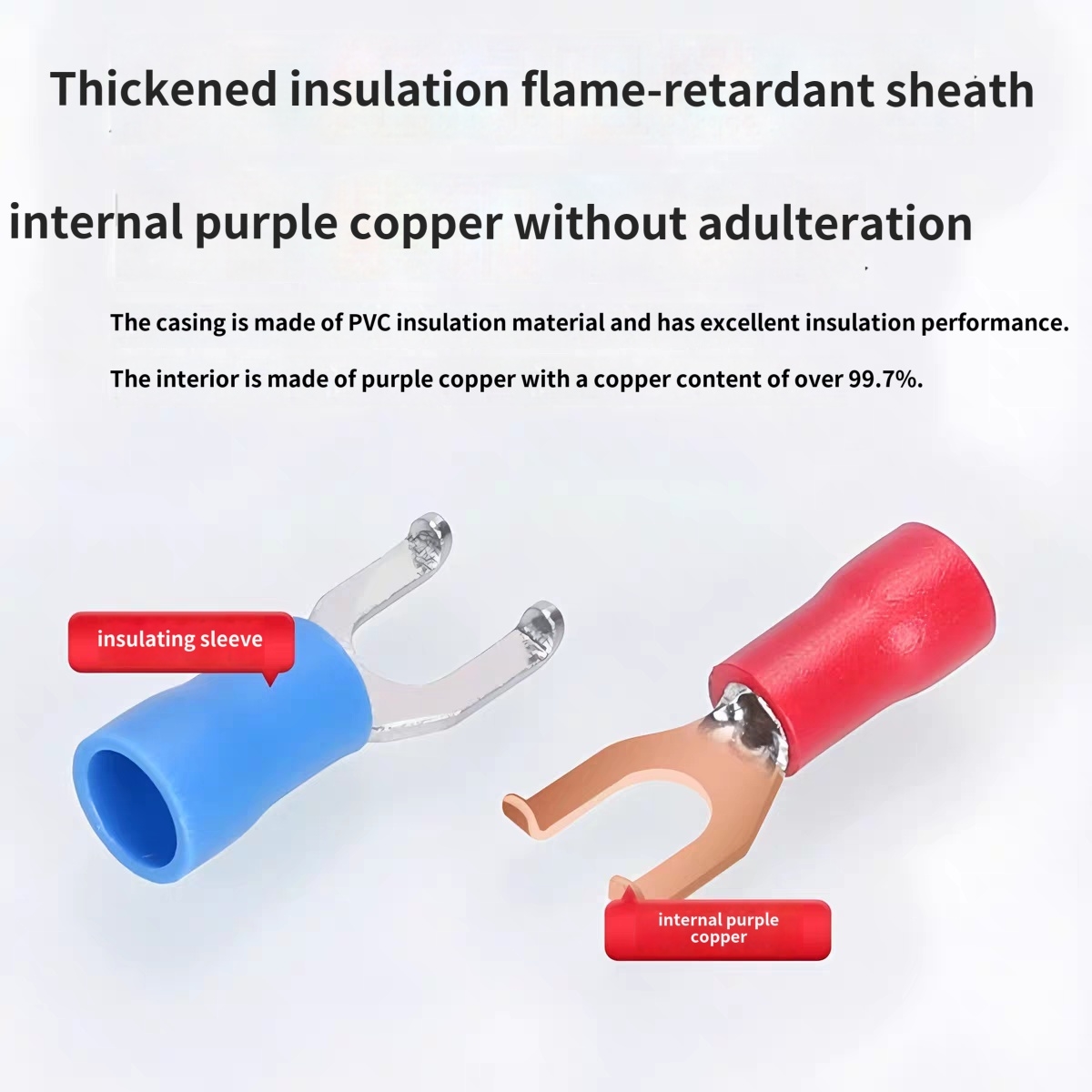

Made of high-quality seamless red copper with tin-plated surface, it owns excellent electrical conductivity, low contact resistance and strong anti-oxidation ability. Equipped with integrated flame retardant nylon insulating sleeve, it provides comprehensive insulation isolation, avoids electric leakage and short circuit risks, and ensures safe electricity use.
Easy to hang and fix on screws and bolts, convenient for installation, disassembly and later maintenance. Precise stamping process ensures smooth surface without burrs, stable crimping and strong tensile resistance. Complete specifications with color coding meet diversified wiring demands, fully compliant with international export standards.
| Item | Specification |
|---|---|
| Product Series | FSV Flange Fork Pre-insulated Terminal |
| Material | High purity tin-plated red copper + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Working Temperature | -40℃ ~ 105℃ |
| Type | Raised flange fork shaped pre-insulated cold crimp terminal |
| Wire Range | 0.5mm² – 10mm² |
| Features | Raised convex flange design, positioning anti-slip, firm locking, easy bolt mounting, full insulation |
| Application | Electrical cabinet, power distribution, automotive harness, machinery equipment, instrument wiring |
Product Features
- Convex Flange Raised Design
Built-in positioning protrusion, anti-slip anti-offset, greatly improve connection stability - Tin-plated Pure Red Copper
High conductive efficiency, anti-rust anti-corrosion, long-term stable current transmission - Flame Retardant Full Insulation
High temperature resistant, aging resistant, effectively isolate live parts - Classic Fork Mounting Structure
Easy to hang on bolts, quick assembly and convenient maintenance - Integral Burr-free Forming
Will not damage wire strands during crimping, neat wiring - Color Coded Classification
Different colors correspond to different wire gauges, fast selection and matching - Vibration Resistant & Firm Connection
Not easy to loosen in vibrating working environment - Full Set International Certifications
CE, RoHS, TUV, UL, REACH approved for global market sales
Application Scope
- Electrical control cabinet internal fixed wiring
- Power distribution box low voltage circuit connection
- Automobile and electric vehicle wiring harness assembly
- Industrial mechanical equipment power line connection
- Household electrical appliances internal circuit wiring
- Instrumentation and control element bolt wiring
Installation Steps
- Strip wire insulation to suitable length and expose copper core
- Insert wire fully into the pre-insulated terminal crimp barrel
- Crimp firmly and evenly with professional cold crimp pliers
- Hang convex fork end on bolt and tighten screw to fix
Precautions
- Select matching FSV specification according to wire cross-section size
- Control crimp strength properly, avoid over extrusion causing deformation
- Ensure copper wire is fully inserted without exposed conductor
- Match suitable bolt size to ensure positioning protrusion works effectively
