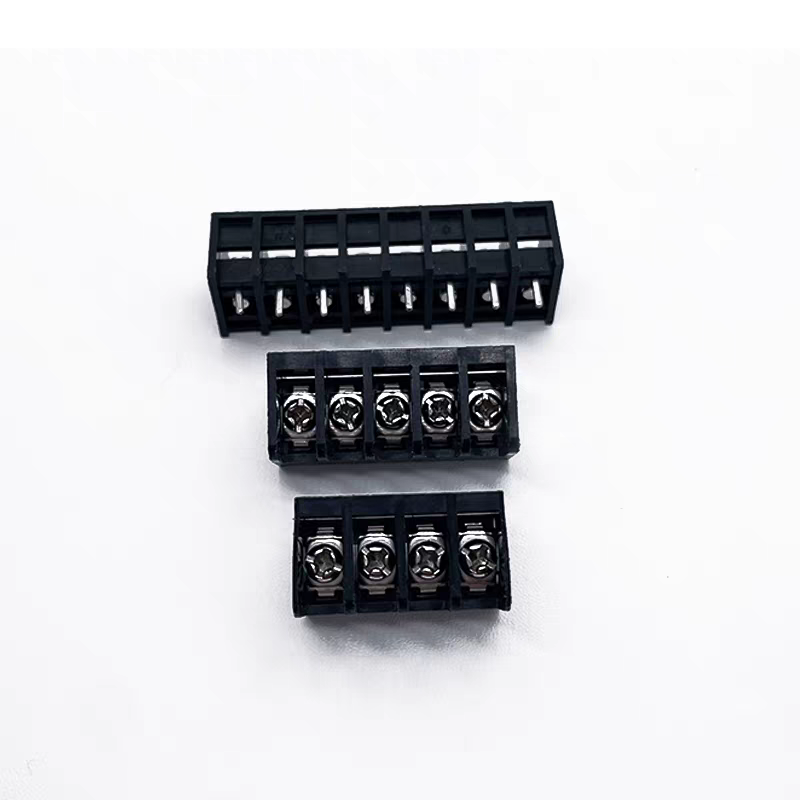

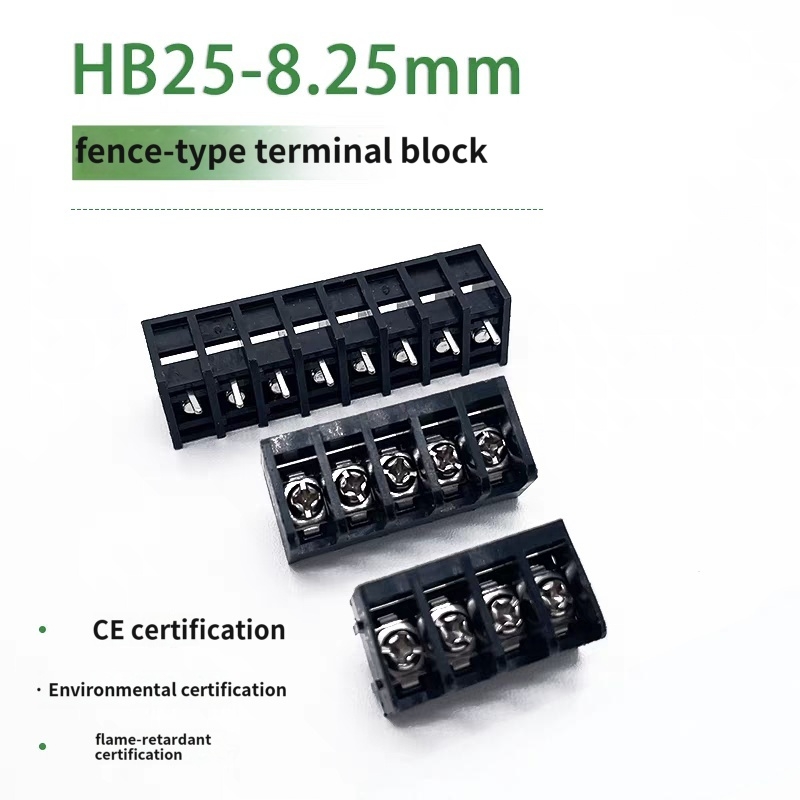

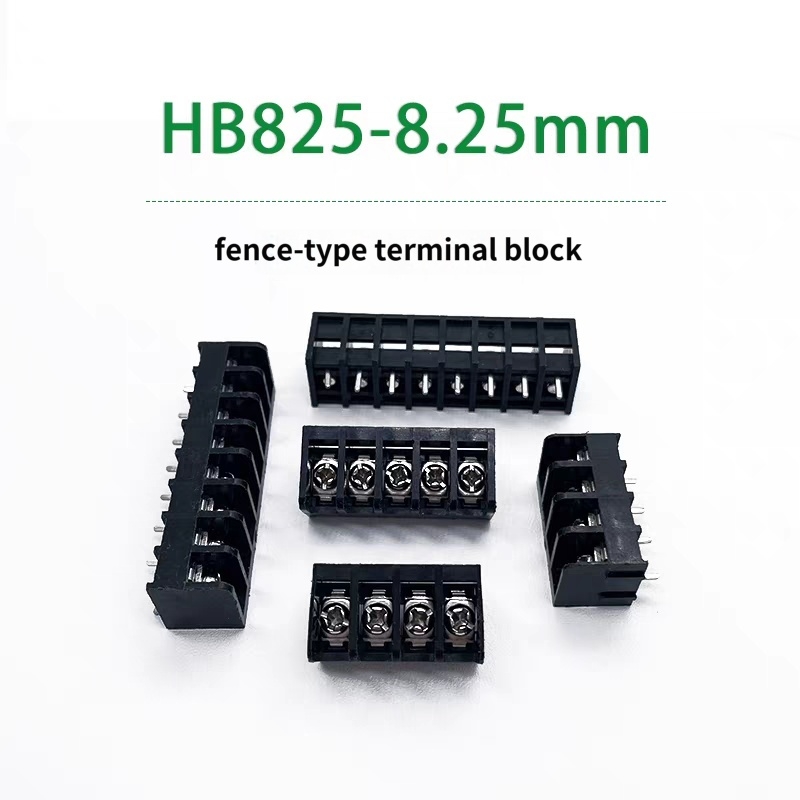

8.25mm Pitch Middle Foot Barrier Terminal Block, 2-24P Black Screw Type PCB Power Connector
HB825 series are middle foot barrier PCB terminal blocks with 8.25mm standard pitch, designed for reliable PCB power and signal connection. Adopting middle foot soldering structure, it features stable mounting on PCB board, firm welding and strong shock resistance. Made of UL94-V0 flame-retardant PA66 housing and high-conductivity tinned brass terminals, these terminal blocks ensure excellent insulation, stable electrical transmission and anti-aging performance. Standard M3.5 screw locking design provides tight wire clamping, effectively preventing loose contact during long-term operation. Available in 2P to 24P multiple pole options, widely used in power supplies, inverters, instrumentation, control boards and various industrial electronic equipment.

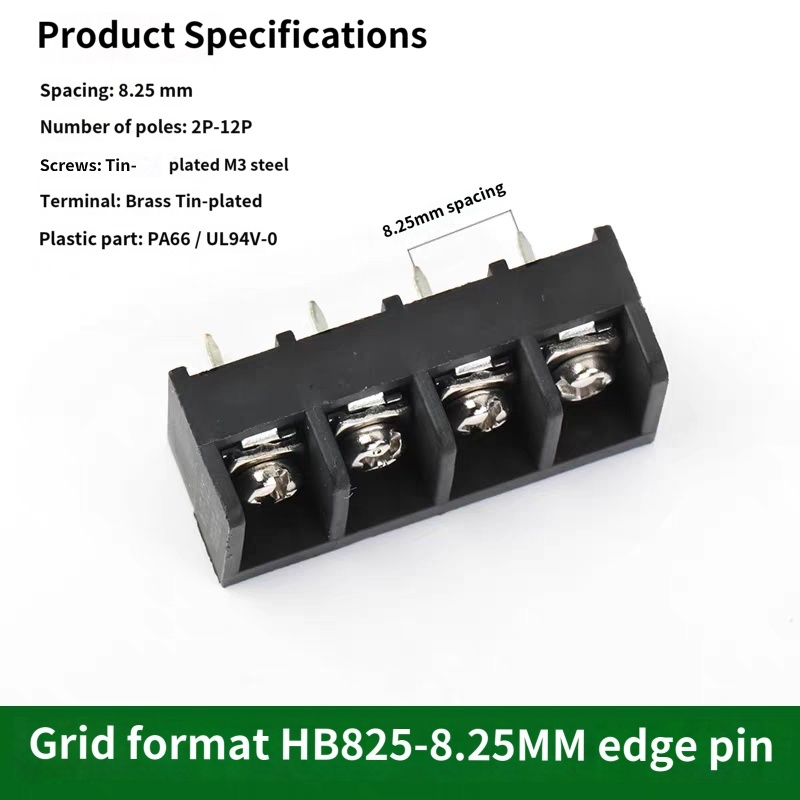

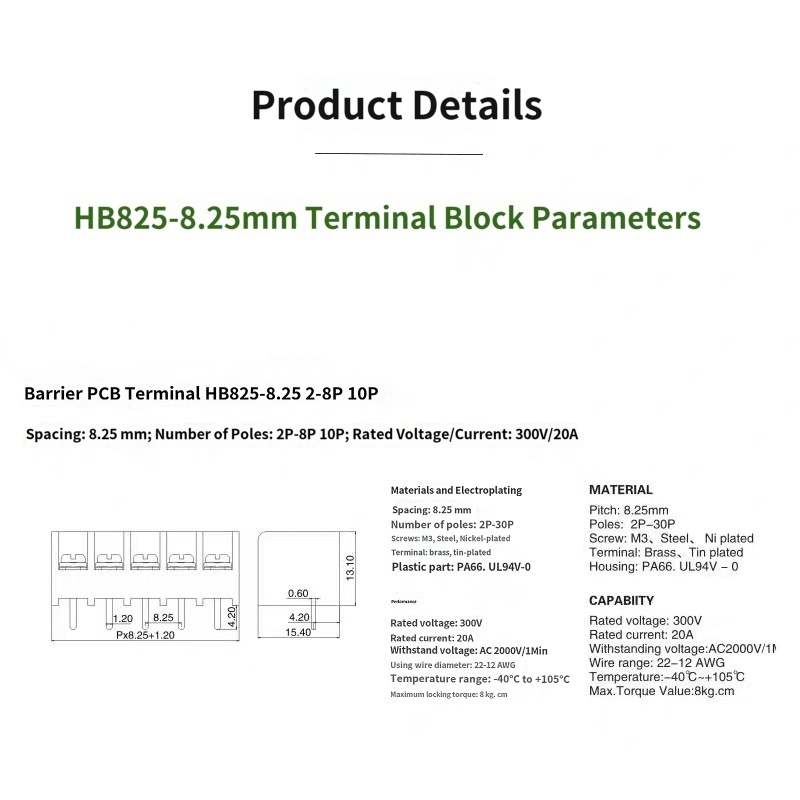

Model: HB825
Pitch: 8.25mm
Poles: 2P-30P

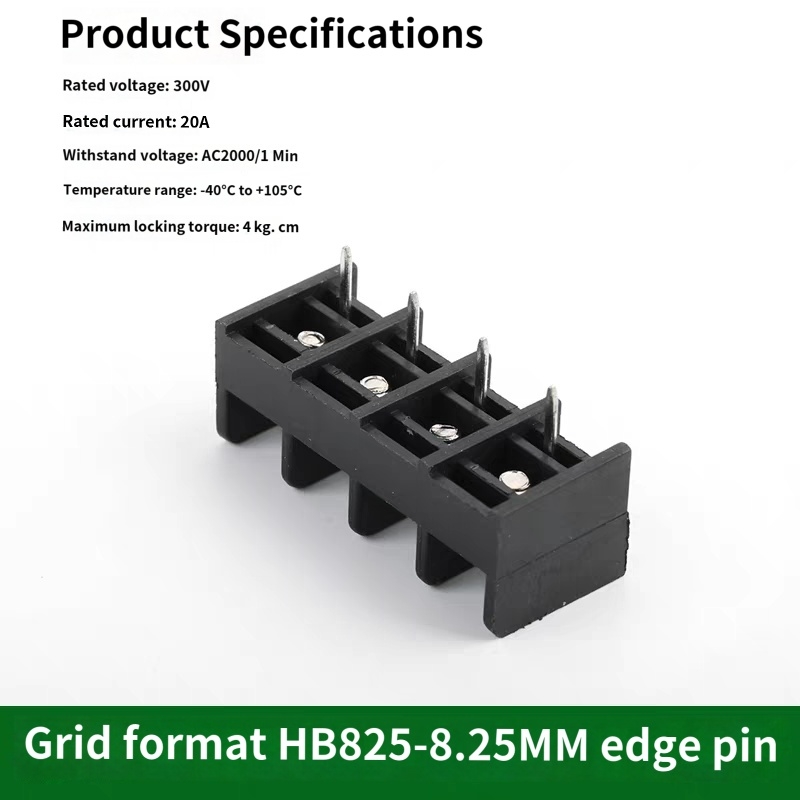

Rated Voltage: 300V AC (UL) / 450V AC (IEC)
Rated Current: 20A (UL) / 24A (IEC)
Wire Range: 0.2–2.5mm² (22–12AWG)
Housing Material: PA66, UL94-V0 Flame Retardant
Conductor Material: Tinned Brass
Screw Material: Nickel-plated Steel (M3.5)
Mounting Type: PCB Middle Foot Through-hole Soldering
Color: Black
Temperature Range: -40℃ ~ +105℃
Certification: RoHS, REACH Compliant
