HL Series Heavy-Duty Aluminum Alloy DIN Rail Mounting Clip Metal Anti-Vibration PCB Bracket Support Foot
Product Basic Information
|
Item
|
Specification:

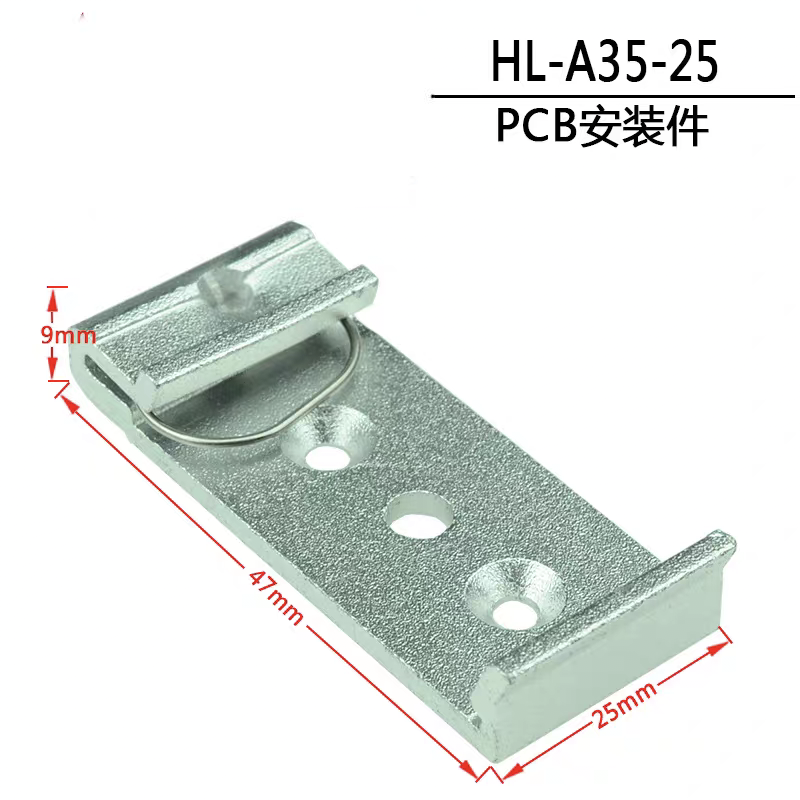

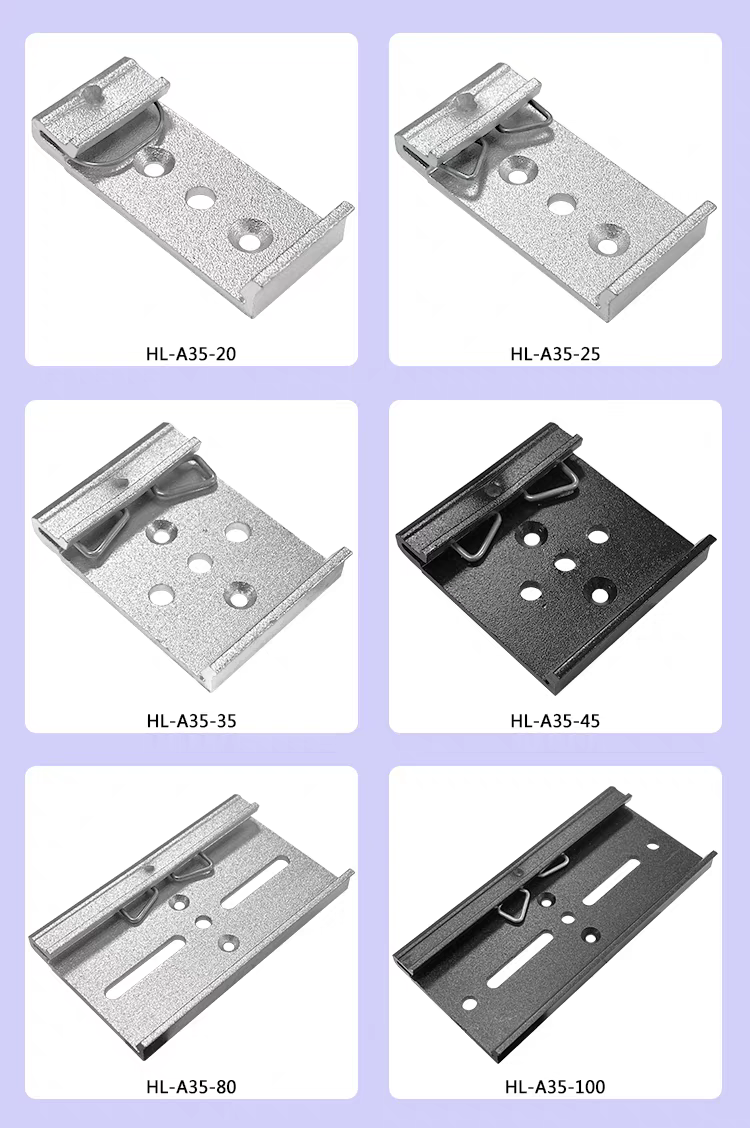

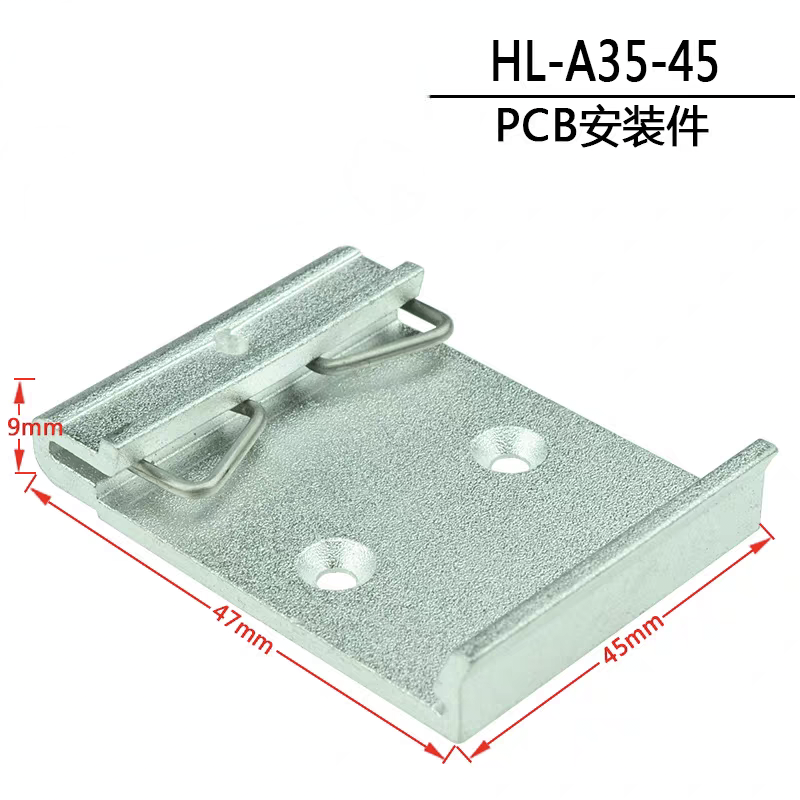

HL-A35-20, HL-A35-25, HL-A35-35, HL-A35-45,

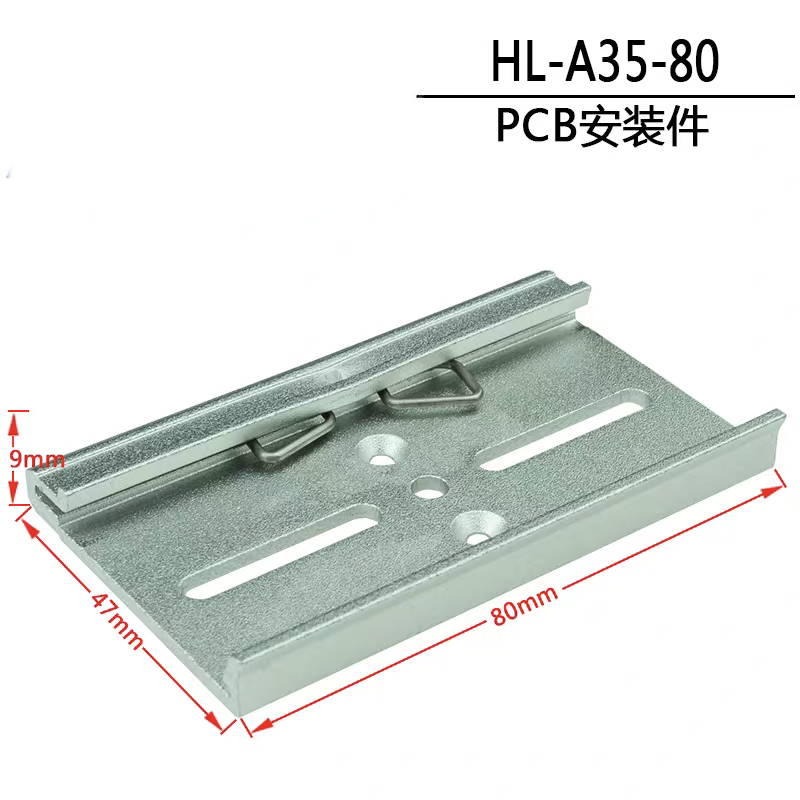

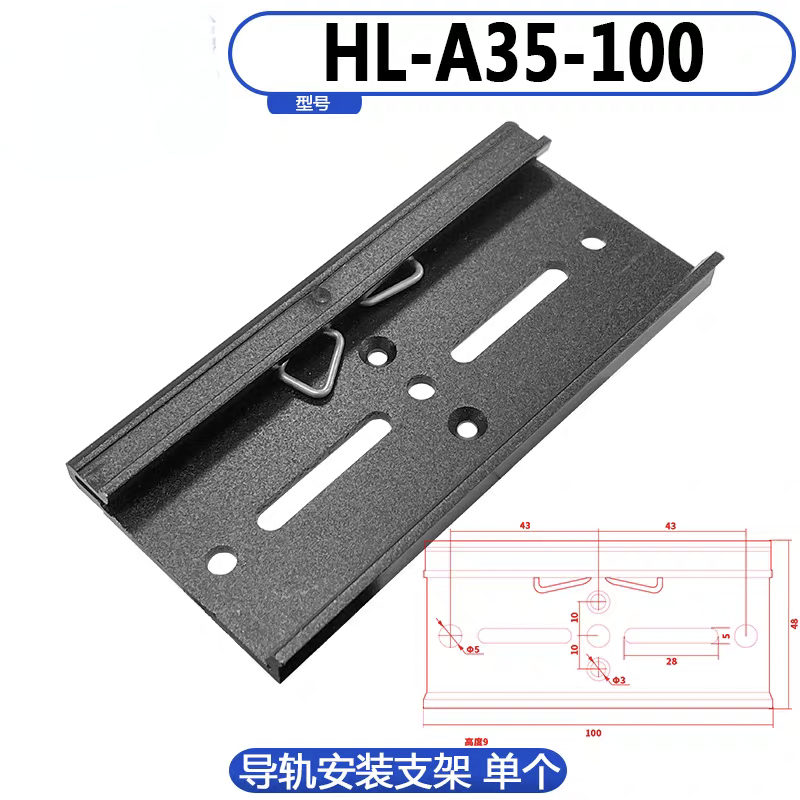

HL-A35-80, HL-A35-100.
|
|
Product Series
|

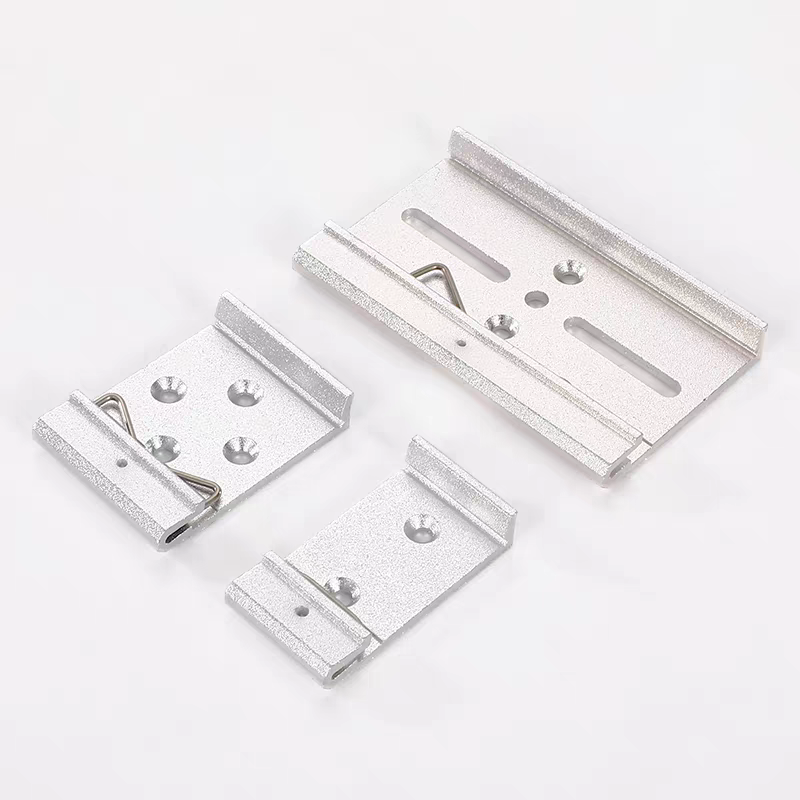

HL Aluminum Alloy DIN Rail Mounting Bracket
|
|
Material
|
High-strength Aviation Aluminum Alloy, Oxidation Treated
|
|
Certification
|
CE, ROHS, REACH.
|
|
Applicable Rail Standard
|
35mm Standard DIN Rail (EN 60715)
|
|
Working Temperature
|
-40℃ ~ 125℃
|
|
Type
|
Metal DIN rail snap clip, heavy-duty PCB mounting bracket, equipment housing support foot
|
|
Color
|
Silver / Black Anodized (Optional)
|
|
Features
|
Full metal aluminum alloy structure, ultra-high load-bearing, anti-vibration, anti-aging, corrosion resistant, tool-free installation
|
|
Application
|
Heavy-duty industrial control cabinets, high-vibration equipment, outdoor instrumentation, PLC and power module fixed mounting
|
Product Description
HL series aluminum alloy DIN rail mounting brackets are upgraded heavy-duty metal fixing accessories, fully optimized for high-load and severe vibration industrial scenarios. Different from ordinary plastic brackets, it adopts integral die-cast high-strength aluminum alloy with surface anodizing treatment, featuring outstanding hardness, structural stability and corrosion resistance.
Designed with precision elastic metal snap structure, it supports tool-free quick locking on standard 35mm DIN rails. The metal clamping mechanism provides stronger and more durable fastening force, effectively preventing loosening, shifting or falling off under long-term high-frequency vibration, impact and heavy load conditions. Precisely reserved mounting holes ensure perfect fit with PCB circuit boards and equipment housings for ultra-stable fixed installation.
The aluminum alloy material features lightweight, high toughness, high and low temperature resistance, no deformation under extreme working conditions. The anti-oxidation anodized surface isolates air and moisture, greatly extending service life in humid, dusty and outdoor environments. Suitable for long-term heavy-duty industrial operation, fully compliant with international safety and environmental standards.
Product Features
-

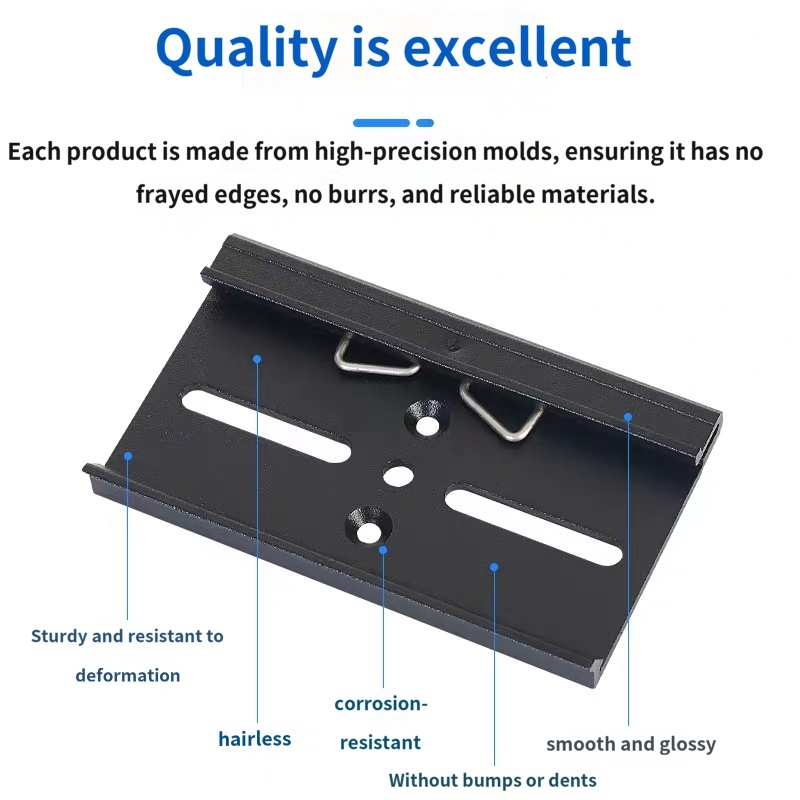

Full Aluminum Alloy Metal Structure：Integral die-cast molding, higher strength than plastic brackets, not easy to crack or deform
-
Ultra-Strong Anti-Vibration Performance：Elastic metal clip provides persistent clamping force, zero loosening in long-term vibration scenarios
-
Anodized Anti-Corrosion Surface：Anti-oxidation, anti-rust, waterproof and dustproof, adaptable to harsh industrial environments
-
Heavy-Duty Load-Bearing Capacity：Excellent structural toughness, supports heavy module and PCB board installation
-
Tool-Free Quick Installation：Snap-on design for fast assembly and disassembly, saving labor and time cost
-
Wide Temperature Adaptability：Stable performance from -40℃ to 125℃, no aging or failure under high temperature
-
Dual-Purpose Industrial Design：Works as PCB fixing bracket and equipment housing support foot for diverse heavy-duty installation needs
-
Global Standard Certification：Compliant with CE, RoHS and REACH standards for global industrial market sales
Application Scope
-
Heavy-duty industrial control cabinet PCB and module fixed mounting
-
High-vibration equipment such as automation machinery and engineering equipment
-
Outdoor instrumentation and environmental monitoring equipment fixed installation
-
Large PLC modules, power supply modules and heavy electrical component assembly
-
Rail transit, new energy and industrial vehicle control wiring fixing
-
Harsh environment installation scenarios requiring anti-corrosion and anti-vibration performance

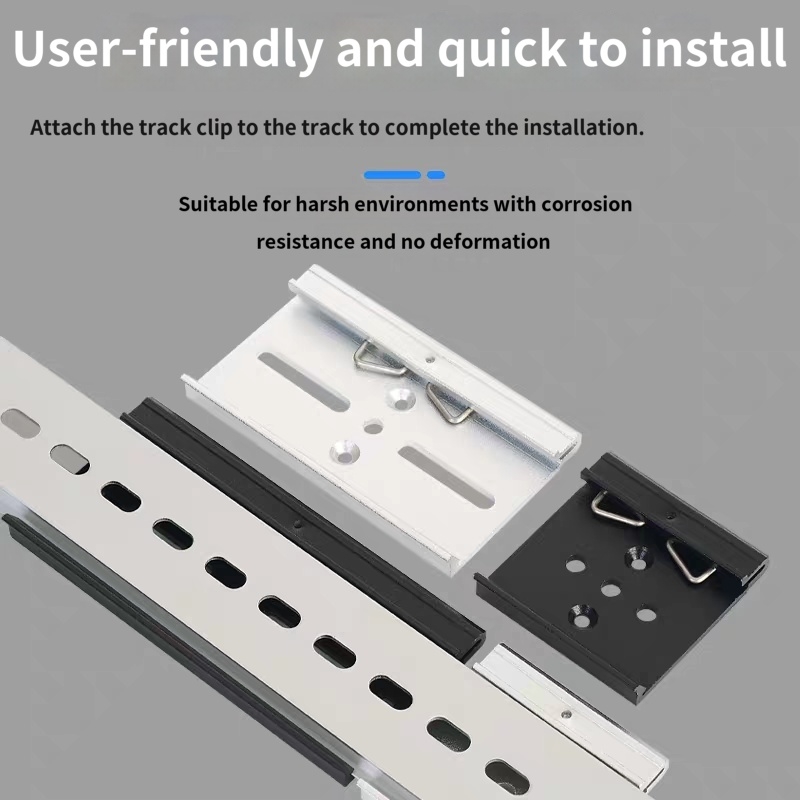

Installation Steps
-
Align the metal clip side of the HL aluminum bracket with the 35mm standard DIN rail;
-
Press down lightly until a click sound is heard to complete firm locking;
-
Align the PCB board or equipment housing with the reserved mounting holes and fix with standard screws;
-
For disassembly, press the metal elastic buckle and lift up gently to remove the bracket.
Precautions
-
Only applicable for standard 35mm DIN rails; avoid use on deformed or non-standard rails;
-
Do not apply excessive violent impact to prevent deformation of the metal elastic clip;
-
Although anti-corrosive, avoid long-term immersion in strong acid and alkali liquid;
-
Select appropriate HL model according to equipment weight and installation size.
