HNB Series Non Insulated Hook Terminal | Bare Hook Cold Crimp Wire Lug

HNB non insulated hook terminal, tin-plated bare copper hook cold crimp lug for quick and compact electrical equipment wiring connection.

HNB Non-Insulated Hook Terminal Thick Tin-plated Red Copper Bare Hook Wiring Terminal

Product Description

HNB non-insulated hook terminal is bare hook-style cold crimp connector without insulating sheath. Featured with ergonomic curved hook structure, it can be directly hung on bolts, screws and terminal studs without removing fasteners completely, greatly speeding up wiring operation.

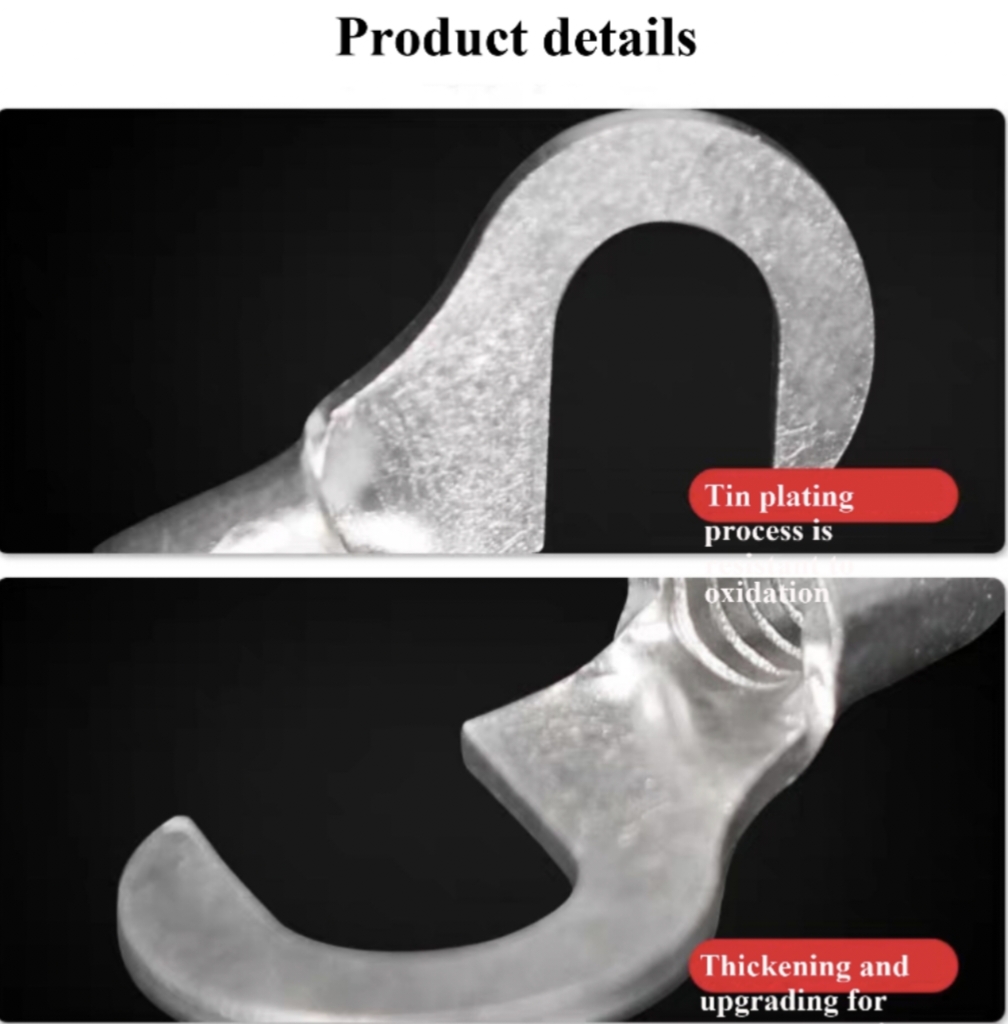

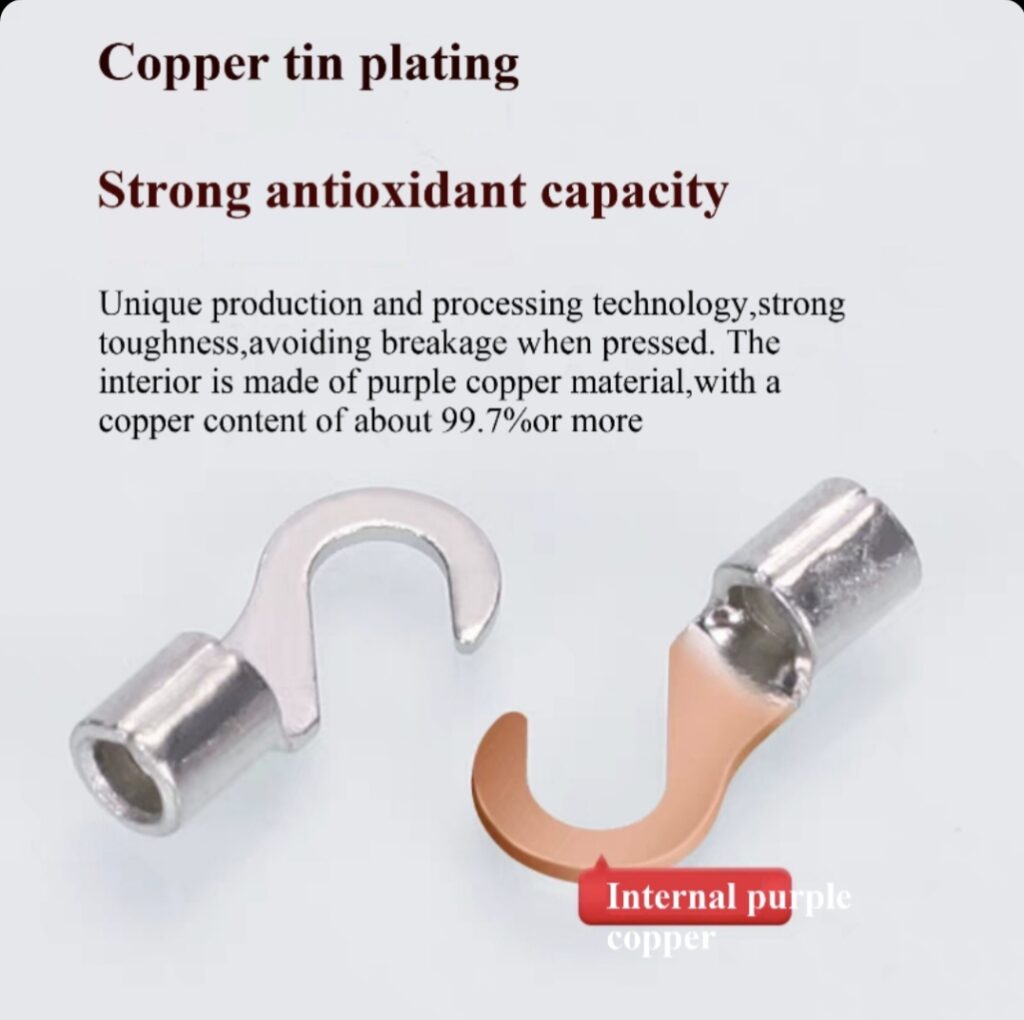

Adopts thickened solid red copper raw material with tin-plated surface treatment, which delivers outstanding electrical conductivity, low contact resistance, excellent high temperature resistance and anti-oxidation performance. Compact bare structure occupies less space, perfectly fits narrow installation space and closed built-in wiring scenes.

It owns proper elastic tension to keep firm contact after hanging, not easy to loose and fall off. Integral one-piece stamping ensures solid structure, strong crimping fastness and great tensile strength. Wide range of specifications satisfy various low-voltage heavy-current wiring demands, fully conform to international export standards.

Product Features

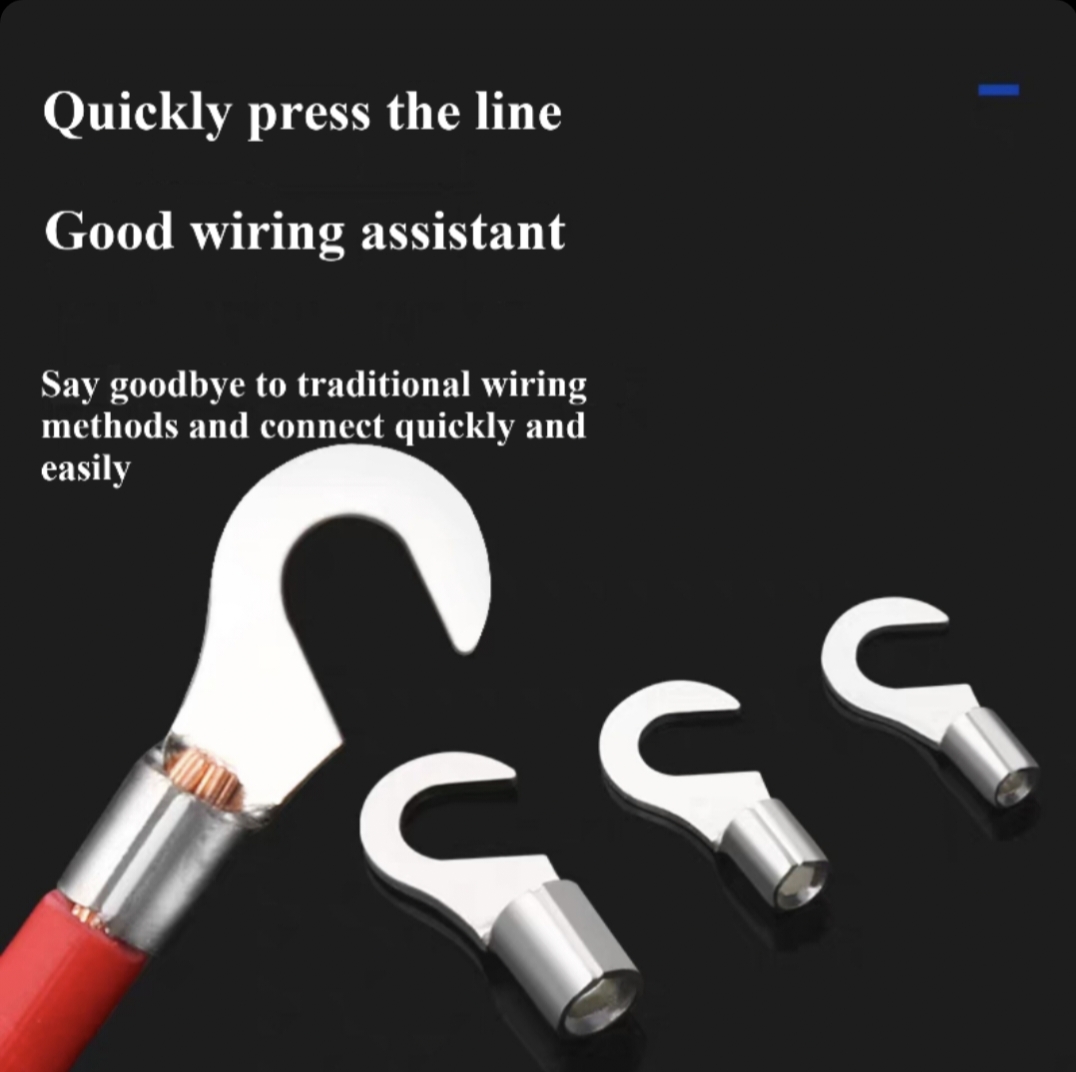

Classic Curved Hook Structure
Easy hook-on installation, convenient for quick wiring and line inspection

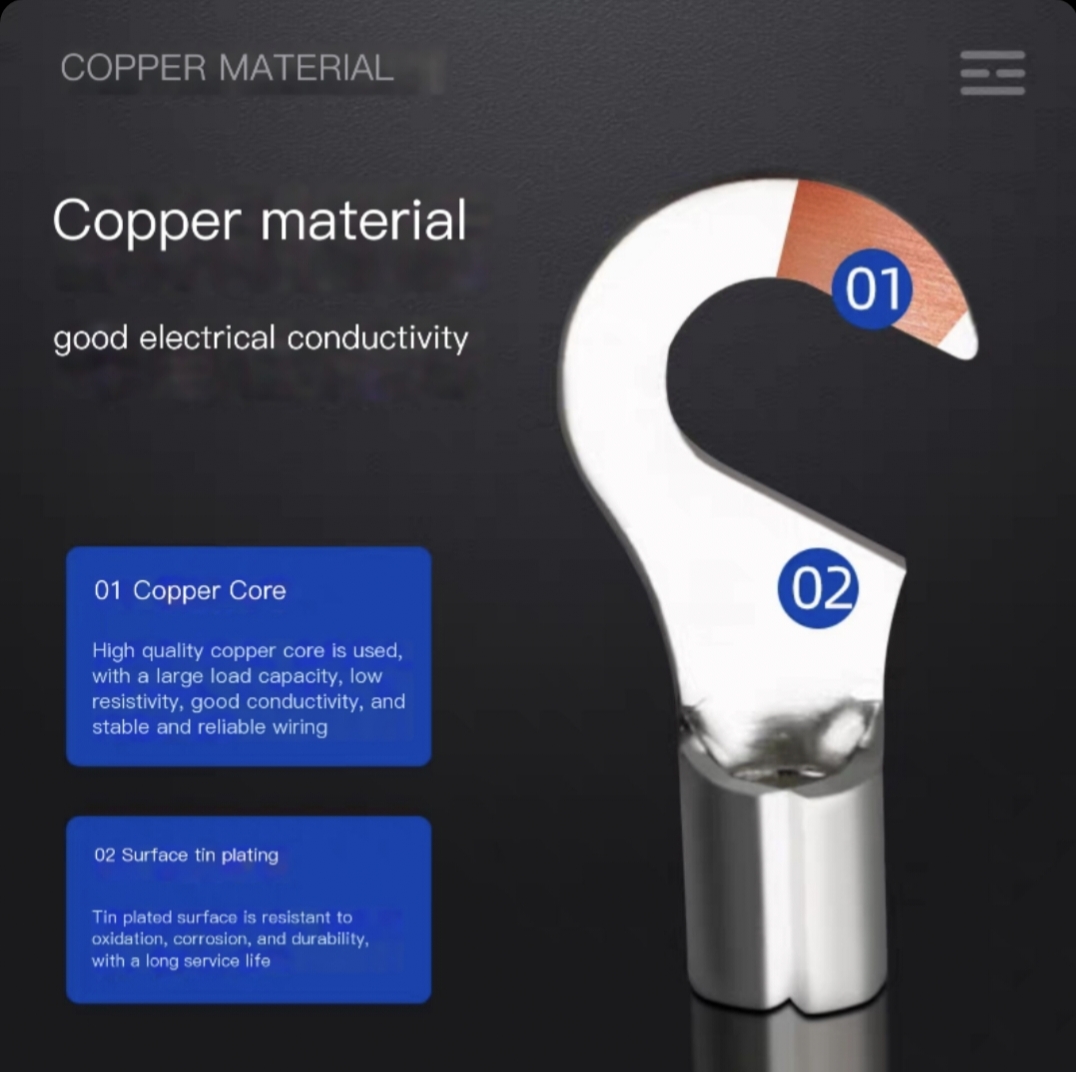

Thickened Tin-plated Red Copper
High hardness, not easy to deform, stable high-current transmission
Bare Non-insulated Design
Small size, save installation space, ideal for hidden internal wiring
Moderate Elastic Clamping Force
Close contact after hanging, stable conductive performance
Smooth Burr-free Processing
Avoid scratching wire strands during crimping, safe operation

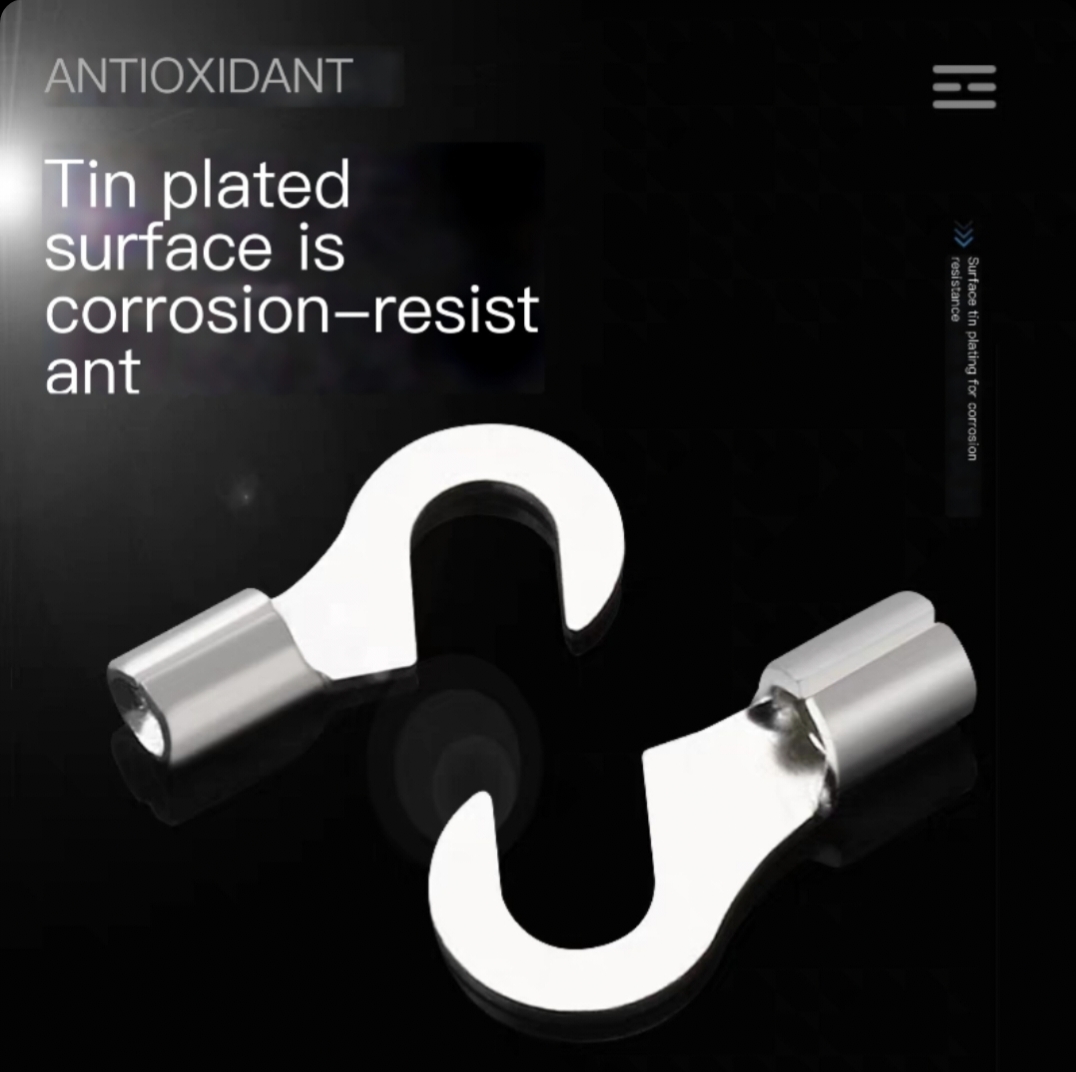

High Temperature & Corrosion Resistant
Adapt to harsh industrial working environment, long service life
Full International Certifications
Meet global market access standards for overseas sales

How to Choose the Right Non-Insulated Hook Terminal
Follow these professional guidelines to select the perfect non-insulated hook terminal for your wiring project.

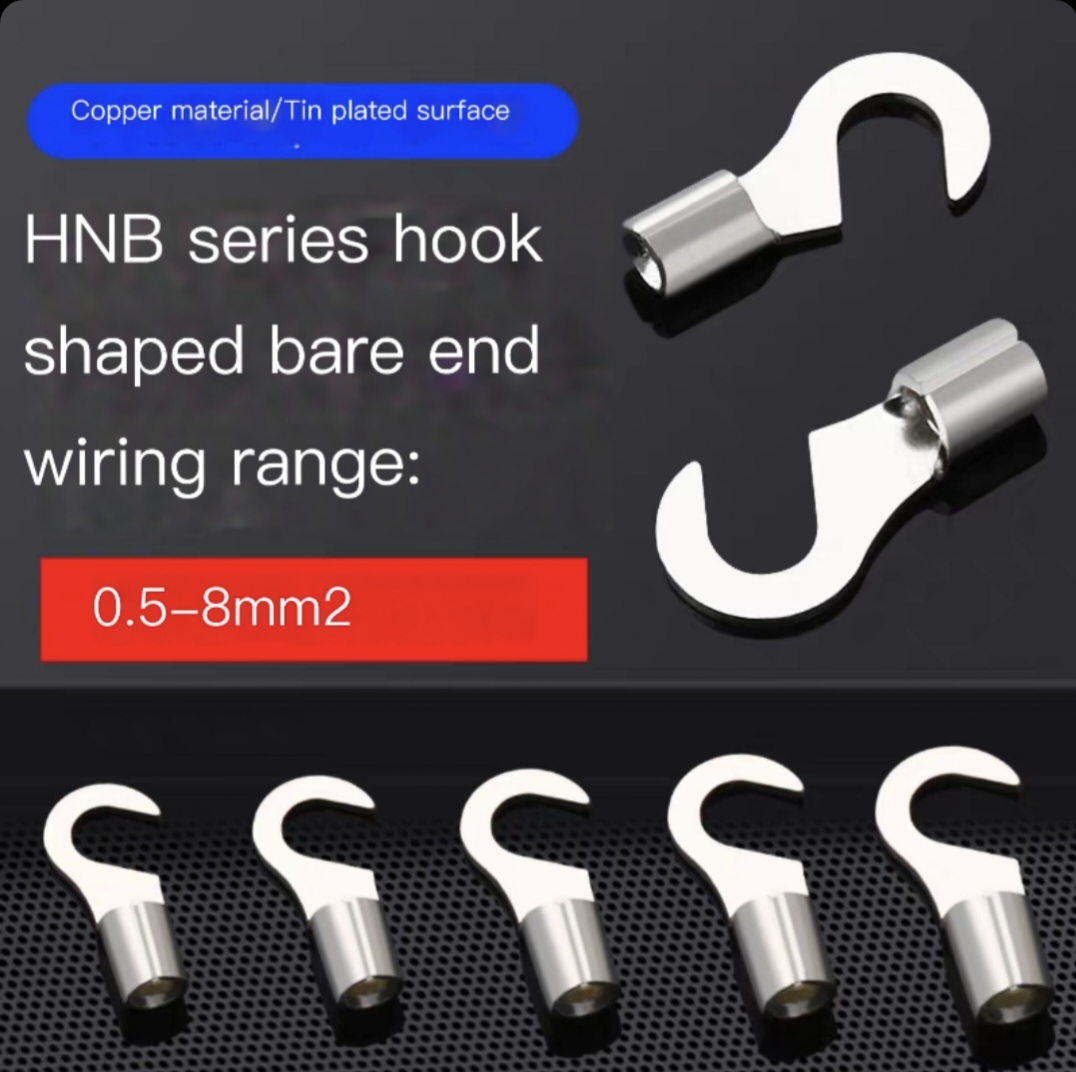

1. Match Wire Gauge
Choose the terminal according to the wire cross-sectional area:
Small: 0.5～1.5mm²
Medium: 2.5～4.0mm²
Large: 6.0～10mm²
Mismatched size causes poor crimping, overheating and loose connection.
2. Fit Screw Stud Size
Select hook opening to match mounting screw: M3, M4, M5, M6.
Too large leads to instability; too small cannot be installed.
3. Material Selection
High-purity Copper: High conductivity, low heat, anti-oxidation, ideal for industrial and automotive use.
Tin-plated Copper: Anti-rust and anti-corrosion, cost-effective for general cabinet wiring.
Tin-plated high-purity copper is the best all-round choice.
4. Plate Thickness & Hardness
Thicker terminals offer stronger load capacity, deformation resistance and vibration tolerance.
Soft material is easy for crimping; hard reinforced type suits vibrating equipment.
5. Application Scenarios
Standard Type: Distribution box, control cabinet
Locking Type: Anti-drop for automotive harness and mechanical vibration environment
Compact Type: Slim design for narrow installation space
6. Surface Treatment
Tin-plated: Anti-oxidation & corrosion, stable conductivity, recommended for most applications
Bare Copper: Maximum conductivity, only suitable for dry indoor environment
7. Crimping & Installation
Use a dedicated matching crimping tool.
Qualified crimping is firm, crack-free and pull-resistant, ensuring long-term safe electrical connection.

Application Scope

Electrical control cabinet quick terminal wiring
Low voltage power distribution equipment internal connection
Industrial machinery equipment simple fixed wiring
Instrument and meter circuit temporary connection
Household power equipment convenient line assembly
Closed electrical box internal compact wiring layout

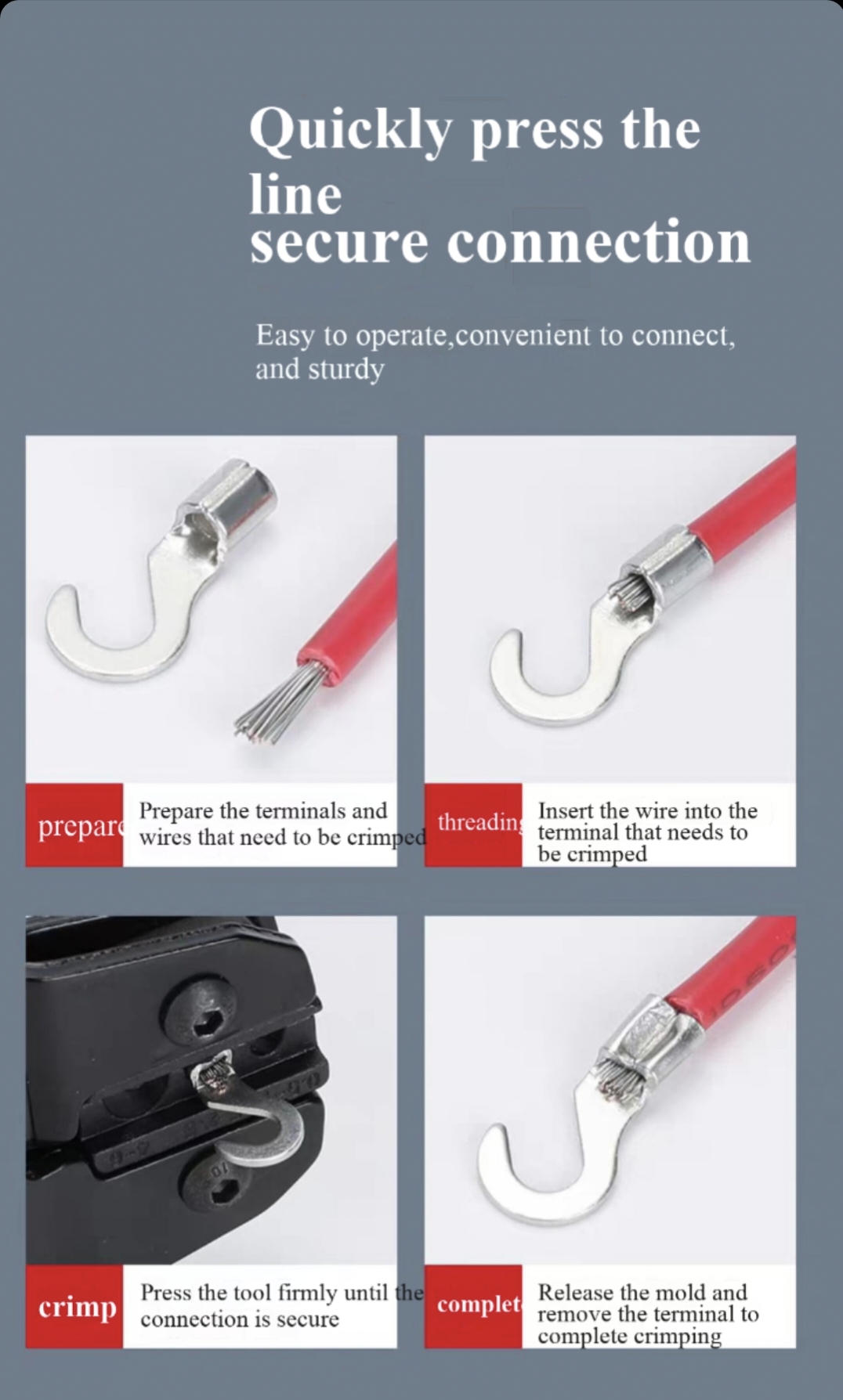

Installation Steps

Strip wire insulation to suitable length and expose copper core
Insert stranded wire fully into terminal crimping barrel
Crimp tightly evenly with professional cold crimp pliers
Hang hook head directly on bolt or terminal post to complete connection

Precautions

Select corresponding HNB specification according to wire gauge and bolt size
Must be installed in closed insulated space to prevent short circuit risk
Not recommended for long-term use in severe vibration environment
Do not over-crimp to avoid terminal structural deformation
