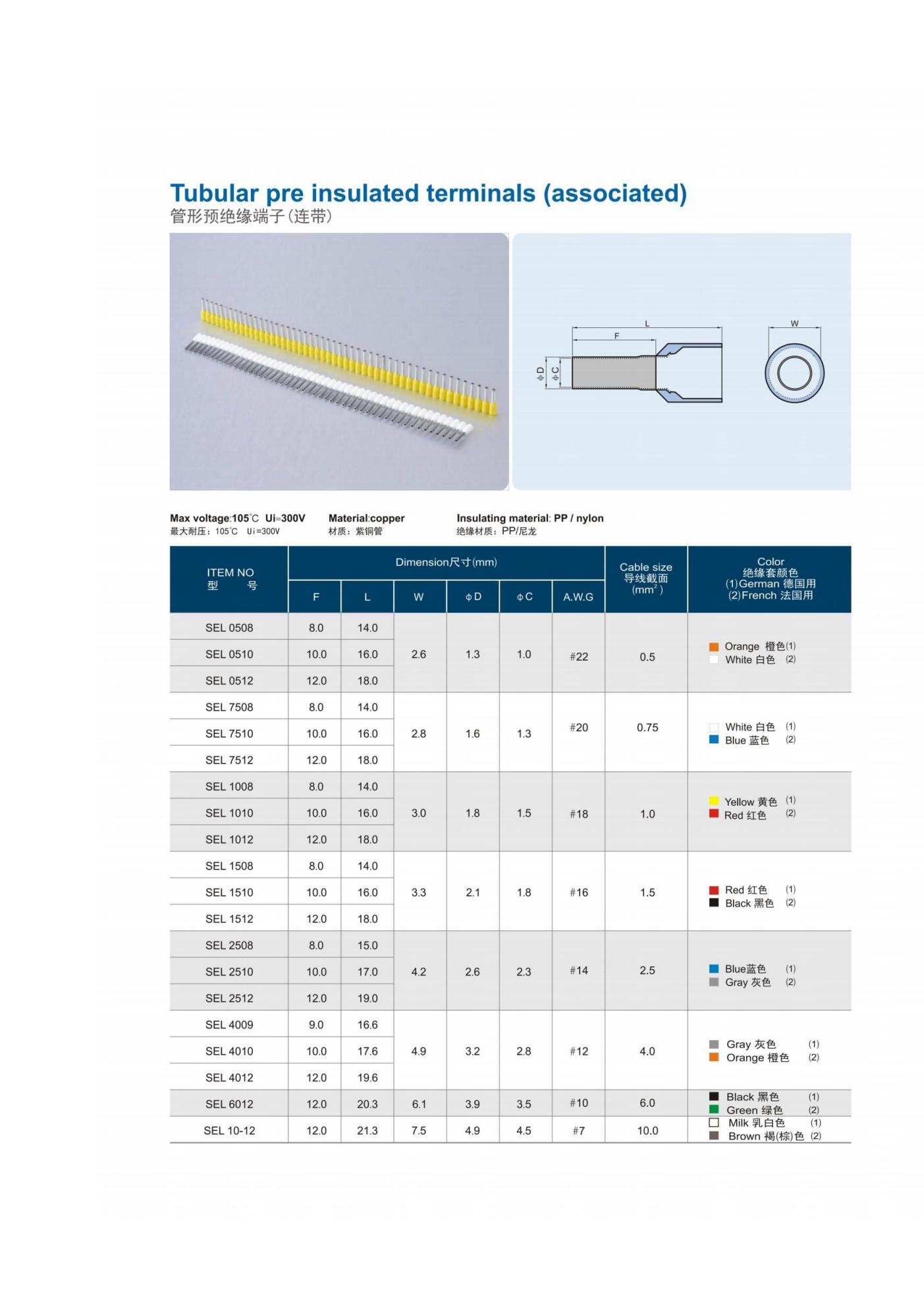

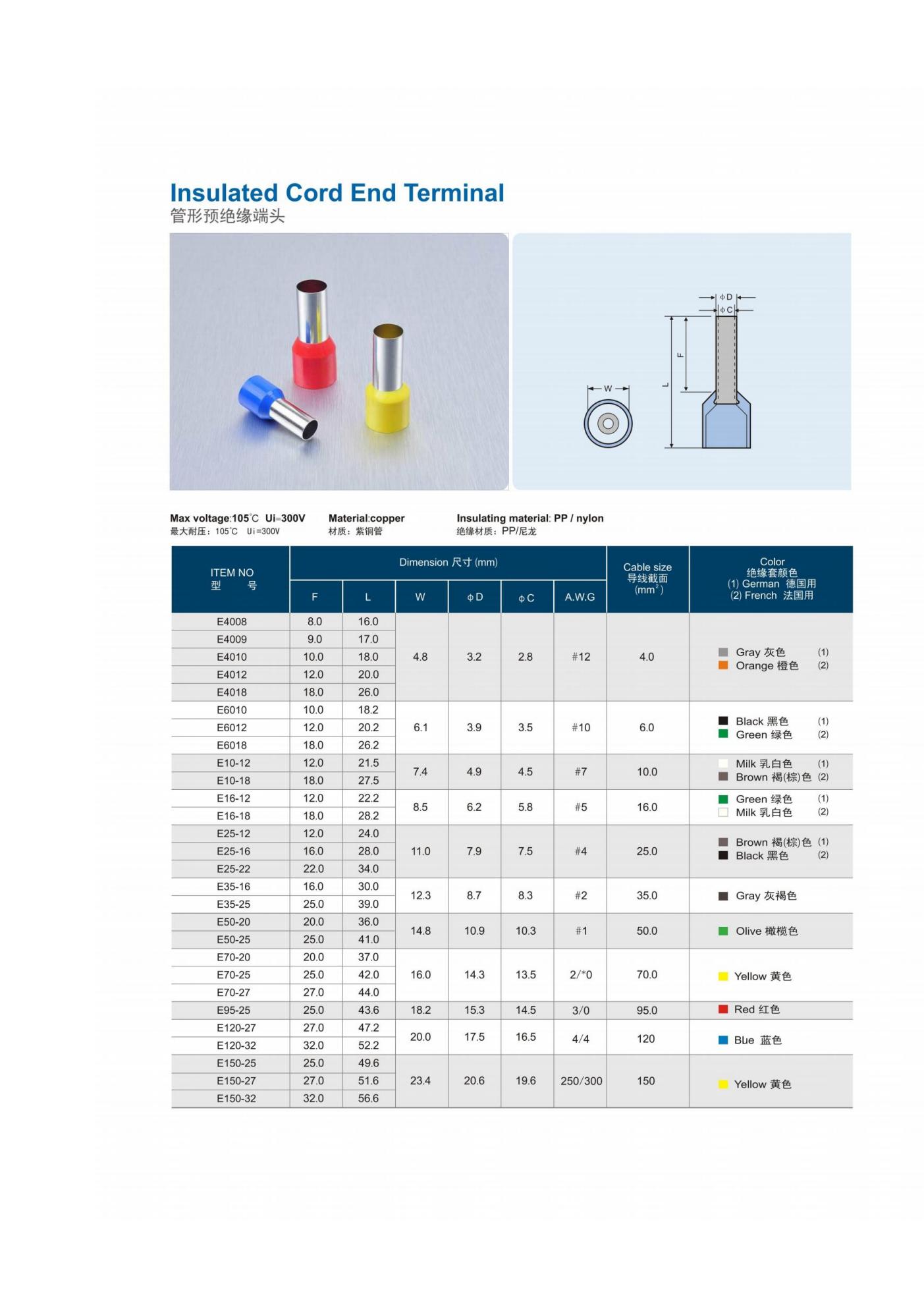

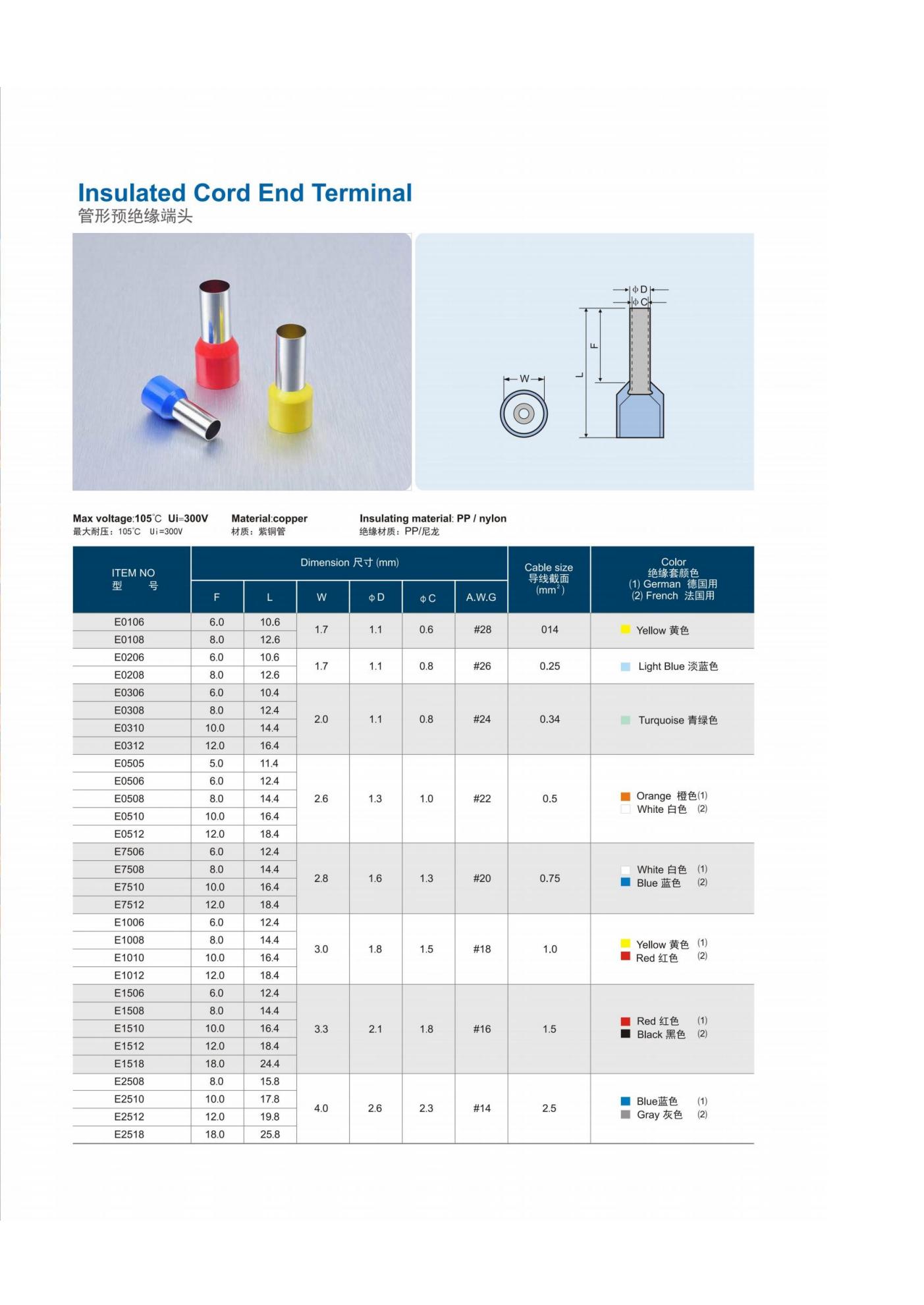

| Item | Specification |
|---|---|
| Product Model | VE0106，E0108，E0206，E0208，E0306，E0308，E0310，E0312，E0505，E0506，E0508，E0510，E0512，E7506，E7508，E7510，E7512，E1006，E1008，E1010，E1012，E1506，E1508，E1510，E1512，E1518，E2508，E2510，E2512，E2518，E4008，E4009，E4012，E4018，E6010，E6012，E6018，E10-12，E10-18，E16-12，E16-18，E25-12，E25-16，E25-22，E35-16，E35-25，E50-20，E50-25，E70-20，E70-25，E70-27，E95-25，E120-27，120-32，E150-25，E150-27，E150-32. |
| Material | Red Pure Copper / Tinned Plated/PA/NYLON |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V，Ui=300V |
| Temperature Range | -40°C ~ 105°C |
| Type | Pin Type / Wire End Ferrule / European Cold Crimp Terminal |
| Feature | Burr-free, Easy Crimping, High Conductivity |
| Application | Electrical Cabinet, PLC, Inverter, Industrial Control, Wiring Harness |
Product Description

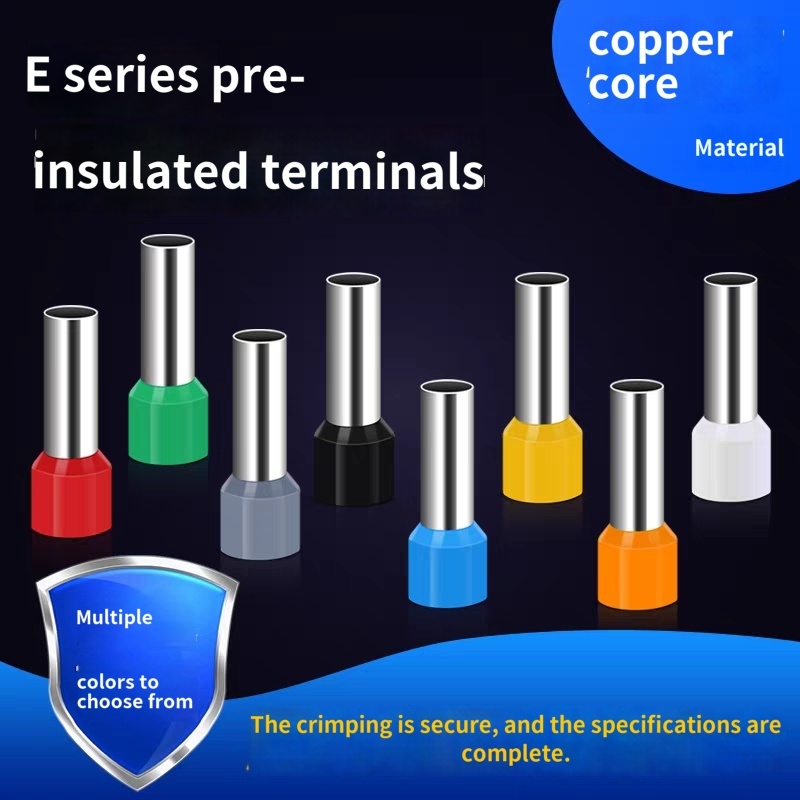

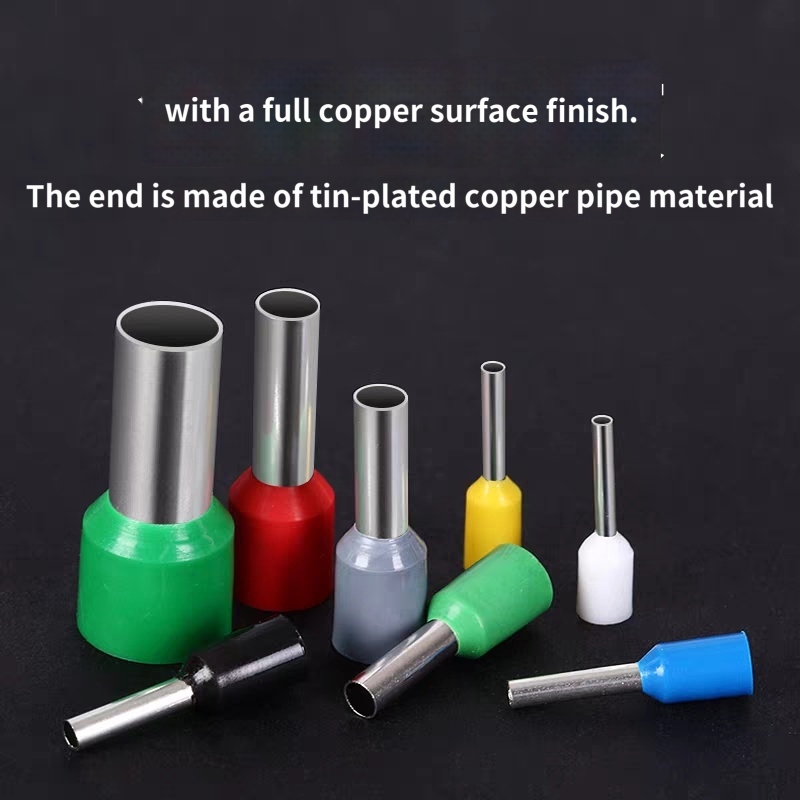

VE series pin type European cold crimp terminals are made of high-quality pure red copper with tin-plated surface. Adopt seamless tubular integral forming process, smooth inner wall without burrs.
Standard European wire end ferrule design, perfectly suitable for PLC, inverter, circuit breaker and terminal block wiring.
After crimping, the wire and terminal are integrated firmly, with low contact resistance, anti-oxidation and anti-corrosion. It avoids wire loose, poor contact and heating problems, greatly improving the safety and stability of low-voltage electrical wiring. Multiple models VE0106, E0108, E0206, E0808 cover common wire gauge specifications for one-stop purchase.
Product Features
Pure Red Copper Material
High conductivity tinned red copper, low resistance, stable current transmission.
European Standard Pin Design
Precise size fit for all kinds of terminal blocks, PLC and electrical components.
Seamless Tubular Forming
Smooth burr-free inner hole, no damage to wire core during crimping.
Full International Certification
CE, RoHS, TUV, UL, REACH compliant, suitable for global wholesale and project use.

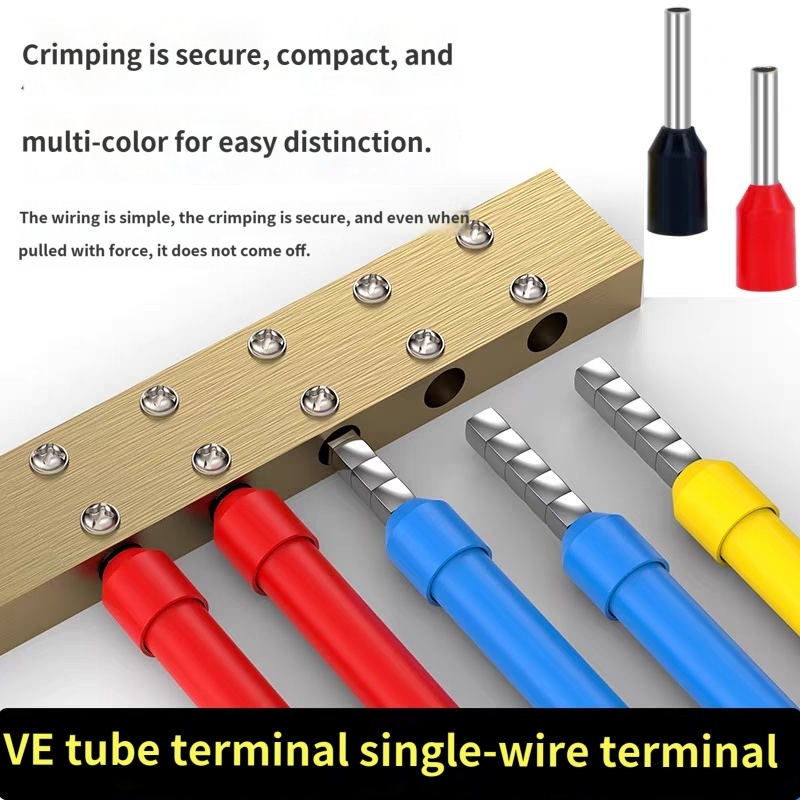

Firm Crimping Performance
Not easy to deform or loose, anti-vibration and long service life.

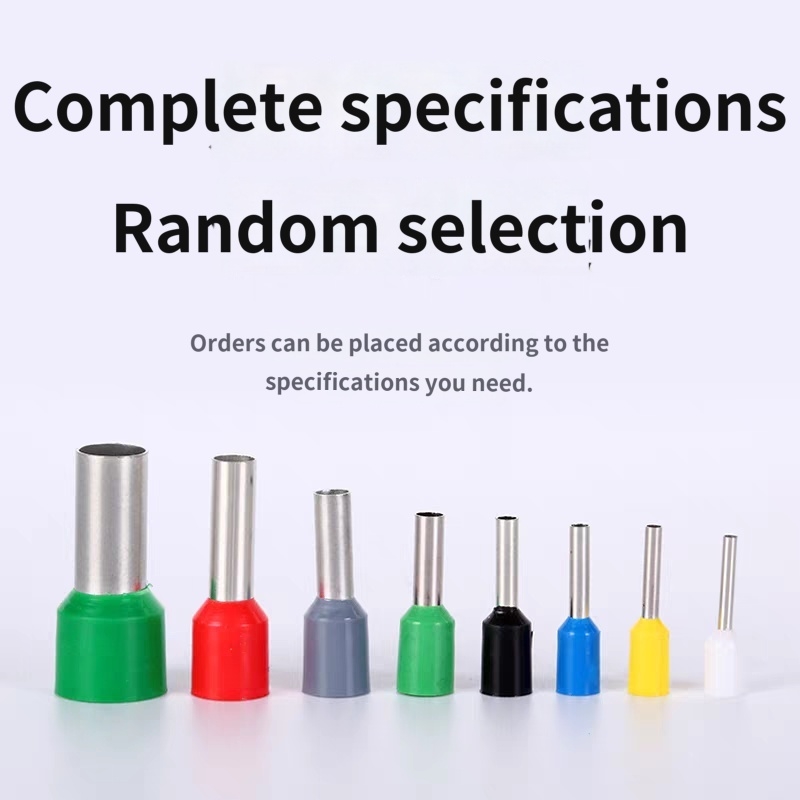

Multiple Complete Models
VE0106, E0108, E0206, E0808 available for different wire cross sections.
Application Scope

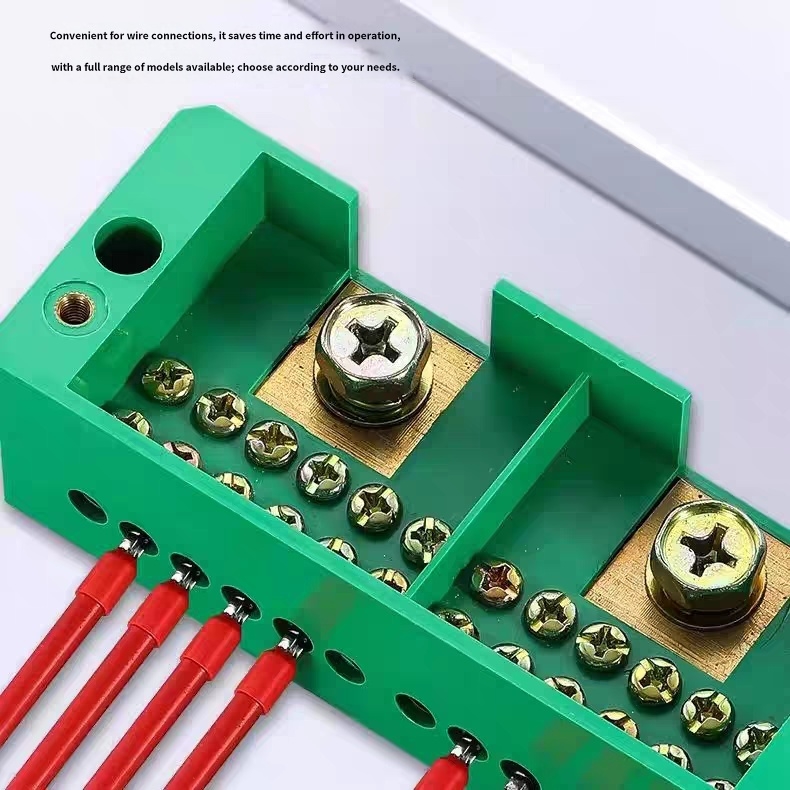

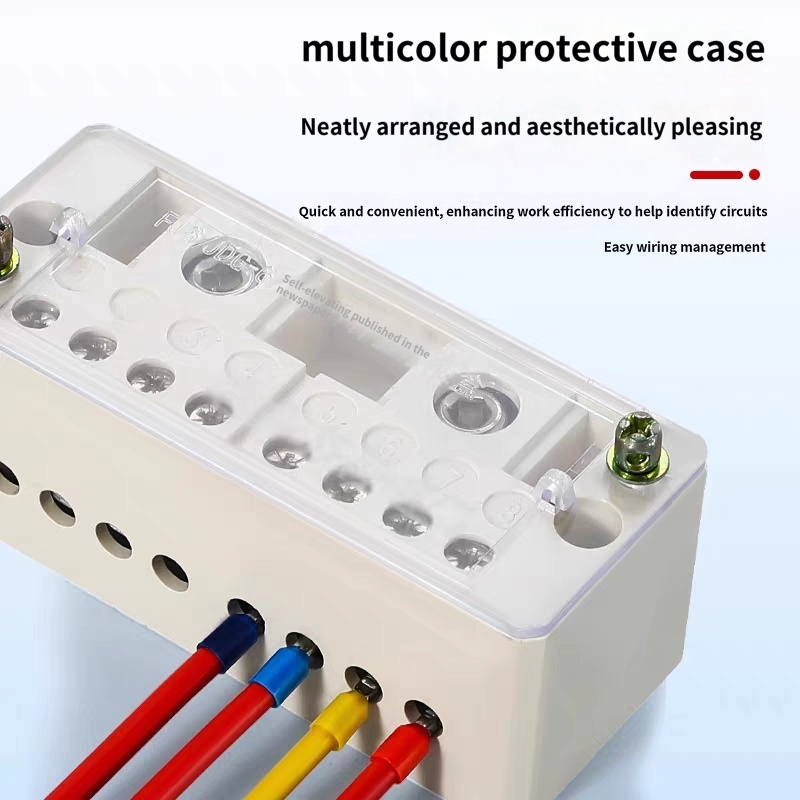

Electrical control cabinet and distribution box wiring
PLC, inverter, circuit breaker terminal connection
Industrial automation equipment wiring
Household electrical and electronic equipment internal circuit
New energy power distribution system
Construction low-voltage engineering wiring
Installation Diagram & Step Instruction

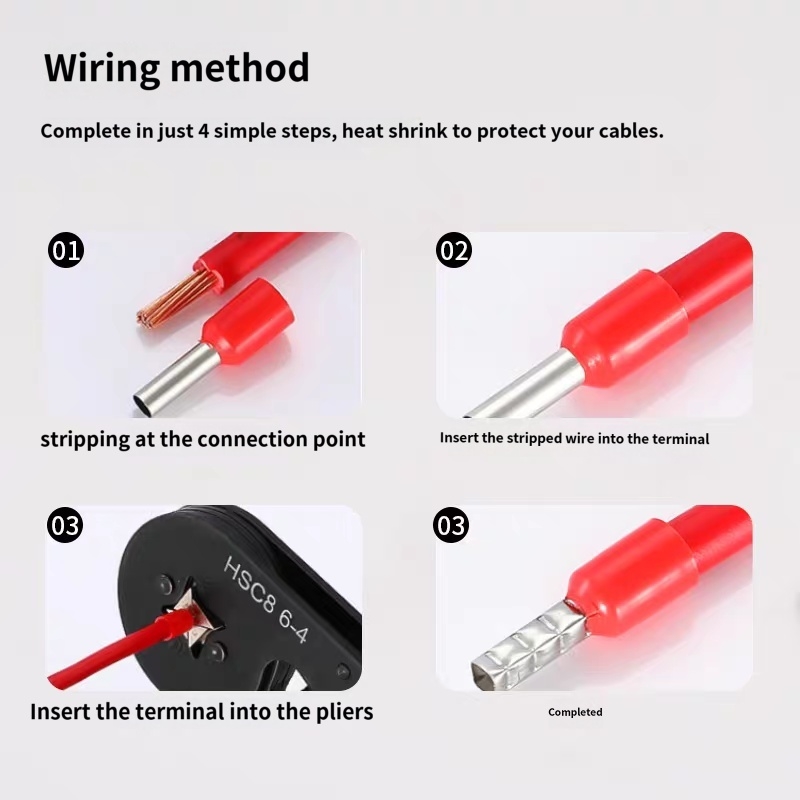

Step-by-Step Installation Diagram
Standard crimping operation steps for European pin type ferrule terminal. Correct crimping ensures stable contact and safe wiring.
Strip the wire insulation to appropriate length.
Insert the stranded copper wire into the tubular terminal completely.

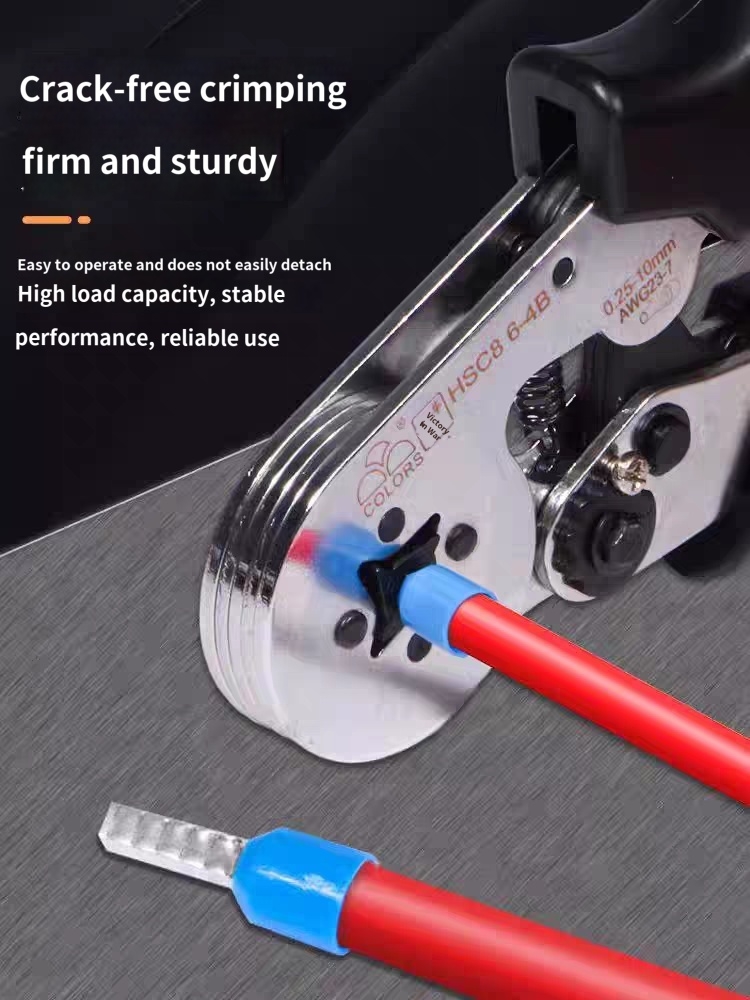

Use professional cold crimping pliers to crimp tightly.

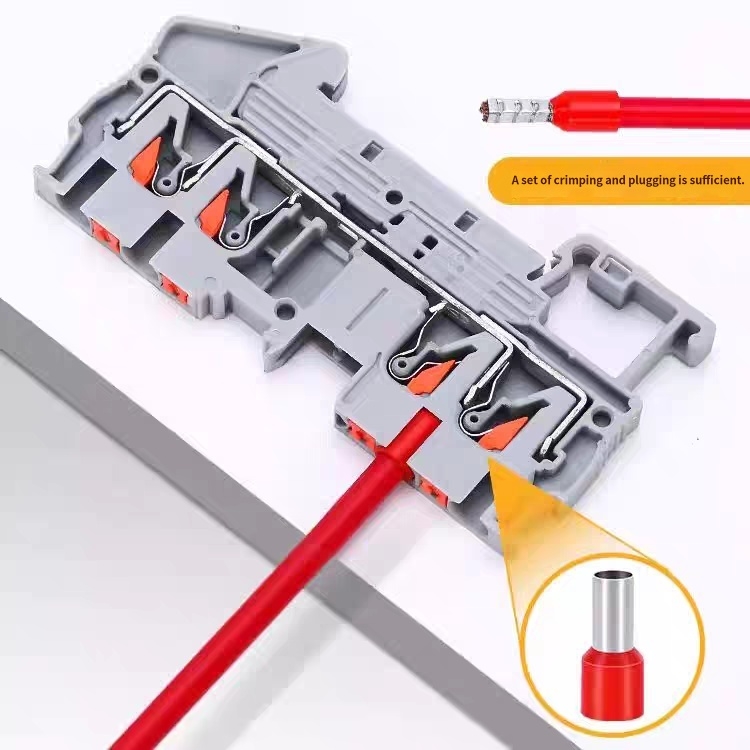

Insert the crimped pin terminal into terminal block for perfect connection.
Precautions
Select matching model (VE0106/E0108/E0206/E0808) according to wire gauge.
Use dedicated European terminal crimping tool for better effect.
Do not over-crimp to avoid terminal cracking and deformation.
Keep the copper wire fully inserted without exposed loose strands.
