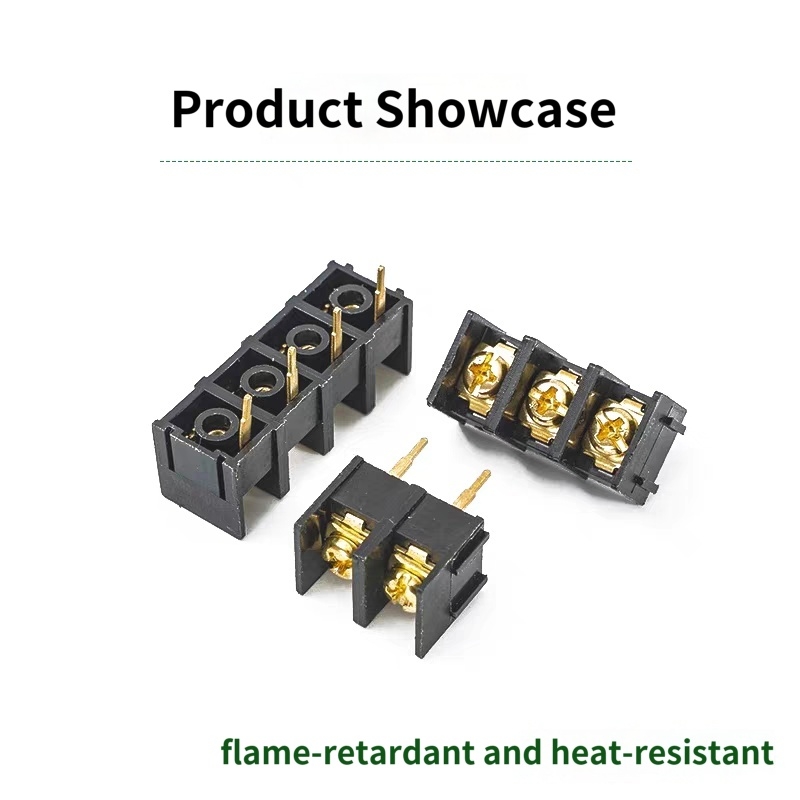

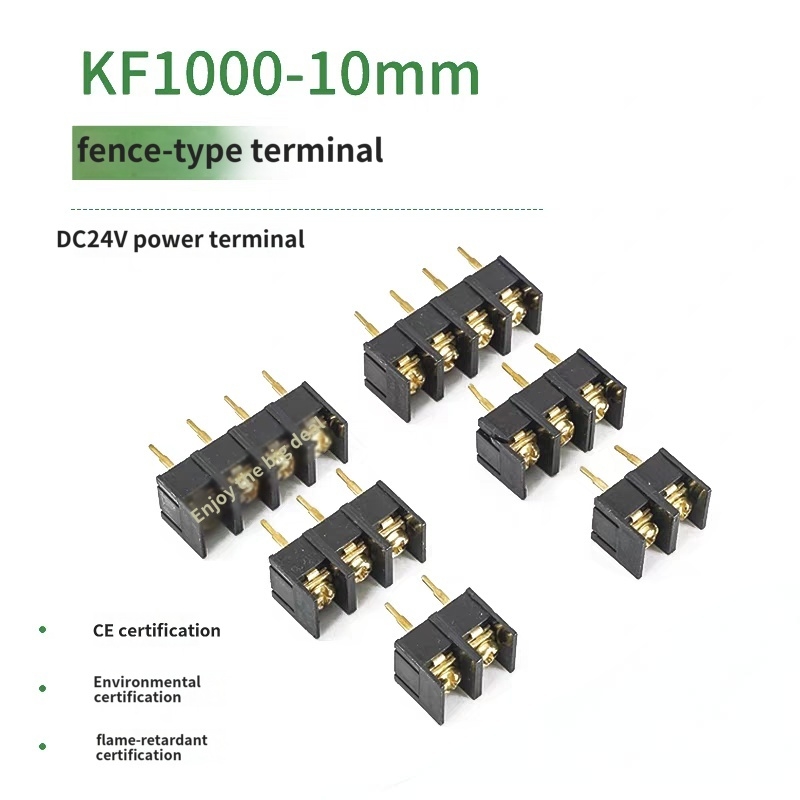

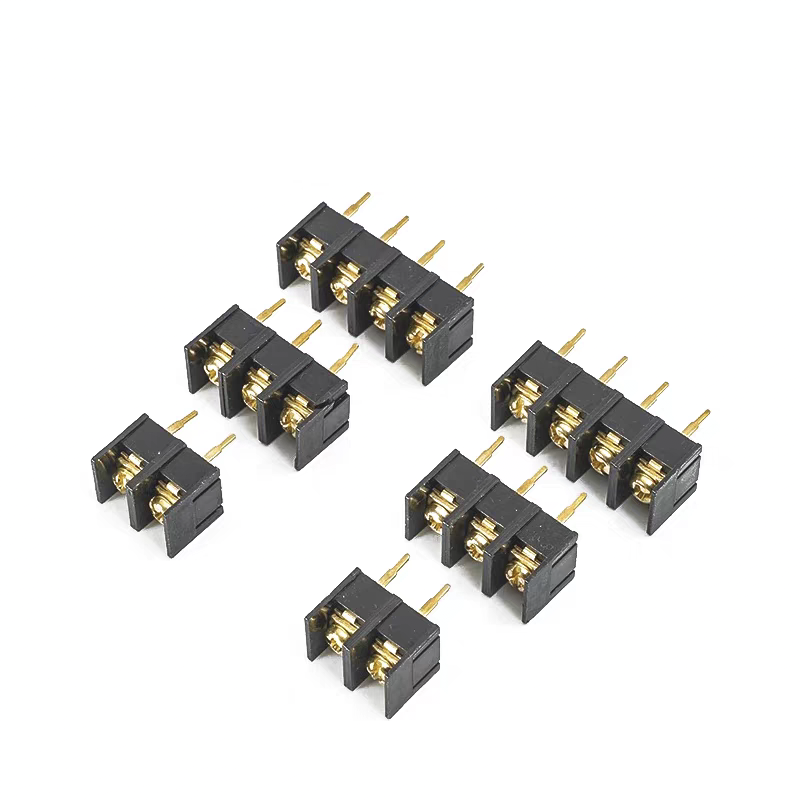

10.0mm Pitch Splicable Barrier Terminal Block, Gold Plated Copper PCB Connector 2P-24P

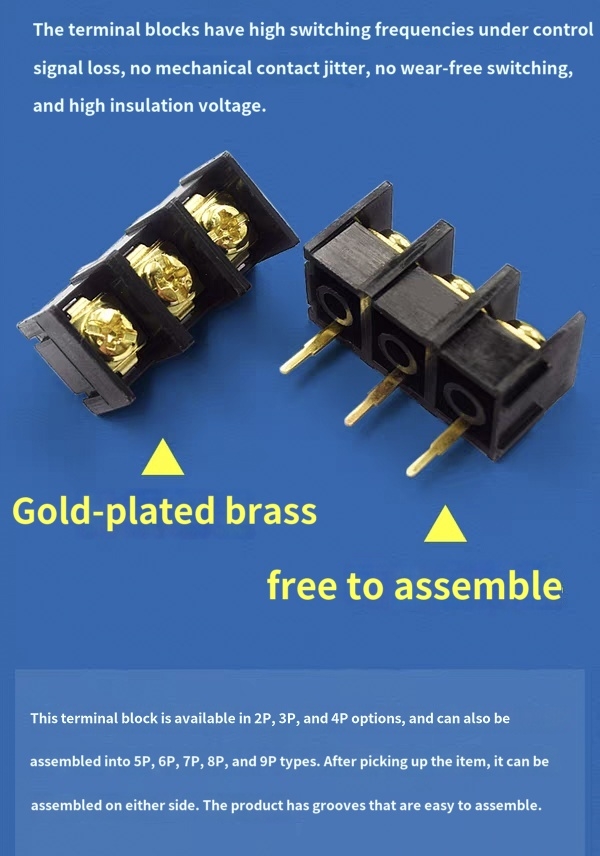

KF1000/DG1000 are splicable barrier PCB terminal blocks with 10.0mm large pitch for high-power circuit connection. Modular splicing structure allows users to freely combine required pole numbers from 2P to 24P flexibly. Conductive parts adopt gold plated copper to boost oxidation resistance and keep stable conductive performance in long-term usage. Housing is made of UL94-V0 flame retardant PA66 with outstanding insulation and anti-aging property. Screw fastening design ensures compact wire connection without loose terminal failure. Suitable for power supply, frequency converter, industrial controller and high-current PCB wiring projects.
Model: KF1000 / DG1000

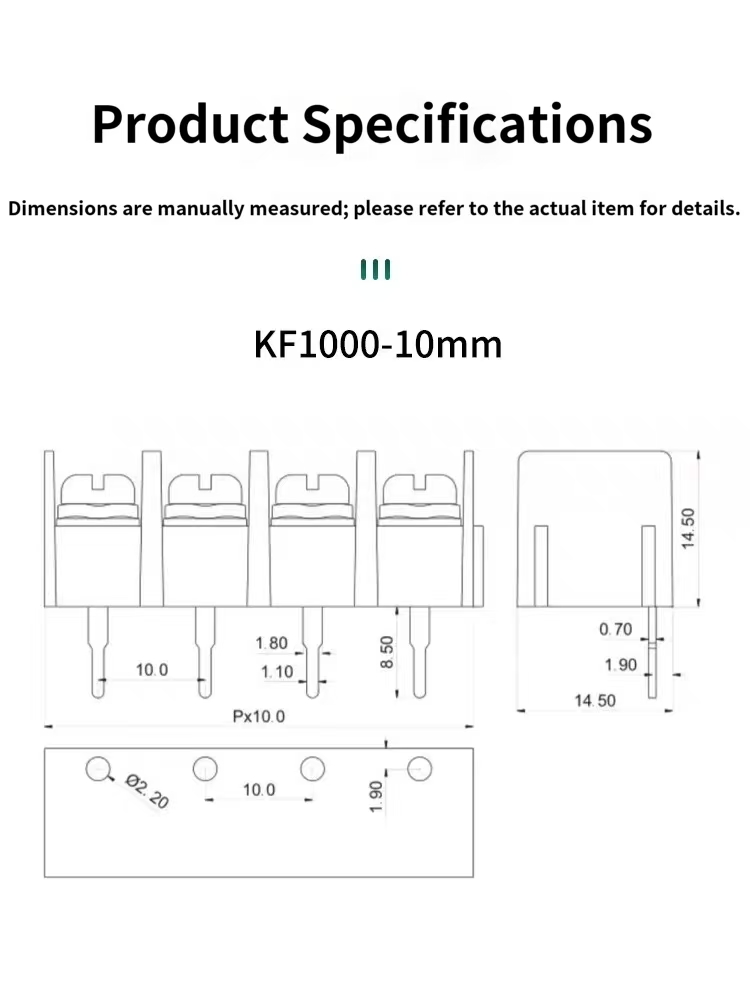

Pitch: 10.0mm
Poles: 2P~24P customizable
Rated Voltage: 500V AC
Rated Current: 30A
Wire Range: 0.75~4.0mm²
Housing: PA66 UL94-V0 Flame Retardant
Conductor: Gold Plated Copper
Screw: Nickel-plated Steel
Installation: PCB Through-hole Soldering
Color: Black
Compliance: RoHS & REACH
