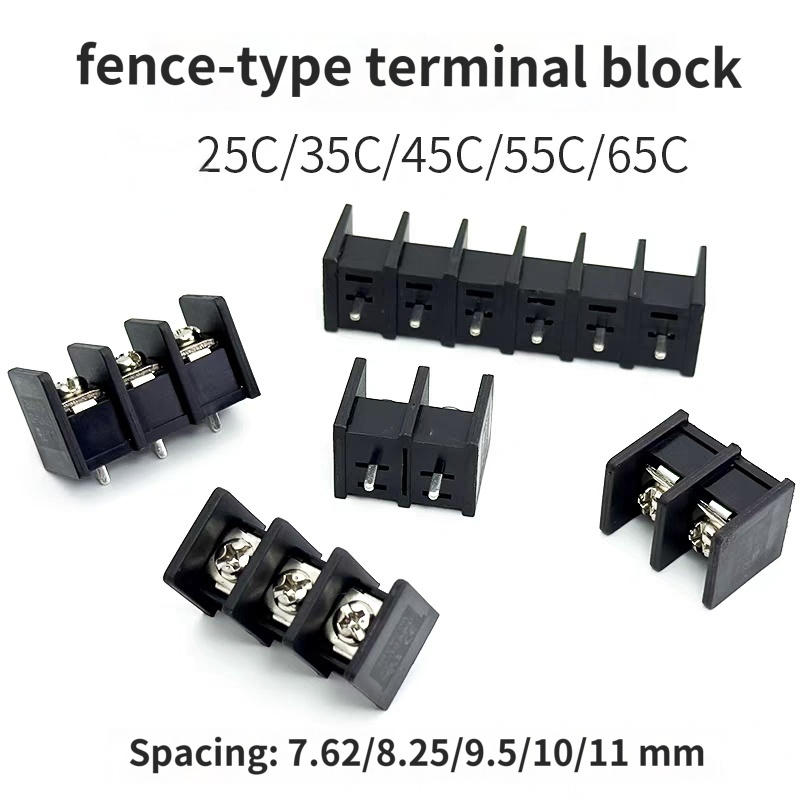

KF25C/35C/45C/55C Middle Pin Barrier Terminal Block, High Current PCB Screw Terminal Connector

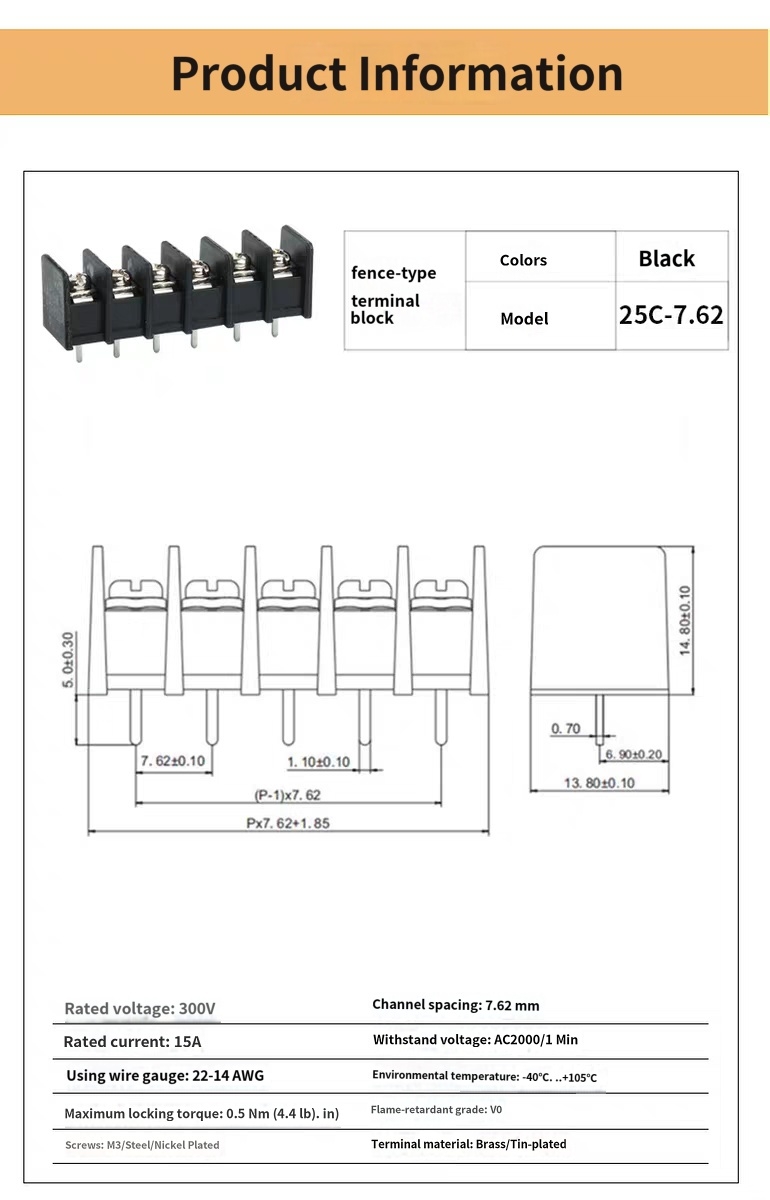

KF25C: 7.62mm

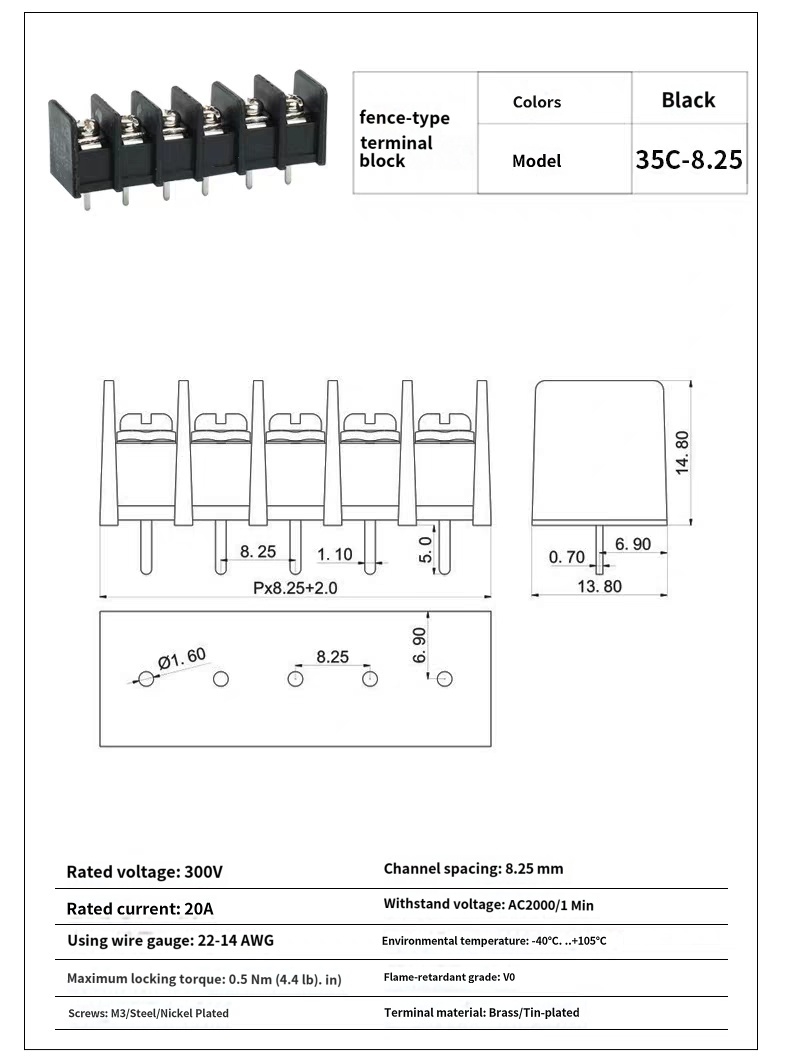

KF35C: 8.25mm

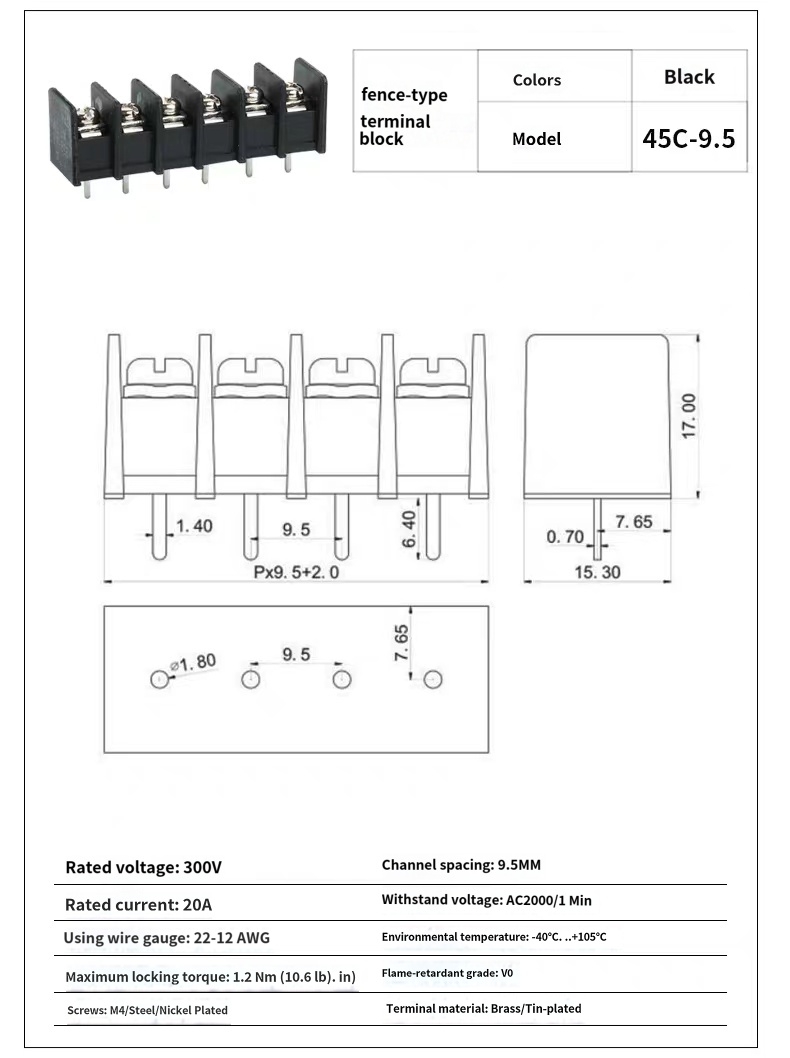

KF45C: 9.5mm

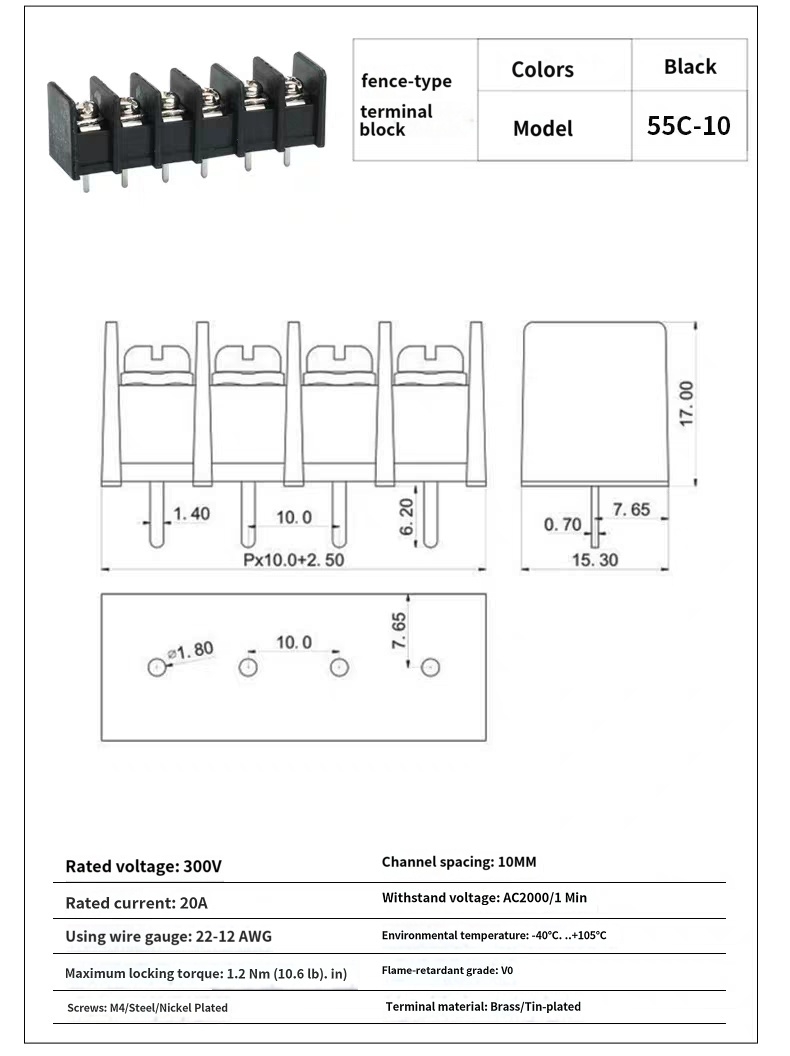

KF55C: 10.0mm
Pin Type: Middle Pin / Middle Foot
Rated Current: 15A-24A
Rated Voltage: 300V AC
Wire Range: 0.2-2.5mm²
KF25C, KF35C, KF45C and KF55C are classic middle pin barrier terminal blocks with different standard pitches: 7.62mm, 8.25mm, 9.5mm and 10.0mm respectively. Adopting central middle foot pin design, they perfectly match conventional PCB board hole positions, bringing convenient soldering and stable installation.

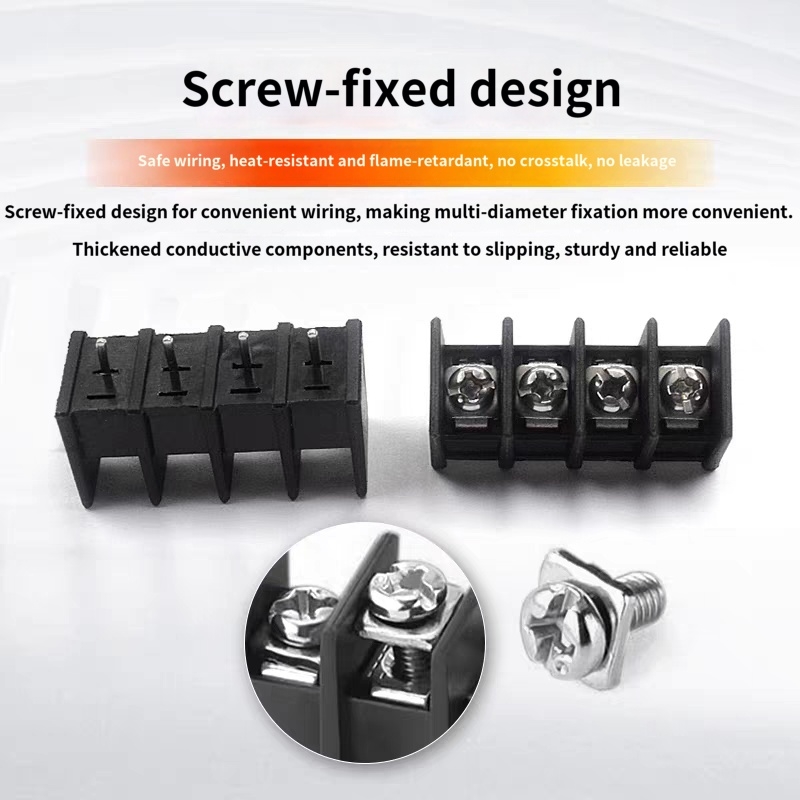

Made of UL94-V0 flame-retardant PA66 housing and thickened tinned brass conductive parts, these terminals feature strong current load capacity, excellent insulation and anti-oxidation performance. Screw locking structure ensures tight wire connection without loose contact. Available in 2P-12P poles, widely used for power supplies, industrial control boards, instruments and high-power electrical PCB wiring projects.
