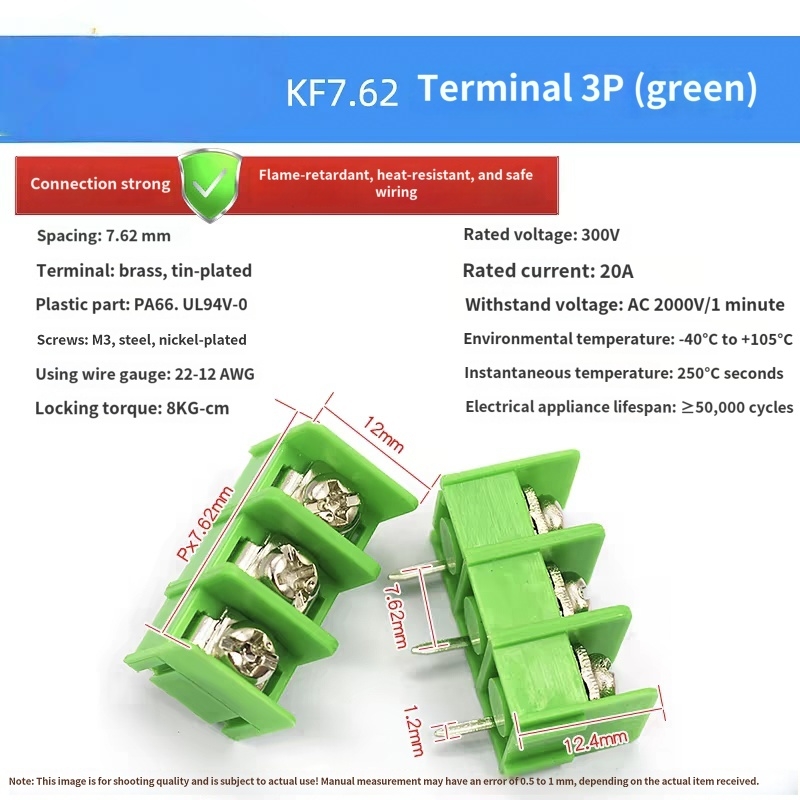

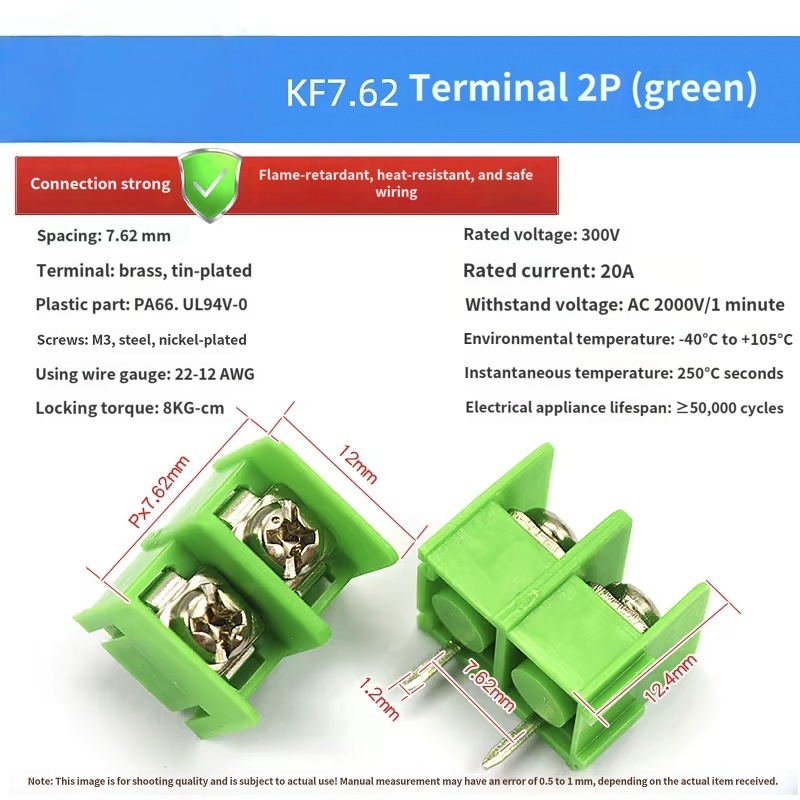

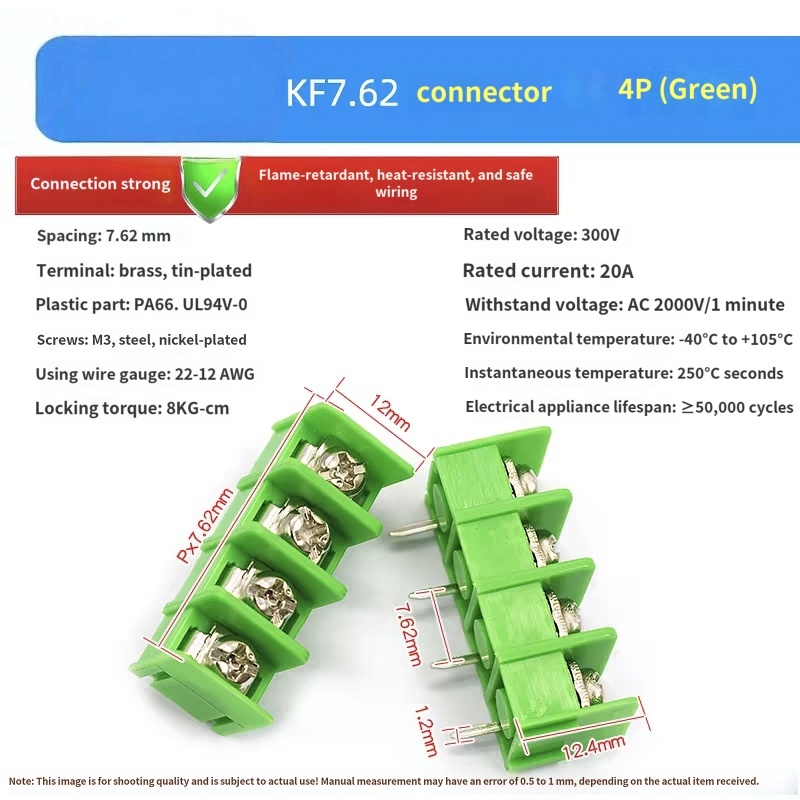

7.62mm Pitch Stackable PCB Terminal Block, Screw Type Barrier Wire Connector
KF7620
- Model: KF7620
- Pitch: 7.62mm
- Poles: 2P/3P/4P, stackable
- Rated Voltage: 300V AC
- Rated Current: 20A
- Housing: PA66, UL94 V-0 (Black)
- Terminal: Tinned brass
- Screw: M4, nickel-plated
- Wire Range: 0.3–2.5mm² / 22–12AWG
- Feature: Interlocking / stackable design
KF7620 7.62mm stackable PCB terminal block is a popular interlocking barrier block for industrial electronics. The stackable design allows unlimited pole expansion by connecting multiple blocks. Rated 20A 300V, black PA66 housing (UL94 V‑0), tinned brass terminals ensure stable electrical connection. Suitable for 0.3–2.5mm² wires, widely used in PLC, instrumentation, and power equipment. Compatible with TE 1546299 series.

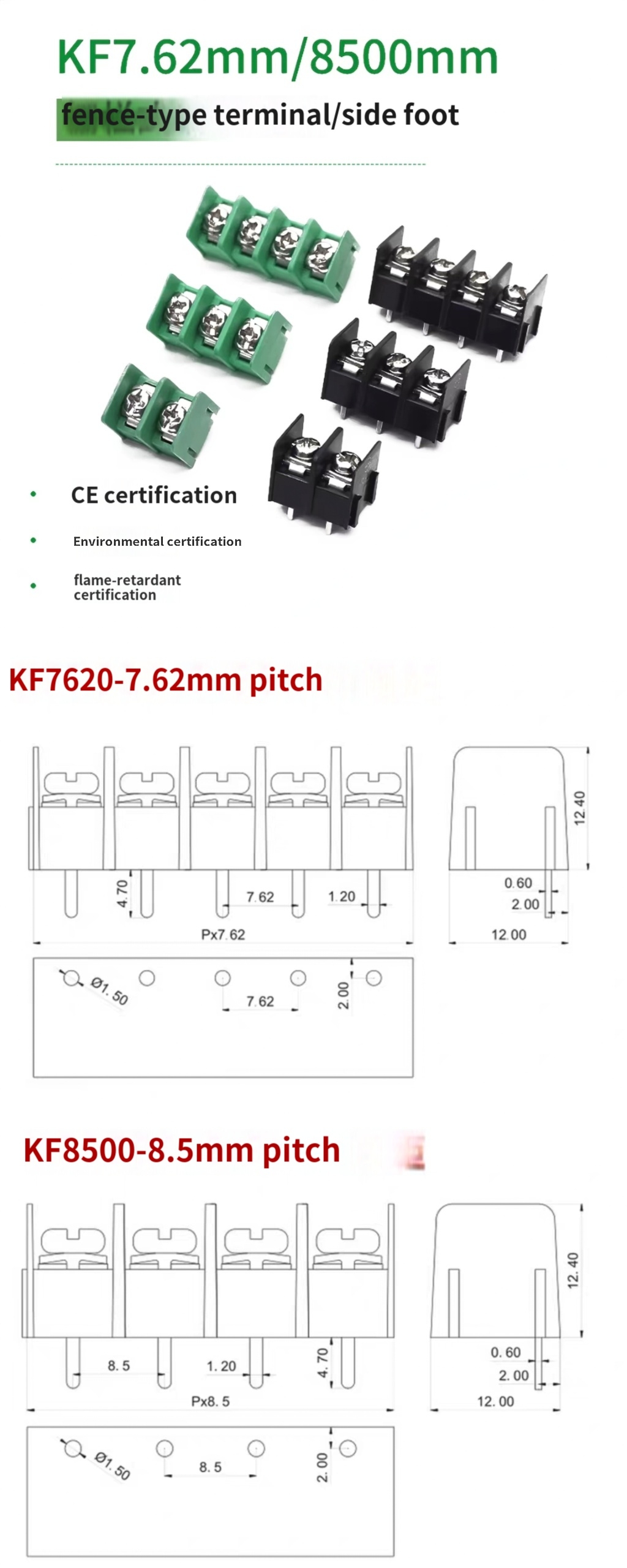

8.5mm Pitch Stackable PCB Terminal Block, Screw Type Barrier Wire Connector
KF8500
- Model: KF8500
- Pitch: 8.5mm
- Poles: 2P/3P/4P, stackable
- Rated Voltage: 300V AC
- Rated Current: 20A
- Housing: PA66, UL94 V-0 (Green)
- Terminal: Tinned brass
- Screw: M4, nickel-plated
- Wire Range: 0.3–2.5mm² / 22–12AWG
- Feature: Interlocking / stackable design
KF8500 8.5mm stackable terminal block is a green‑colored interlocking PCB connector for high‑current applications. The 8.5mm pitch provides larger wiring space, easy for thick cables. Stackable structure enables flexible pole count. Rated 20A 300V, UL94 V‑0 PA66 housing, tinned brass terminals. Ideal for industrial control, power distribution, and automotive electronics.
