LBV Series Pre-insulated Lipped Blade Terminal Red Copper Recessed Flat Wire Terminal
Product Description

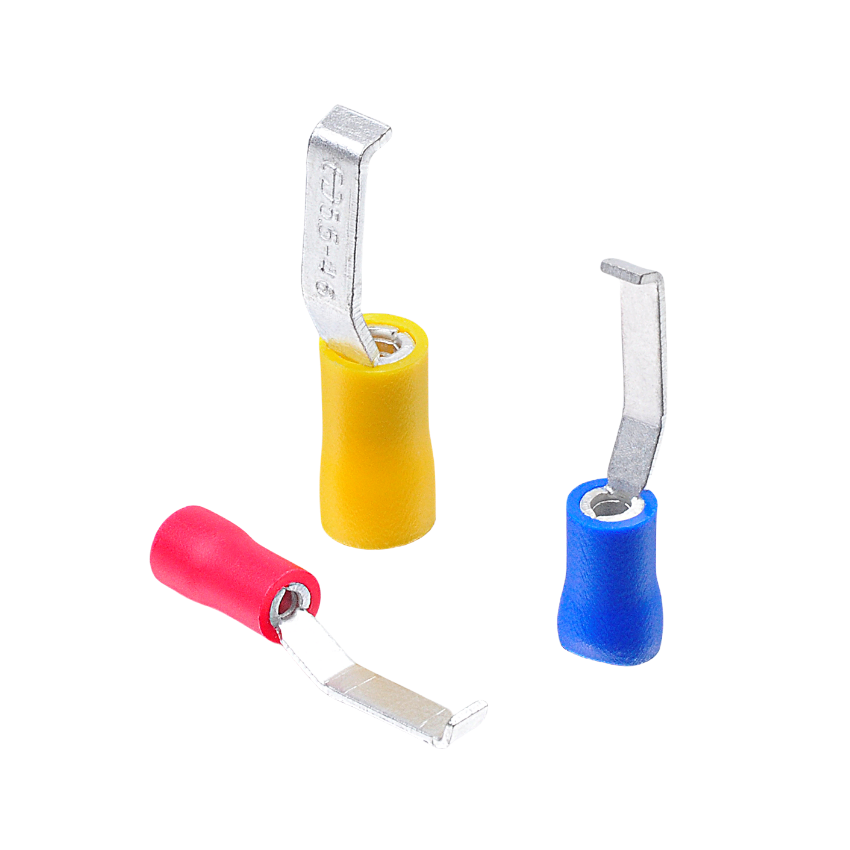

LBV insulated lipped blade terminal features unique concave lipped flat structure, different from ordinary flat terminals. The recessed design can enhance locking force after insertion, effectively prevent loose connection caused by vibration.

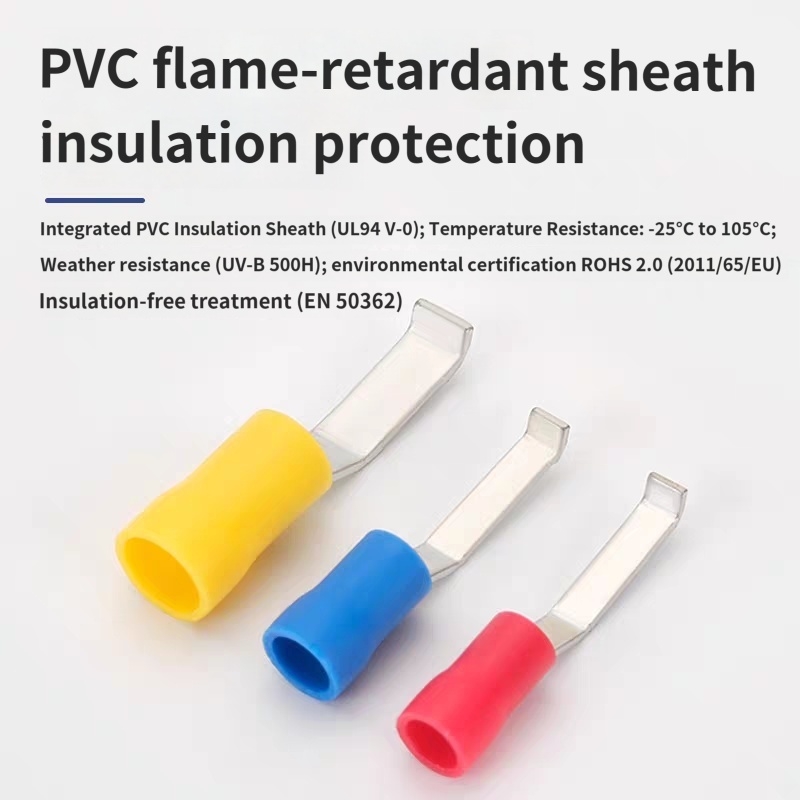

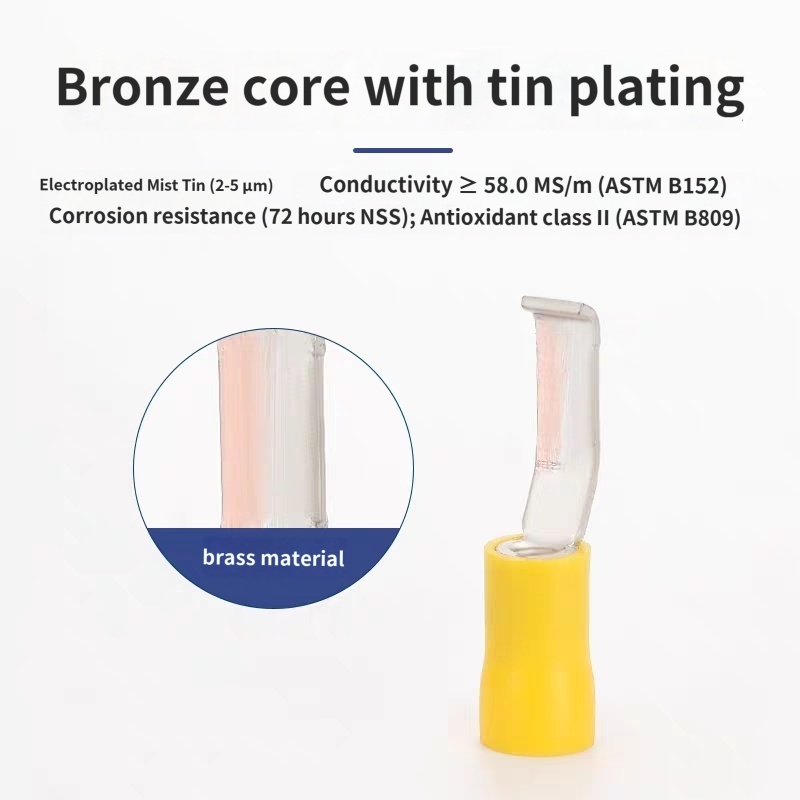

Made of high-quality tin-plated red copper, it delivers excellent conductivity, low contact resistance and strong oxidation resistance. Equipped with integrated flame retardant nylon insulating sheath, it provides complete insulation protection to avoid electric leakage and short circuit risks.
Precision stamping shaping ensures smooth surface without burrs, easy wire crimping and firm connection. Color-coded design distinguishes different wire gauges for quick selection. Stable performance and long service life fully meet international export standards.
| Item | Specification |
|---|---|
| Product Series | LBV Insulated Lipped Blade Terminal |
| Material | High purity tin-plated red copper + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Working Temperature | -40℃ ~ 105℃ |
| Type | Recessed lipped flat pre-insulated cold crimp terminal |

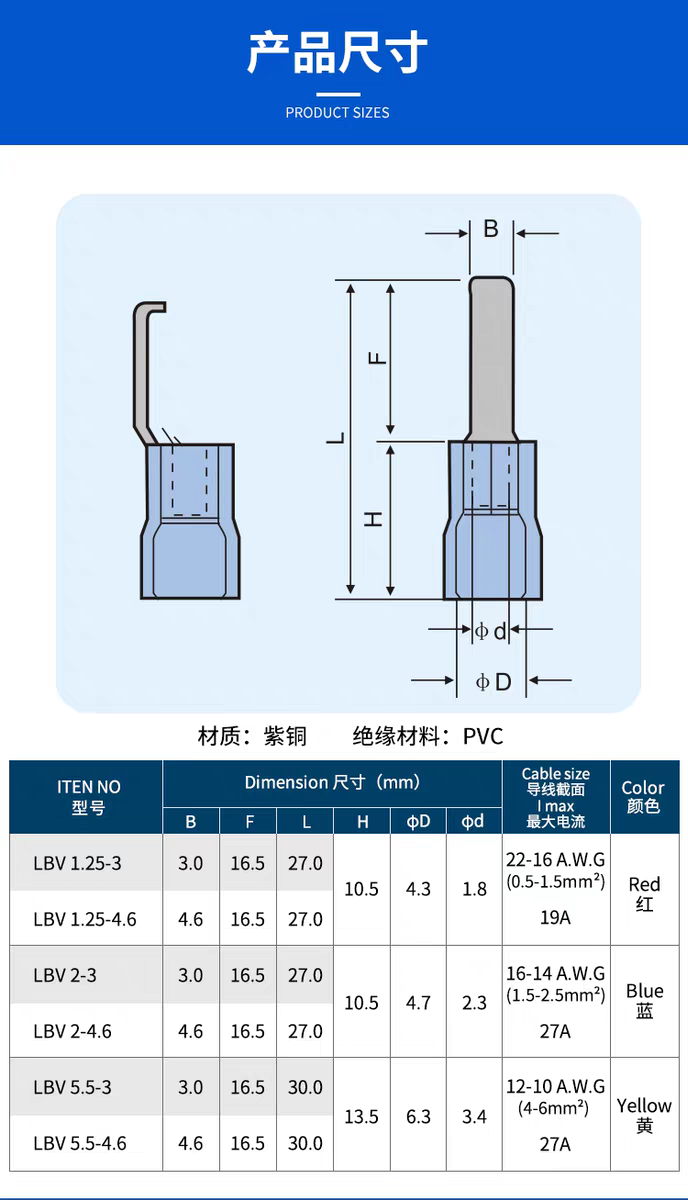

| Wire Range | 0.5mm² – 10mm² |
| Features | Concave lipped design, firm clamping, anti-slip insertion, full insulation, stable contact |
| Application | Automotive harness, switches, sockets, electrical appliances, control cabinet wiring |
Product Features
- Concave Lipped Structure
Recessed design increases friction, anti-slip and anti-loose after plugging in - Tin-plated Red Copper Material
High conductivity, rust-proof and corrosion-resistant, stable power transmission - Full Pre-insulated Protection
High temperature resistant flame retardant shell, safe insulation and electric shock prevention - Good Elasticity & Clamping Force
Tight fit with matching sockets, not easy to fall off - Burr-free Integral Forming
Protect wire strands, no damage during crimping - Color Classification Identification
Distinct colors match different wire sizes, convenient matching - Full Global Certifications
CE, RoHS, TUV, UL, REACH certified for worldwide sales
Application Scope
- Automobile and electric vehicle wiring harness assembly
- Power switch, control socket internal wiring connection
- Household electrical appliances internal circuit wiring
- Electronic equipment plug-in fixed wiring
- Electrical control cabinet secondary circuit connection
- Low-voltage electrical fittings matching connection
Installation Steps

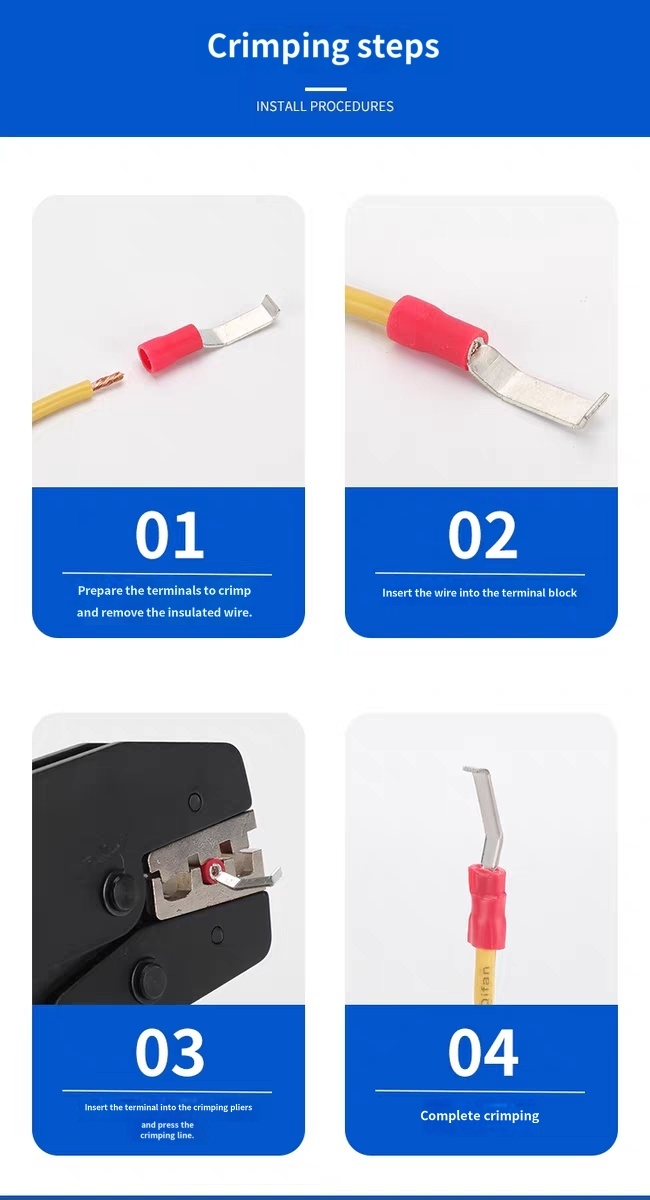

- Strip wire insulation to proper length
- Insert copper wire fully into the insulated terminal tube

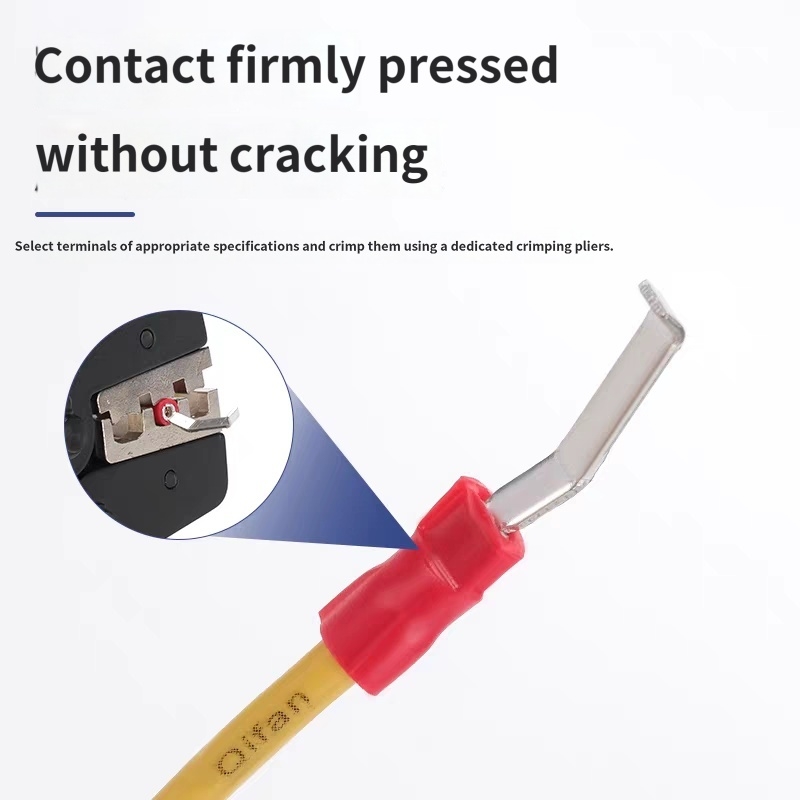

- Crimp tightly with professional cold crimp pliers
- Insert lipped flat head into matching connector to complete connection
Precautions
- Select corresponding LBV model according to wire cross-sectional area
- Avoid excessive crimping to prevent terminal deformation and insulation cracking
- Ensure wire is fully inserted without exposed copper core
- Suitable for conventional vibration environment, avoid severe impact occasions
