LSNB Non-Insulated Locking Fork Terminal Thick Red Copper Anti-Loose Bare Wire Lug
Product Description
LSNB non-insulated locking spade terminal is heavy-duty bare fork terminal with built-in locking structure. Different from ordinary SNB fork lugs, it can lock firmly after being installed on bolts, effectively prevent loosening, shifting and disconnection caused by long-term vibration.

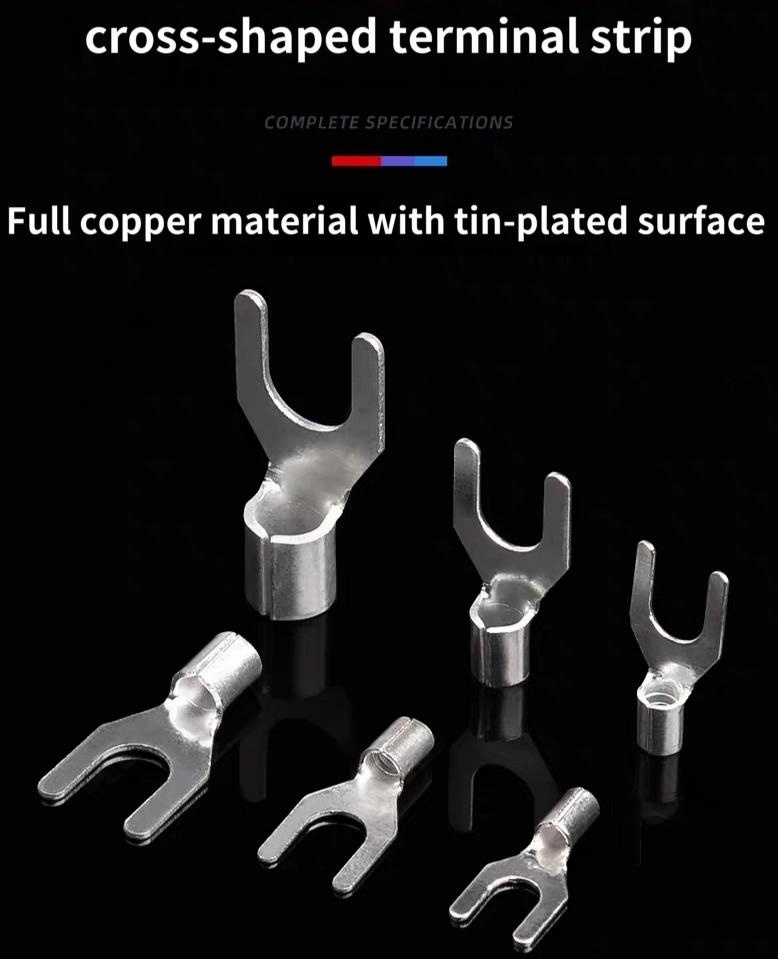

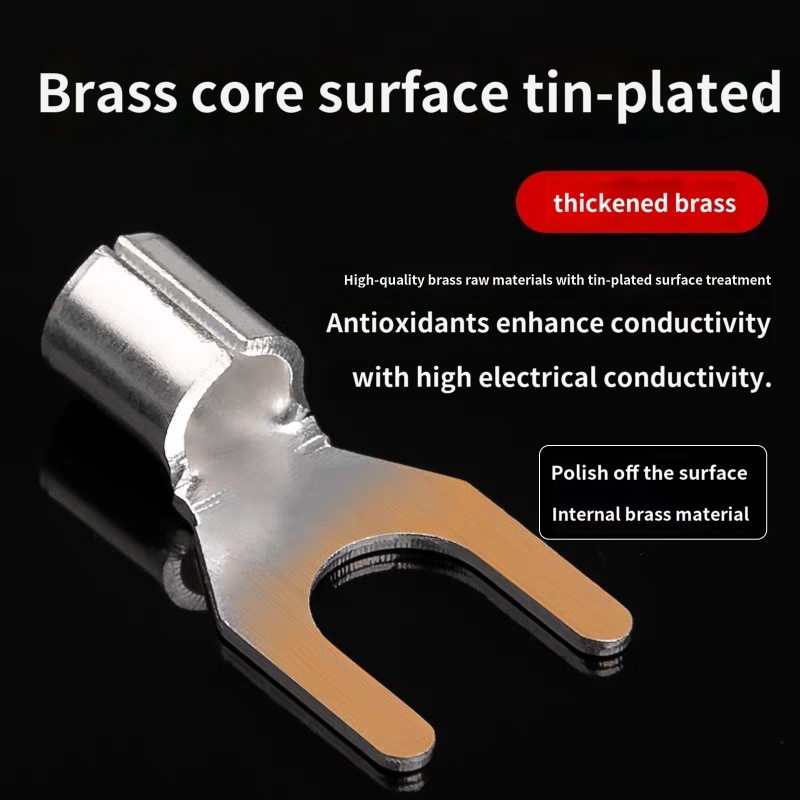

Made of thickened solid red copper with tin-plated finish, it boasts excellent conductivity, low contact resistance, great high temperature resistance and oxidation resistance. Without insulating sheath, it is compact and space-saving, perfectly suitable for installation inside closed electrical cabinets and narrow assembly spaces.

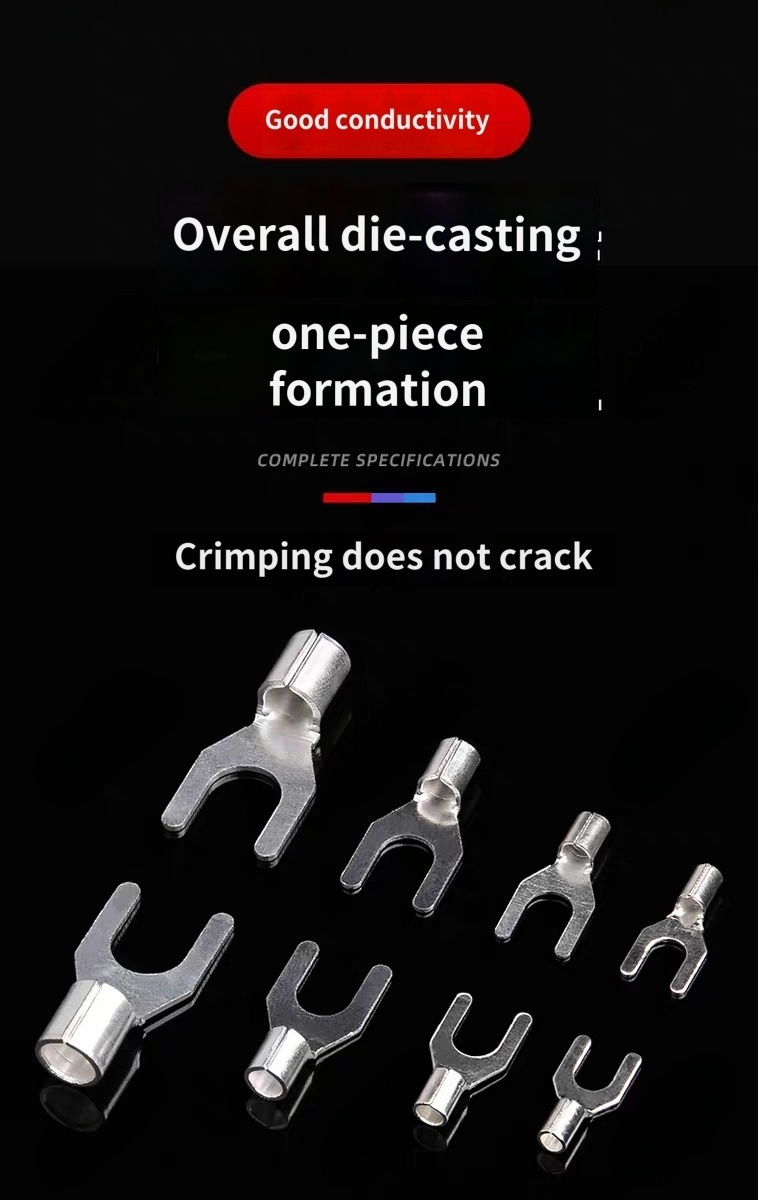

Integral stamping process ensures sturdy structure, firm crimping and strong pulling force. Easy to install and fix, stable connection performance, ideal for harsh working conditions and high-current circuit wiring, fully complies with international export standards.
| Item | Specification |
|---|---|
| Product Series | LSNB Locking Fork Non Insulated Terminal |
| Material | Thick high purity red copper, tin plated |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 125°C |
| Type | Bare locking fork shaped cold crimp terminal |
| Wire Range | 0.5mm² – 16mm² |
| Features | Self-locking buckle design, anti-drop anti-loose, no insulation, high strength, high current load, vibration resistant |
| Application | Engineering machinery, auto harness, power cabinet, vibration equipment, heavy-duty bolt wiring |
Product Features
- Built-in Self-Locking Mechanism
Auto lock after mounting, excellent anti-loose and anti-fall effect - Thickened Tin-Plated Red Copper
High hardness, not easy to deform, strong bearing capacity for heavy current - Bare Non-Insulated Structure
Mini size, save installation space, fit hidden built-in wiring - Standard Fork Mounting Design
Quick hang-on bolt installation, easy assembly and maintenance - Superior Vibration Resistance
Keep stable connection in frequent shaking working environment - Burr-Free Smooth Surface
Protect wire strands without damage during crimping - Full Global Certifications
Qualified for global market sales and industrial engineering projects
Application Scope
- Construction machinery & agricultural equipment power wiring
- Automotive and commercial vehicle vibration-resistant harness connection
- Electrical control cabinet anti-loose fixed circuit connection
- Low voltage power distribution equipment terminal wiring
- Heavy-duty industrial equipment internal bolt connection
- Sealed electrical box internal stable line connection

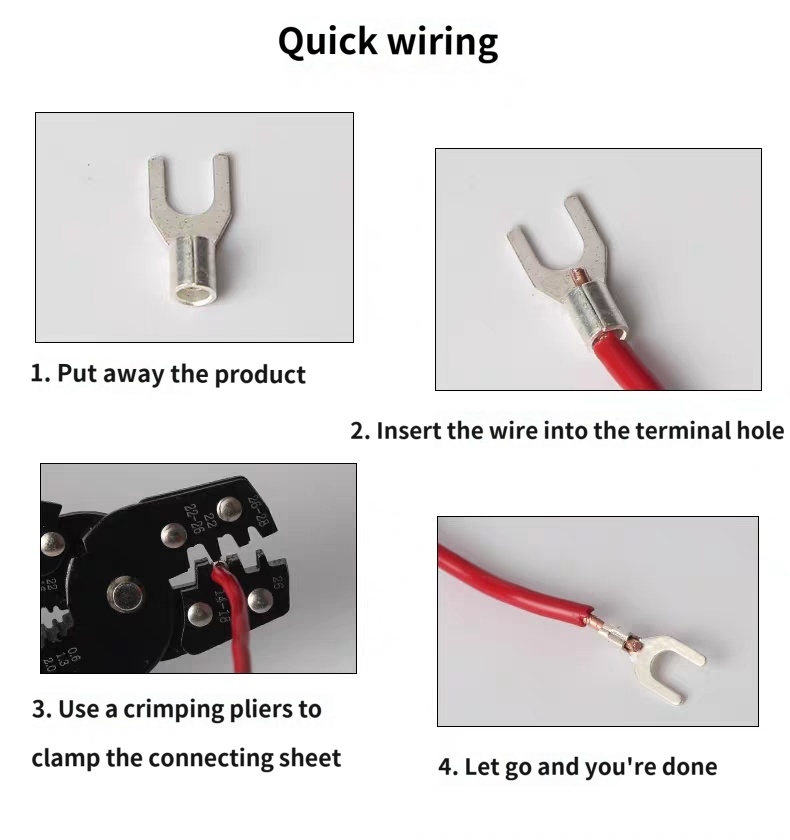

Installation Steps
- Strip wire insulation to proper length to expose copper core
- Insert wire fully into terminal crimp barrel
- Crimp firmly with professional cold crimping pliers

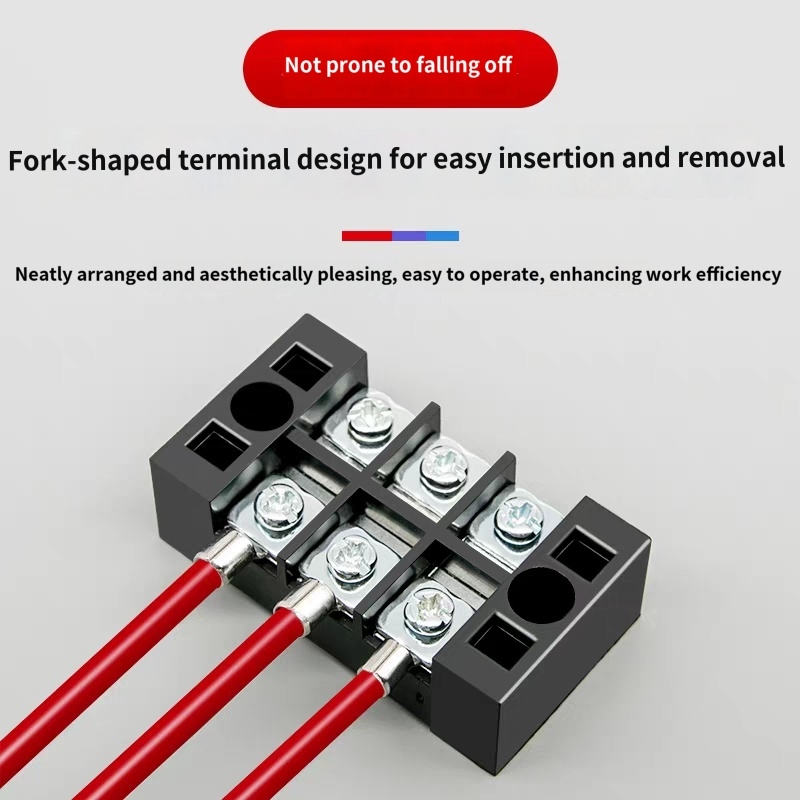

- Clip fork head onto bolt and press to finish self-locking fixation
Precautions
- Select matching specification according to wire size and bolt diameter
- Must be used in closed insulated environment to avoid short circuit danger
- Avoid excessive crimping to prevent copper terminal deformation
- Do not pry locking buckle forcibly to avoid structural damage
