LSV Pre-insulated Locking Fork Terminal Red Copper Anti-loose Spade Wire Connector
Product Description
LSV insulated locking spade terminal is upgraded anti-loose fork type wiring terminal with exclusive lock buckle structure. Different from ordinary fork terminals, it can automatically lock after being fixed on bolts, effectively prevent terminal slipping, falling off and poor contact caused by long-term vibration and equipment shaking.
Adopts high-quality seamless red copper with tin-plated surface, featuring excellent electrical conductivity, low contact resistance and strong anti-oxidation performance. Equipped with integrated flame retardant nylon insulating sheath, it provides full insulation protection to avoid electric leakage, short circuit and electric shock hazards.
Easy to hang and install, self-locking design greatly improves connection safety and stability. Precision stamping without burrs, firm crimping and strong tensile force. Color-coded size classification is convenient for quick selection, fully meeting global export quality standards.
| Item | Specification |
|---|---|
| Product Series | LSV Locking Fork Pre-insulated Terminal |
| Material | High purity tin-plated red copper + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Working Temperature | -40℃ ~ 105℃ |
| Type | Lock buckle fork-shaped pre-insulated cold crimp terminal |
| Wire Range | 0.5mm² – 10mm² |
| Features | Built-in locking buckle, self-locking anti-drop, anti-vibration, full insulation, bolt quick mounting |
| Application | Auto harness, engineering machinery, vibration equipment, electric cabinet, power distribution wiring |
Product Features
- Self-locking Buckle DesignAutomatic locking after installation, perfect anti-drop and anti-loose effect
- Tin-plated Pure Red Copper Core
High conductivity, corrosion resistant, stable long-distance current transmission - Full Flame Retardant Insulation
High temperature resistant, aging resistant, safe isolation of live parts - Standard Fork Hanging Structure
Easy to mount on bolts, convenient installation and maintenance - Elastic Locking Structure
Firm clamping, not easy to loosen in severe vibration environment - Smooth Burr-free Forming
Protect wire strands, no damage during crimping operation - Color Code Distinction
Different colors correspond to different wire sizes, easy matching - Complete International Certifications
CE, RoHS, TUV, UL, REACH approved for worldwide market sales
Application Scope
- Automotive and new energy vehicle vibration-resistant wiring harness
- Construction machinery, agricultural equipment internal power wiring
- Electrical control cabinet fixed anti-loose circuit connection
- Power distribution equipment bolt terminal connection
- Household electrical appliances vibration position wiring assembly
- Outdoor mobile equipment stable wiring connection

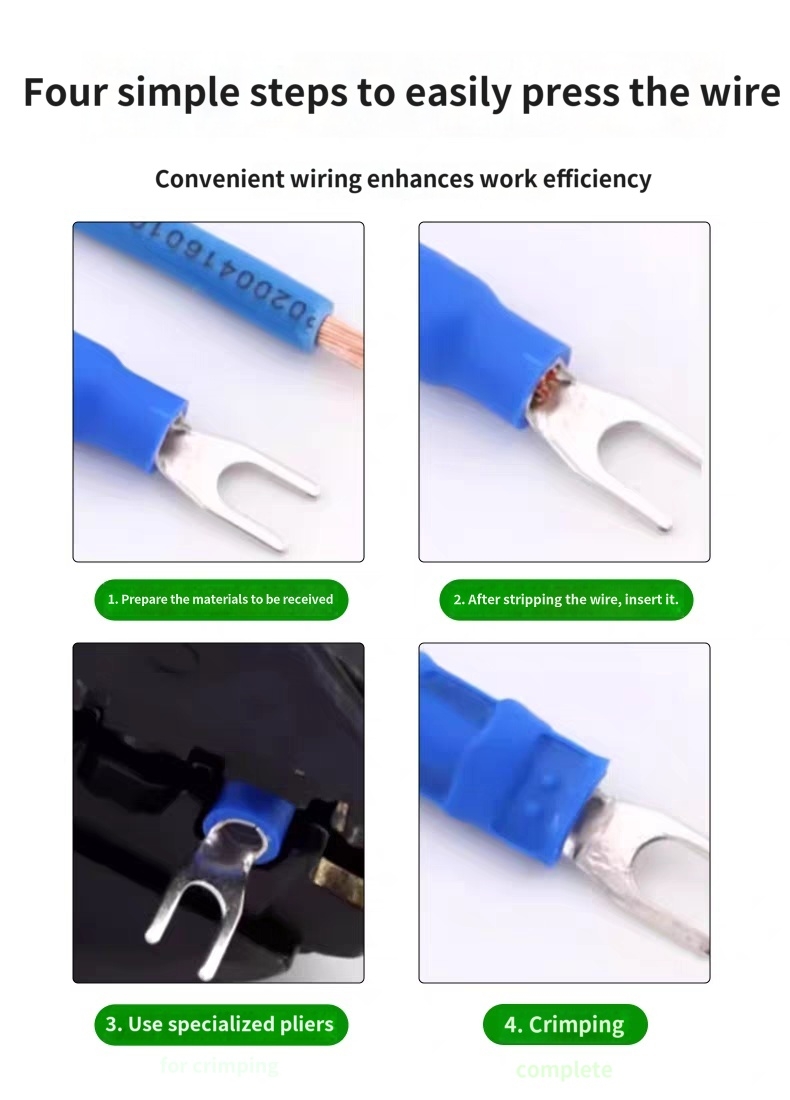

Installation Steps
- Strip wire insulation to proper length and expose copper conductor
- Insert wire fully into pre-insulated terminal crimping barrel
- Use special cold crimp pliers to crimp tightly evenly
- Hang fork end on bolt, press down to complete self-locking fixation
Precautions
- Select matched LSV specification according to wire cross section and bolt diameter
- Control crimping strength moderately, avoid excessive compression causing deformation
- Ensure copper wire is fully inserted without exposed copper core
- Do not forcefully pry open the lock buckle to avoid structural damage
