MDV Series Pre-insulated Male Terminal Red Copper Insulated Male Wire Disconnector

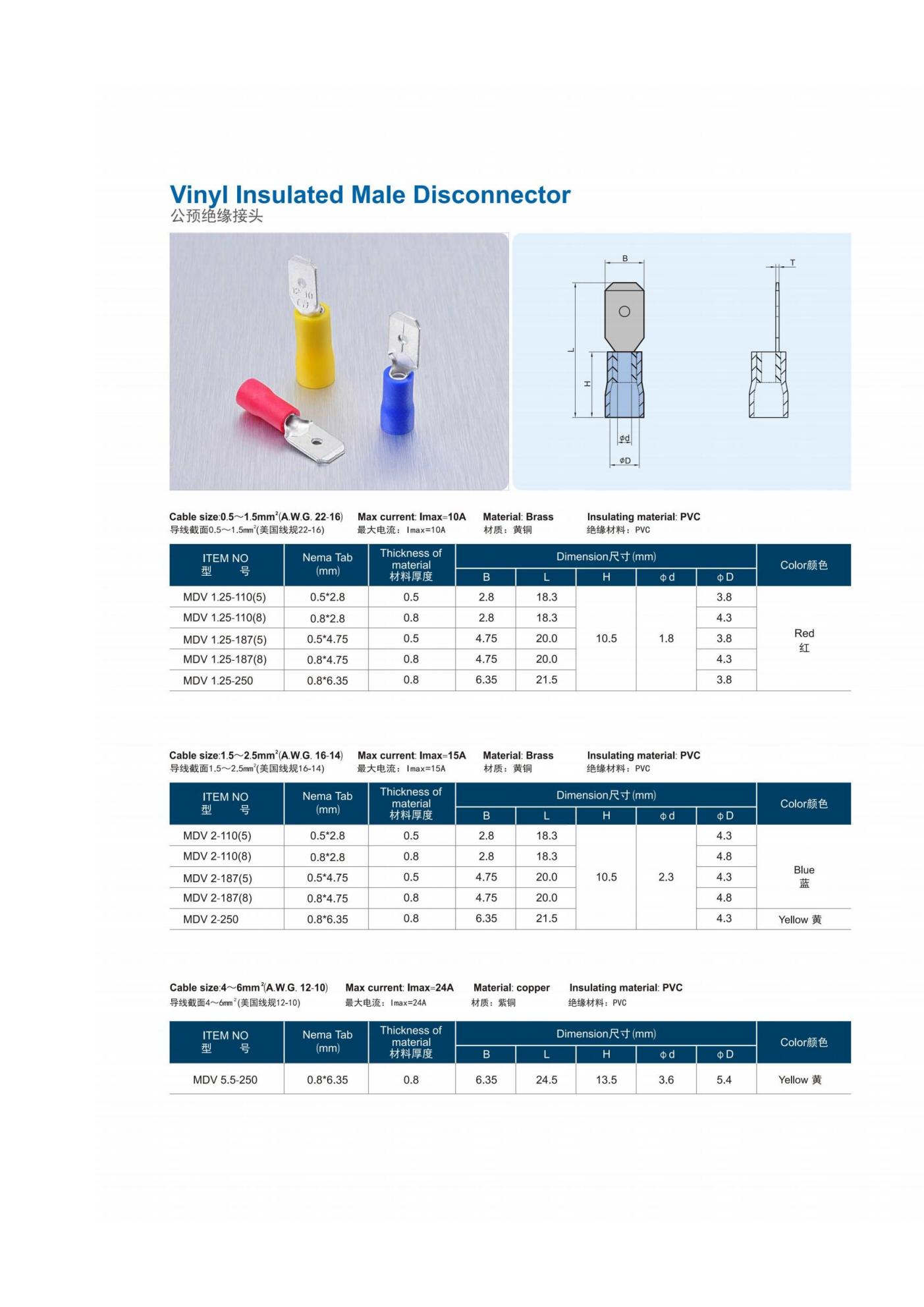

| Item | Specification |
|---|---|
| Series | MDV Pre-insulated Male Connector Terminal |
| Material | High purity red copper tin-plated + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Pre-insulated male plug cold crimp wire terminal |
| Wire Range | 0.5mm² – 6mm² |
| Feature | Standard male plug head, tight insertion, full insulation, easy assembly & disassembly |
| Application | Wire harness assembly, quick plug connection, home appliances, automotive, control circuit wiring |
Product Description
MDV series pre-insulated male terminal is widely used male plug type cold crimp connector. Made of high-quality tin-plated red copper, it features excellent electric conductivity, low contact resistance and good anti-oxidation performance.

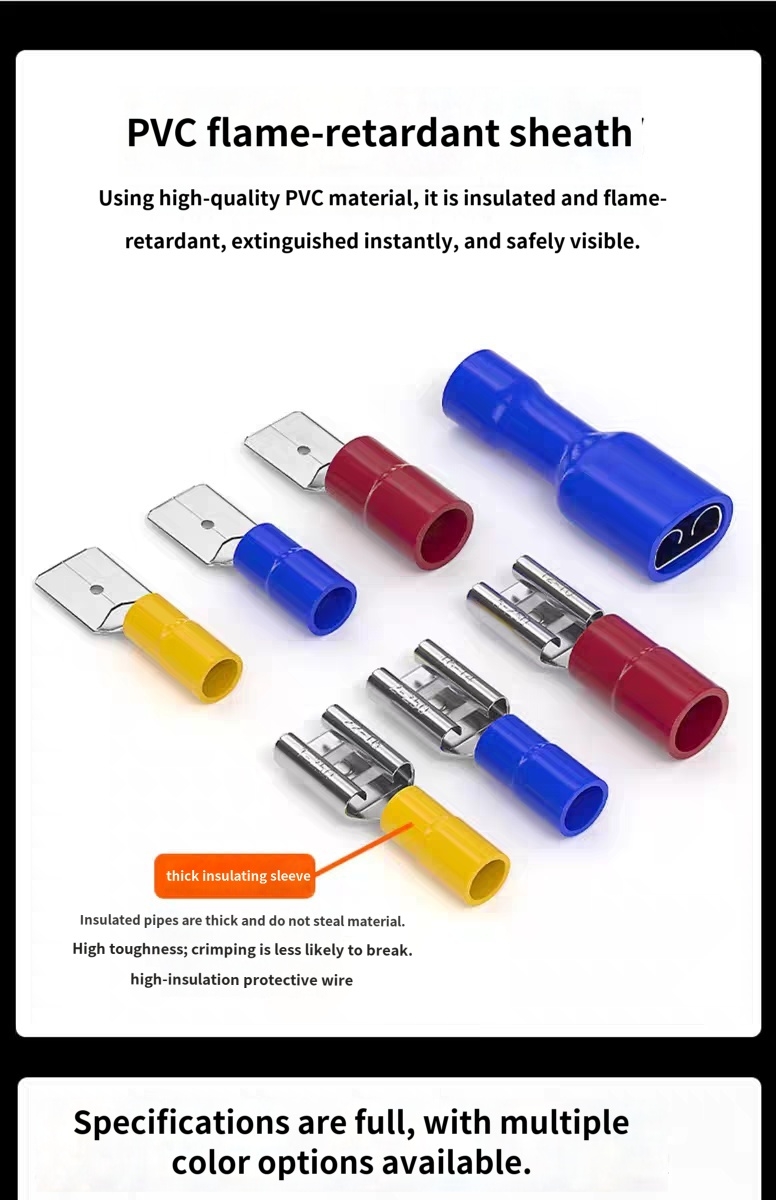

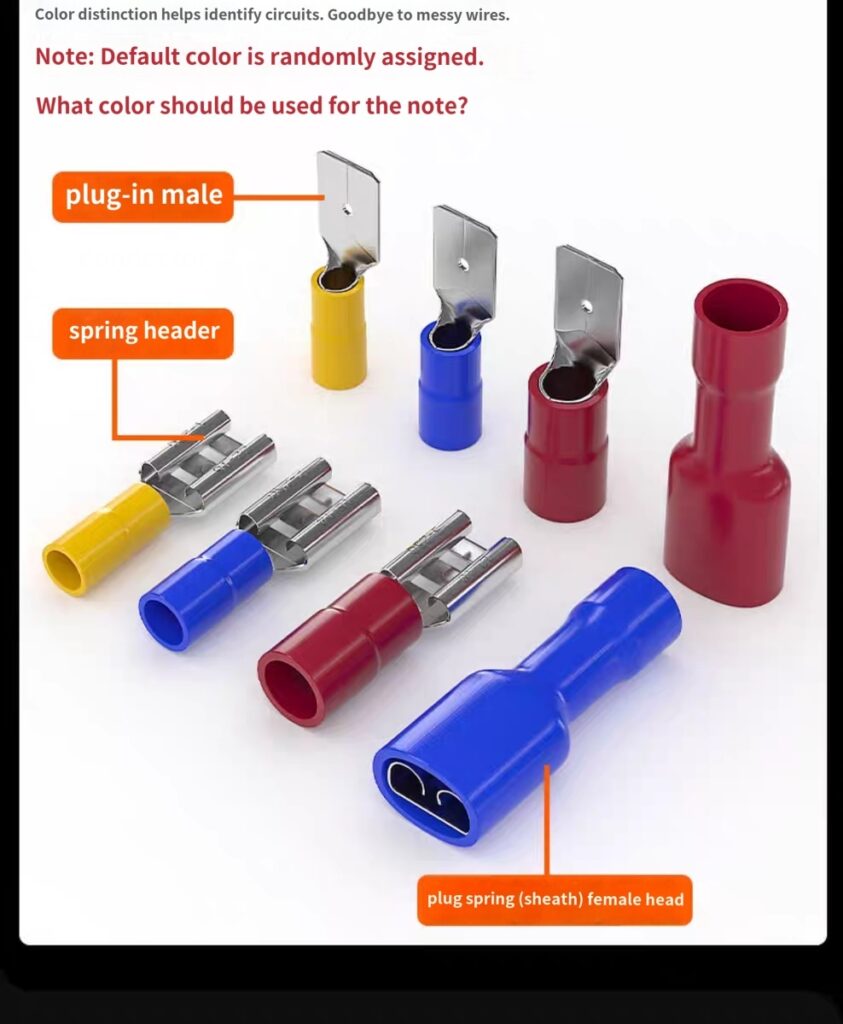

Equipped with integrated flame retardant nylon insulating shell, it provides complete insulation protection, effectively avoid electric leakage and short circuit hazards. Standard male plug design matches perfectly with corresponding female terminals, easy to plug and pull freely, realize fast circuit connection and separation. Firm crimping performance, anti-vibration and stable connection, ideal for quick wiring assembly and later maintenance. All products pass full international certifications, suitable for global export sales.
Product Features
- Premium Tin-plated Red Copper Core
Stable conductivity, corrosion resistant, long service life. - Flame Retardant Pre-insulated Housing
High temperature resistant, safe insulation, effectively isolate live parts. - Standard Male Plug Structure
Accurate size, smooth insertion, firm locking, not easy to loose. - Integral Stamping Molding

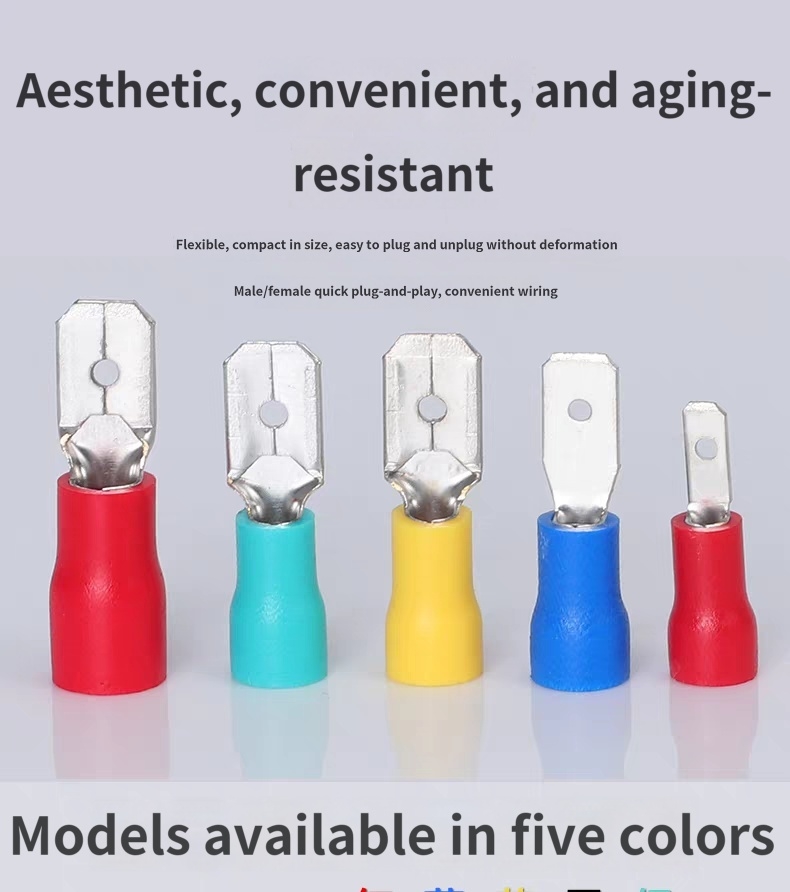

Smooth surface without burrs, will not damage wire strands. - Color Coded Design
Different colors correspond to different wire sizes, easy selection. - Easy Quick Connection
Plug-and-play design, greatly improve wiring efficiency. - Full Set Global Certifications
CE, RoHS, TUV, UL, REACH compliant for all overseas markets.
Application Scope
- Automotive and electric vehicle wiring harness quick connection
- Household electrical appliances internal plug-in wiring
- Electrical control cabinet signal circuit connection
- Electronic equipment internal detachable wiring assembly
- Mechanical equipment movable circuit docking
- Low voltage instrument line quick disconnection connection

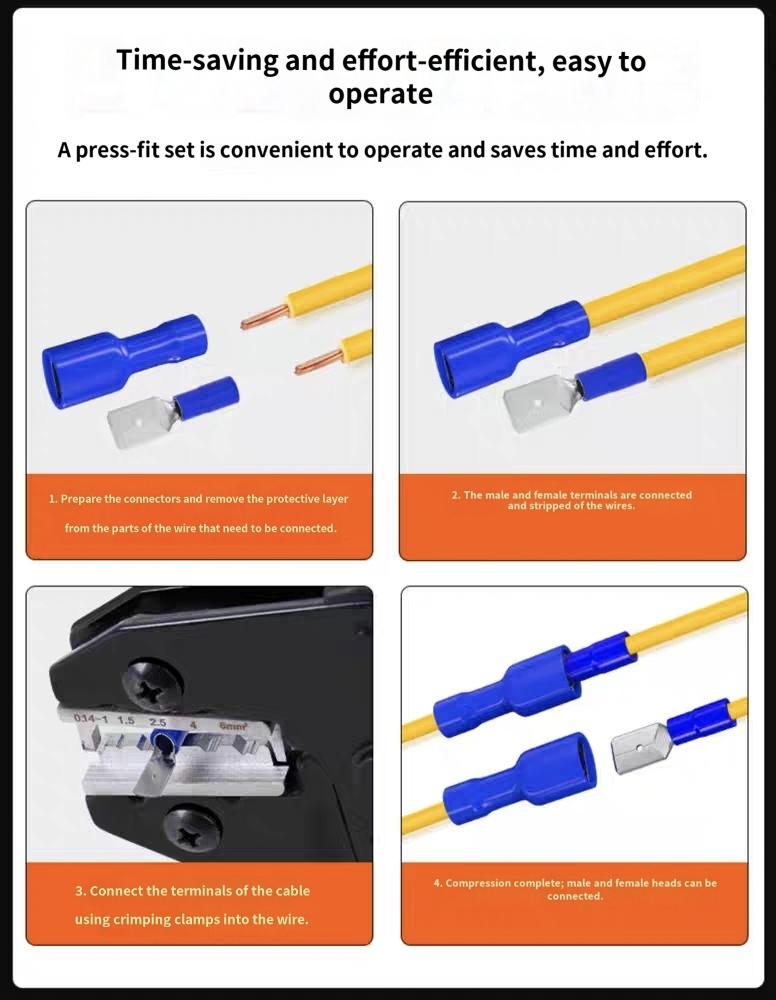

Installation Steps
- Strip wire insulation to suitable length.
- Insert copper wire fully into the pre-insulated terminal barrel.
- Crimp tightly with professional cold crimp pliers.
- Plug the male terminal head into matched female terminal to complete connection.
Precautions
- Select correct MDV model according to wire cross-section.
- Do not over-crimp to prevent insulation cracking and copper core deformation.
- Ensure wire fully inserted without exposed copper wire.
- Avoid frequent violent plugging to extend service life.
