PBDV Pre-insulated Piggy Back Disconnector Red Copper Cold Crimp Male Female Combined Terminal
PBDD Piggy Back Pre-insulated Terminal | Integrated Male Female Cold Crimp Connector

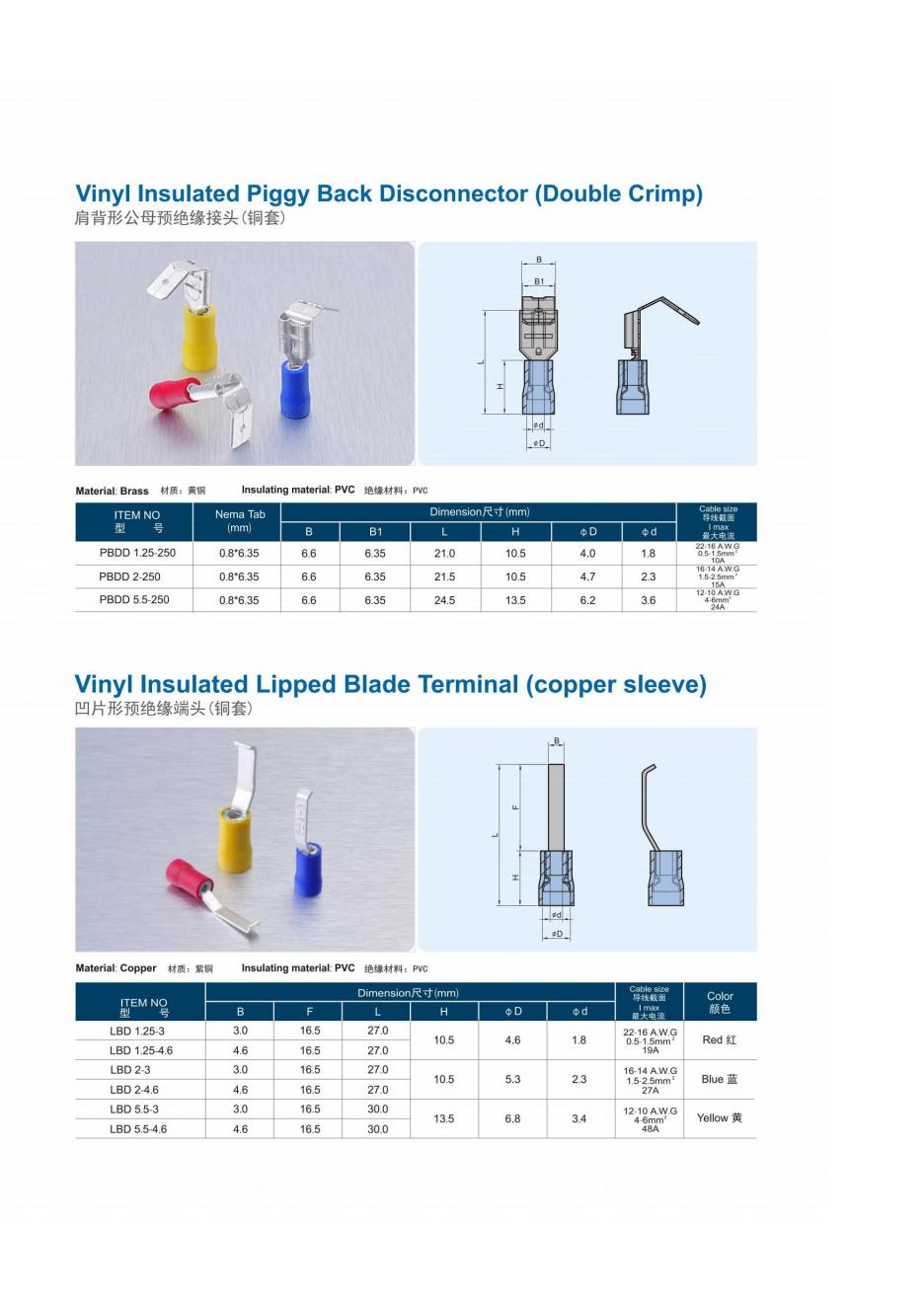

| Item | Specification |
|---|---|
| Product Series | Piggy Back Pre-insulated Terminal | Integrated Male Female Cold Crimp Connector：
PBDD1.25-250, PBDD2-250, PBDD5.5-250. PBDV1.25-250, PBDV2-250, PBDV5.5-250. |
| Material | High purity tin-plated red copper + Flame retardant nylon insulation |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Working Temperature | -40°C ~ 105°C |
| Type | Integrated piggyback male & female combined cold crimp terminal |
| Wire Range | 0.5mm² – 6mm² |
| Features | One-piece male female dual design, shank shoulder structure, branch wiring, easy split connection |
| Application | Automobile harness, electric vehicle circuit branch, household appliances, multi-line shunt wiring |
Product Description
PBDV piggy back pre-insulated terminal adopts unique shoulder-back integrated structure, combining male terminal and female terminal into one body, realizing convenient line branching and shunt connection.

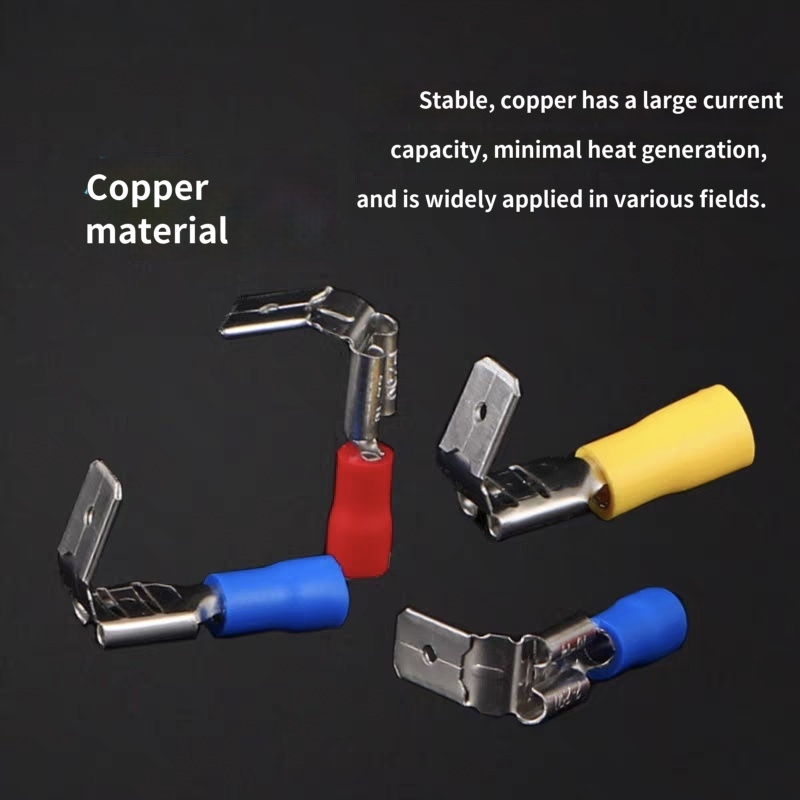

Made of high-quality seamless red copper with tin-plated surface, it owns excellent electrical conductivity, low contact resistance and outstanding anti-oxidation performance. Equipped with high toughness flame retardant nylon insulating sleeve, it provides complete insulation protection to avoid electric leakage and short circuit.

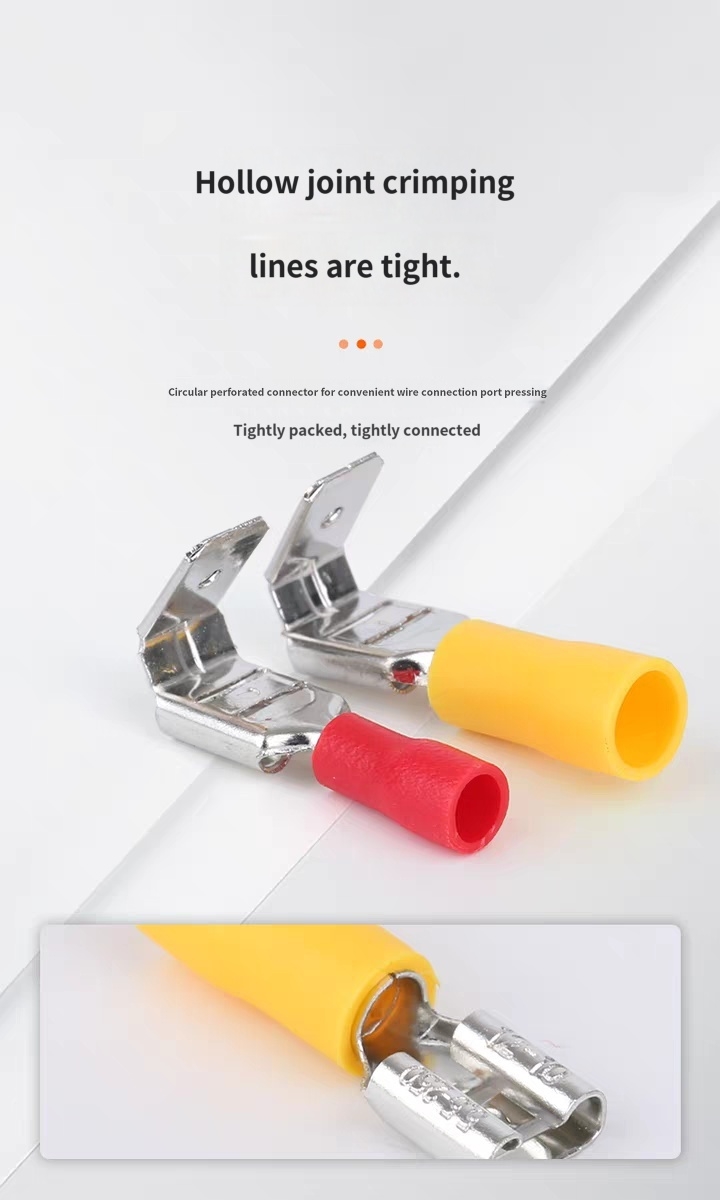

Special piggyback layout saves wiring space, enables one-line input and multi-line output, greatly simplifies circuit layout. Firm crimping effect, stable plugging performance, vibration resistant and durable. Fully compliant with international export quality standards, widely used for branch circuit quick connection.

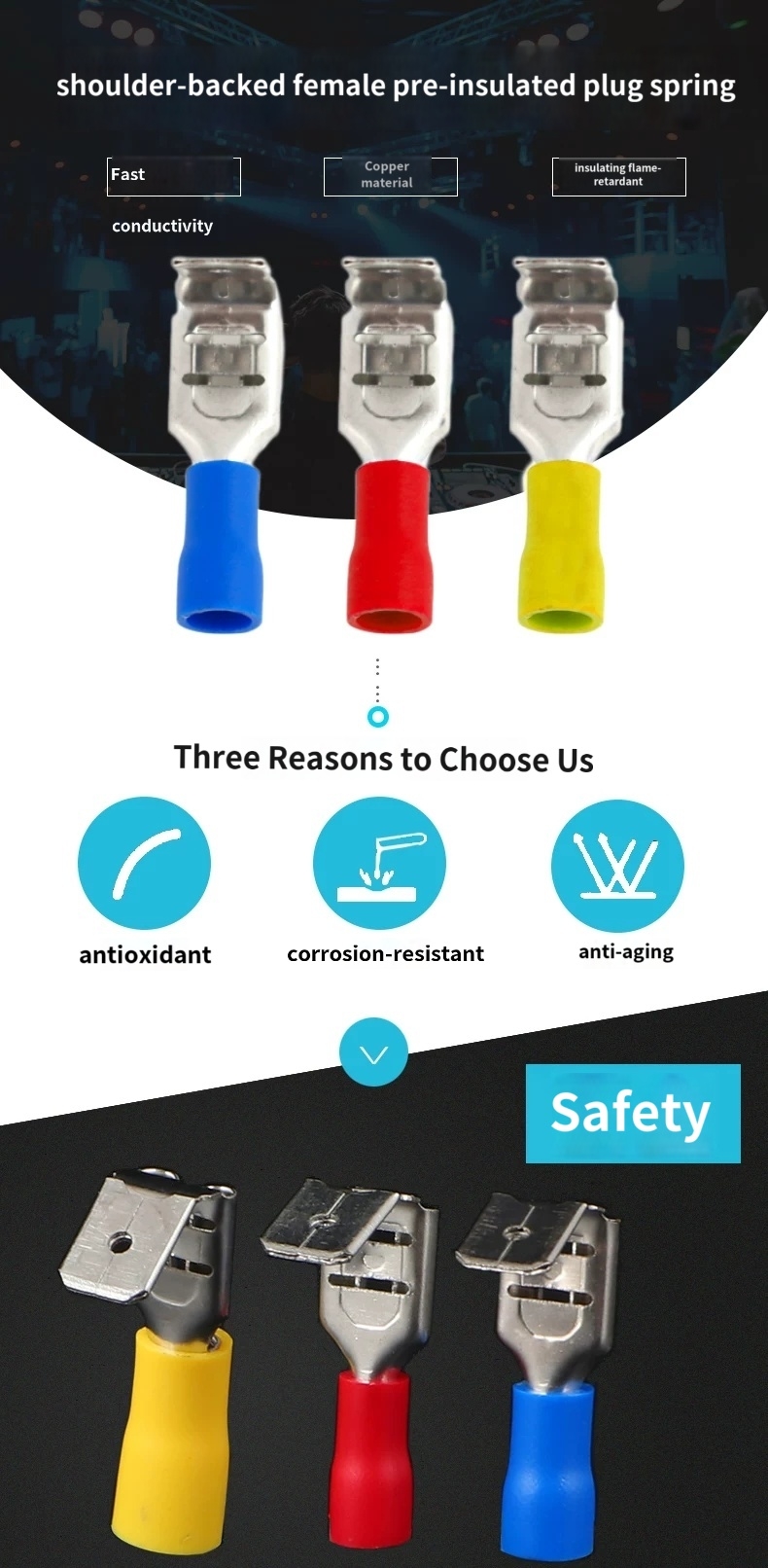

Product Features
- Integrated Piggyback Structure
Combine male and female terminals together, realize fast branch wiring. - Tin-plated Pure Red Copper Body
Excellent conductive performance, anti-rust and corrosion resistant, long service life. - Flame Retardant Full Insulation
High temperature resistant nylon housing, safe insulation, prevent electric shock danger. - Shoulder Shaped Design
Reasonable structure, easy wiring arrangement, neat and compact layout. - Precision Stamping Molding
Smooth surface without burrs, no damage to wire strands during crimping. - Color Coded Marking
Different colors match different wire specifications, quick selection and matching. - Easy Circuit Shunting
Simplify multi-branch circuit connection, improve wiring efficiency. - Full International Certifications
CE, RoHS, TUV, UL, REACH approved for global market sales.
Application Scope
- Automotive wiring harness branch shunt connection
- Electric vehicle and motorcycle circuit split wiring
- Household electrical appliances internal multi-line diversion assembly
- Power tools and mechanical equipment branch circuit connection
- Electrical control cabinet signal line split connection
- Low voltage equipment quick branch wiring arrangement

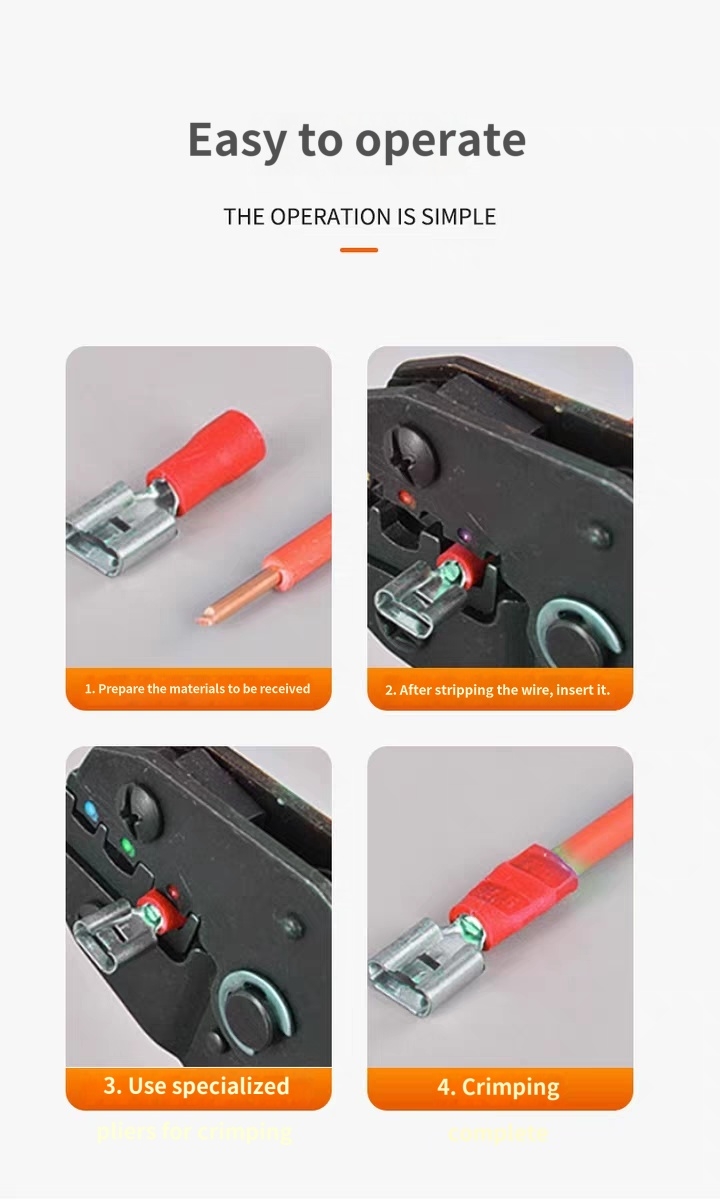

Installation Steps
- Strip wire insulation to standard length.
- Insert wire into the crimping end of PBDV terminal fully.
- Use professional cold crimp pliers to crimp tightly.
- Realize main line connection and branch line docking at the same time.
Precautions
- Choose proper PBDV specification according to wire cross section.
- Do not over-crimp to avoid copper body deformation and insulation breakage.
- Ensure copper wire is fully inserted without exposed conductor.
- Avoid long-term use in strong vibration severe environment.
