PTV Series Pre-insulated Pin Terminal Pure Red Copper Insulated Needle Terminal
| Item | Specification |
|---|---|

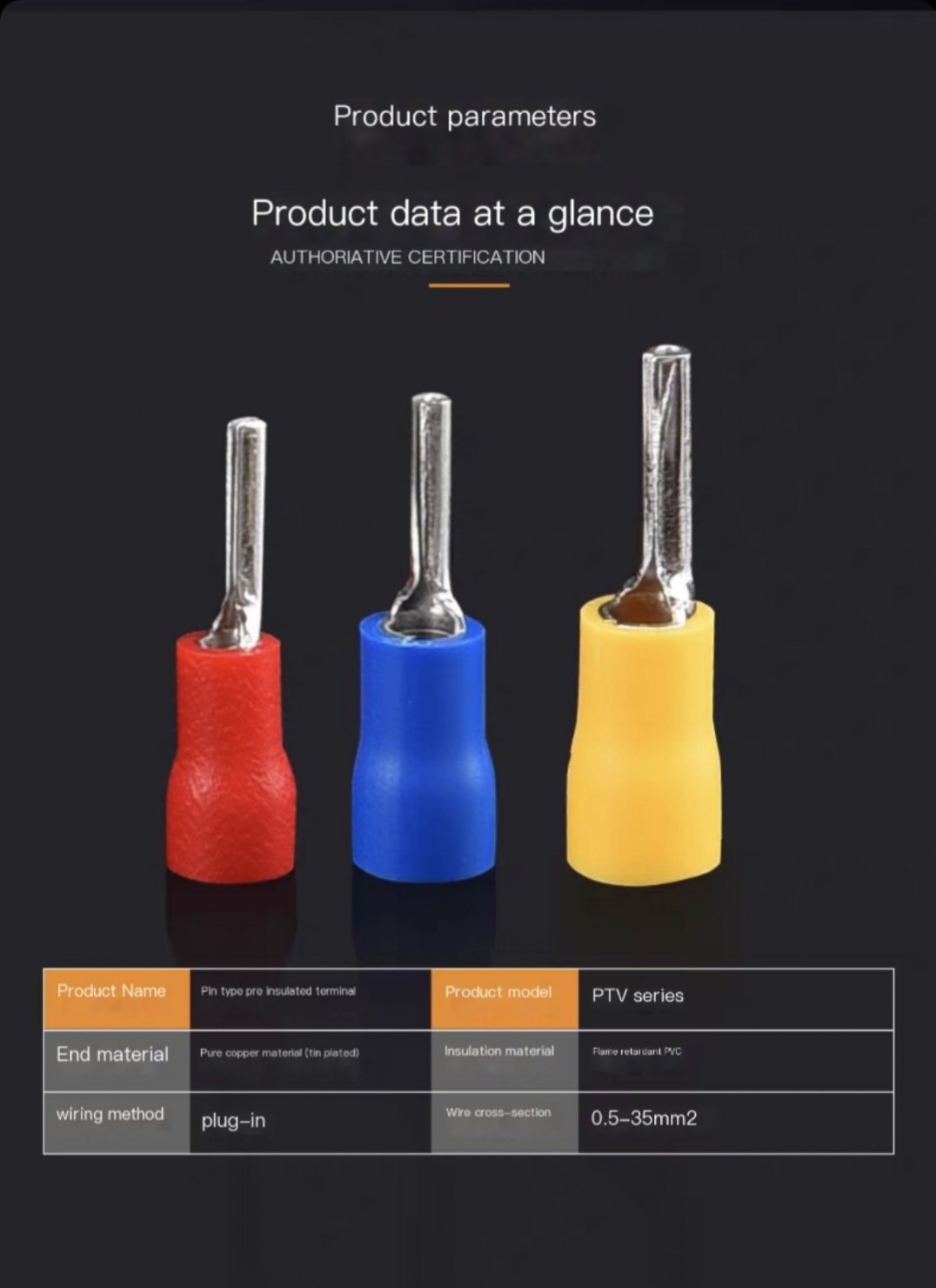

| Product Series | PTV Series Insulated Pin Terminal |
| Material | High Purity Red Copper Tin-plated + Flame Retardant Nylon Sleeve |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Round Needle Pre-insulated Cold Crimp Terminal |
| Wire Range | 0.5mm² – 10mm² |
| Feature | Round needle shape, full insulation, easy plug-in, firm crimp, anti-aging |
| Application | Electric cabinet, terminal block, PLC, instrumentation, low voltage wiring |
Product Description

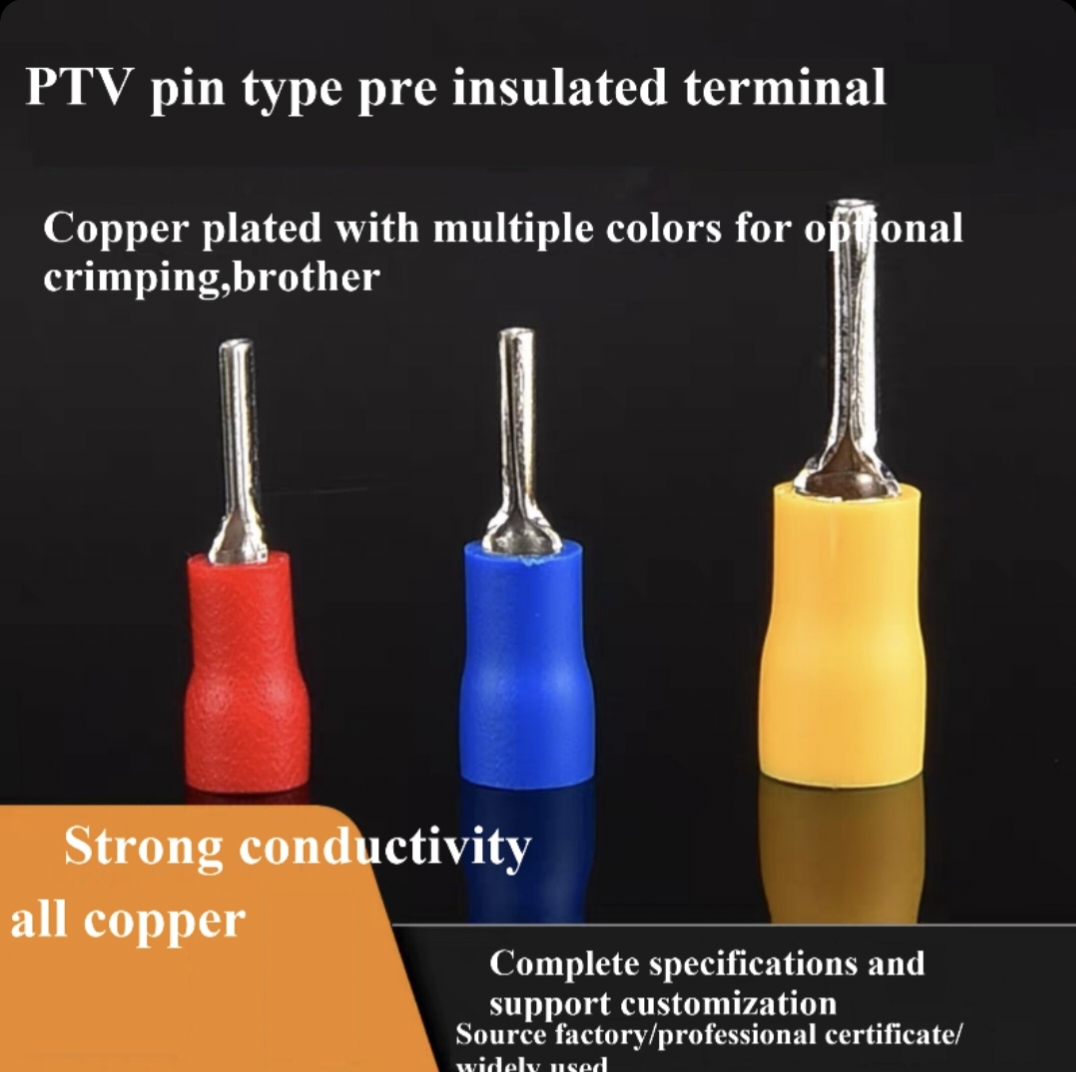

PTV series insulated pin terminal is classic round needle type pre-insulated cold crimp terminal. It is manufactured from high-quality seamless red copper with tin surface treatment, featuring excellent electrical conductivity, low contact resistance and strong anti-oxidation ability.
Matched with flame retardant nylon insulating shell, it provides comprehensive insulation protection, effectively prevent electric leakage and short circuit accidents. Standard round needle design fits most terminal blocks, sockets and electrical components perfectly, easy for quick insertion and wiring arrangement. Stable crimping performance, vibration resistant and long service life, fully compliant with international export quality standards.
Product Features

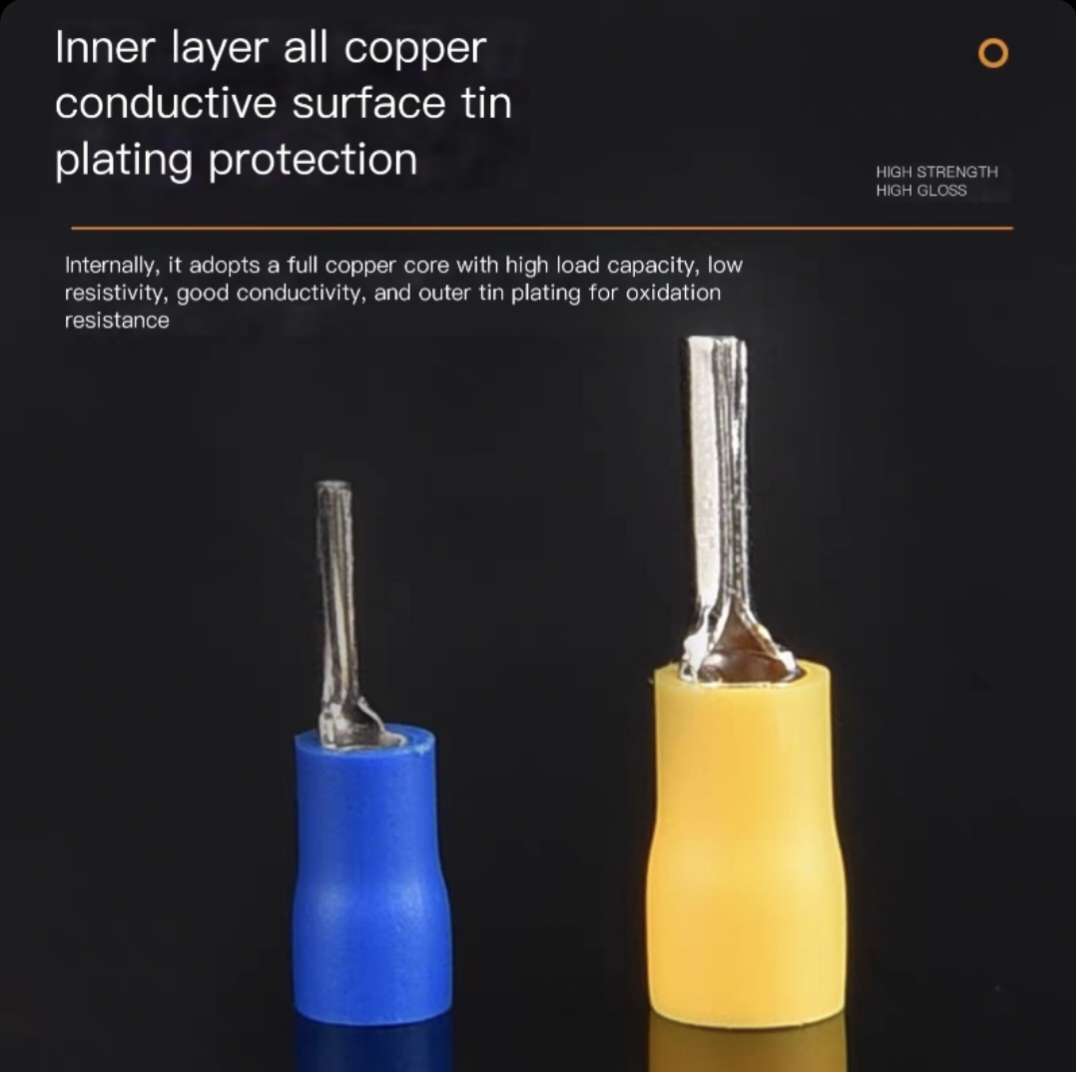

Premium Red Copper Material
Tin plated finish, high conductivity, stable current transmission, corrosion resistant.
Full Pre-insulated Protection
Flame retardant nylon insulation, high temperature resistant, safe to use.
Standard Round Needle Design
Universal size, easy insertion, widely compatible with various electrical fittings.
Seamless One-piece Stamping
Smooth surface without burrs, protect wire strands during crimping.
Color Coded Classification
Red, blue, yellow for different wire gauges, convenient selection.
Strong Tensile Resistance
Not easy to loose or fall off after crimping, suitable for fixed wiring.
Complete Global Certifications
CE, RoHS, TUV, UL, REACH approved for worldwide sales and projects.
Application Scope
Electrical control cabinet internal wiring
PLC, relay and terminal block connection
Industrial automation equipment circuit assembly
Household appliances and electronic equipment wiring
Power distribution box low voltage wiring
Mechanical equipment internal line connection
Installation Diagram & Step Instruction
Step-by-Step Installation Diagram
Standard crimping steps for PTV insulated pin terminal
Strip proper length of wire insulation to expose copper core.
Insert the wire completely into the insulated terminal barrel.

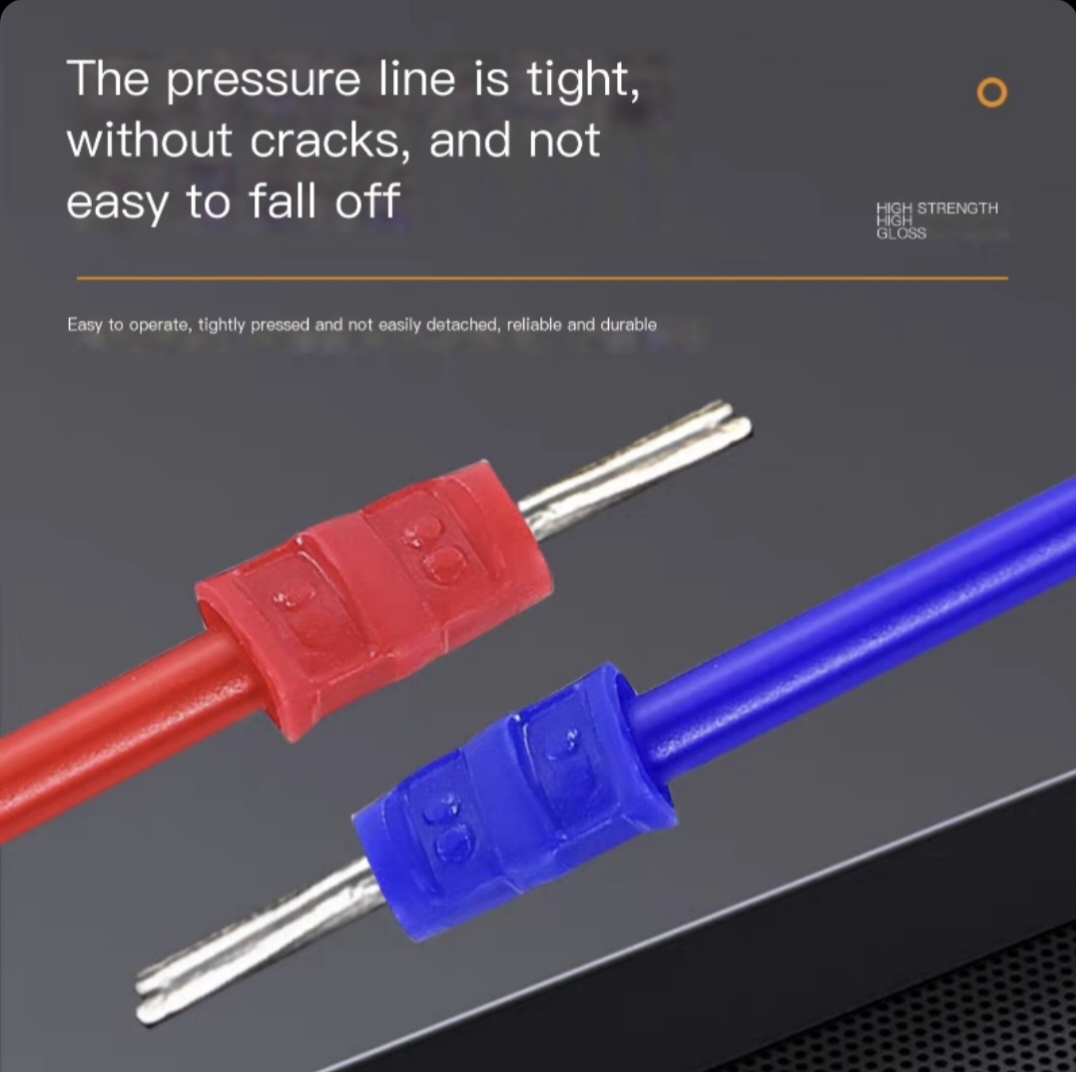

Use professional cold crimp pliers to crimp tightly.
Insert the needle end into terminal block to finish connection.
Precautions
Select matching PTV model according to wire cross section.
Avoid excessive crimping to prevent terminal deformation and damage.
Make sure copper wire is fully inserted without exposure.
Prohibit use beyond rated voltage and working temperature.
