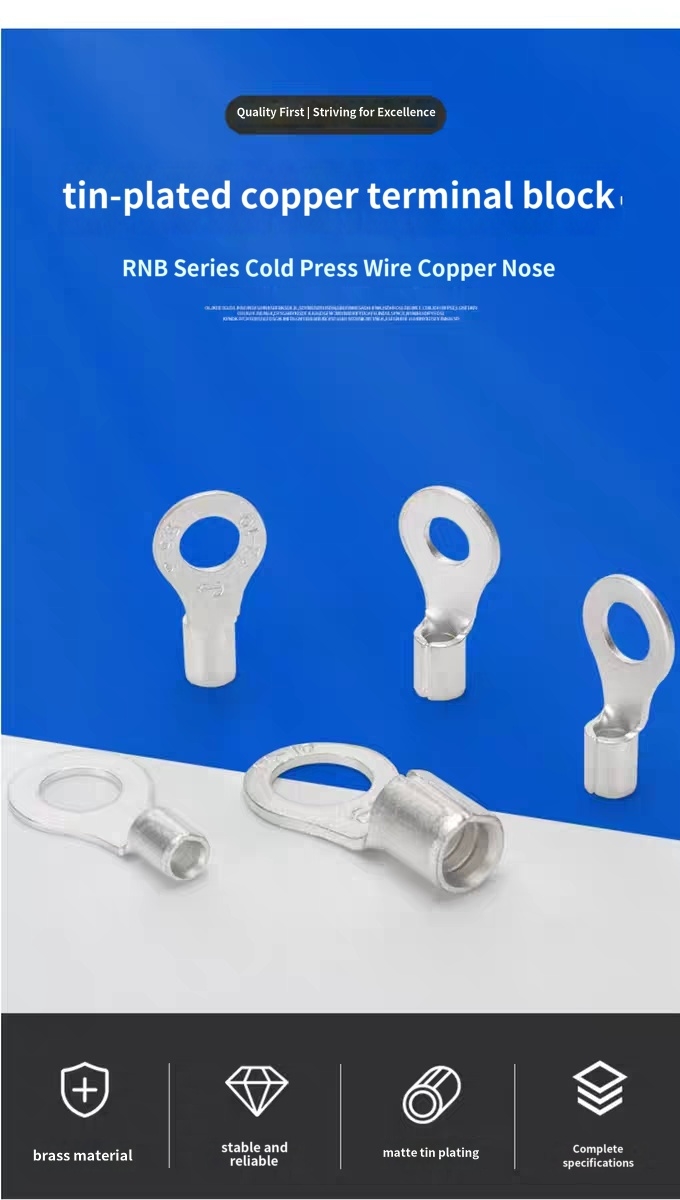

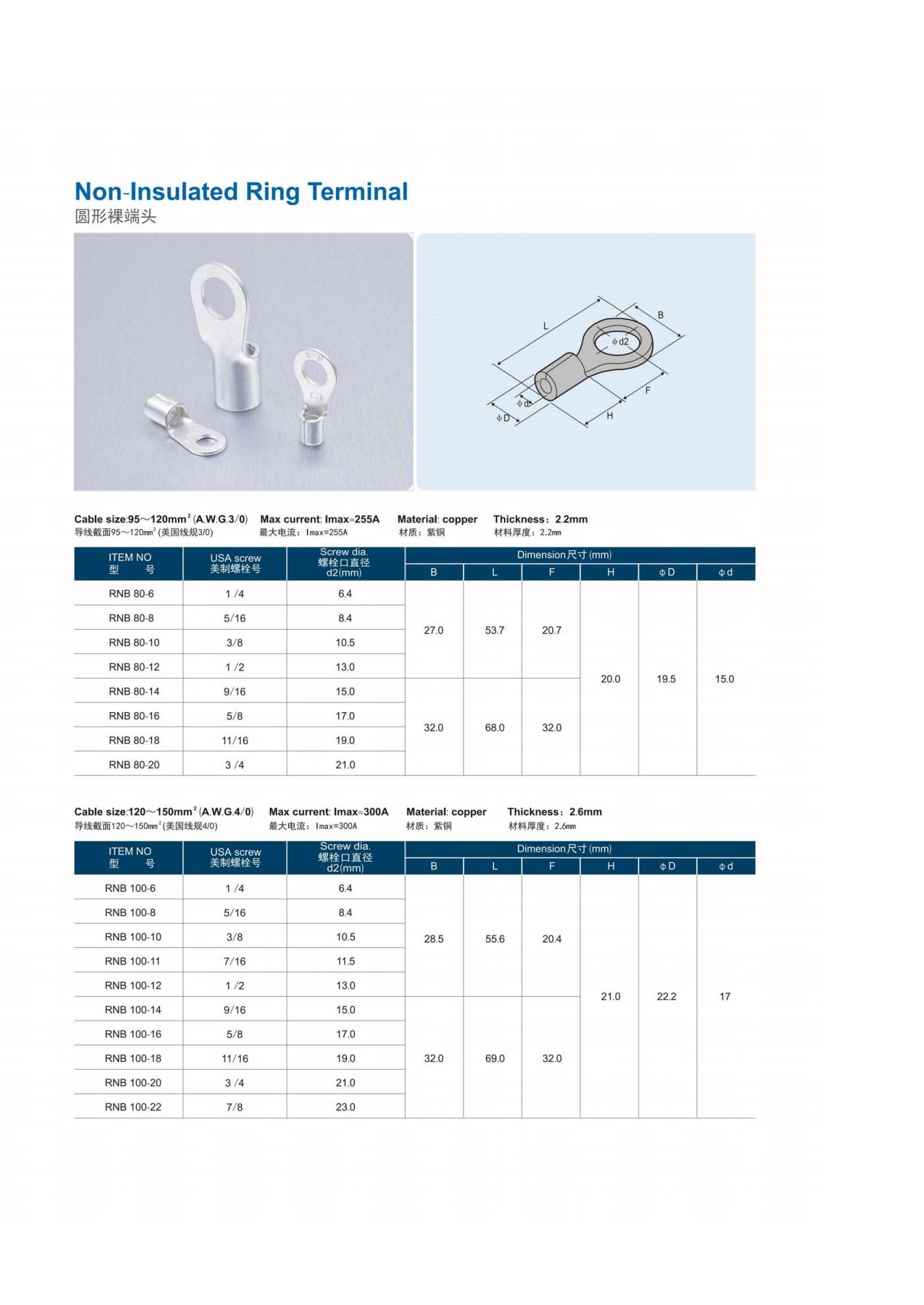

RNB Series Non-Insulated Ring Terminal Pure Red Copper Bare Cold Crimp Lug

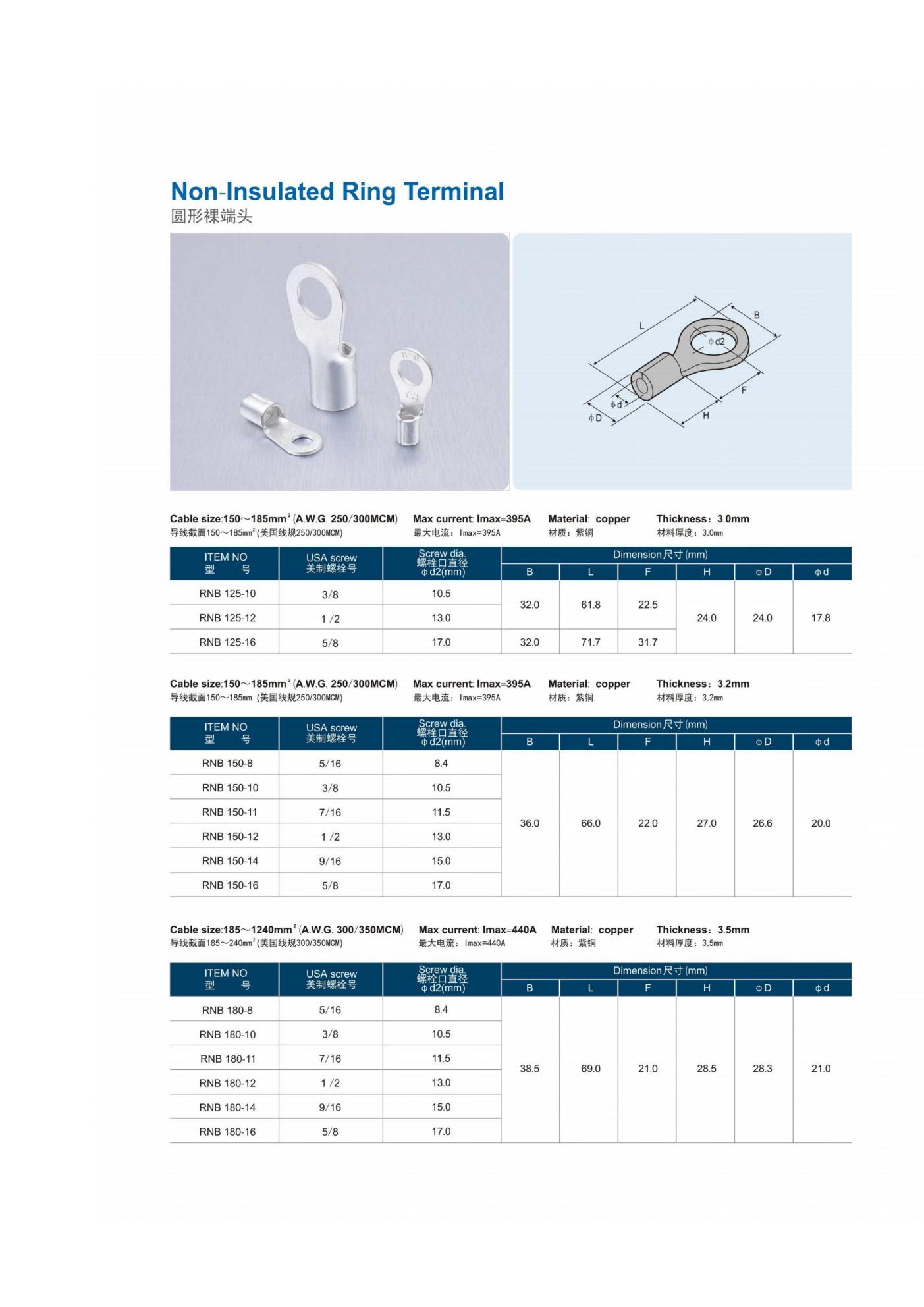

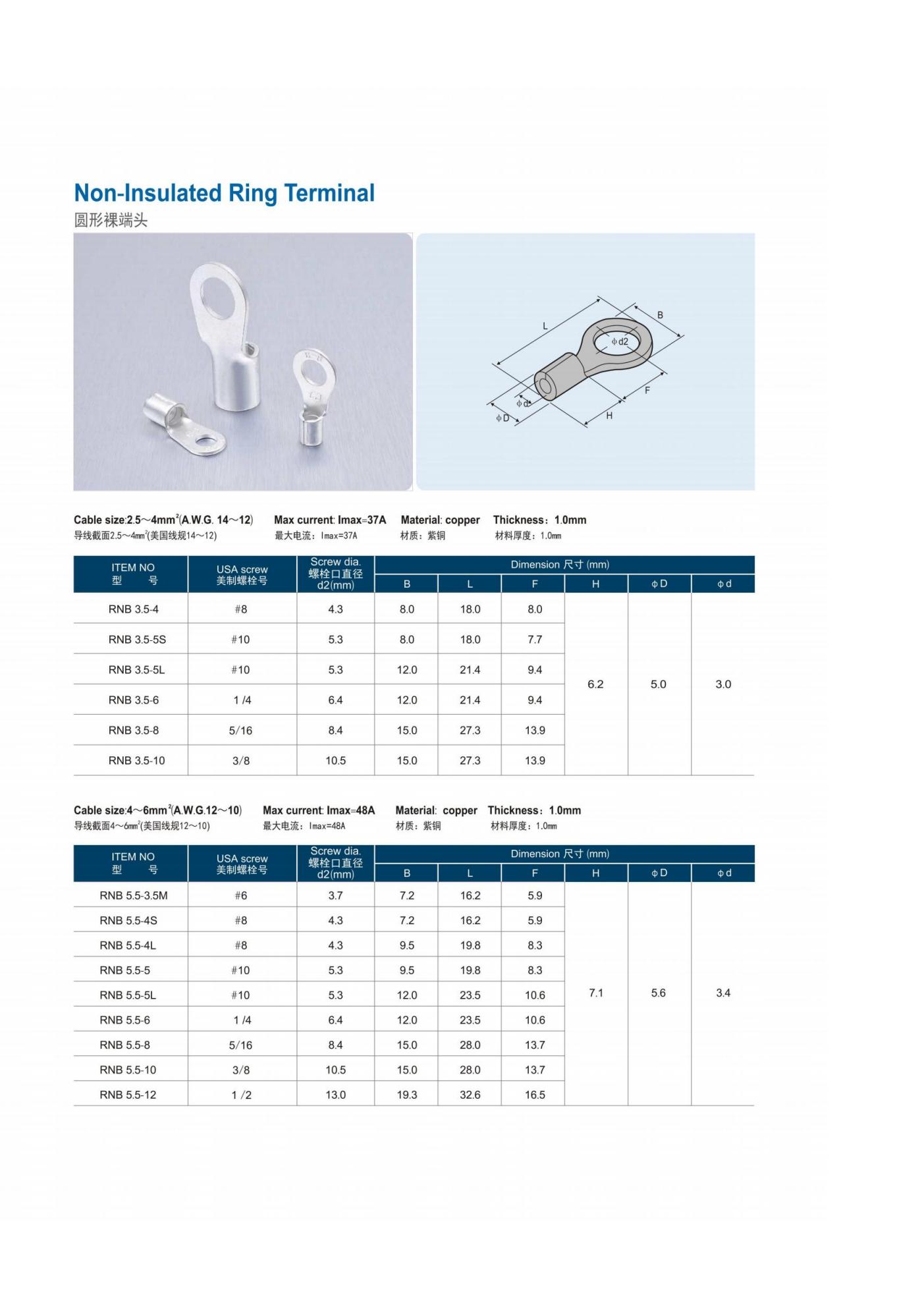

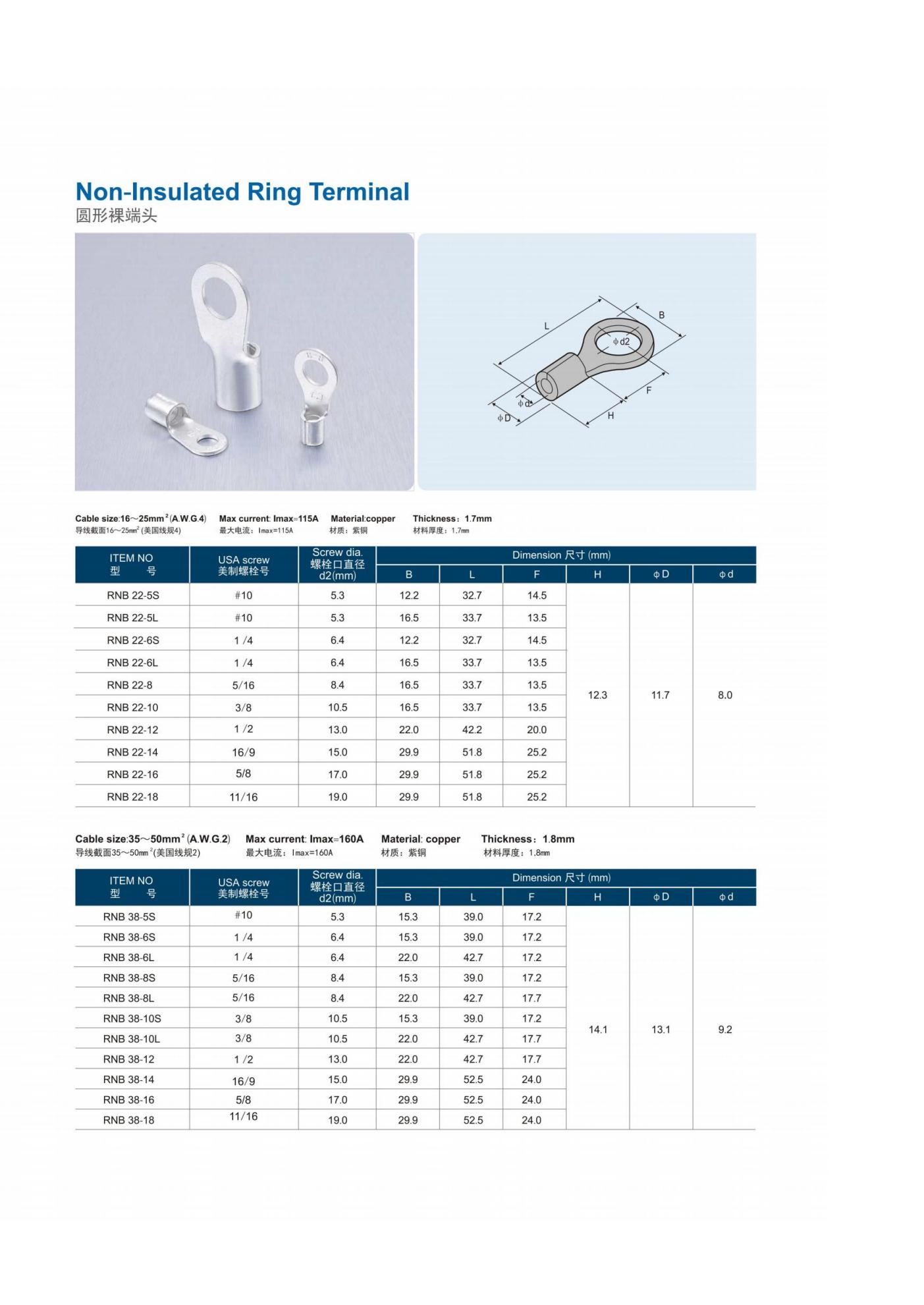

| Item | Specification |
|---|---|
| Product Series | RNB Series Non-Insulated Ring Terminal |
| Material | High purity red copper, tin plated |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 125°C |
| Type | Bare / Non-insulated Round Ring Cold Crimp Terminal |

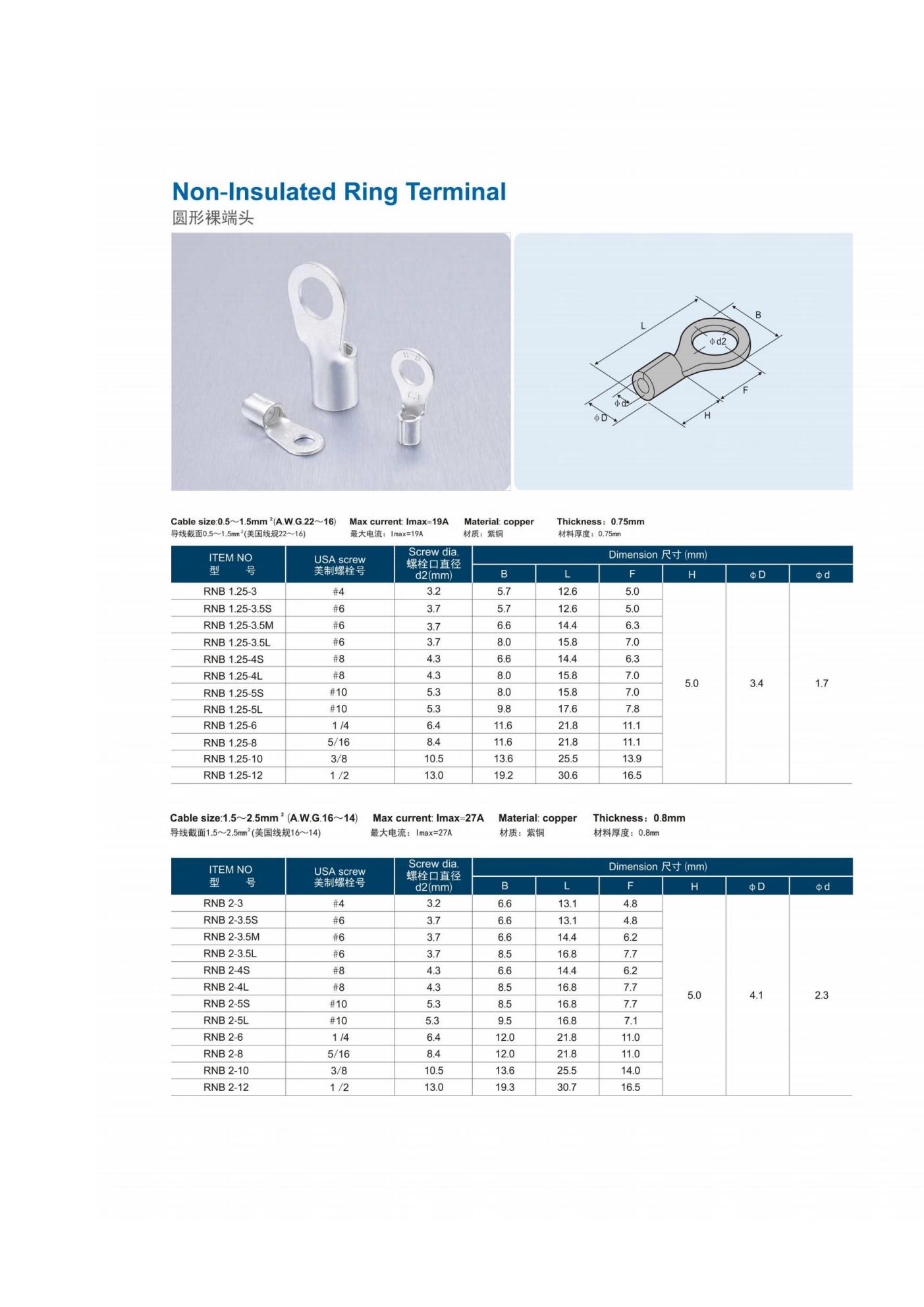

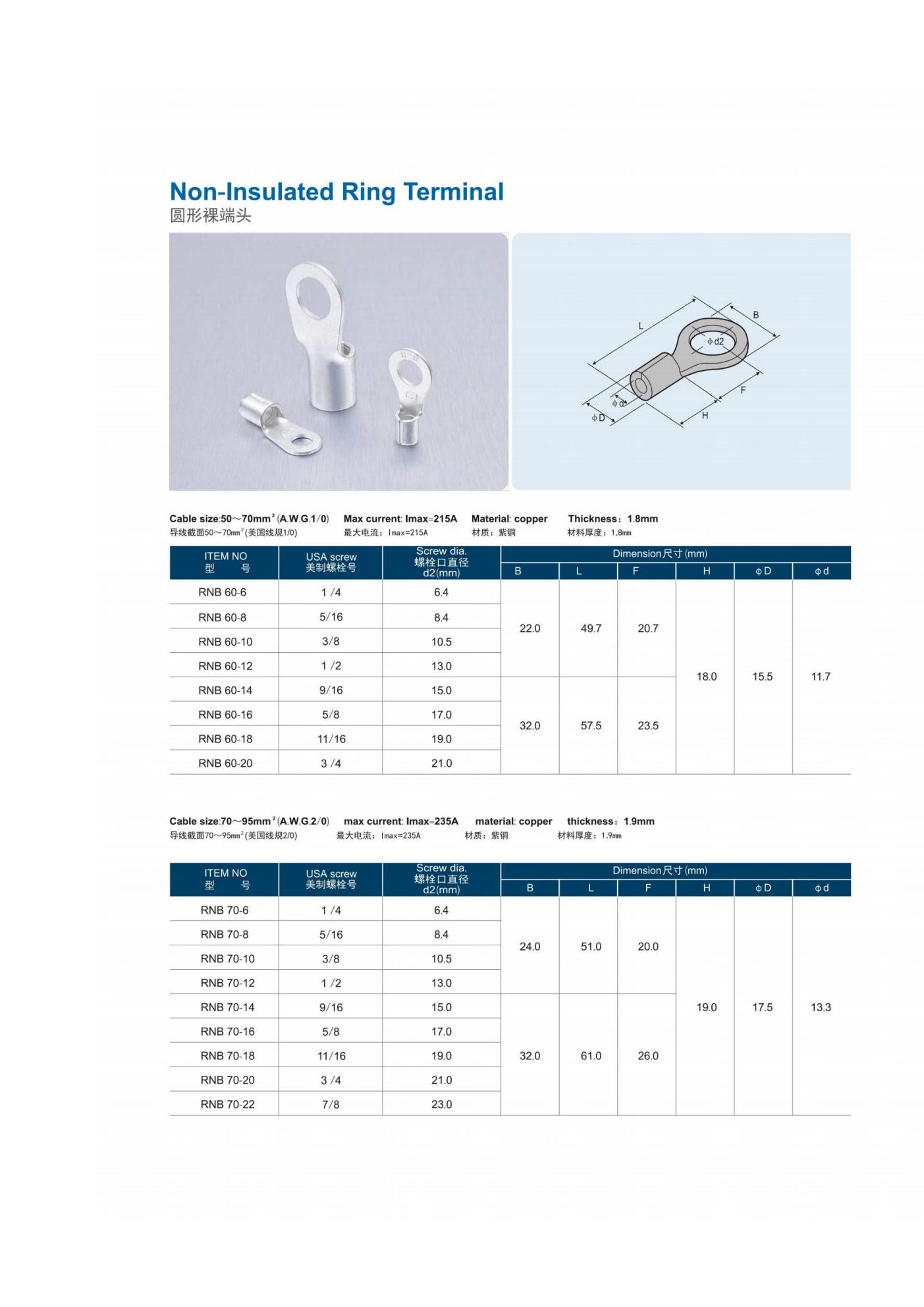

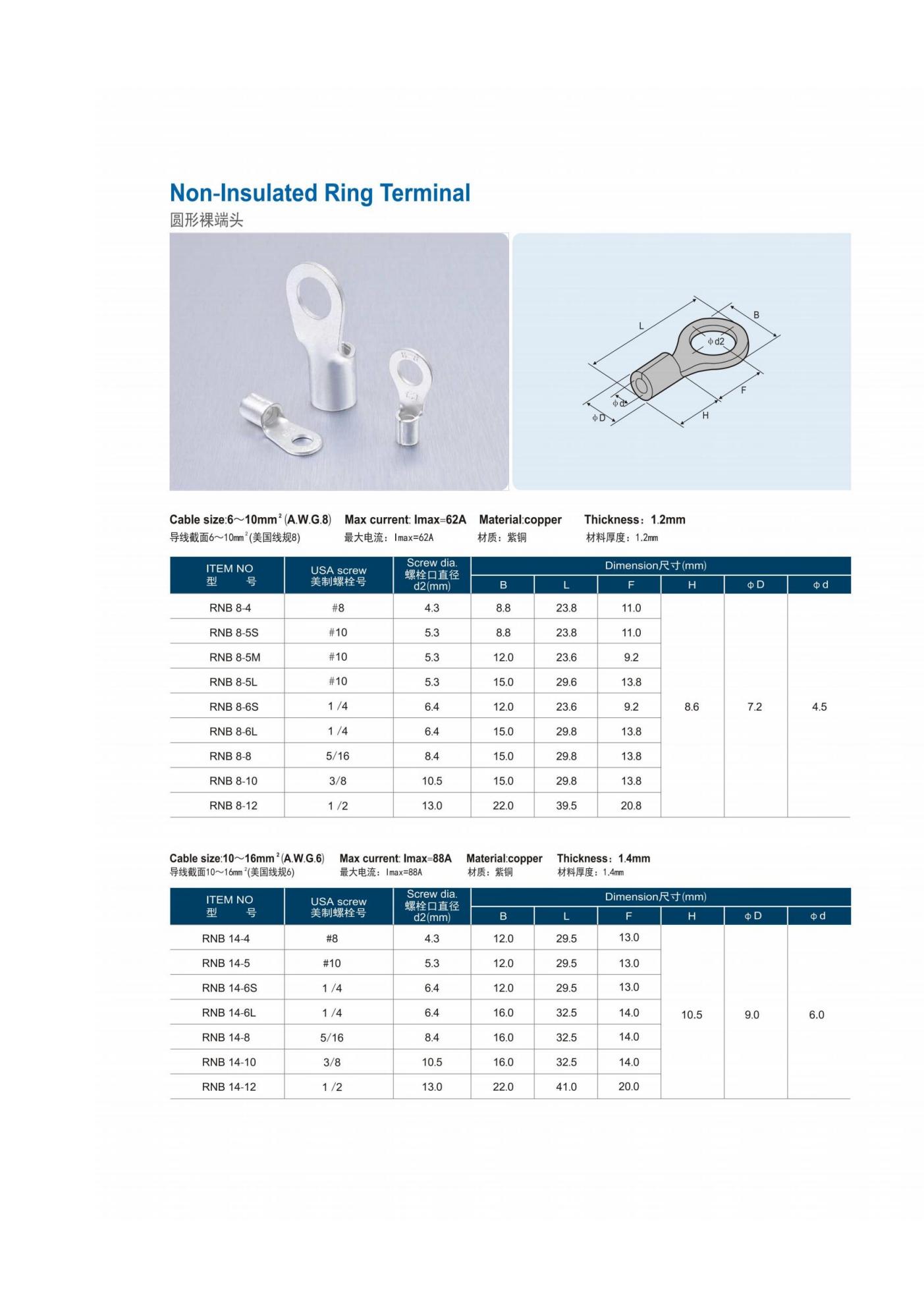

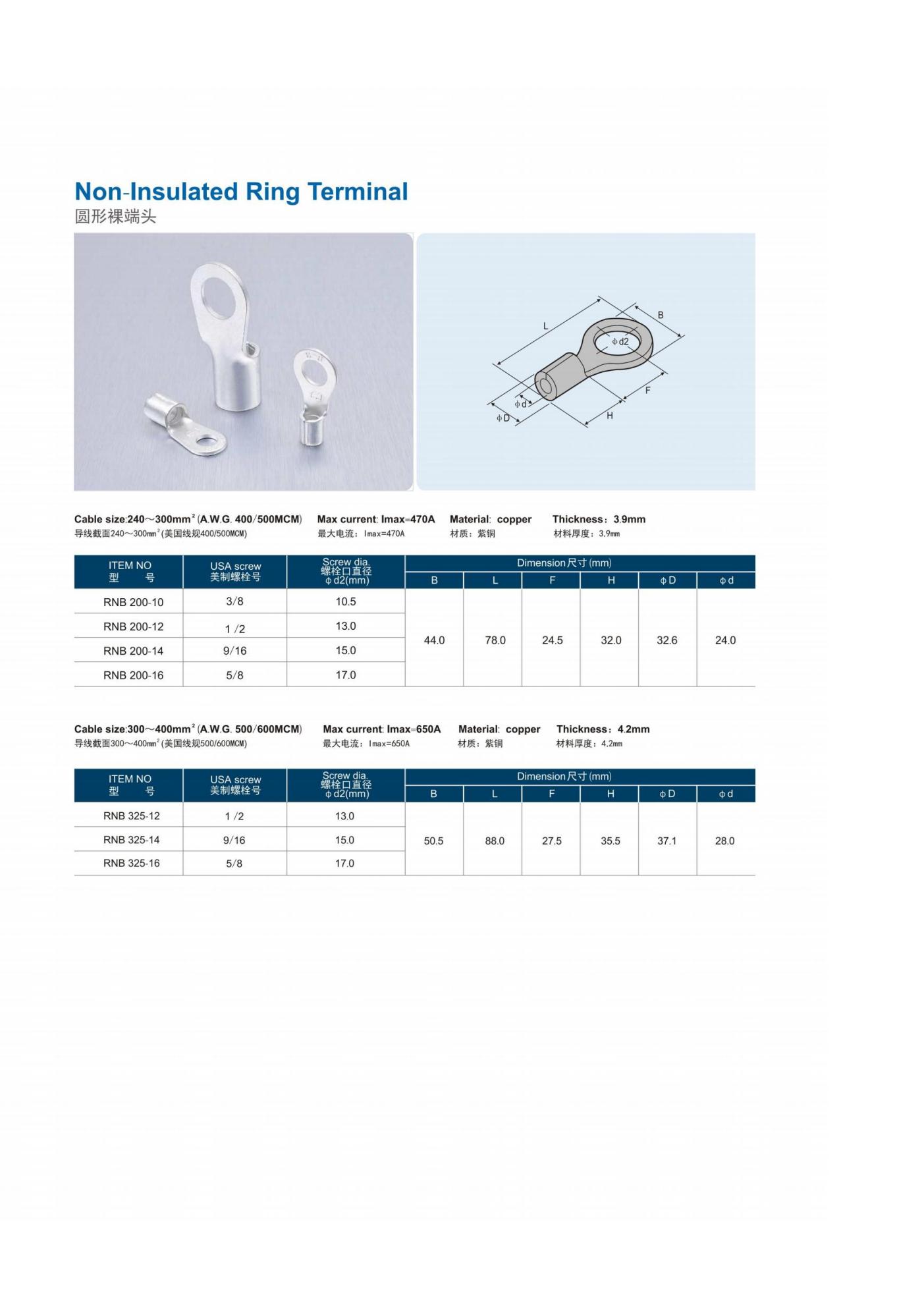

| Wire Range | 0.5mm² – 25mm² |
| Feature | No insulation, seamless stamping, high current bearing, easy crimping |
| Application | Electrical cabinet, power distribution, grounding, industrial equipment, automotive wiring |
Product Description

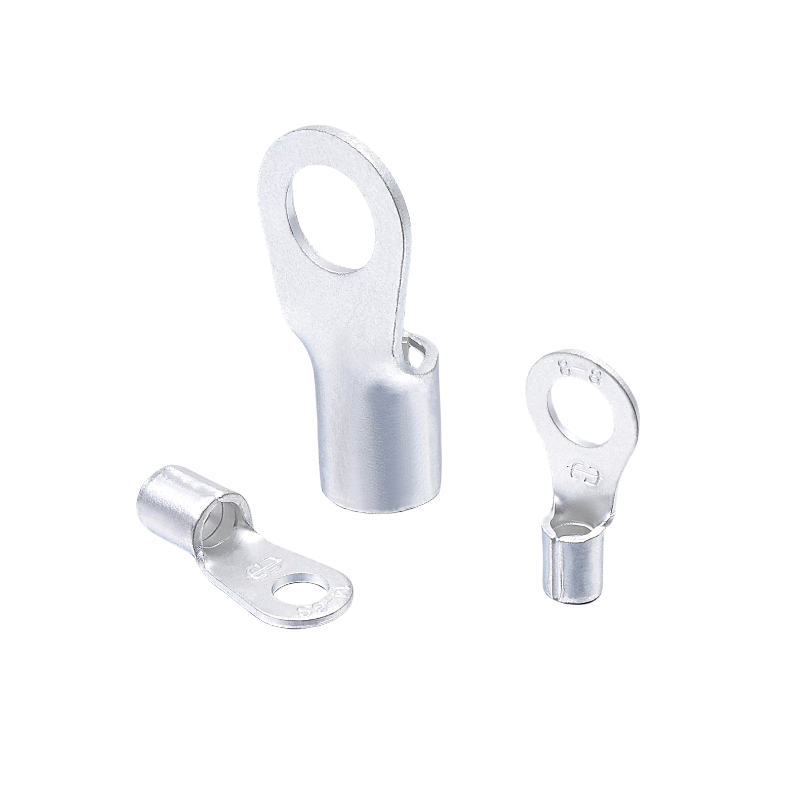

RNB series non-insulated ring terminal is a bare round cold crimp lug made of high-purity red copper with tin-plated surface. Adopts one-piece seamless stamping process, smooth surface without burrs, high structural strength and excellent electrical conductivity.
Without insulating sleeve, it is suitable for installation in closed electrical boxes, distribution cabinets and metal grounding positions. The standard round ring hole fits bolt fastening perfectly, firm crimping, low contact resistance, anti-oxidation and high temperature resistant. Full international certifications support global wholesale, engineering matching and industrial power wiring.
Product Features

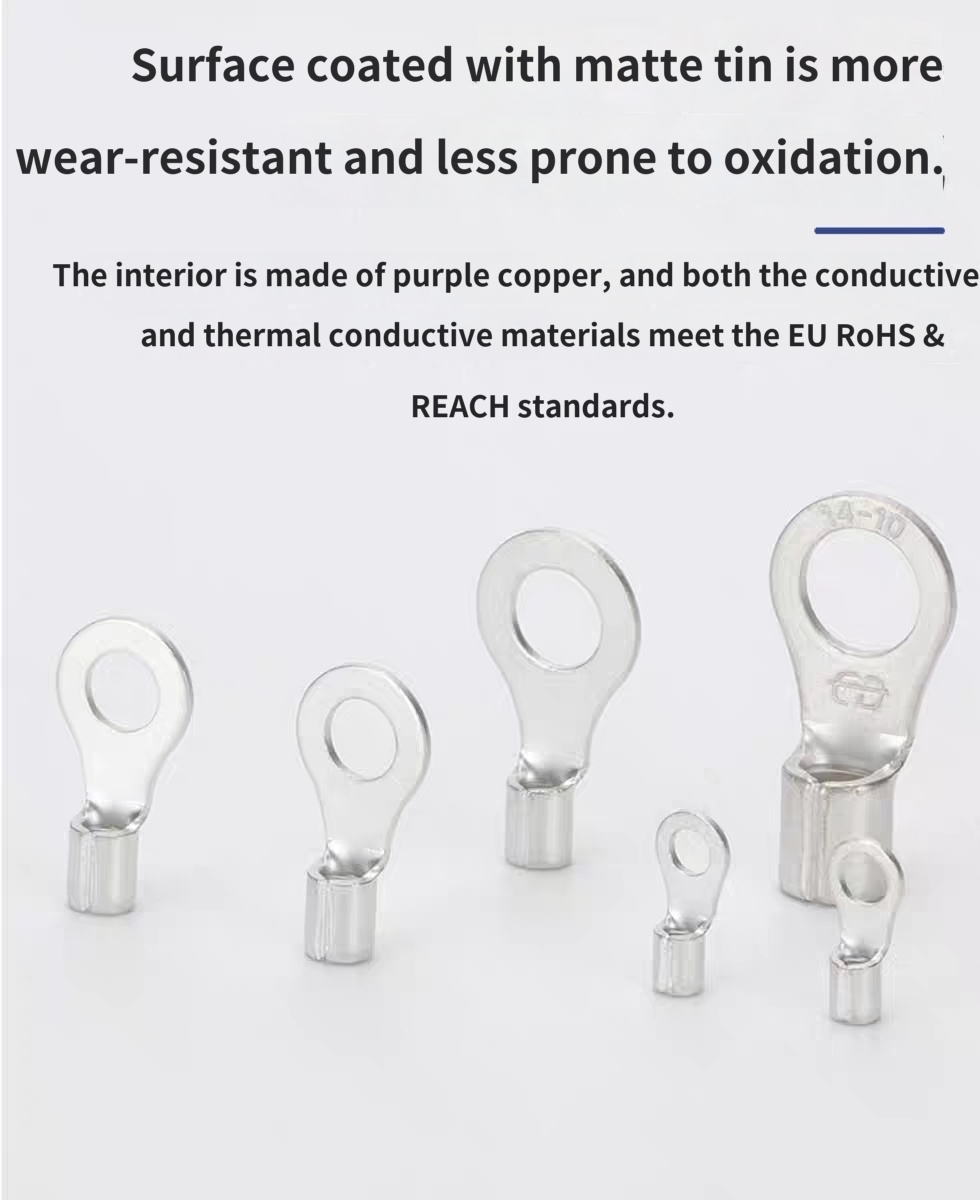

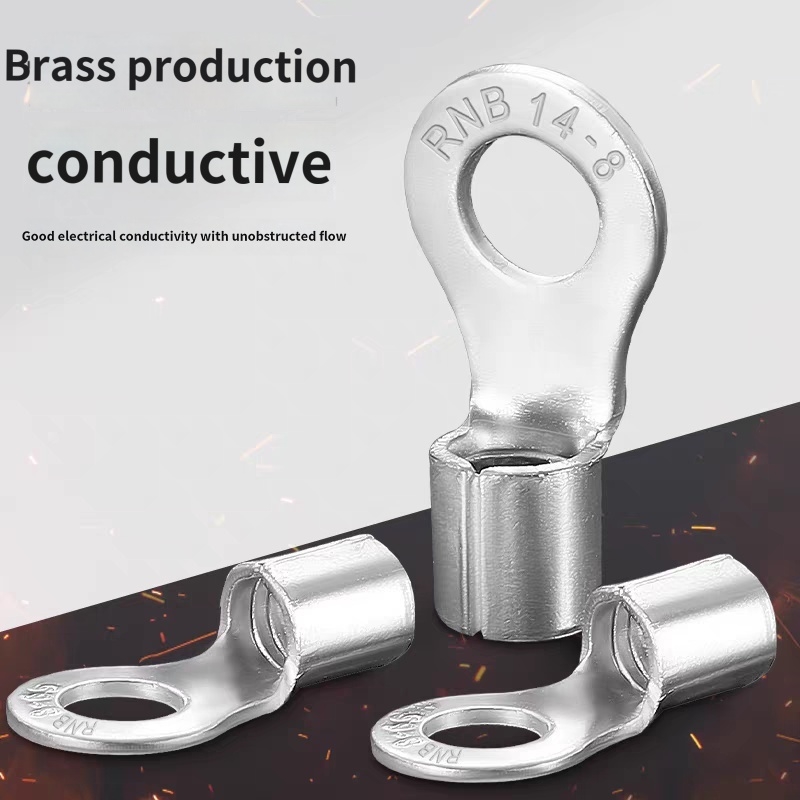

Pure Red Copper Tin Plated
High conductivity, low resistance, anti-oxidation and corrosion resistance for long-term stable current transmission.
Non-Insulated Bare Design
Compact structure, suitable for installation in confined closed electrical space.

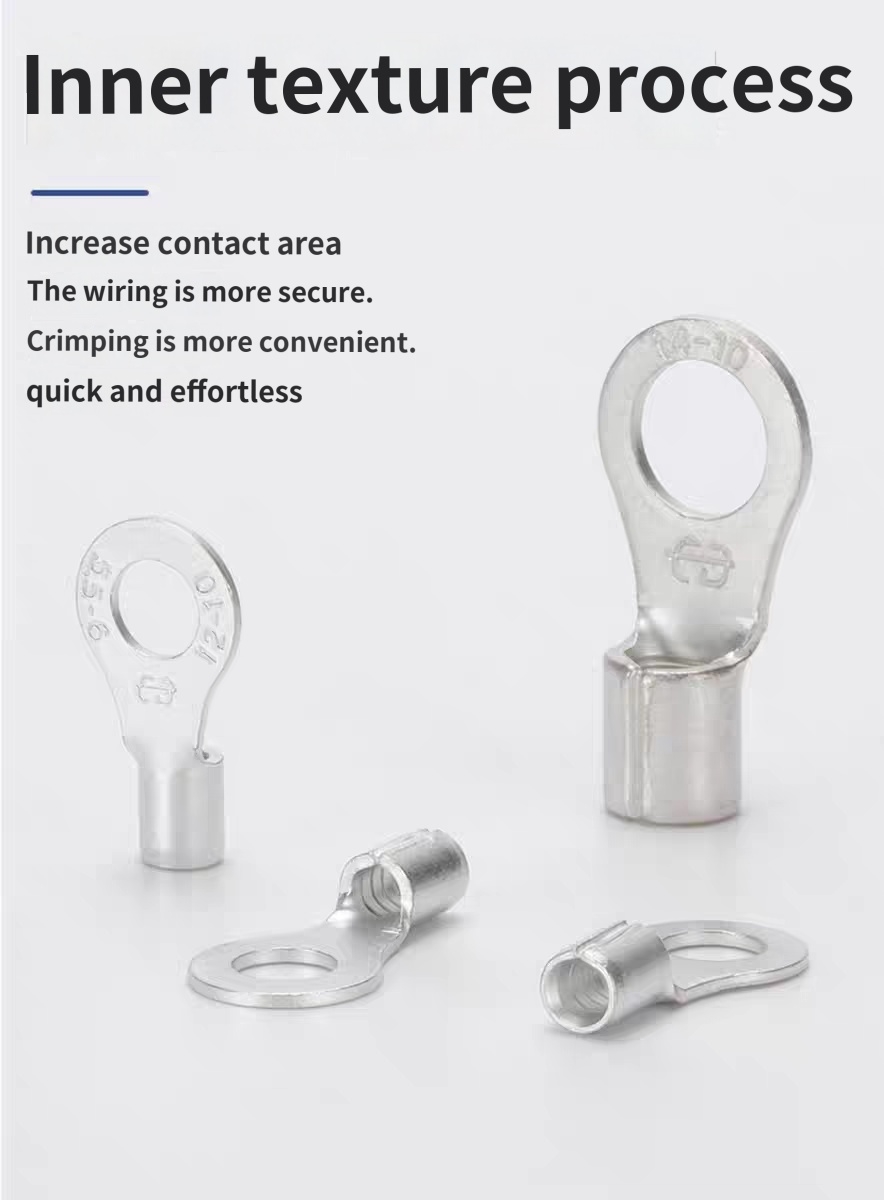

Seamless Integral Stamping
Smooth edge without burrs, not easy to hurt wire strands, high tensile strength.
Standard Ring Hole Dimension
Match standard bolt specifications, easy mounting and firm locking.
High Temperature & Vibration Resistant
Adapt to harsh industrial environment, not easy to loosen after long-term use.
Full Certification
CE, RoHS, TUV, UL, REACH certified, compliant with global safety and environmental standards.
Application Scope

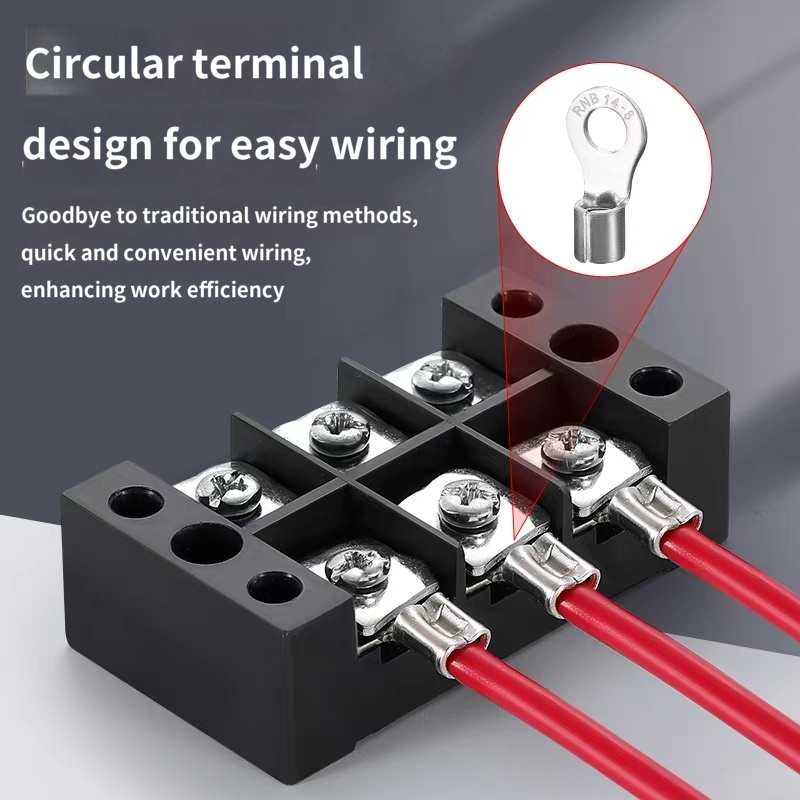

Electrical control cabinet and distribution box power wiring
Mechanical equipment main circuit connection and grounding
Automotive, truck and engineering vehicle wire harness connection
Power cabinet, inverter and new energy equipment wiring
Low voltage electrical engineering bolt fixed connection
Metal shell grounding and equipotential connection
Installation Diagram & Step Instruction

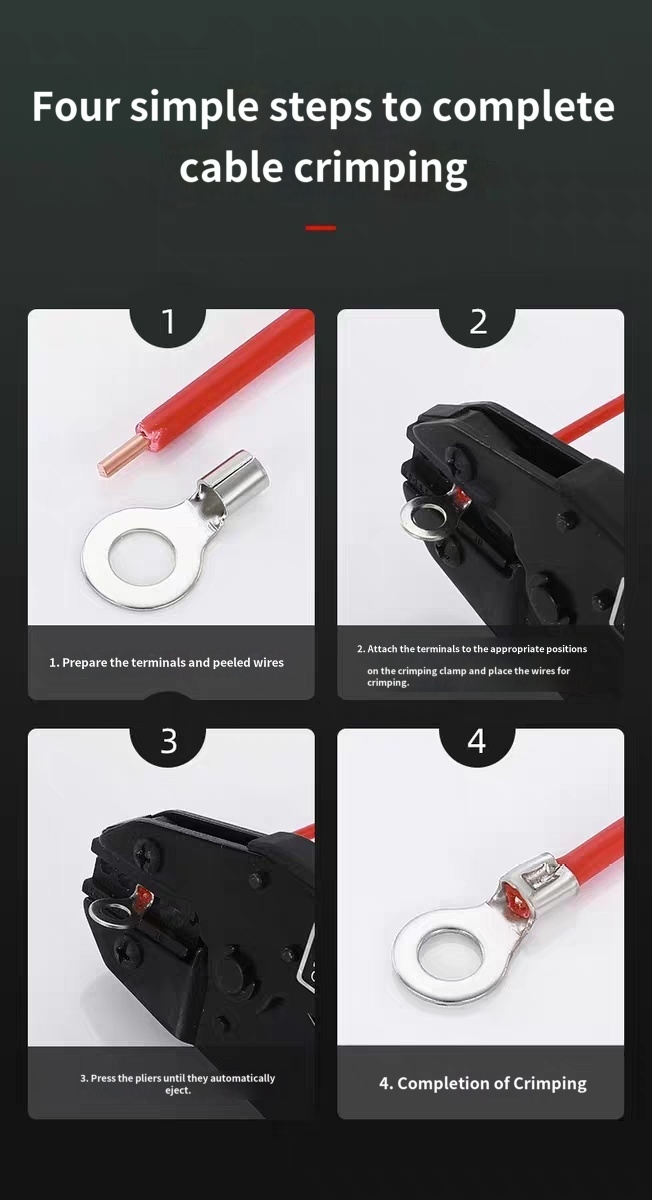

Step-by-Step Installation Diagram
Standard crimping steps for RNB non-insulated ring terminal. Professional operation ensures tight crimping and reliable electrical connection.
Strip appropriate wire insulation to expose complete copper core.

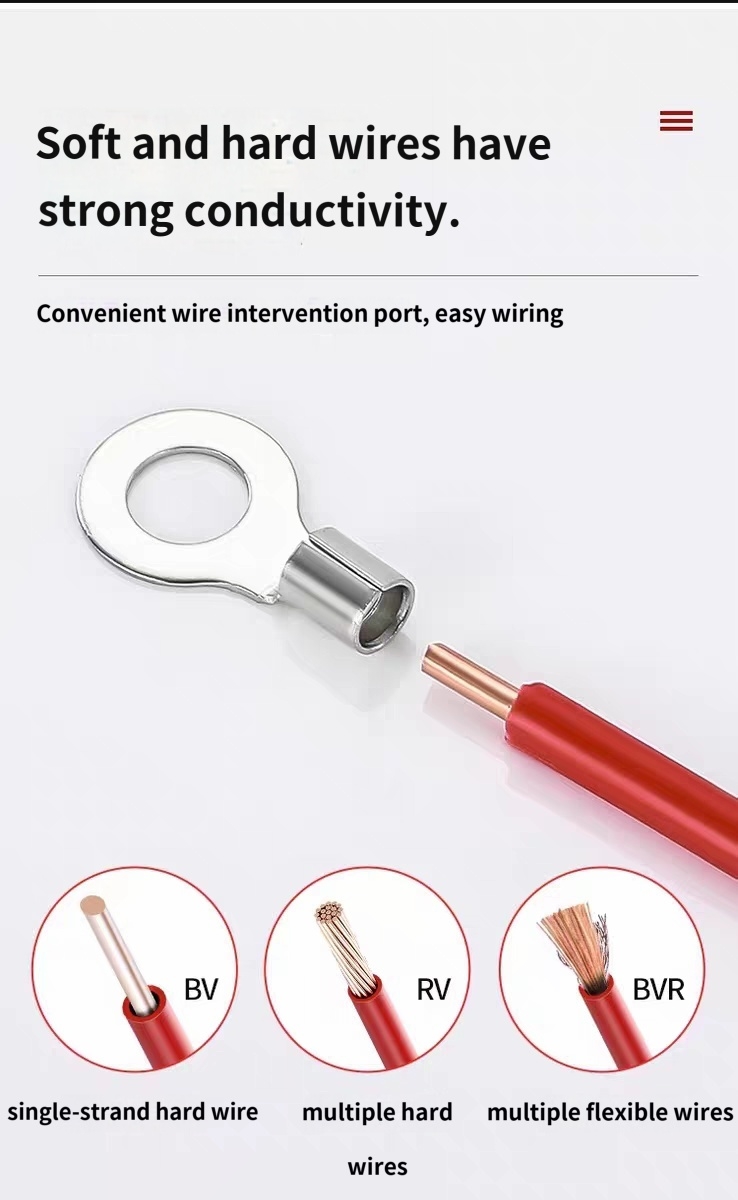

Insert the wire into the bare terminal barrel fully.

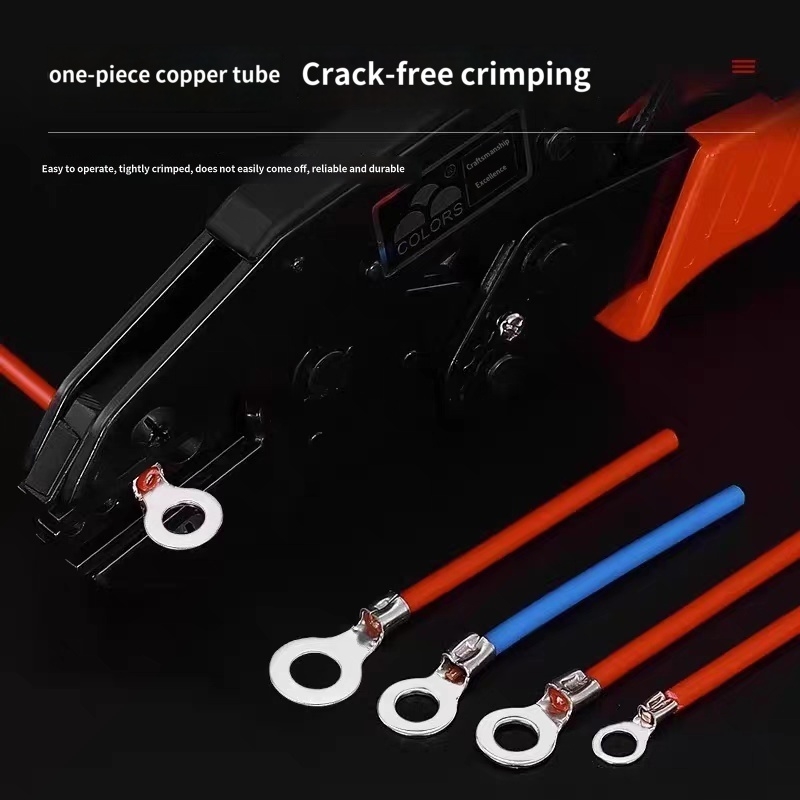

Crimp firmly with dedicated cold crimping pliers.
Fasten the ring terminal on the bolt with screw tightening.
Precautions
Select matched RNB model according to wire gauge and bolt diameter.
Use in enclosed insulated environment to avoid short circuit risk.
Avoid over-crimping to prevent terminal deformation and cracking.
Do not exceed rated current and voltage for load use.
