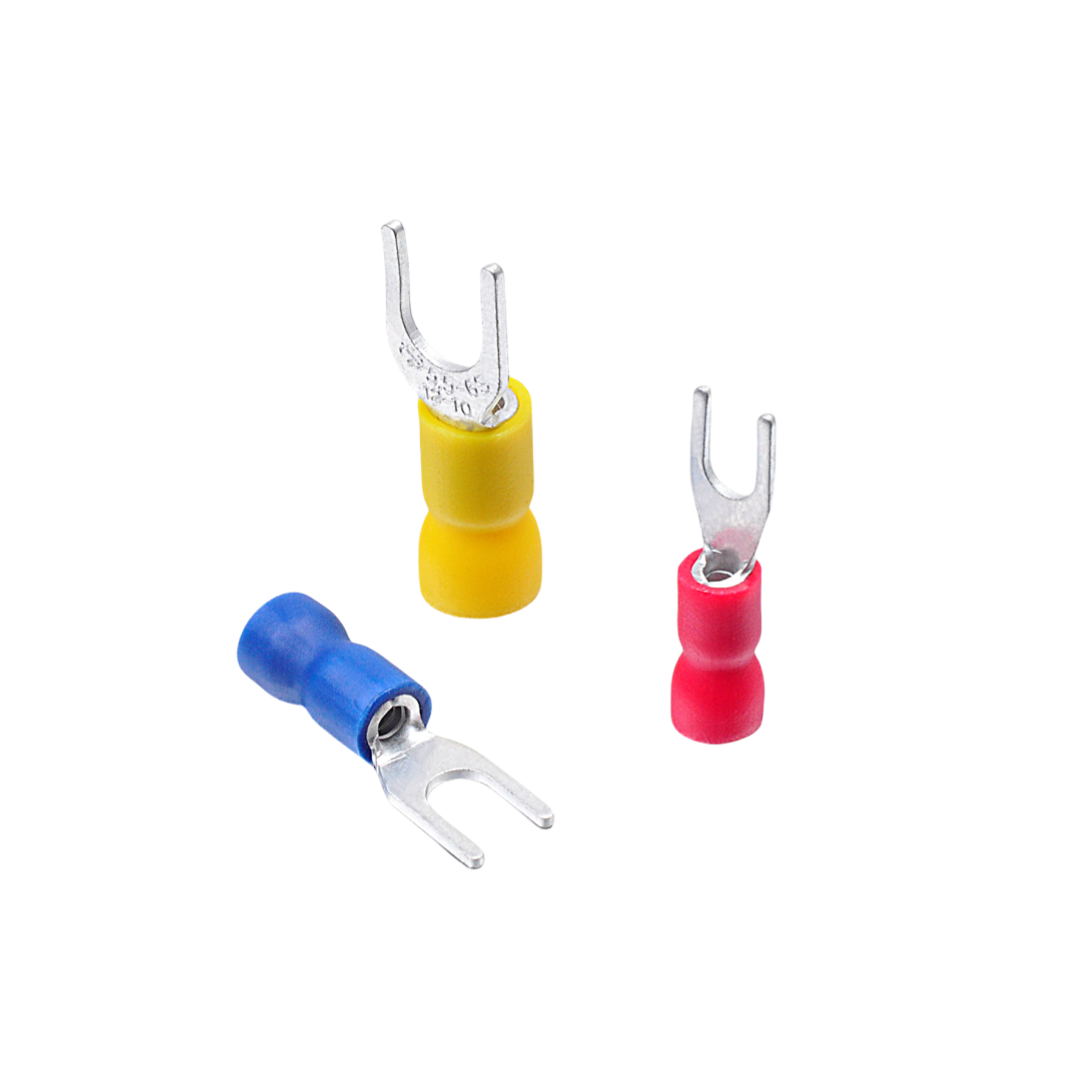

SE Series Easy Entry Insulated Spade Terminal

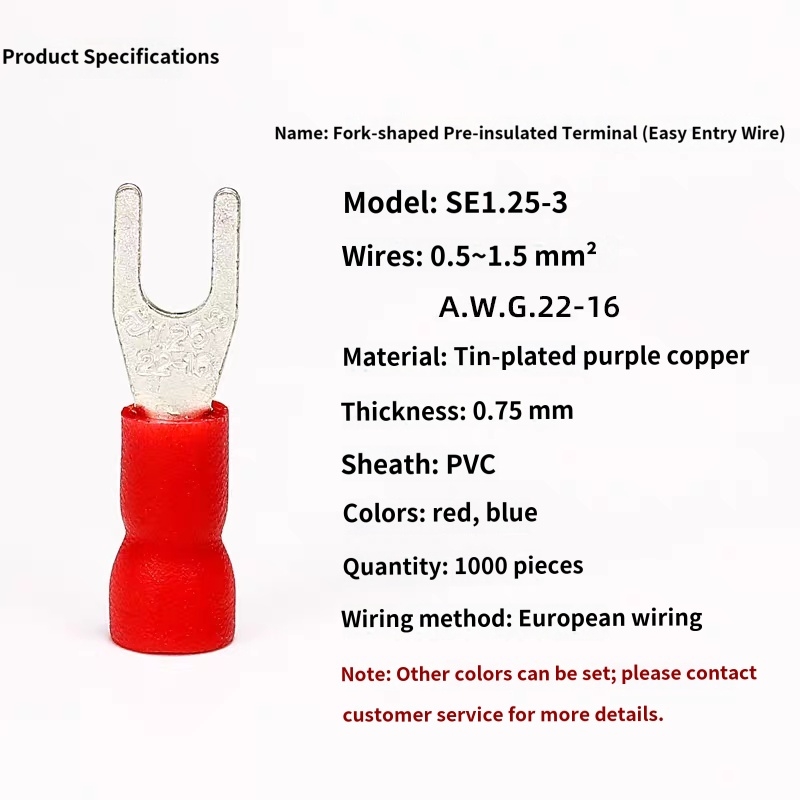

| Item | Specification |
|---|---|
| Series | SE Series Easy Entry Insulated Spade Terminal |
| Material | High purity red copper tin-plated + Flared flame retardant nylon |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 105°C |
| Type | Fork / Spade Pre-insulated Terminal, Easy Entry Type |

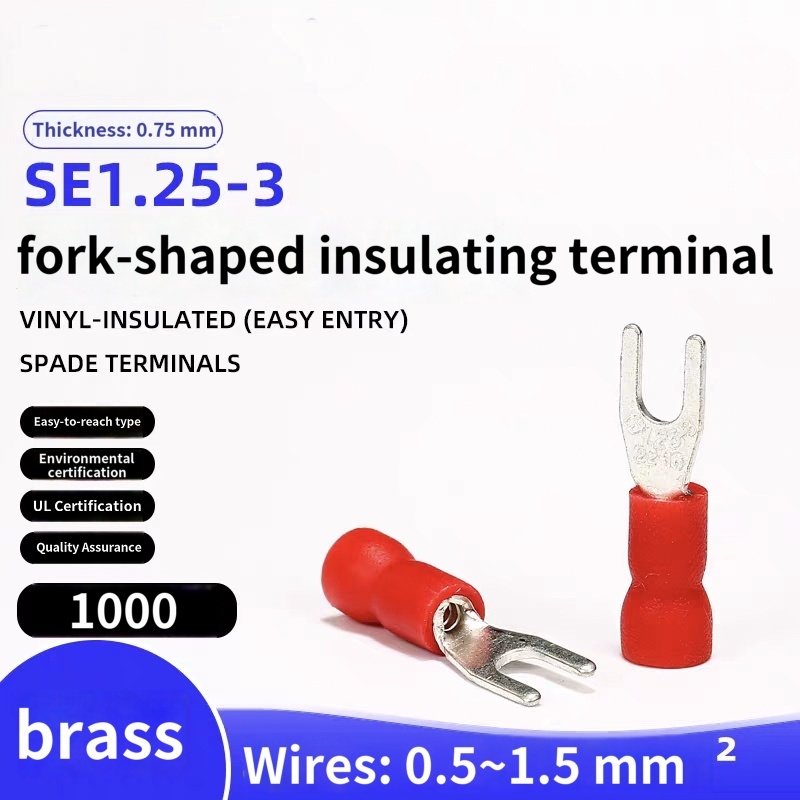

| Wire Range | 0.5mm² – 10mm² |
| Feature | Trumpet flared inlet, easy wire insertion, fork shape for bolt mounting, anti-vibration |
| Application | Electrical cabinet, machinery, automotive, power distribution, wiring harness |
Product Description
SE Series Easy Entry Insulated Spade Terminal is an upgraded fork-type pre-insulated cold crimp terminal with trumpet flared easy entry inlet.
The enlarged flared opening allows stranded wires to be inserted directly without trimming wire strands, greatly improving wiring efficiency and saving working time.
Made of high-purity seamless red copper with tin-plated surface, excellent conductivity and oxidation resistance. Flame retardant nylon insulation provides high temperature resistance, insulation safety and anti-aging performance. Special fork spade design enables quick mounting and removal on screws and bolts, ideal for routine maintenance and dense wiring scenarios. Fully certified to meet global export and industrial wiring standards.
Product Features

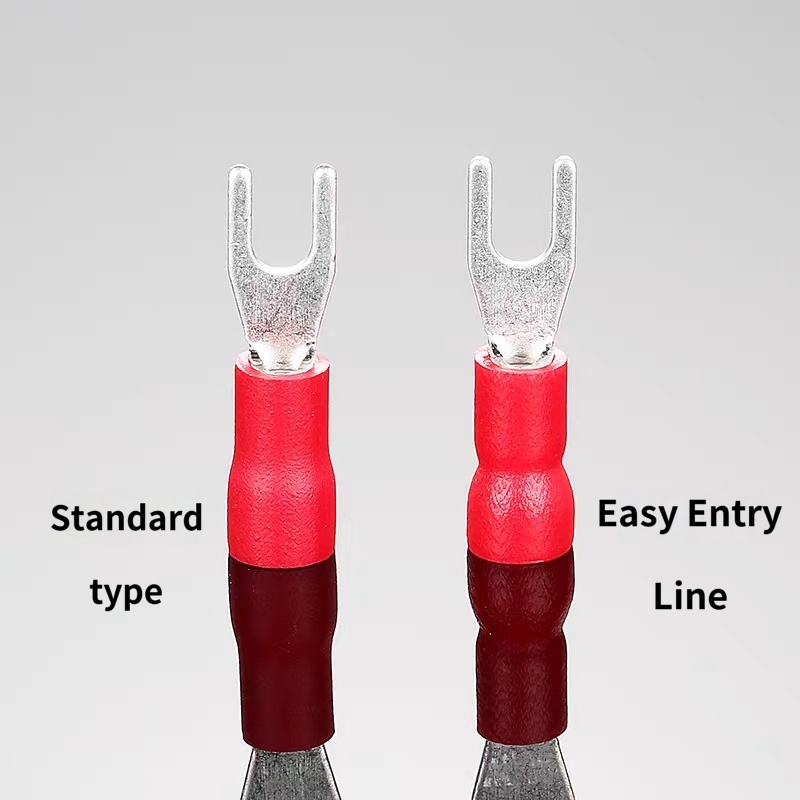

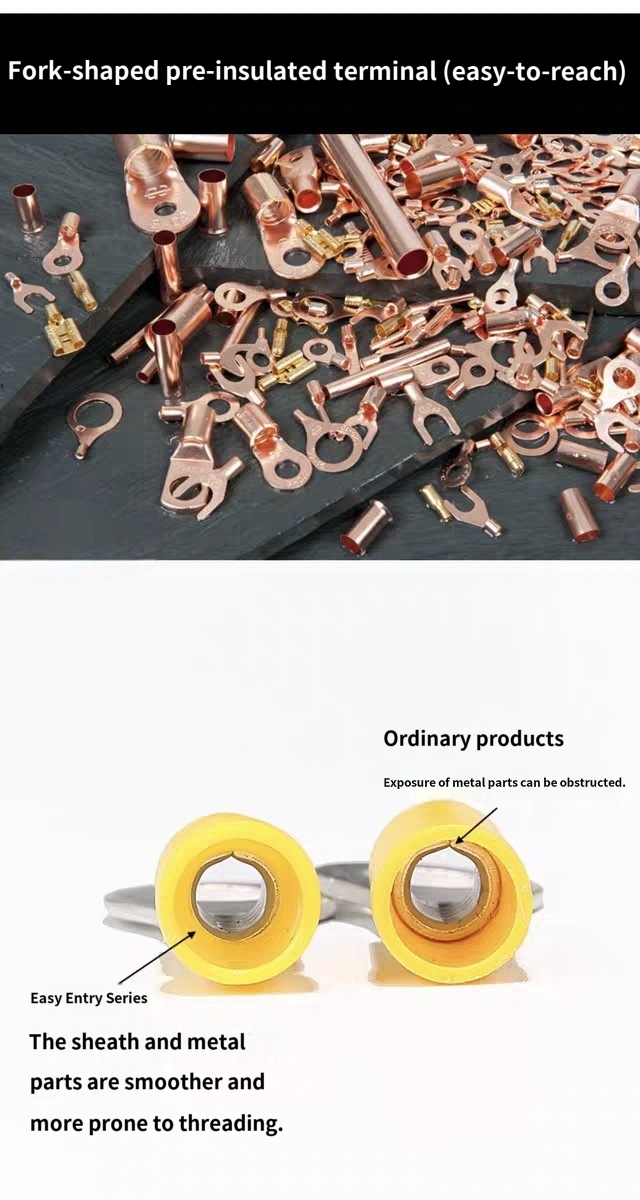

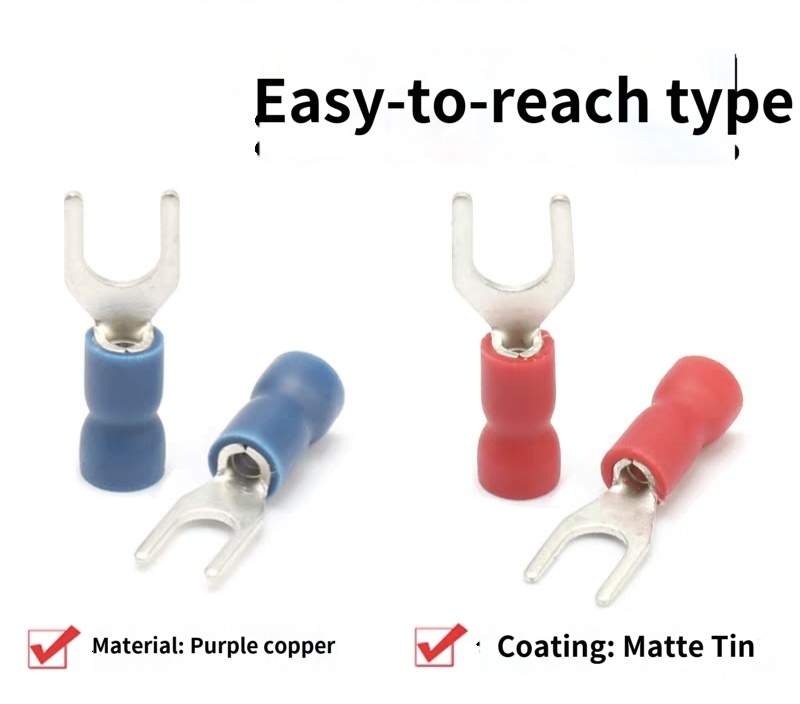

Easy Entry Flared Design
Trumpet-shaped large inlet, wire inserts smoothly without arranging scattered strands.

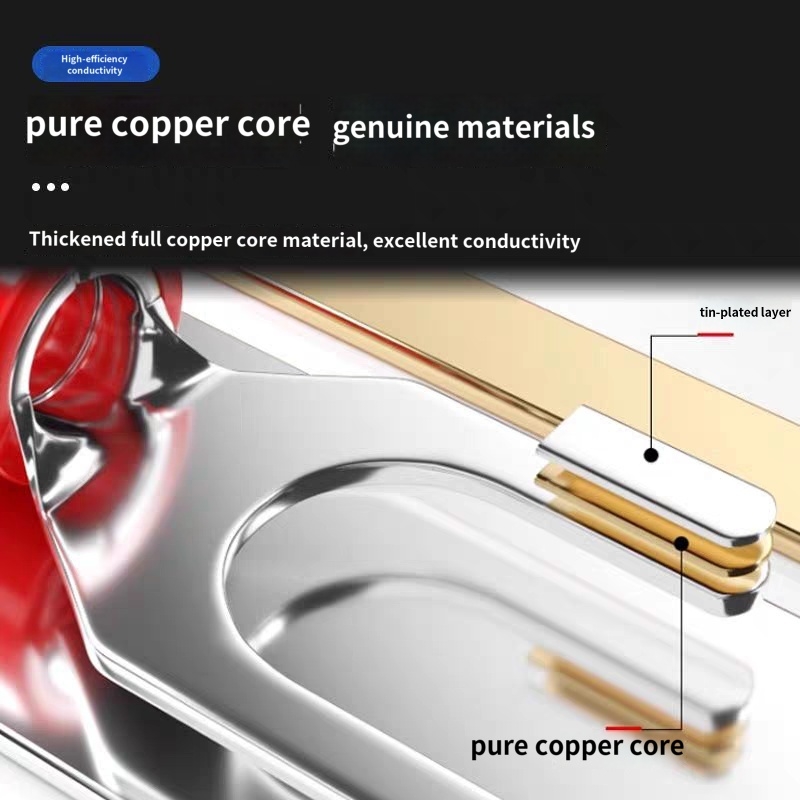

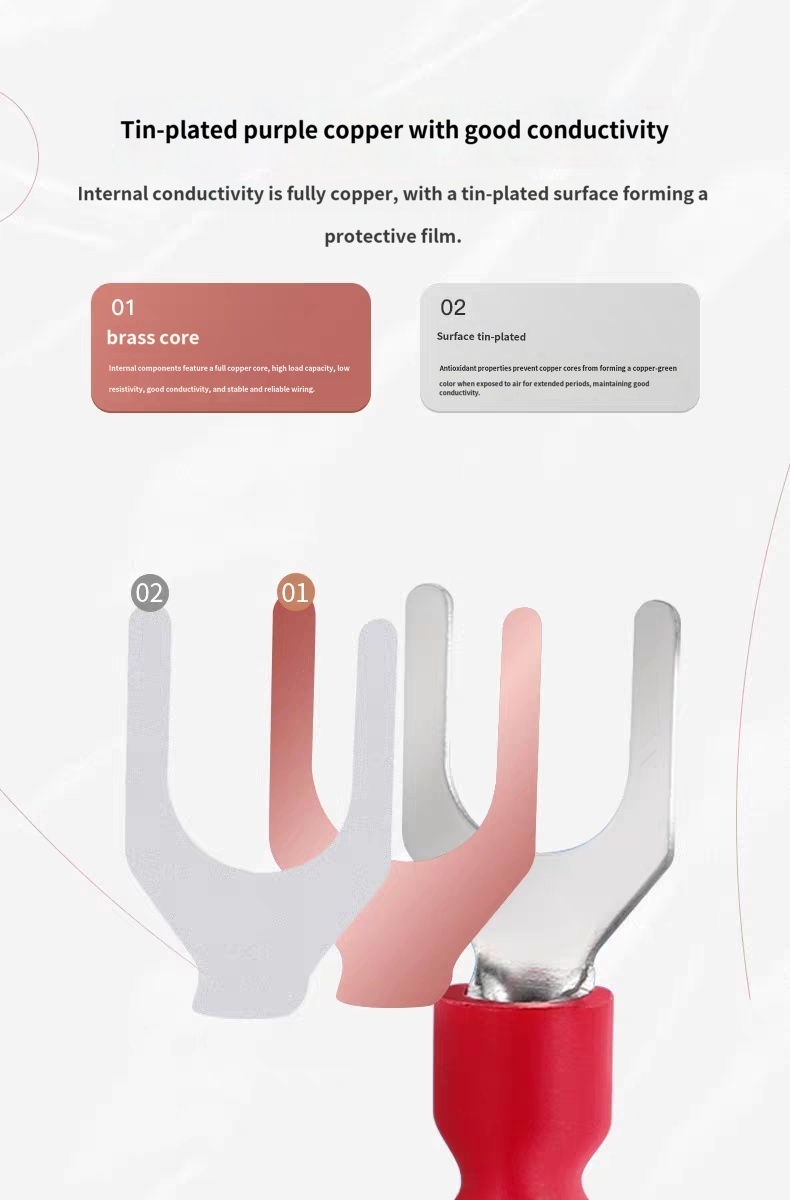

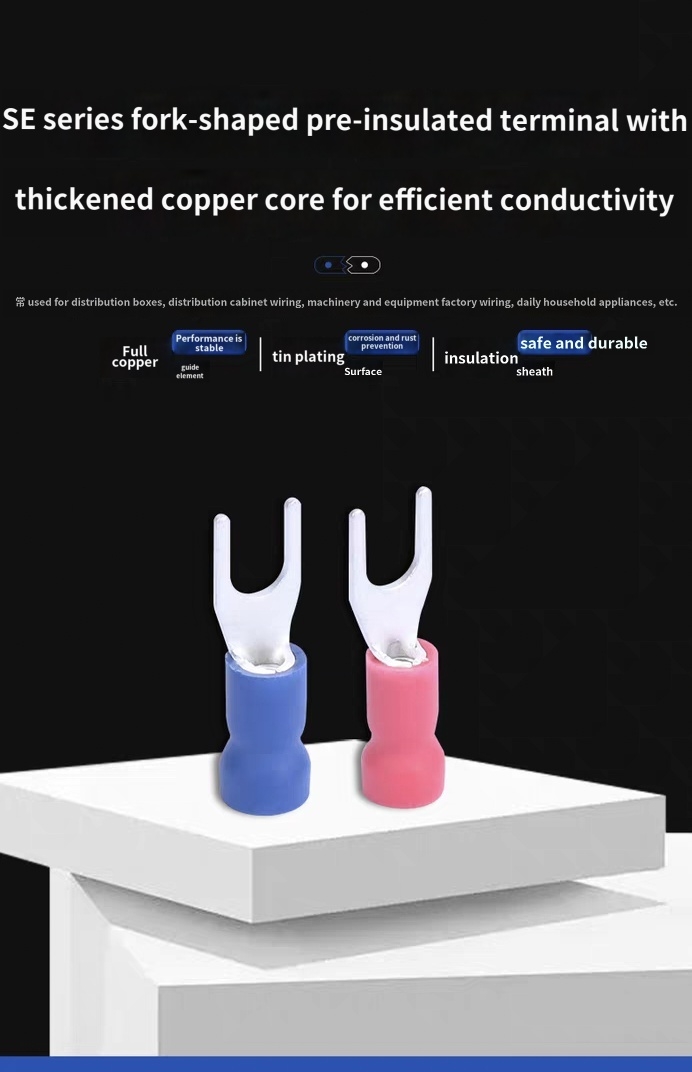

Pure Red Copper Tin Plated
Low contact resistance, high conductivity, anti-corrosion and long service life.
Fork Spade Structure
Slip-on bolt installation, convenient for assembly and later maintenance.

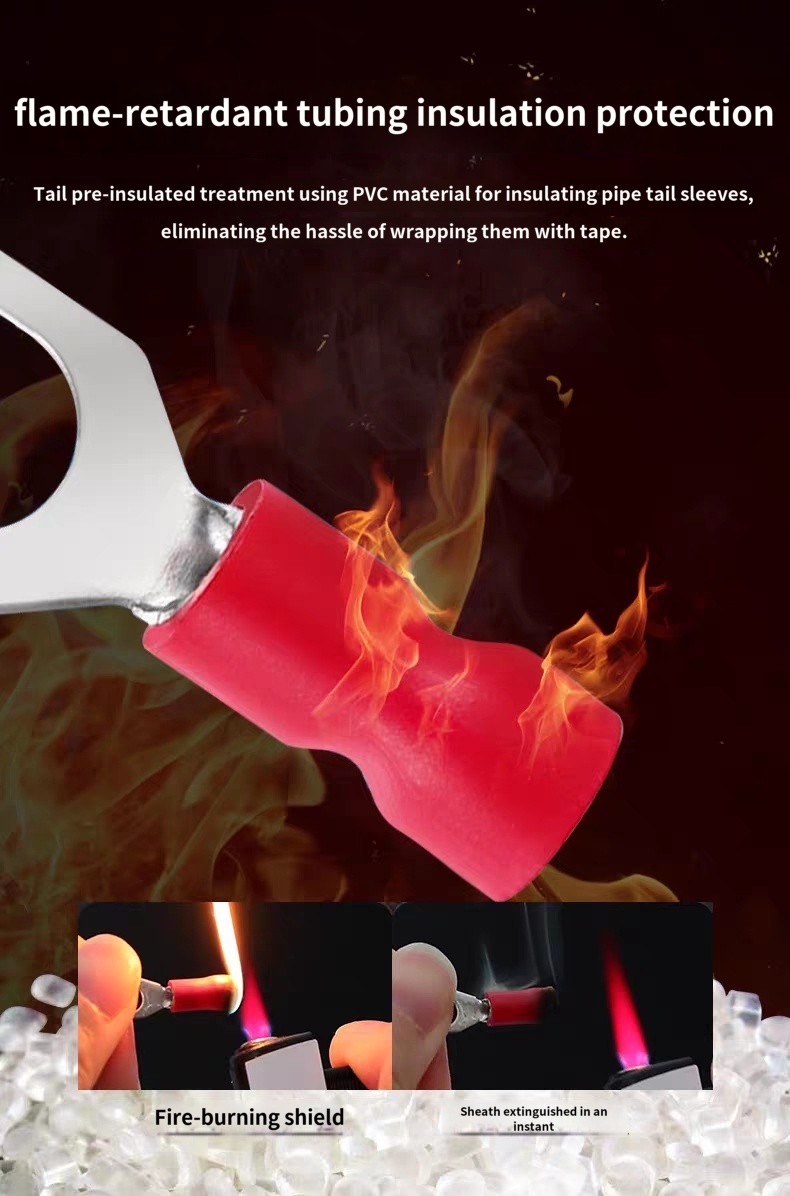

Flame Retardant Nylon Insulation
Heat resistant, leakage-proof, safe for indoor and industrial wiring.
Seamless One-piece Stamping
Smooth burr-free edge, protect wire core, high tensile strength after crimping.
Full Certification
CE, RoHS, TUV, UL, REACH approved for worldwide market sales.

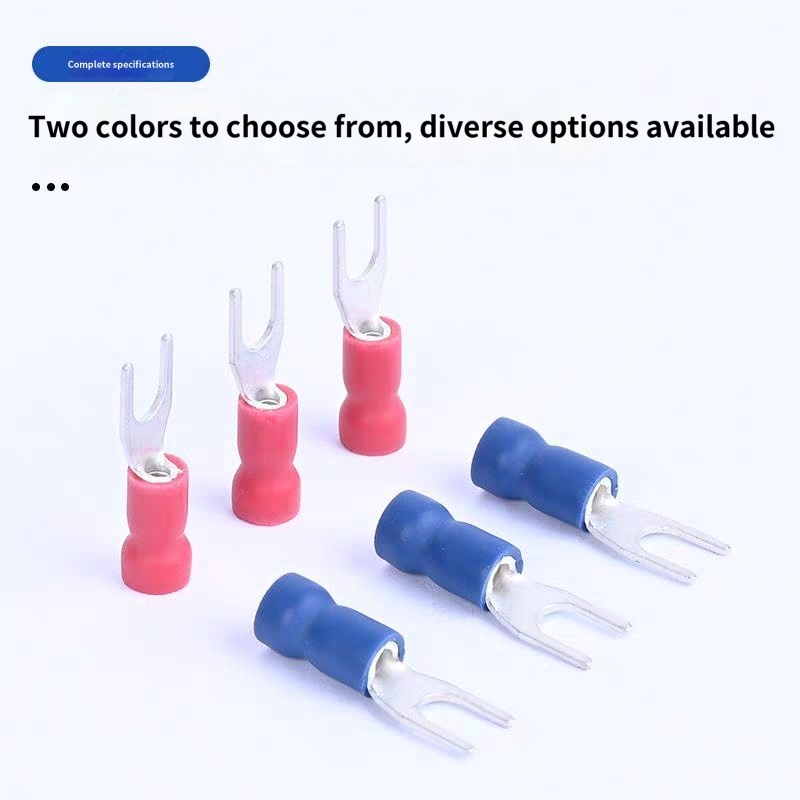

Color Coded
Red / Blue / Yellow for quick wire gauge identification.
Application Scope
Electrical control cabinet and distribution box wiring
Mechanical equipment power connection and maintenance circuit
Automotive, motorcycle and electric vehicle wire harness
Household appliances and electronic equipment internal wiring
New energy power distribution system
Low-voltage engineering screw fixing connection
Installation Diagram & Step Instruction
Step-by-Step Installation Diagram
Standard operation for SE easy entry insulated spade terminal. Flared inlet makes wire insertion much faster than conventional SV terminals.
Strip the wire insulation to proper length.
Insert wire directly into the flared easy entry end.
Crimp tightly with professional cold crimp pliers.
Hang the fork spade end on the bolt and tighten the screw firmly.
