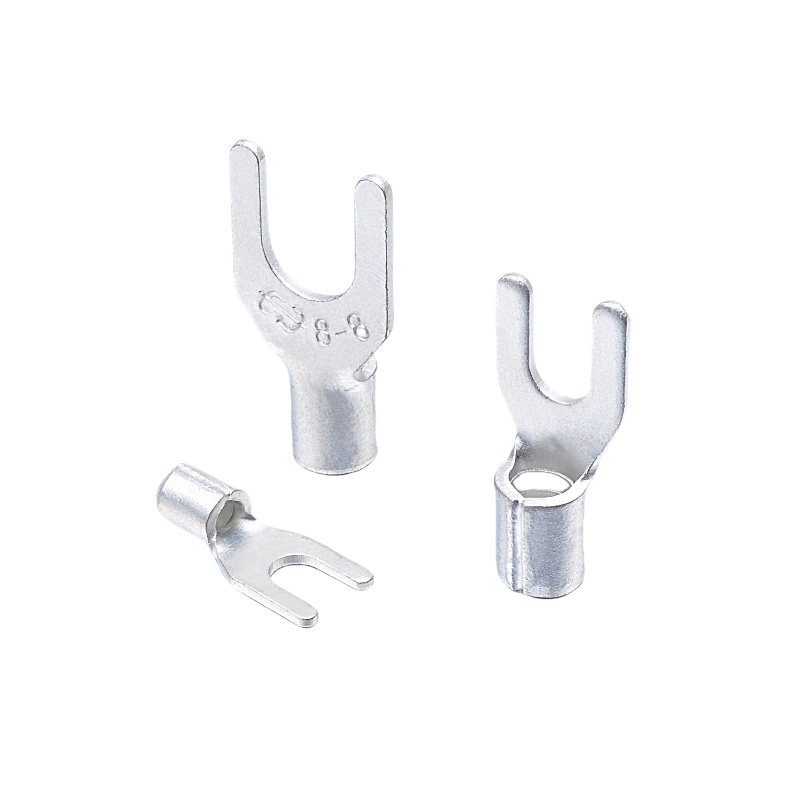

SNB Series Non Insulated Spade Terminal Pure Red Copper Bare Fork Cold Crimp Lug
| Item | Specification |
|---|---|
| Product Series | SNB Series Non Insulated Spade Terminal |
| Material | High purity red copper, tin plated |
| Certification | CE, RoHS, TUV, UL, REACH |
| Rated Voltage | 600V |
| Temperature Range | -40°C ~ 125°C |
| Type | Bare Fork / Spade Non-Insulated Cold Crimp Terminal |
| Wire Range | 0.5mm² – 25mm² |
| Feature | No insulation, seamless stamping, high current carrying, easy bolt mounting |
| Application | Electrical cabinet, power distribution, machinery grounding, automotive, industrial wiring |
Product Description

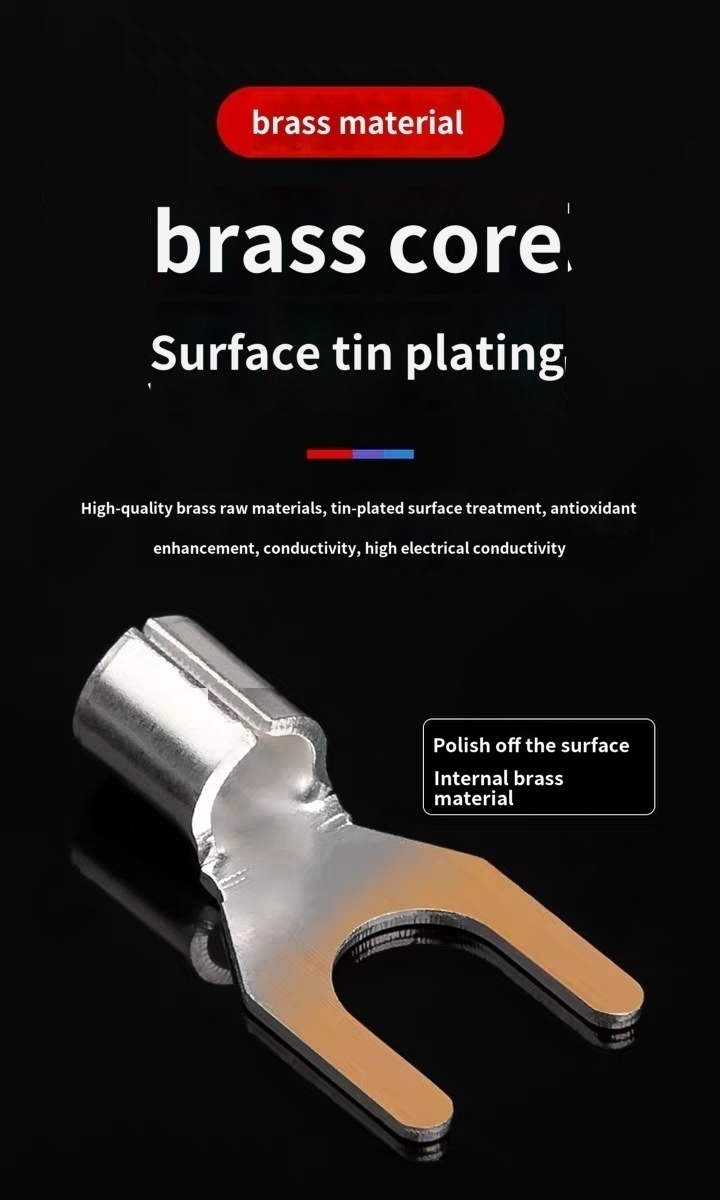

SNB non-insulated spade terminal is classic bare fork type cold crimp connector without insulating sleeve. Made of solid thickened red copper with tin-plated surface, it features low contact resistance, excellent electrical conductivity and outstanding high temperature & oxidation resistance.
Simple compact structure saves installation space, perfect for internal hidden wiring inside closed electrical devices. Standard fork design can be easily hung and fixed on screws and bolts, easy installation and convenient later maintenance. Integral stamping ensures solid structure, firm crimping and strong tensile strength. It is widely used for high-current circuit connection and meets global export industrial standards.
Product Features

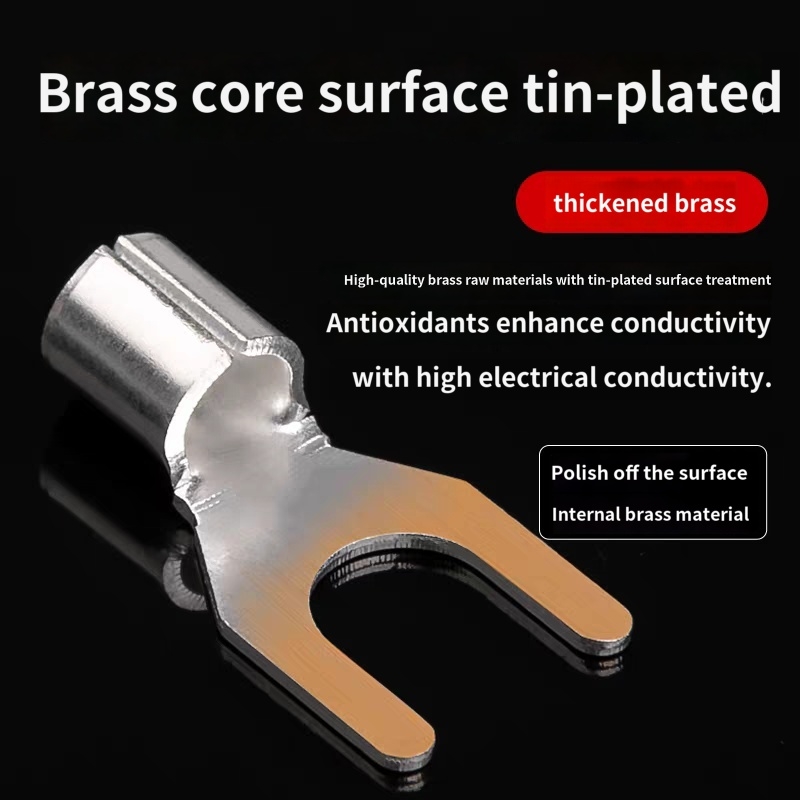

- Thickened Tin-plated Red Copper
High structural strength, not easy to deform, stable power transmission - Non-insulated Bare Design

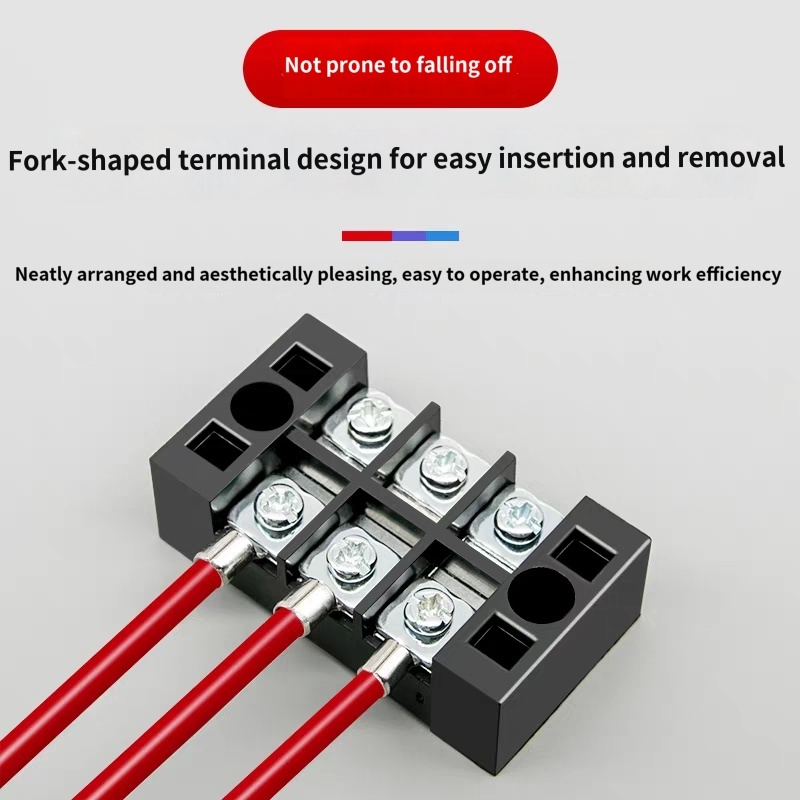

Small size, space-saving, suitable for dense built-in wiring - Standard Spade Fork Shape
Easy to match various bolts, fast assembly - High Temperature Resistance
Adapt to harsh industrial working environment, long service life - Smooth Burr-free Surface
Protect wire strands, no damage during crimping - High Current Carrying Capacity
Ideal for heavy load low voltage wiring projects - Full International Certifications
Fully approved for overseas sales and engineering use
Application Scope
- Low voltage power distribution cabinet internal wiring
- Electrical control cabinet bolt fixed connection
- Automobile, engineering vehicle wiring harness assembly
- Industrial equipment and mechanical power line connection
- Power equipment terminal wiring assembly
- Closed electrical appliances internal circuit connection
