TBC Series Modular DIN35 Rail Terminal Block Double Screw Inlet & Outlet Copper Wiring Terminal For Control Cabinet Power Distribution

TBC modular DIN35 rail terminal features dual screw input-output design, pure copper conductive core, free splicing, matched TBR & TBR-F accessories for industrial control cabinet wiring.
Send Inquiry
Chat Now
Facebook
Twitter
LinkedIn
TBC Series Modular DIN35 Rail Terminal Block Double Screw Inlet & Outlet Copper Wiring Terminal For Control Cabinet Power Distribution

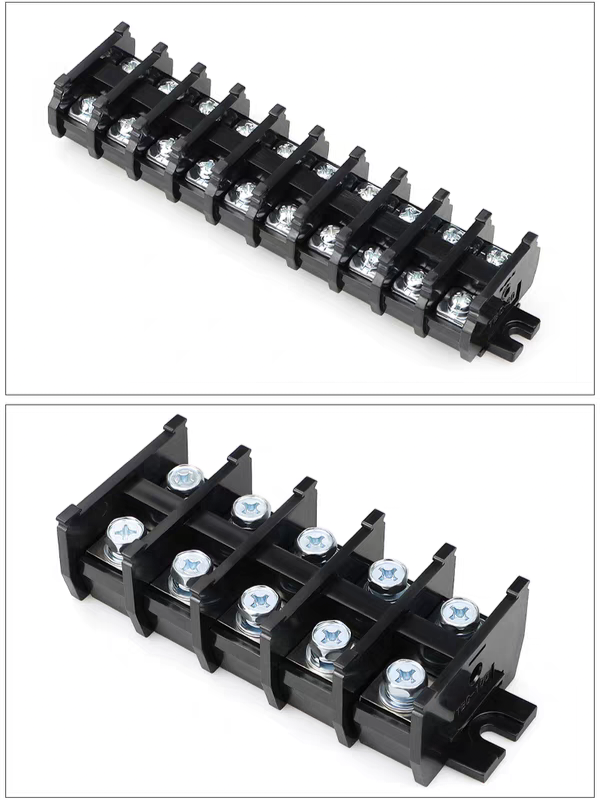

TBC series DIN35 rail double screw modular copper terminal block for industrial cabinet wiring connection

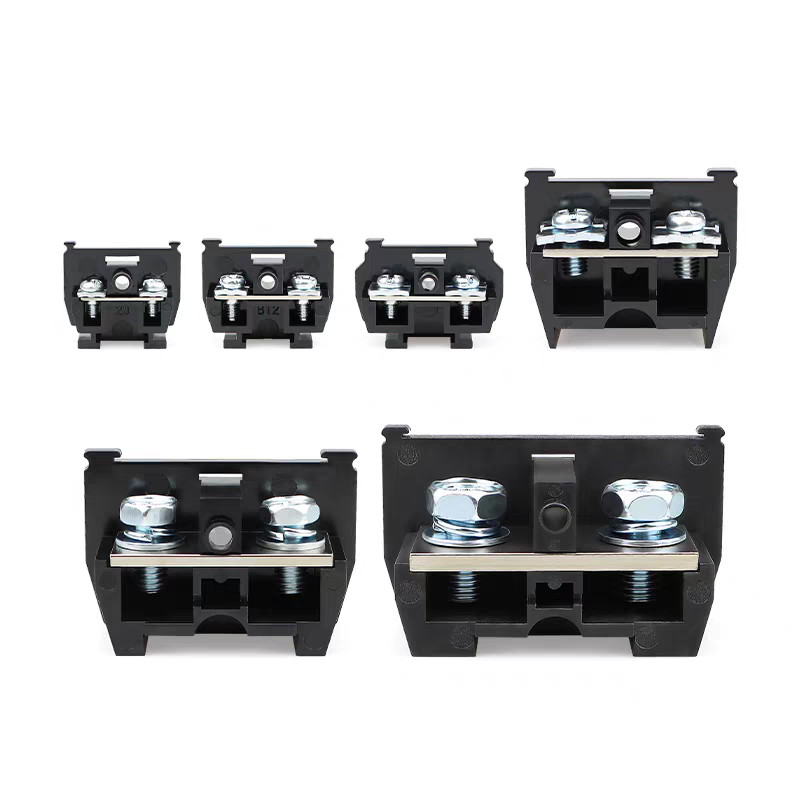

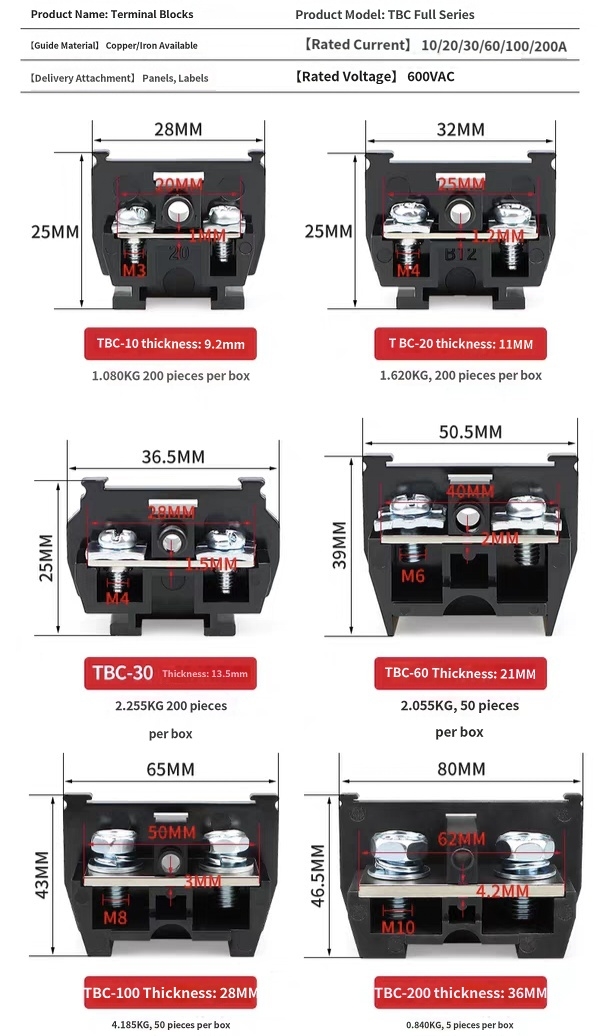

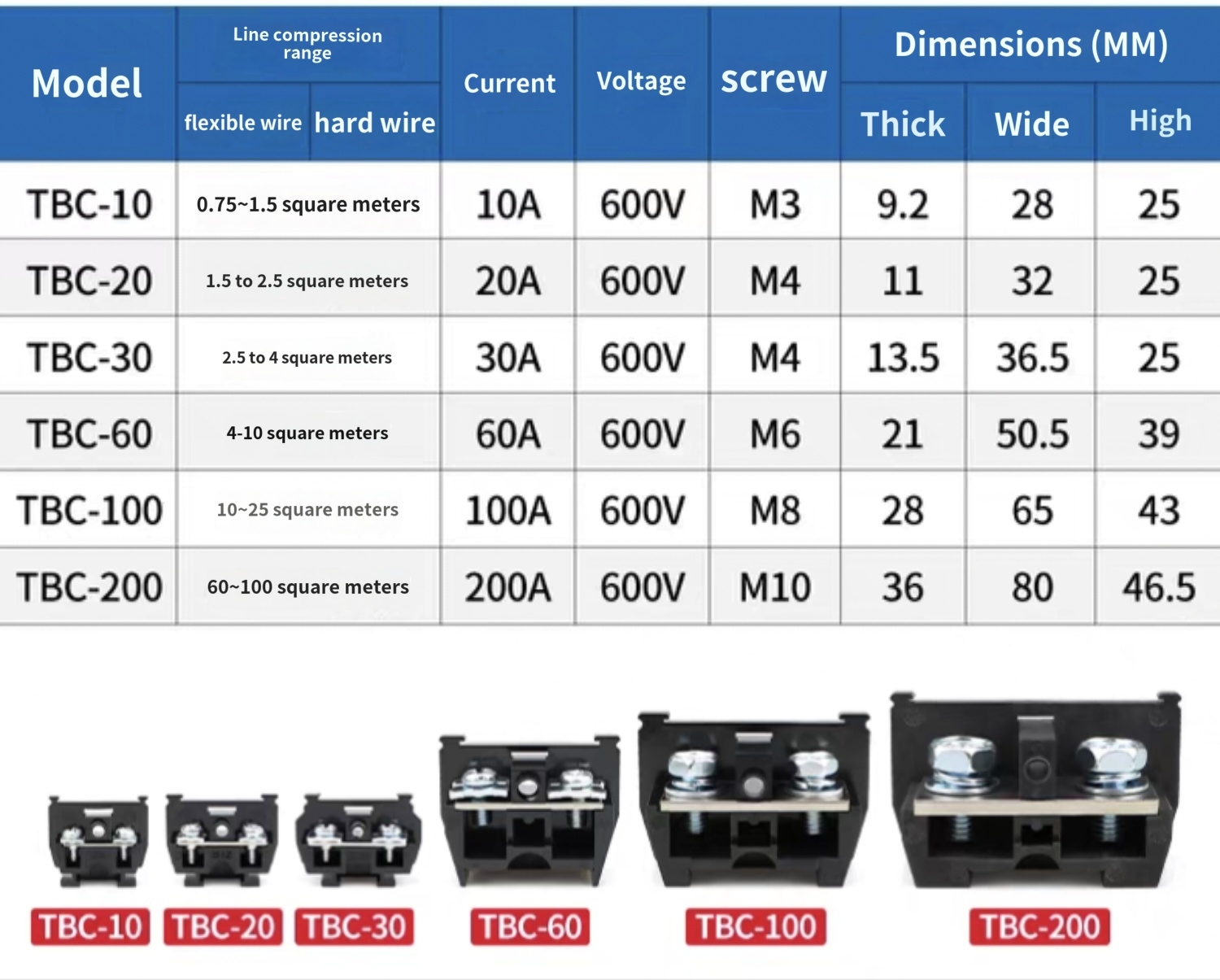

Model: TBC-10 / TBC-20 / TBC-30 / TBC-60 / TBC-100/TBC-200
Rated Voltage: 600V AC
Rated Current:10A/20A/30A/60A/100A
Applicable Wire Range:0.75~100mm²

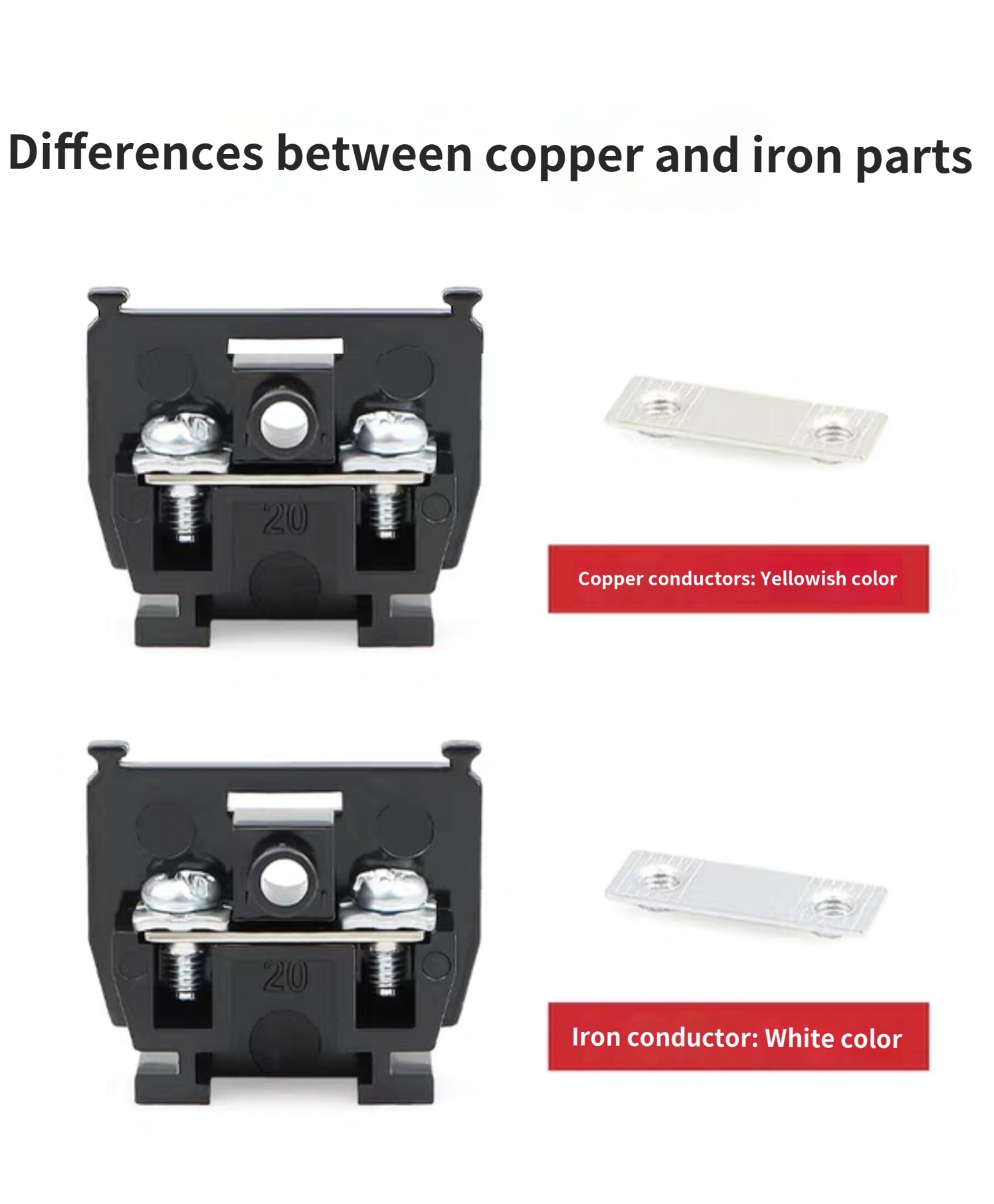

Conductive Material: Nickel Plated Pure Copper
Housing Material: Flame Retardant PA66/PC
Mounting: Standard 35mm DIN Rail
Wiring Type: Double Screw In/Out Clamp
Color: Black, transparent cover optional
