| Product Name | C45 DIN Rail TH35 U-Type Mounting Track |
| Model | C45 / TH35 |
| Material | Galvanized Steel / Aluminum Alloy |
| Standard | DIN EN 60715 |
| Width | 35mm |
| Height | 7.5mm / 15mm |
| Standard Length | 1000mm |
| Custom Length | Available |
| Color | Silver (Galvanized Steel) / Natural Aluminum |
| Certification | CE, RoHS |
| Compatible Components | Circuit breakers, terminal blocks, relays, contactors |
| Application | Distribution boxes, control panels, industrial cabinets |
The U-shaped design allows quick, secure snap-on installation, keeping all parts organized, stable and easy to maintain.
C45 DIN Rail Key Features

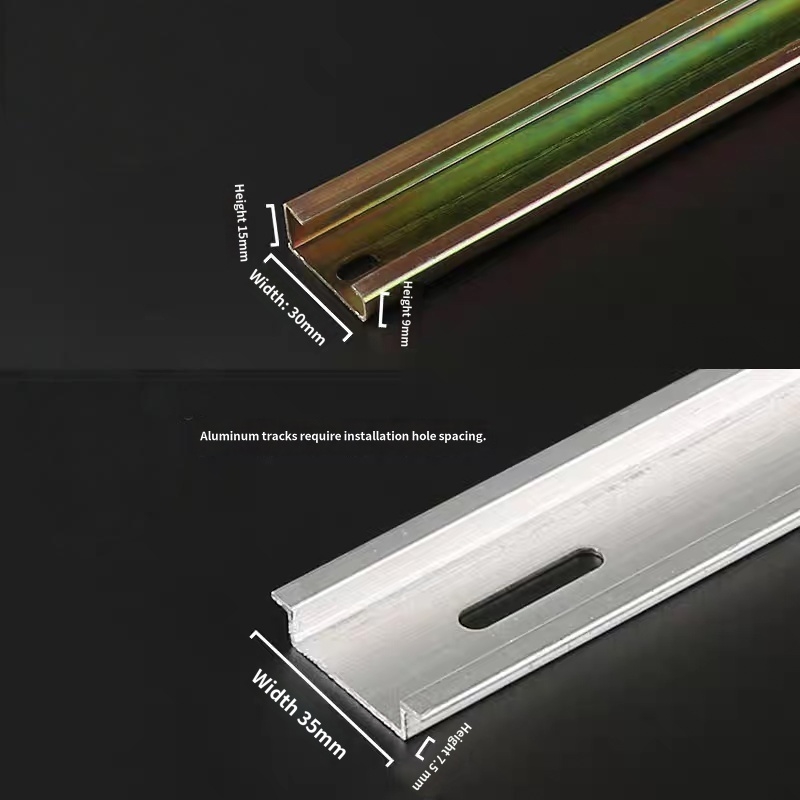

– Standard 35mm width, with 7.5mm or 15mm height options to fit different components

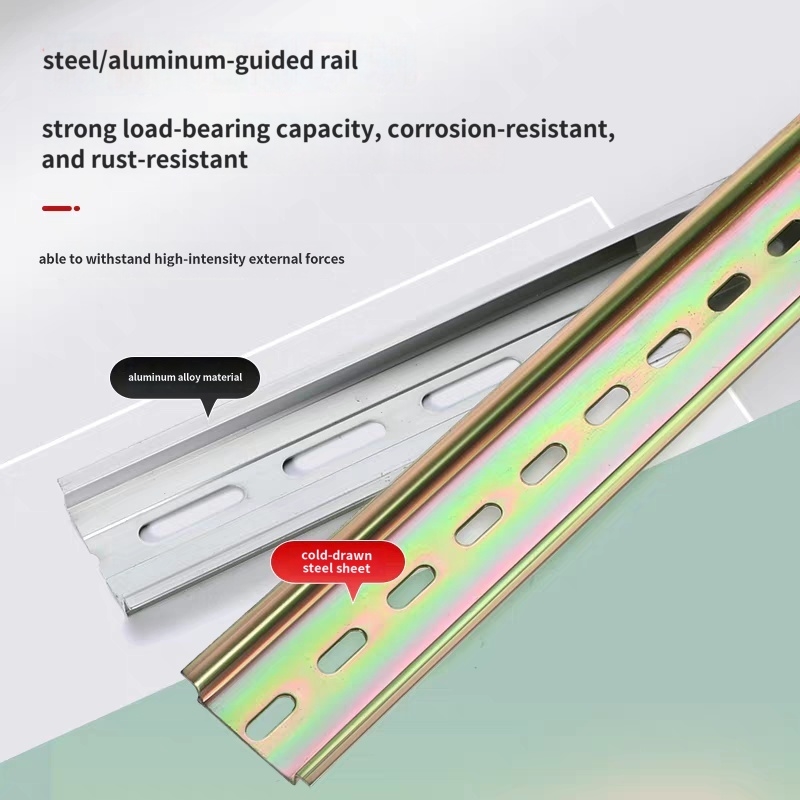

– Made of high-quality galvanized steel or aluminum alloy for durability and rust resistance
– Smooth surface treatment ensures easy sliding of components and long service life
– Compatible with all standard DIN rail-mounted accessories
– Available in standard lengths (1000mm) and can be easily cut to custom sizes on site
– Pre-drilled mounting holes for simple and fast installation

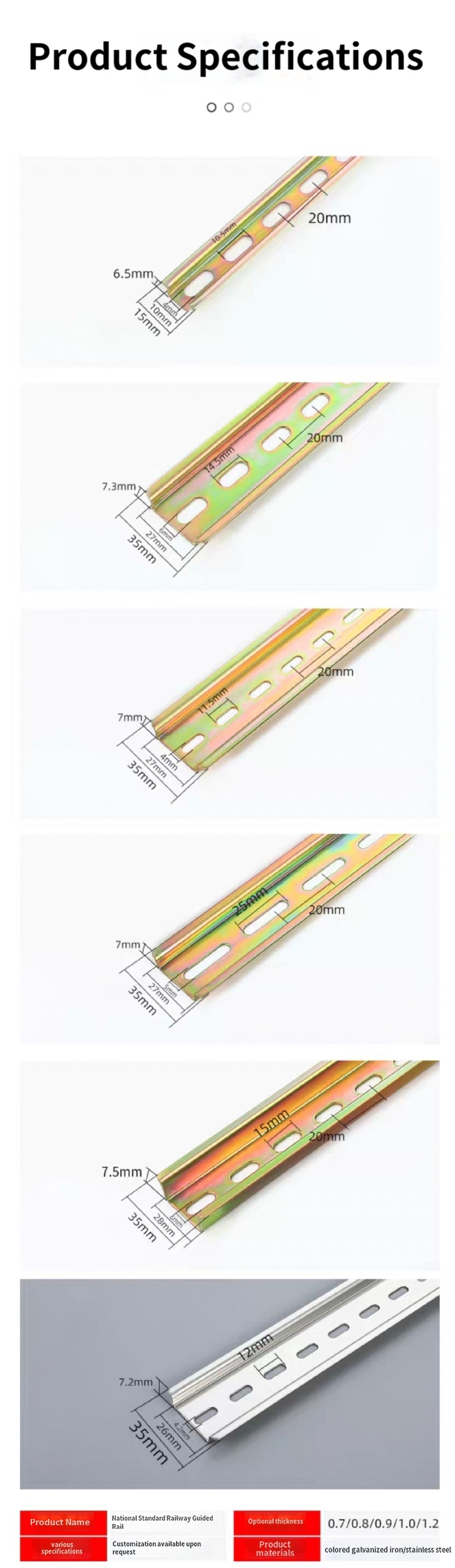

C45 DIN Rail Technical Specifications
– Model: C45 DIN Rail / TH35 U-type
– Material: Galvanized Steel / Aluminum Alloy
– Standard Length: 1000mm (custom length available)
– Width: 35mm
– Height Options: 7.5mm / 15mm

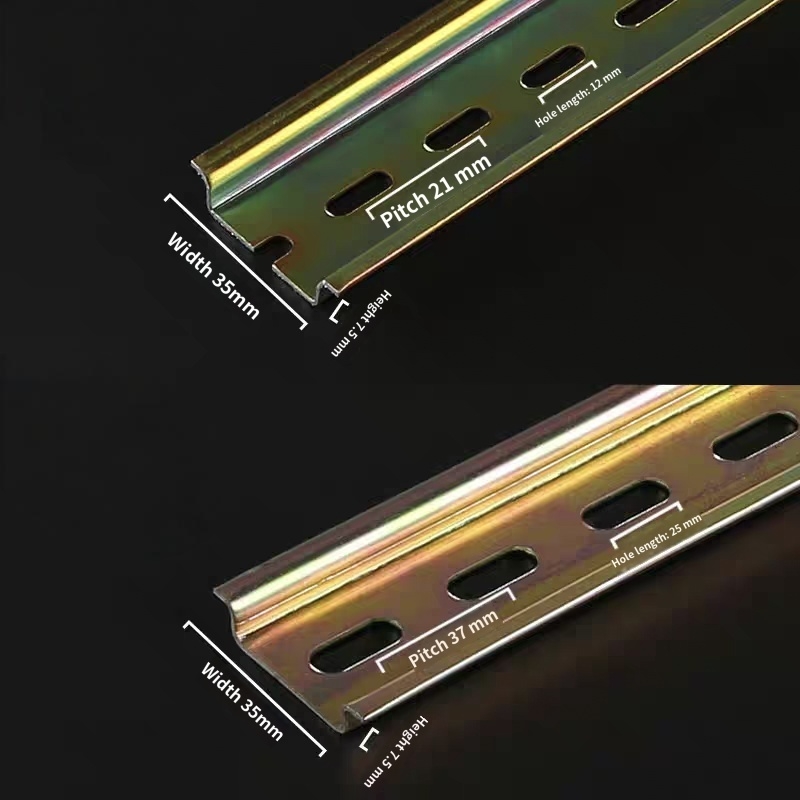

– Mounting Hole: Slotted hole, pitch 25mm
– Certifications: CE, RoHS
Applications of C45 DIN Rail
It is widely used in:
– Distribution boxes and power distribution cabinets
– Industrial control panels and automation equipment
– Building electrical and wiring projects
– Custom electronic enclosures

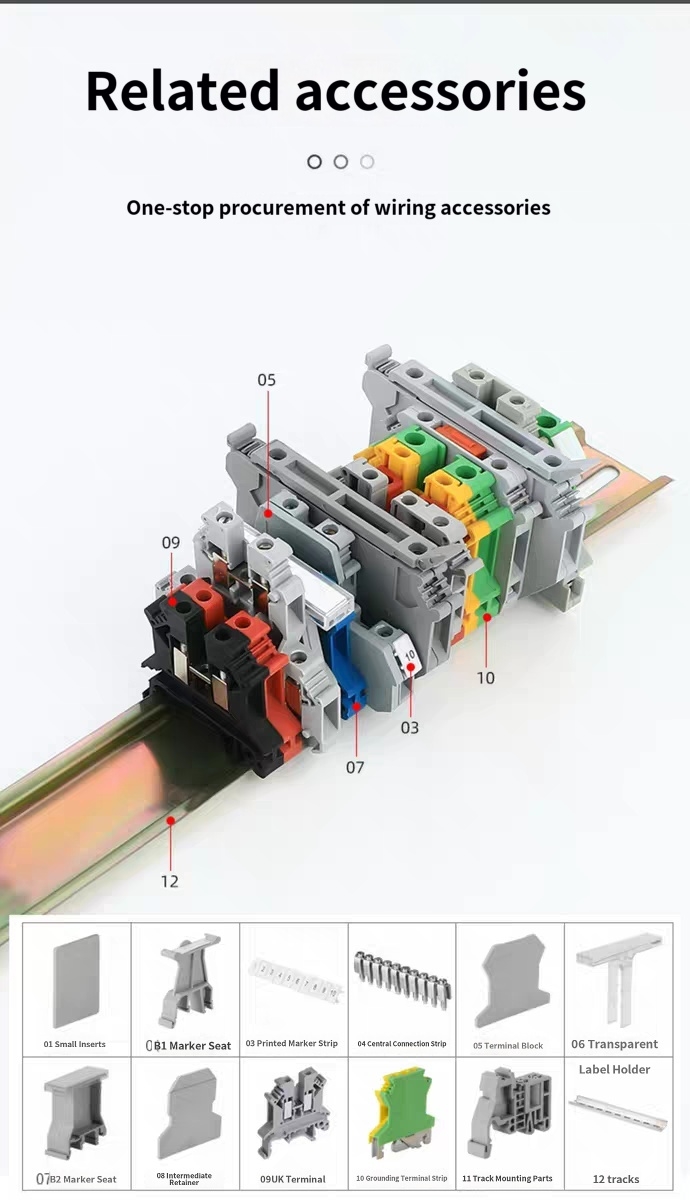

For a complete solution, pair this C45 DIN Rail with our EW-35 end stops and UK series terminal blocks to keep all components secure and organized.
