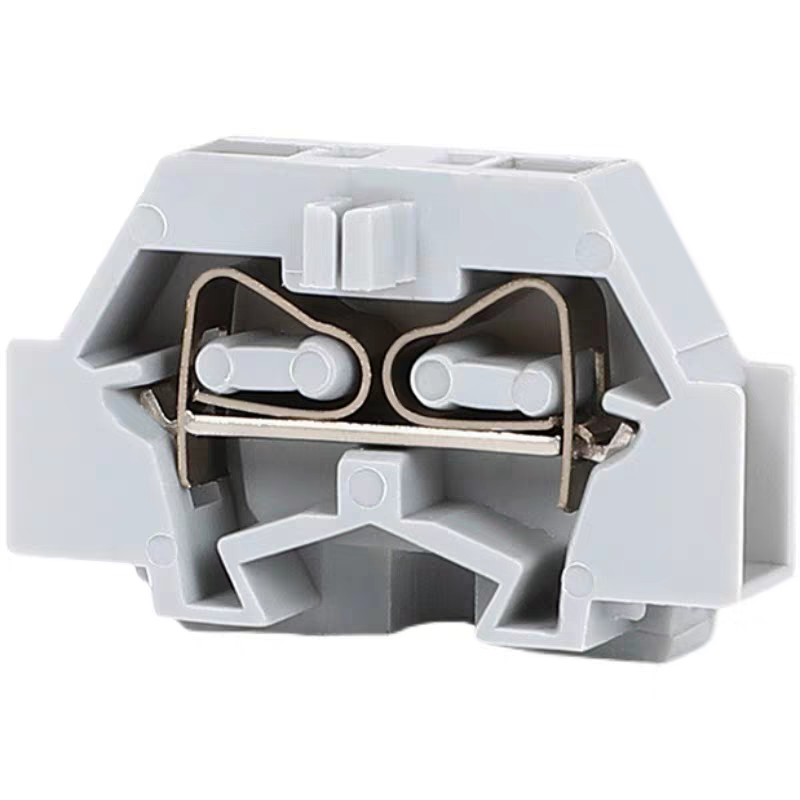

262-301 2-Wire Cage Clamp DIN Rail Terminal Block

Model 262-301 is 2-wire feed-through cage clamp terminal block compatible with WAGO original parts. 12mm width supports 0.08–4mm² wire with 32A/690V high current rating, dual DIN rail & panel flange mounting, UL CE ROHS certified factory wholesale for power distribution cabinet wiring.

262-301 Feed-Through Spring Terminal Block 0.08–4mm² 32A 690V With Fixing Flange (WAGO Compatible Replacement)

Brief Introduction

Model 262-301 is the standard 2-wire feed-through cage clamp terminal block of 262 series, fully compatible with original WAGO 262-301 in dimension, wiring structure and electrical performance. Single-pole 1-in-1-out straight-through design with integrated fixing flange (Φ3.2mm screw hole), support dual installation: standard 35mm DIN rail mounting or panel screw fixing.

12mm module width, wide wire range from 0.08–4mm² (28–12AWG), rated up to 32A / 690V IEC, perfect for medium & high current single loop wiring of power distribution cabinets, inverters, HVAC and industrial automation equipment. Adopt side push-in stainless steel cage spring connection, no screws to tighten, compatible with solid hard wire and multi-strand flexible wire without pre-crimp lugs. PA66 halogen-free V0 flame retardant housing, nickel-plated brass conductor and anti-fatigue spring guarantee stable performance under -60℃~+105℃ long-term working environment.

All items pass UL, CE, IEC 60998, ROHS & REACH certifications. We provide factory bulk wholesale, free sample testing, OEM custom marking and full technical datasheets for global electrical distributors and equipment manufacturers.

Core Advantages

1:1 interchangeable substitute for WAGO 262-301, no cabinet redesign needed
2-port one-in-one-out straight through structure for independent single power/signal circuit
High load rating: 32A 690V, max 4mm² wire, upgrade small current 260 series terminals
Side push-in cage clamp wiring, anti-vibration & anti-loose, maintenance-free
Dual mounting: DIN 35 rail + flange screw panel fixing
Halogen-free flame retardant shell, wide temperature range for industrial harsh environment
Matched full accessories: separators, TD-4 jumper bars, printable marker strips
Complete export certifications for EU, USA, Southeast Asia & Latin America markets

Technical Spec Table

Item	Parameter
Model	262-301 2-wire feed-through cage clamp terminal
Wiring Ports	2 ports (1 input, 1 output single pole)
Module Width	12 mm
Applicable Wire	0.08–4 mm² solid / flexible wire
AWG Standard	28 AWG ~ 12 AWG
IEC Rating	32A / 690V, 8kV impulse withstand voltage
UL Rating	20A / 300V
Mounting Mode	DIN35 rail + Φ3.2mm flange screw fixing
Housing Material	Halogen-free PA66 V0 flame retardant nylon
Conductor	High conductivity nickel-plated brass
Spring	Anti-fatigue stainless steel cage clamp
Continuous Temp	-60℃ ~ +105℃
Standard Color	Grey; optional blue neutral, yellow-green ground
Matching Accessories	262 series separator, TD-4 jumper bar, marking label
Certifications	CE, IEC 60998, ROHS

Application Scenarios

Medium current power distribution cabinet single circuit wiring, inverter auxiliary power loop, HVAC high-power control line, motor signal connection, industrial equipment internal power wiring, building automation heavy-load control circuits, small solar power junction box wiring.

Inquiry Closing Text

If you need bulk order 262-301 WAGO equivalent terminal blocks or customized OEM printing, submit your demand via the inquiry form below. We offer factory direct price, fast stock delivery and free sample support for all global buyers. Get instant quote now!
