MCR-T-UI-E Replacement DIN Rail Enclosure | 17.5mm Width Signal Isolator & Temperature Transmitter Module Shell
In industrial process control, chemical explosion-proof systems and temperature measurement projects, Phoenix Contact MCR-T-UI-E is a mainstream 3-way isolation temperature transmitter module, widely used for thermocouple, RTD signal conversion and galvanic isolation. However, genuine Phoenix MCR-T-UI-E housings face high procurement cost, long overseas delivery lead time and limited stock supply, which seriously restricts mass production delivery for domestic signal module manufacturers.
Our fully interchangeable MCR-T-UI-E compatible DIN rail enclosure solves this pain point perfectly. It adopts 1:1 copying of original size, internal PCB positioning structure, terminal window and DIN rail buckle design, supporting direct assembly of signal isolators, intrinsic safety barriers and 4-20mA temperature transmitter PCBs without circuit board redesign or mold modification.
What Is MCR-T-UI-E Compatible DIN Rail Module Housing?
The original Phoenix MCR-T-UI-E module adopts standard 17.5mm width DIN rail structure, overall dimension: 17.5(W) × 99(H) × 114.5(D)mm, RAL6021 green PA polyamide shell, dedicated for 3-isolation temperature signal conditioning circuitsPhoenix Contact USA.
Our replacement enclosure fully matches all structural parameters of MCR-T-UI-E:
- Exact identical overall dimension, internal PCB standoff height, upper/lower shell lock buckle;
- Front double-side terminal window reserved, compatible with pluggable screw PCB terminals (2EDG/KF series) consistent with original wiring port layout;
- Side vertical heat dissipation grille design, consistent air convection channel as genuine housing to avoid signal drift caused by heat accumulation;
- Integrated spring metal DIN rail buckle, perfectly snap onto NS35/7.5 & NS35/15 standard DIN rails;
- Pre-reserved PCB fixing screw posts, compatible with standard 2/3/4-wire RTD & thermocouple isolation circuit layout.

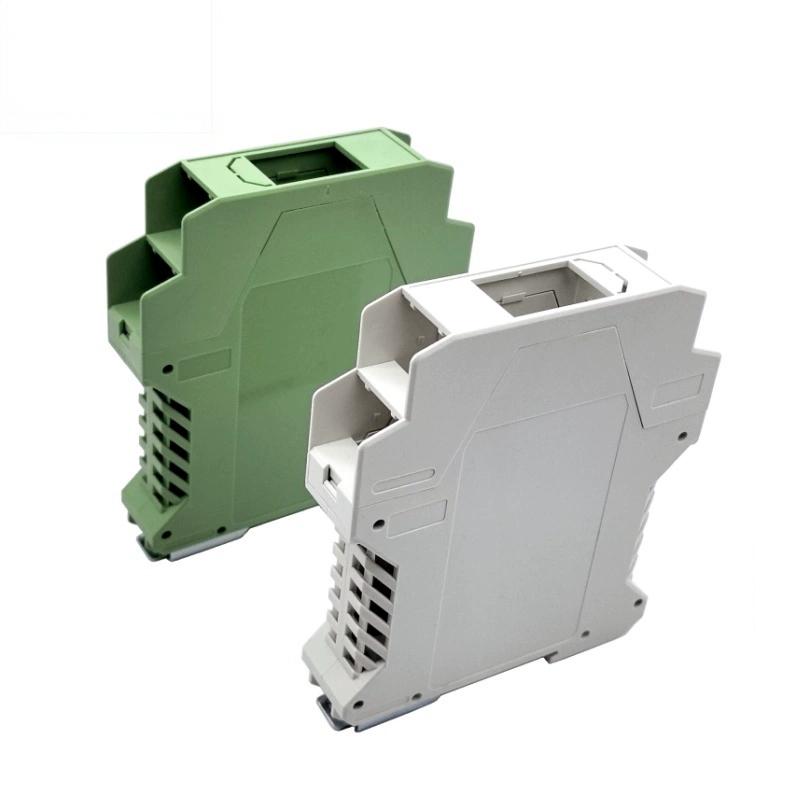

Standard color options: RAL6021 industrial green (direct substitute for original), customized gray, black, transparent top cover available.
Core Advantages Of MCR-T-UI-E Replacement DIN Rail Enclosure
1. 100% Dimensional Interchangeable, Zero PCB Redesign Cost
The core competitive strength of our MCR-T-UI-E compatible module housing is full dimensional consistency with genuine Phoenix MCR-T-UI-E shell. All internal positioning posts, terminal opening size, shell lock structure and heat dissipation slots are produced per original drawing tolerance ±0.05mm. Electronics factories can directly reuse existing signal isolator / temperature transmitter / safety barrier PCBs, saving new mold opening, circuit layout revision and prototype testing cost, cutting product development cycle by over 60%.
2. UL94-V0 Flame Retardant PA66 Material, Industrial Explosion-Proof Safety Standard
Whole shell injection molded with high-toughness flame retardant PA66 nylon, reach UL94-V0 fire resistance grade, stable working temperature range -40℃ ~ +105℃. Excellent insulation creepage distance meets intrinsic safety Ex barrier design requirement, withstand 1500V AC isolation voltage for input/output/power three-way isolation circuit, fully compliant with IEC 61010-1 industrial signal module safety standard. Anti-aging, oil mist and chemical vapor corrosion resistant, stable long-term operation in chemical plant, oil field and outdoor power cabinet harsh environments.
3. Optimized Side Vertical Heat Dissipation Grille, Consistent Signal Accuracy
Copy original MCR-T-UI-E vertical side heat dissipation channel design, forming upper-lower air convection inside the shell. Effectively discharge heat generated by isolation transformers and DC-DC power chips, avoid internal temperature rise leading to signal drift and temperature coefficient deviation, guarantee measurement accuracy ≤0.1%FS for long-time continuous operation, fully matching heat dissipation performance of imported original housing.
4. Universal Compatibility With All Signal Conditioning Circuit Boards
Front double large terminal window supports all mainstream pluggable screw PCB wiring terminals: 2EDG, 15EDG, KF barrier series terminals. Split upper/lower shell with side snap lock, only need flat screwdriver to open and close, convenient for mass PCB assembly production line operation. Internal large-capacity cavity reserves sufficient space for three-way isolation circuit, DIP isolation transformers and DIP switch configuration components, suitable for programmable temperature transmitters, passive/active signal isolators and intrinsic safety barriers.
5. Obvious Cost & Supply Advantages Over Imported Genuine Shell
- Lower unit price: Domestic integrated injection molding production, unit cost only 35%-50% of original Phoenix MCR-T-UI-E housing, greatly reduce finished signal module BOM cost;
- Fast delivery cycle: Sufficient spot stock of 17.5mm MCR compatible green shells, bulk order shipment within 1-3 working days, no 4-8 weeks overseas lead time;
- Flexible customization: Support shell surface silk screen LOGO, custom ventilation hole layout, transparent observation window and special shell color without high minimum order quantity;
- Complete matching accessories: Supporting TBUS power bus connector, plastic end baffles and module marking labels one-stop supply.
6. Wide Application Coverage For Industrial Signal Modules
Our MCR-T-UI-E substitute DIN rail enclosures are exclusively developed for analog signal conditioning equipment:
- 3-way isolation temperature transmitters (RTD PT100, K/S/J/T thermocouple signal conversion)
- Galvanic signal isolators (4-20mA current, 0-10V voltage input/output isolation)
- Intrinsic safety isolation barriers (Ex ia/ib hazardous zone chemical & petroleum industry)
- Passive / active signal converters, PLC analog input expansion modules
- Explosion-proof field signal distribution modules, HART protocol signal isolators
Standard Technical Parameters Of MCR-T-UI-E Compatible Housing
- Compatible Original Model: Phoenix MCR-T-UI-E (2814113)
- Overall Dimension: 17.5mm(W) × 99mm(H) × 114.5mm(D)
- Mount Standard: NS35/7.5, NS35/15 EN60715 DIN rail
- Housing Material: UL94-V0 Flame Retardant PA66 Polyamide
- Standard Color: RAL6021 Industrial Green (Custom Gray/Black/Transparent Optional)
- Operating Temp: -40℃ ~ +105℃
- Withstand Isolation Voltage: 1500V AC 1min
- Assembly Structure: Split Cup Shell With Side Snap Lock Latch
- Heat Dissipation: Vertical Side Ventilation Grilles (Consistent With Original MCR Structure)
- Matching Accessory: MCR TBUS bus connector, marking tag, module end baffle
- Compliance Certification: RoHS, REACH, CE IEC60947 Compliant
Step-by-Step PCB Assembly Operation Guide
- Mount pluggable screw PCB terminal blocks on prefabricated three-way isolation temperature transmitter / signal isolator PCB board;
- Insert circuit board onto internal positioning screw posts of lower MCR substitute housing, lock with small fixing screws;
- Align front PCB terminals with shell double-side wiring window, press upper shell to fasten side snap locks;
- Snap fully assembled module onto standard 35mm DIN rail via bottom integrated metal spring buckle;
- Connect MCR TBUS bus connector between multiple modules to realize shared 24VDC auxiliary power supply;
- Paste printed marking labels on shell side to distinguish input/output temperature signal channels.
Why Choose Our MCR-T-UI-E Replacement DIN Rail Enclosures?
We are professional industrial signal module housing manufacturer with independent precision mold workshop for MCR-T-UI-E compatible series. All our Phoenix MCR-T-UI-E substitute enclosures adopt imported high-purity flame retardant PA66 raw material, strict dimensional tolerance control within ±0.05mm, ensuring zero assembly gap when matched with standard PCB terminals and DIN rails.
Compared with generic low-cost domestic imitation MCR shells on market, our products adopt thickened shell wall, reinforced integrated metal DIN rail buckle to avoid fracture under frequent disassembly, uniform injection molding without shrinkage marks or plastic burrs, stable dimensional consistency for automated mass assembly lines. We support small sample trial orders, mixed bulk packaging and customized structural modification according to special PCB layout designs, sufficient spot inventory for global industrial automation equipment manufacturers and signal module factory wholesale supply.
