Material: Brass Terminal + PA66 Flame Retardant Housing
Certification: CE, RoHS
Feature: Barrier Isolation, High Safety, Large Current Capacity
Type: Barrier Type Terminal Block
Application: Power Distribution Box, Household Appliances, Electrical Equipment
Barrier-type terminal block adopts isolated barrier structure to prevent electric leakage and short circuit. Equipped with high conductivity brass conductor and UL94 V0 flame retardant PA66 housing.
All products comply with CE and RoHS safety standards. The reinforced screw clamping structure ensures firm wire connection, good pressure resistance and large current carrying capacity.
Clear barrier isolation design improves operation safety, suitable for high current and dense wiring occasions. Widely used in distribution boxes, home appliances, power supplies and industrial electrical equipment.

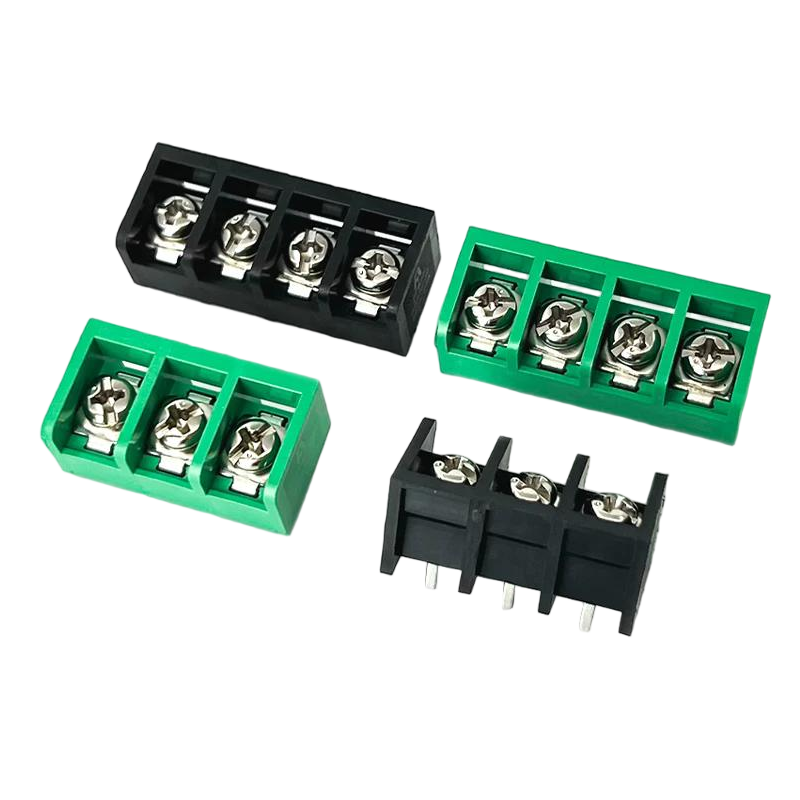

Barrier Type Terminal Block — Panel Mount, Screw Connection
Barrier terminal blocks put an isolation wall between adjacent poles — the reason they are specified wherever high current, high voltage or dense wiring demands extra safety. The barrier prevents arcing and flashover between adjacent conductors, and the open construction makes every connection visible and inspectable at a glance.
The reinforced screw clamping structure handles large cable cross-sections with firm, re-tightenable contact force, and the panel-mount design installs directly into distribution boxes and equipment enclosures.
Key Features
- Barrier isolation between poles — prevents electric leakage and short circuits
- Large current capacity — reinforced screw clamp for heavy wiring
- Panel mount — direct installation into distribution boxes and appliances
- Brass terminal + PA66 V-0 housing — CE, RoHS compliant
Technical Overview
| Item | Specification |
|---|---|
| Connection type | Screw clamp with barrier isolation |
| Conductor material | High-conductivity brass |
| Housing material | PA66, UL94 V-0 flame retardant |
| Mounting | Panel mount / PCB |
| Certifications | CE, RoHS |
Typical Applications
- Power distribution boxes and switchgear
- Household appliances and white goods
- Power supplies and electrical equipment
- Any wiring point requiring visible, isolated, high-current connection
Not sure whether you need barrier type or standard PCB type? See PCB Terminal Block vs Barrier Terminal Block: Which to Choose.

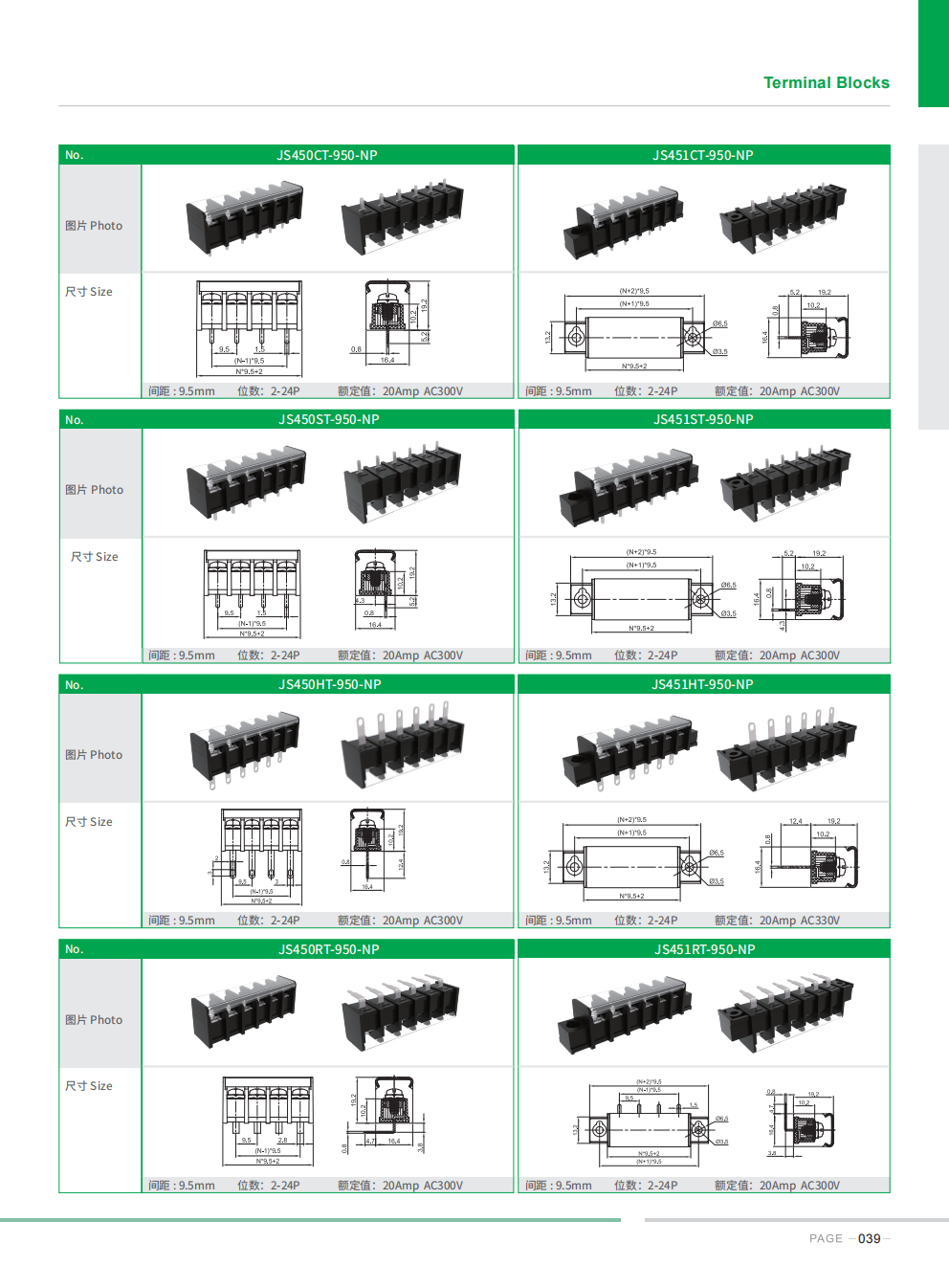

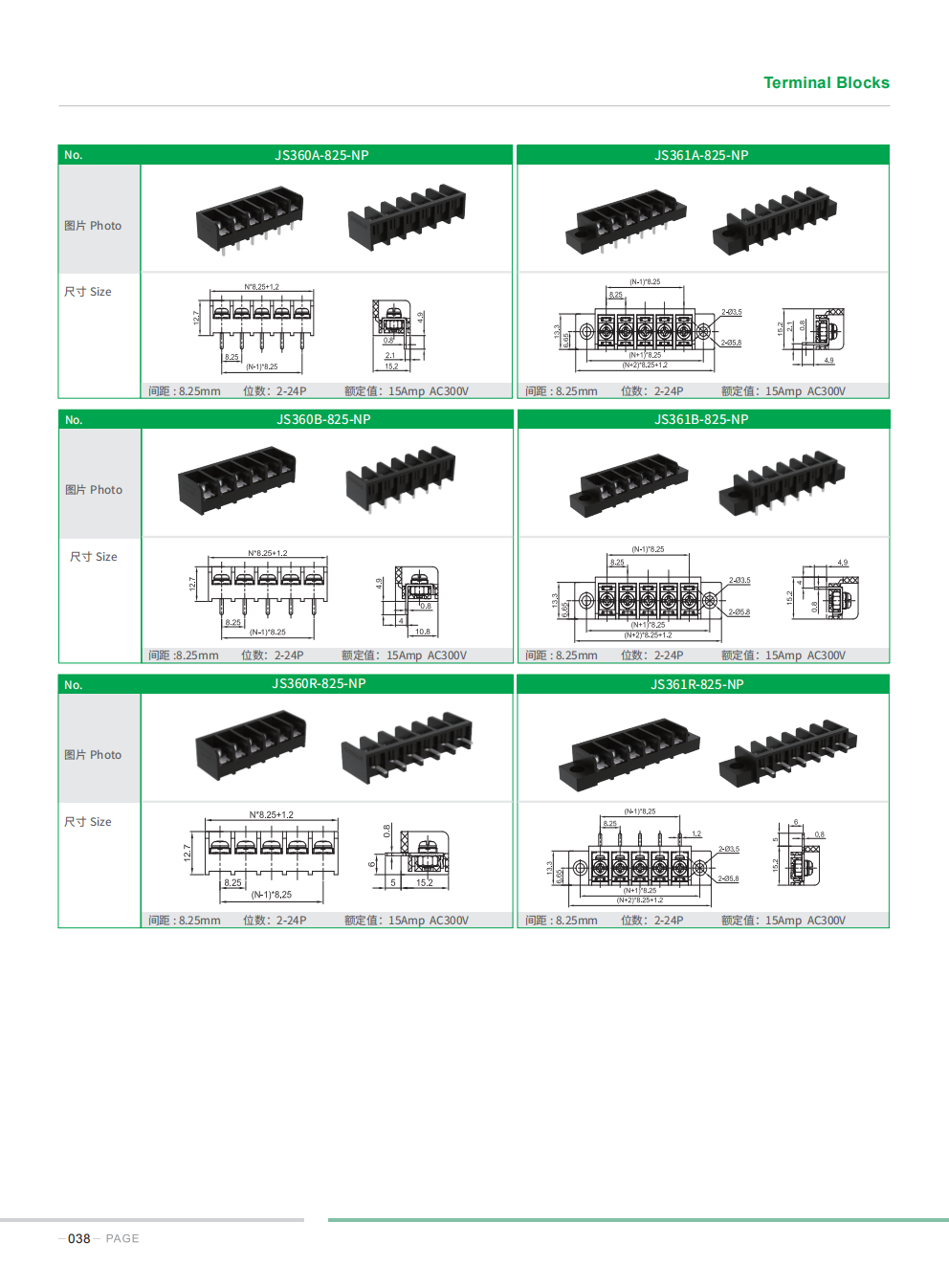

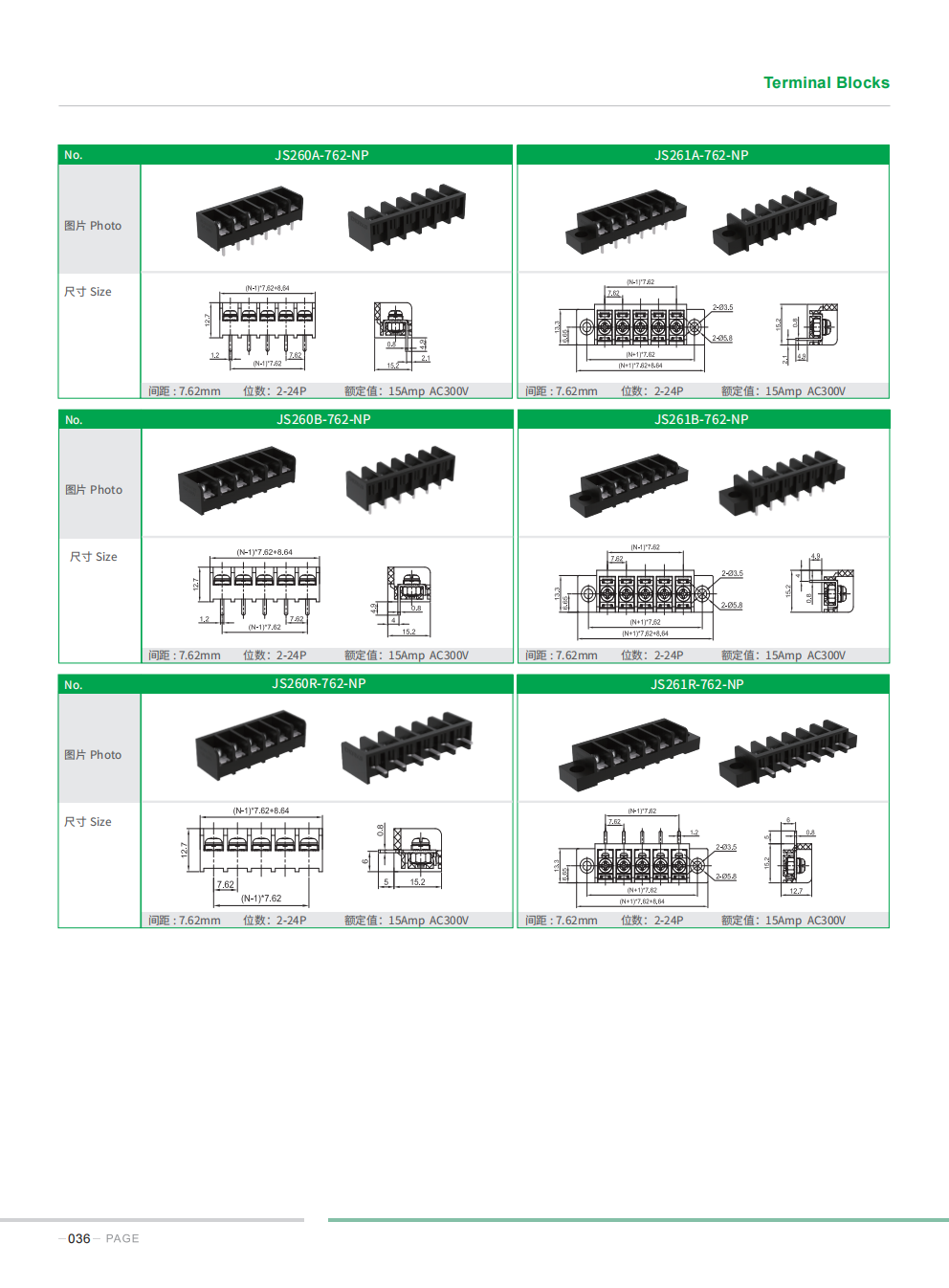

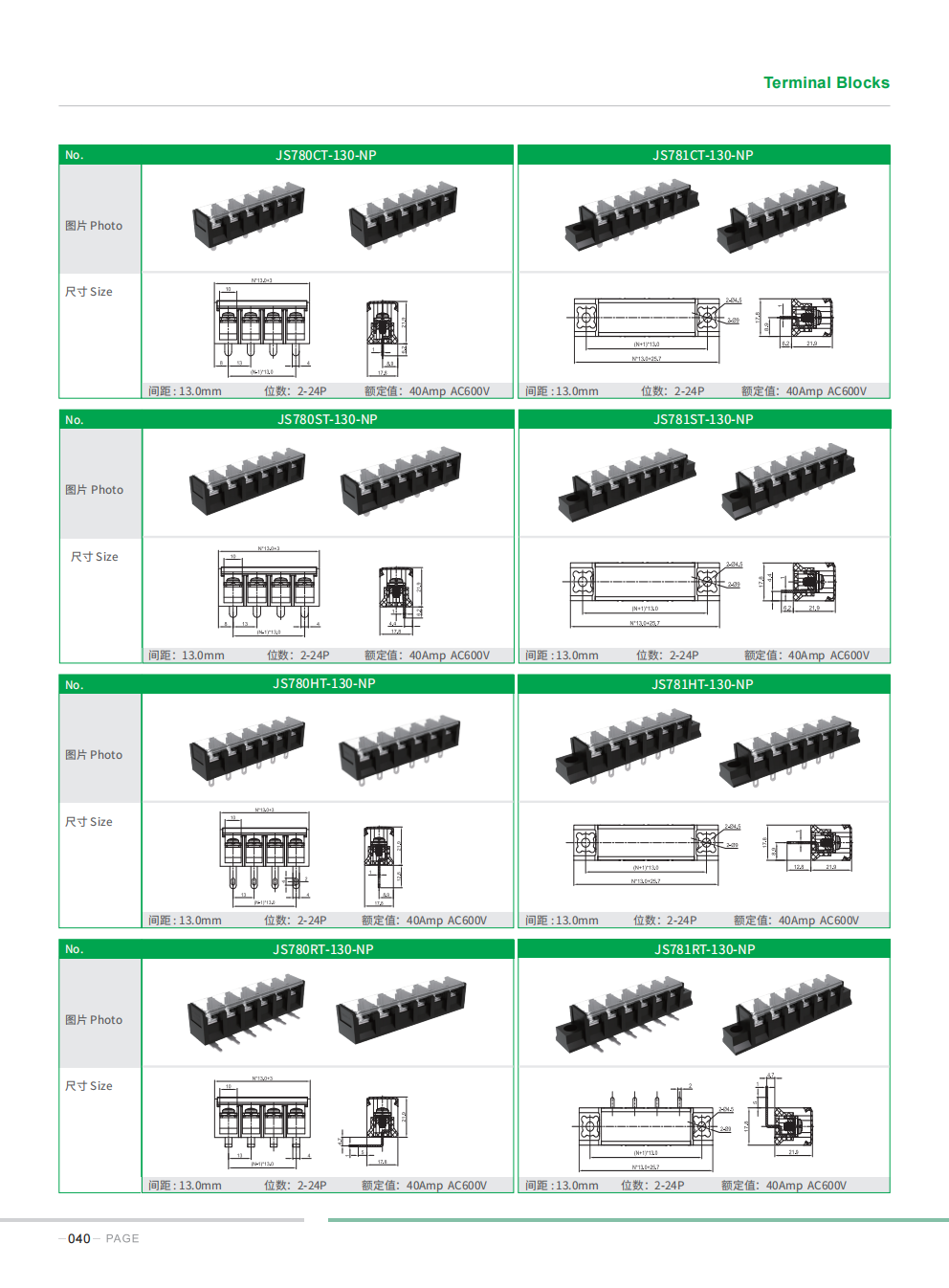

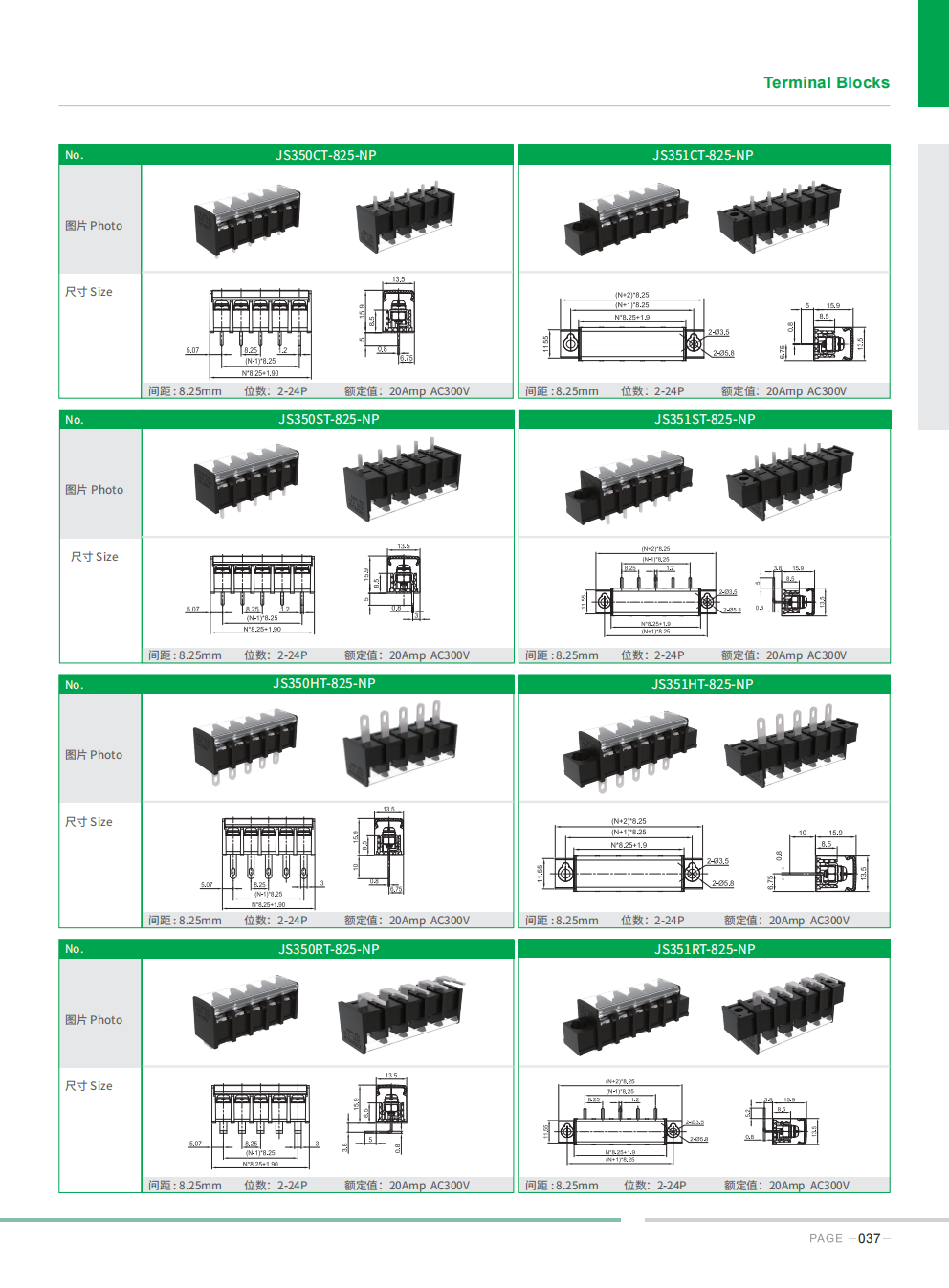

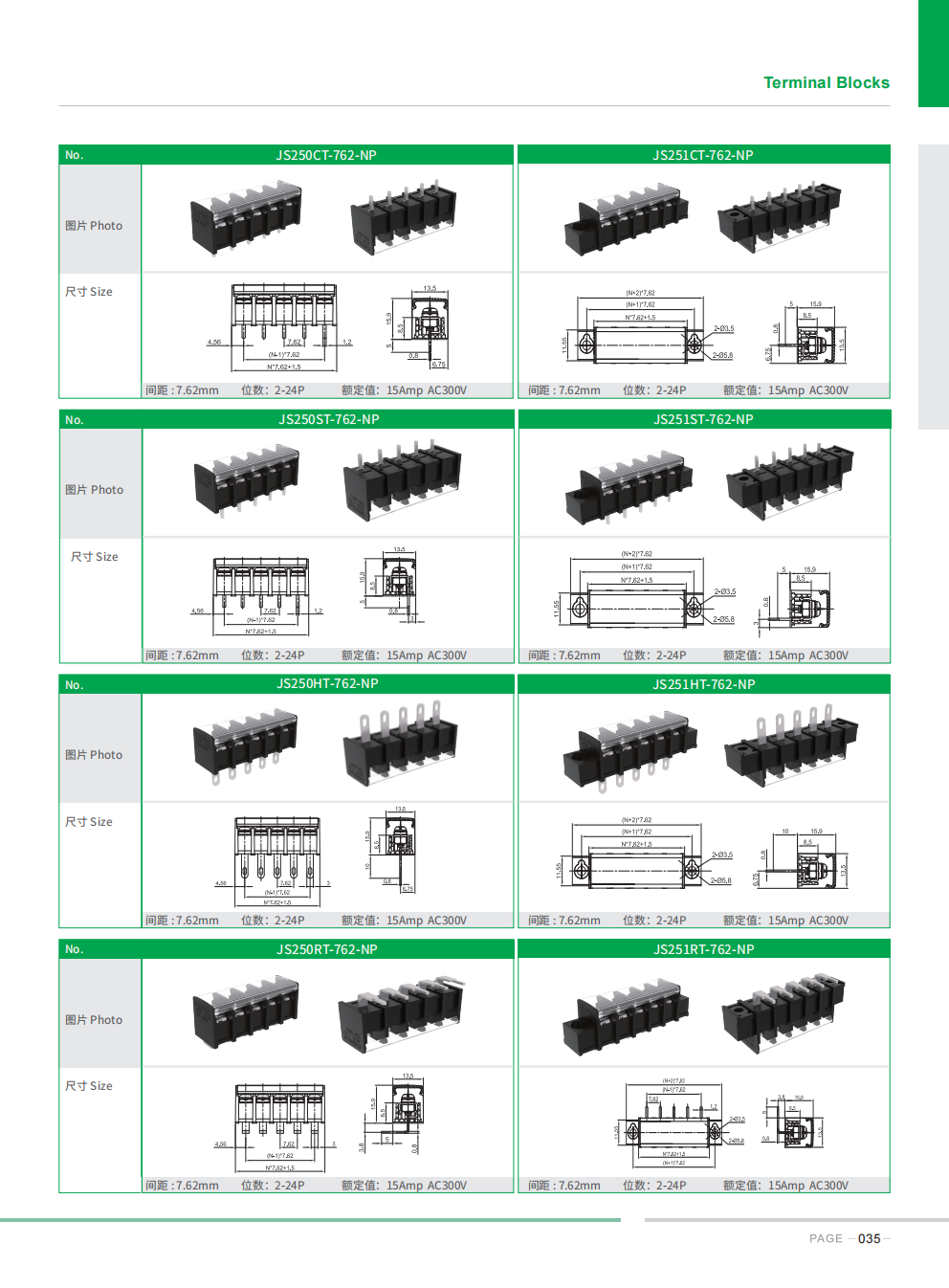

Barrier Terminal Blocks — Specification Matrix
Barrier terminal line covers pitch from 7.62mm to 11.0mm, current up to 76A (IEC 60998). All poles are individually separated by insulating barriers for arc / flashover protection. Representative models:
| Series | Pitch | Voltage (IEC/UL) | Current (IEC/UL) | Wire Range | Poles | Typical Use |
|---|---|---|---|---|---|---|
| GSA25C-7.62 | 7.62mm | 320V / 300V | 24A / 15A | 2.5mm² / 22-14 AWG | 2P-26P | Standard 7.62mm barrier |
| GSA25CW-7.62 / GSA25H-7.62 | 7.62mm | 320V / 300V | 24A / 15A | 2.5mm² / 22-14 AWG | 2P-25P | Flange / right-angle variants |
| GSA30C-8.25 / GSA30S-8.25 | 8.25mm | 450V / 300V | 24A / 20A | 2.5mm² / 22-12 AWG | 2P-26P | Higher voltage 450V |
| GSA35C-8.5 / GSA35SW-8.5 | 8.5mm | 450V / 300V | 24A / 20A | 2.5mm² / 22-12 AWG | 2P-26P | 8.5mm pitch, heavier wire |
| GSA45C-9.5 / GSA45S-9.5 | 9.5mm | 630V / 300V | 32A / 20A | 4.0mm² / 22-12 AWG | 2P-24P | 9.5mm pitch, 32A / 630V |
| GSA55C-10.0 / GSA55S-10.0 | 10.0mm | 630V / 300V | 32A / 25A | 4.0mm² / 22-10 AWG | 2P-24P | 10mm pitch, 32A |
| GSA65C-11.0 / GSA65S-11.0 | 11.0mm | 630V / 300V | 32A / 25A | 4.0mm² / 22-10 AWG | 2P-24P | 11mm pitch, max current barrier |
| GSA825S-8.25 / GSA825R-8.25 | 8.25mm | 300V / 300V | 17.5A / 10A | 2.5mm² / 22-12 AWG | 2P-24P | Right-angle / angled barrier |
| GSA28C-7.62 / GSA28S-7.62 | 7.62mm | 320V / 300V | 24A / 15A | 2.5mm² / 22-14 AWG | 2P-26P | Cover / shield option |
| GSA1000S-10.0 / GSA1000R-10.0 | 10.0mm | 630V / 300V | 32A / 30A | 4.0mm² / 22-12 AWG | 2P-24P | High-current 32A barrier |
All models: brass conductor, PA66 UL94 V-0 housing. Standards: IEC 60998, UL 1059, CSA C22.2 No.158, RoHS. With cover and without cover options. Wire range 0.5-4.0mm². 80+ variants in full catalog — request the complete model list and dimensions datasheet below.
Full Datasheet & Ordering
Complete specification matrix — every pitch, pole count, with-cover / without-cover option — is available on request. Send us your current rating, wire size and panel space requirement and we will return the matching model list, datasheets and quotation, usually within one business day. Download the full catalog (PDF).
